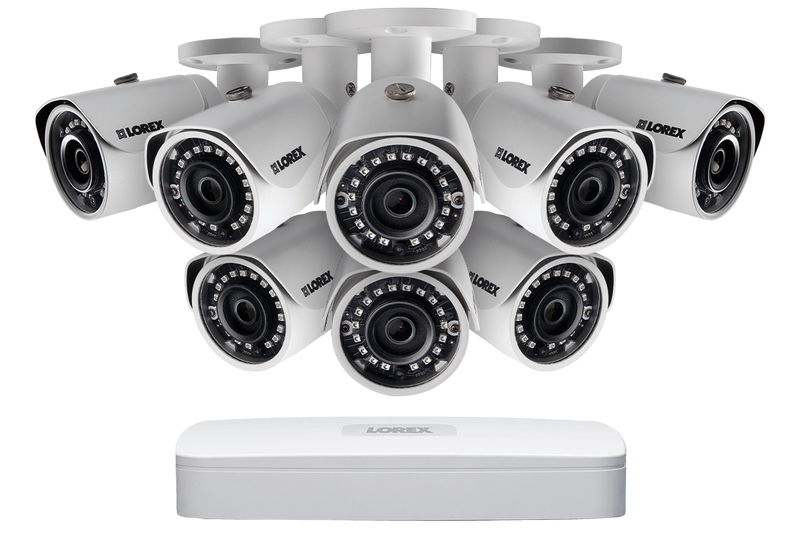

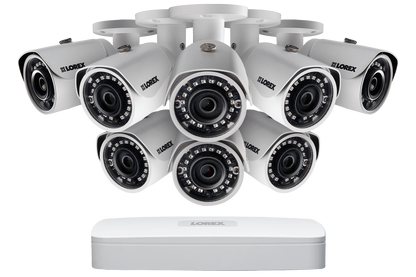

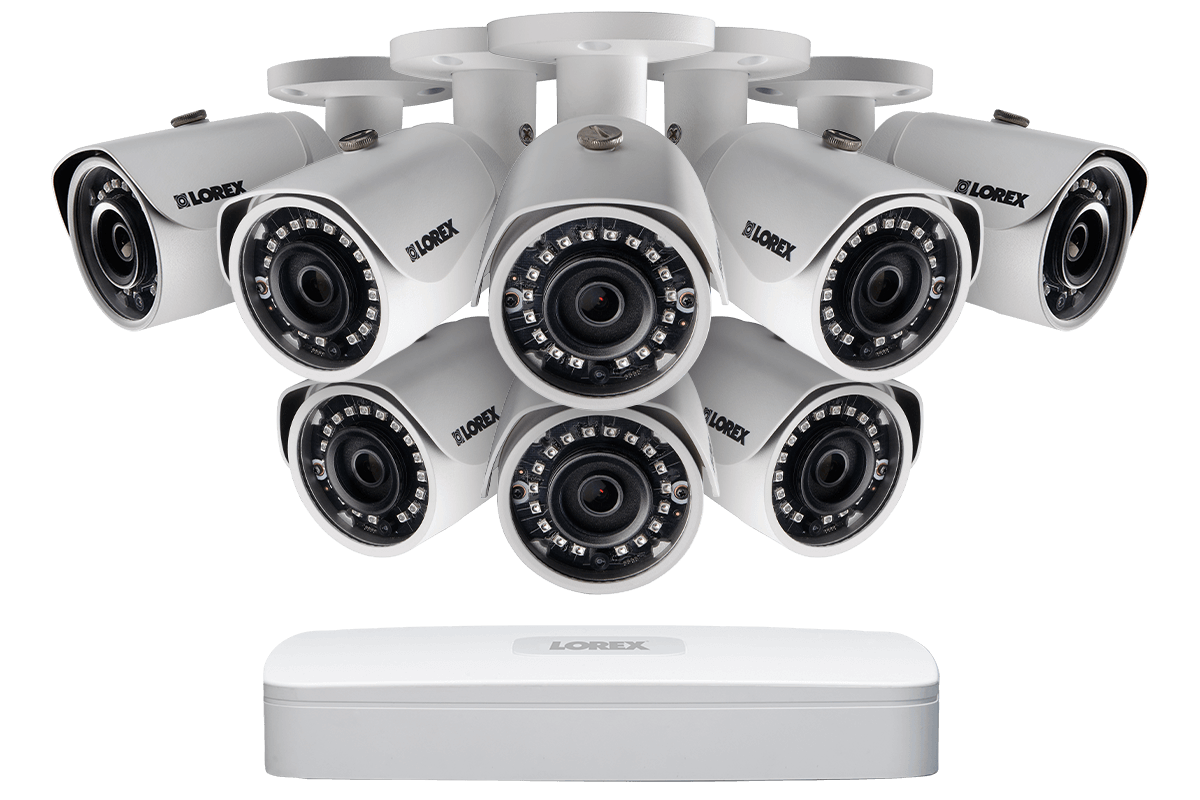

High Definition IP Security Camera System with 8 Channel NVR and 8 Outdoor 2K (3MP) IP Cameras

HDIP88DW

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

1080p HD IP security camera system from Lorex

This security system from Lorex is perfect for your home or small business. It combines a powerful 4K-ready 8-channel Network Video Recorder (NVR) with eight 2K (3MP) IP bullet cameras. Built-in PoE (power-over-ethernet) ports make installation a breeze. Simply connect the NVR and camera with a single ethernet cable. This reduces both installation time and cord clutter. The security cameras are also fully weatherproof and can be installed indoor or outdoors.

HDIP88DW

SPECIFICATIONS

8

CHANNELS

4K NVR can support up to 8 cameras

8

CAMERAS

8 bullet 2K (3MP) IP cameras

130FT

NIGHT VISION

Maximum night vision range

2TB

HARD DRIVE

Maximum Capacity 1 x 8TB hard drives

1080p HD IP security camera


Sharp 2K video

Receive vivid 2K high definition video footage thanks to the advanced image sensors within each of your bullet security cameras. You can also expect smooth on-screen motion from your cameras as they are capable of recording at a high 25 frames-per-second (fps) video rate.

NVR with Power over Ethernet technology

Easy PoE installation

The NVR and cameras are built with easy-to-use PoE ports to make installation easy and clutter-free. All that is needed to connect each camera to the NVR is a single ethernet cable. This all-in-one cable provides:

  • HD video transmission
  • Power the camera
  • Flexible installation options (no need to run power cables to a nearby electrical socket)
Lorex Cloud app

Lorex Cloud™ app keeps you connected

Your security system will always be at your fingertips with our free Lorex Cloud app. With this app you will be able to:

  • Securely view your cameras from virtually anywhere using your smart device or personal computer
  • Receive push notifications and instant email alerts for motion-triggered events
  • Collect time-based lists of motion events (with individual video snapshots)
  • Create an E-map of your security system for quick individual camera access

Works With

infrared night vision security cameras

Infrared night vision for 24/7 coverage

Be confident that your security cameras won't leave you in the dark. They come with powerful infrared LEDs that flood the scene in front of them in infrared light, which, altough invisible to the naked eye, can be seen by the security camera. With a night vision range up to 130ft, you can trust that your security cameras will be there for you around-the-clock.

LNB3163 Night Vision Range
Extreme weather security camera Digital IP system

Rugged and relentless security cameras

The security cameras included in this system are rated IP66 (weatherproof) and can pretty much withstand whatever mother nature throws at them. This includes heavy winds, furious rainstorms, or freezing snow storms.

LNE4322B

LNB3163

Heat Rating

140

Video

What's Included?

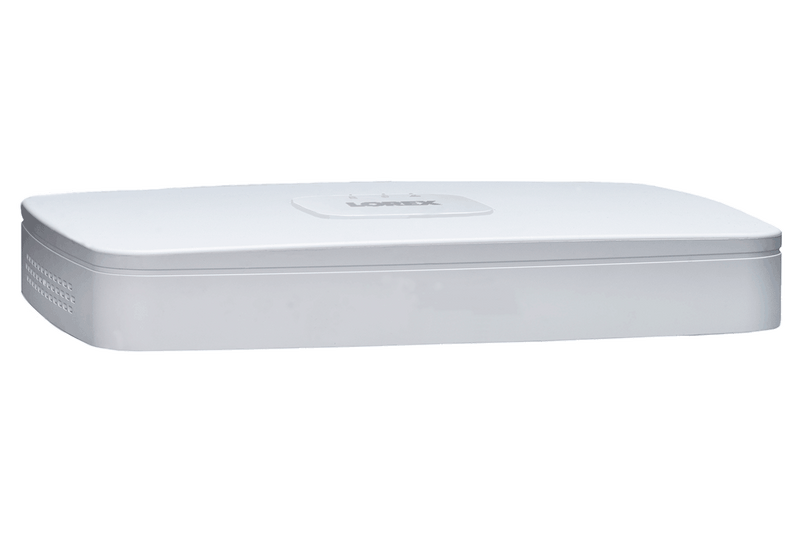

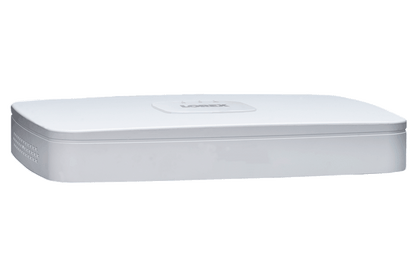

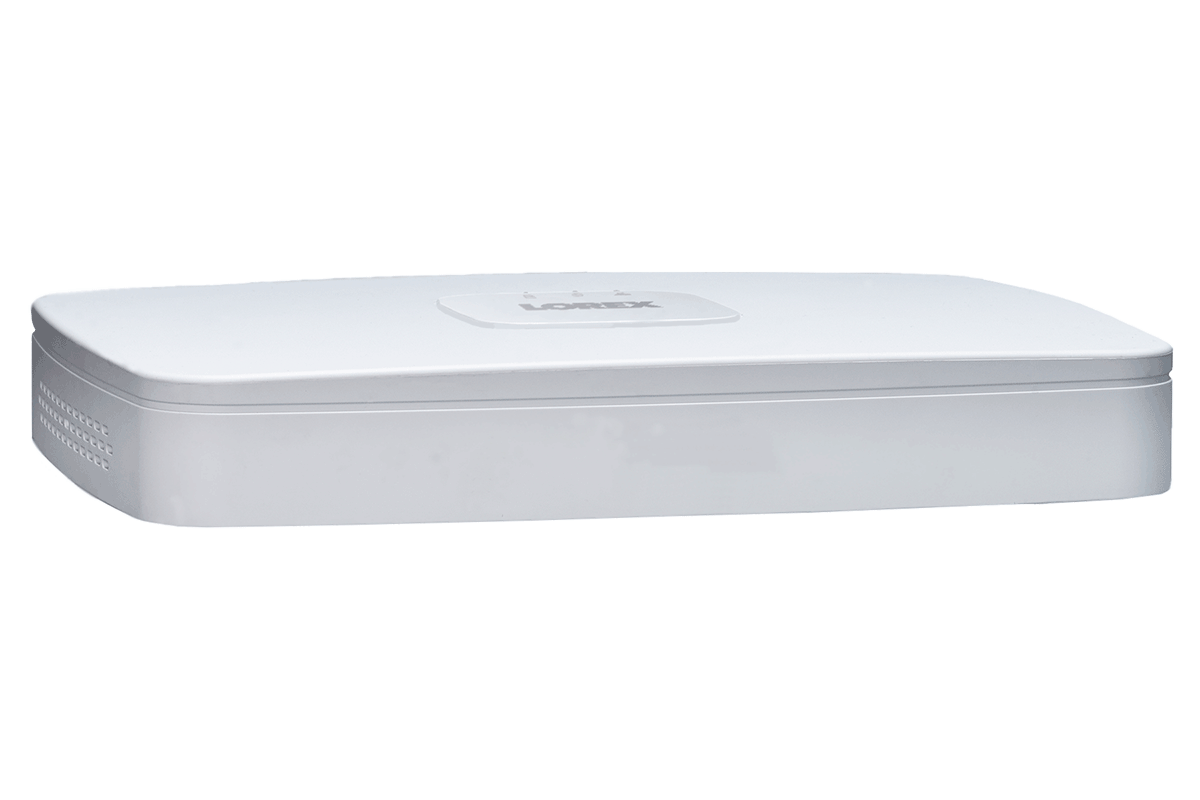

NR8182

4K Ultra HD NVR Features:

  • Supports real-time recording up to 8MP on all channels – 4× the detail of 1080p @ up to 25/30fps
  • Supports industry-leading 4K recording1

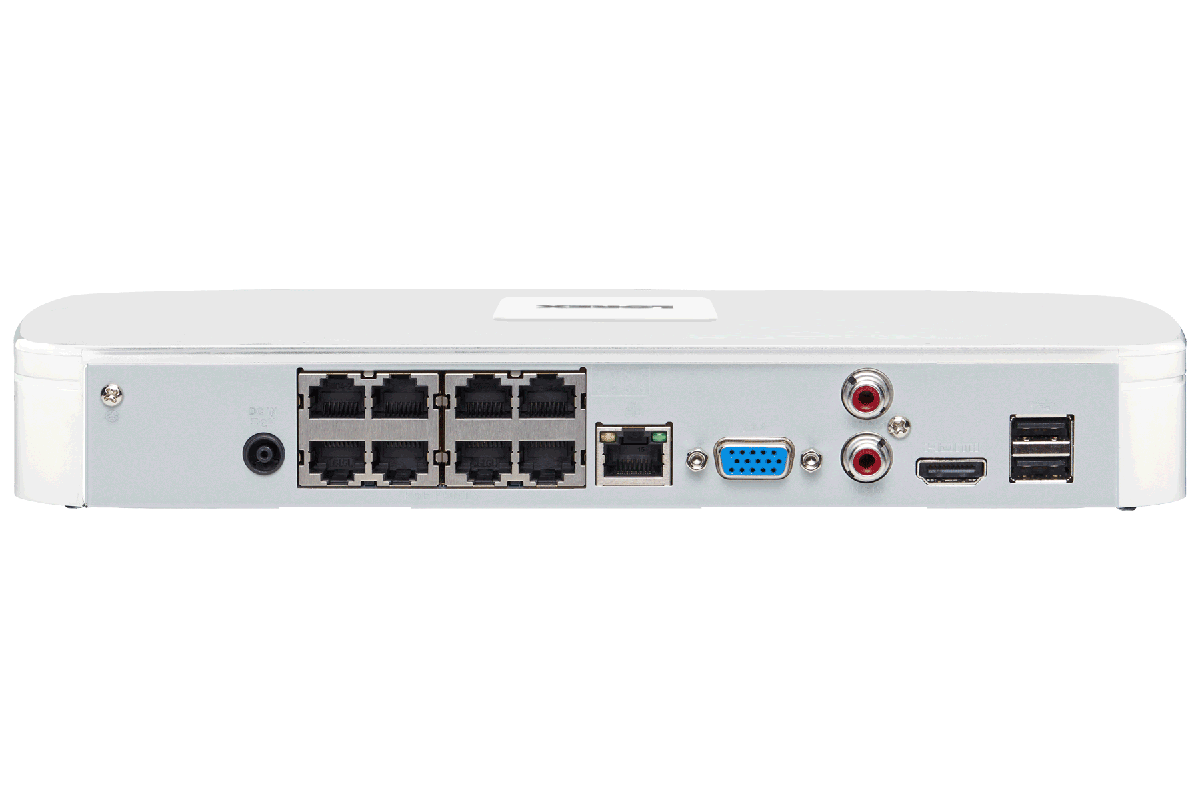

  • 4/8 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • Lorex Cloud™ app for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™)2
  • PC and Mac compatible – Lorex Cloud™ video management software gives you complete control over your security system from anywhere2
  • 24/7 security-grade pre-installed hard drive3
  • Expandable high capacity storage up to 8TB
  • Automatically detects compatible IP cameras in the network4
  • 4K video output – view multiple HD channels in full resolution on a 4K TV
  • H.265 / H.264 video compression offers reduced file size, improved storage and network efficiency3
  • Pentaplex Operation – view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date5
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors

Each NR8182 Includes:

1 × NVR
1 × Power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 8MP IP cameras are required to take advantage of 4K recording.
2. Requires a high speed internet connection and a router (not included). A minimum upload speed of 3.5Mbps is required for the best video performance. Up to 3 devices may connect tothe system at the same time. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support
3. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
4. Compatible with Lorex LN Series IP cameras only. For a list of compatible cameras, please visit www.lorextechnology.com/compatibility
5. Both firmware and software must be updated to latest version to ensure remote connectivity. Firmware updates are pushed to the NVR automatically over the Internet (available at www.lorextechnology.com). Always update to the latest software after upgrading the NVR firmware.

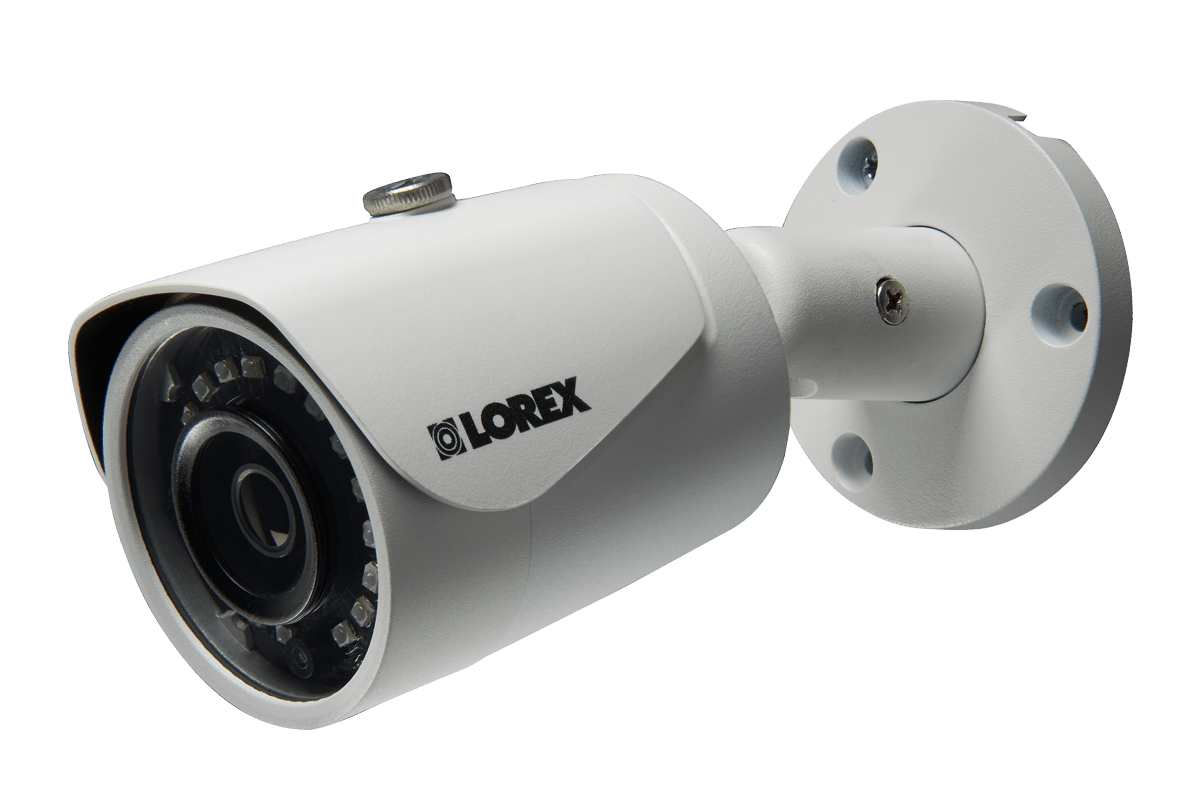

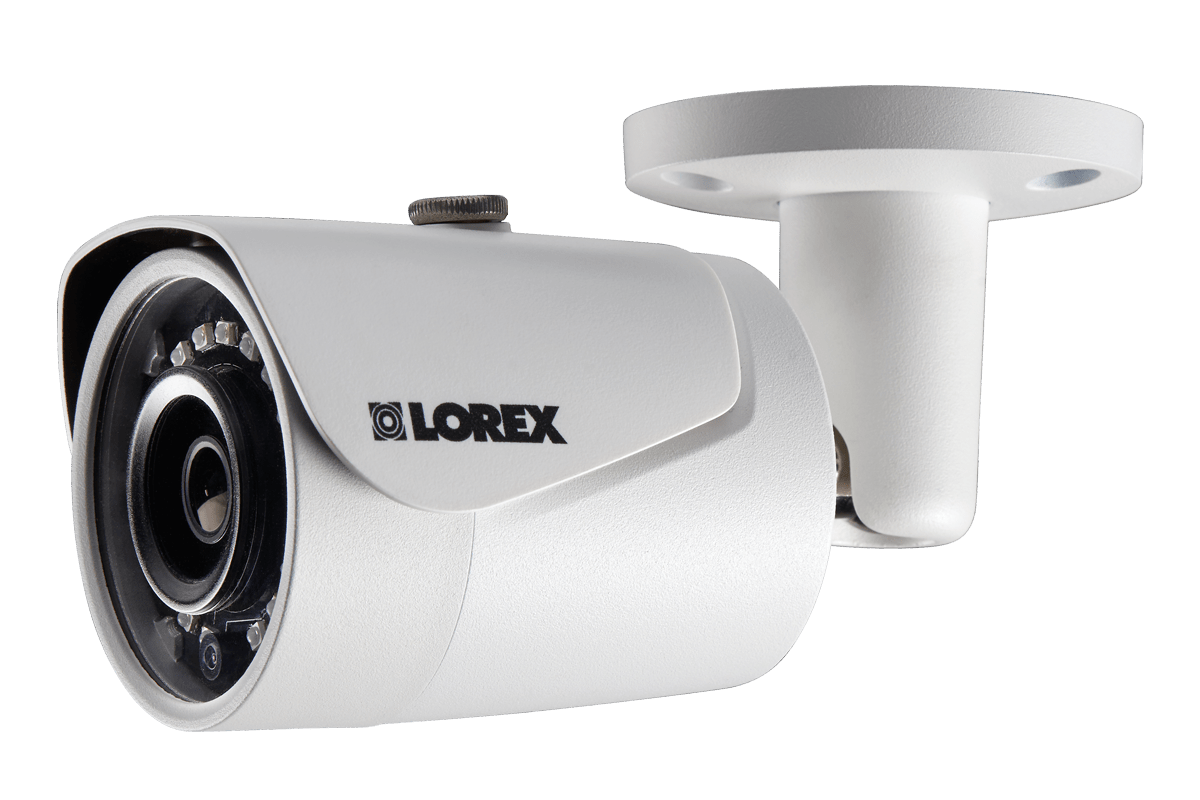

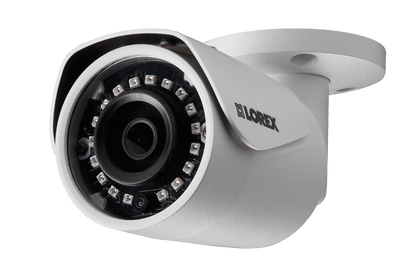

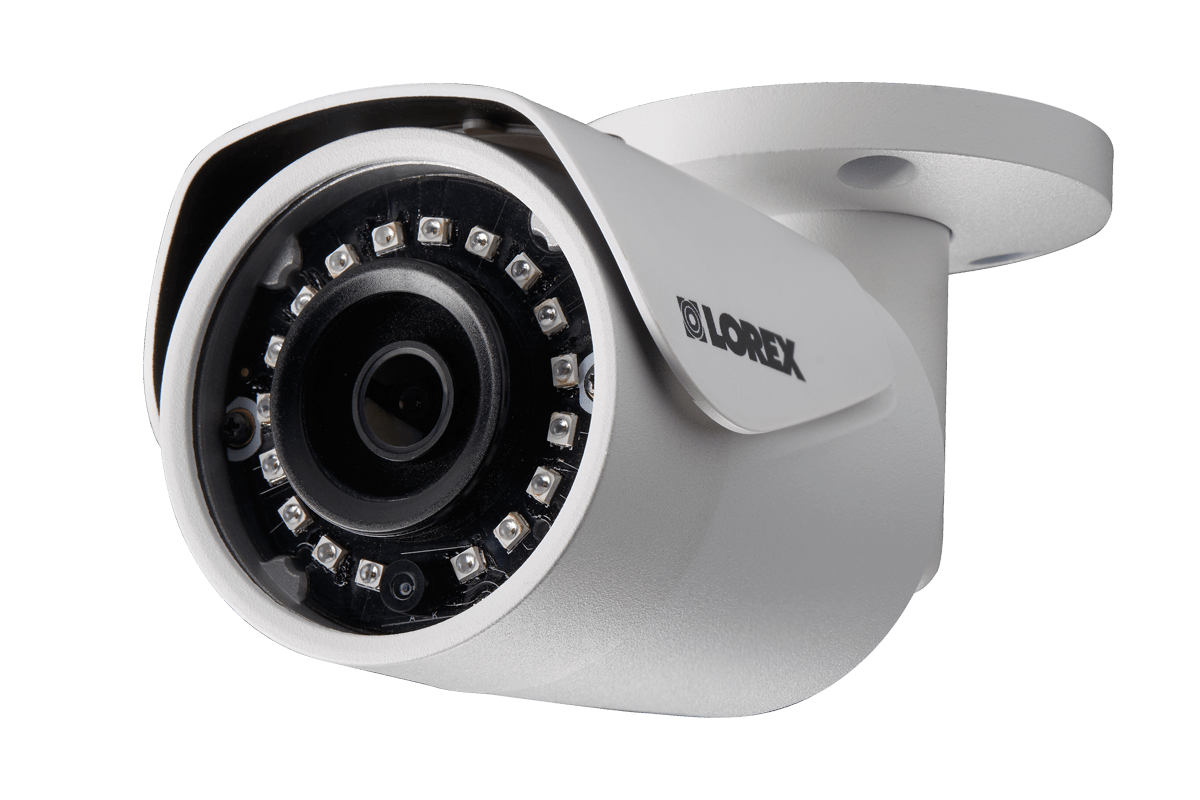

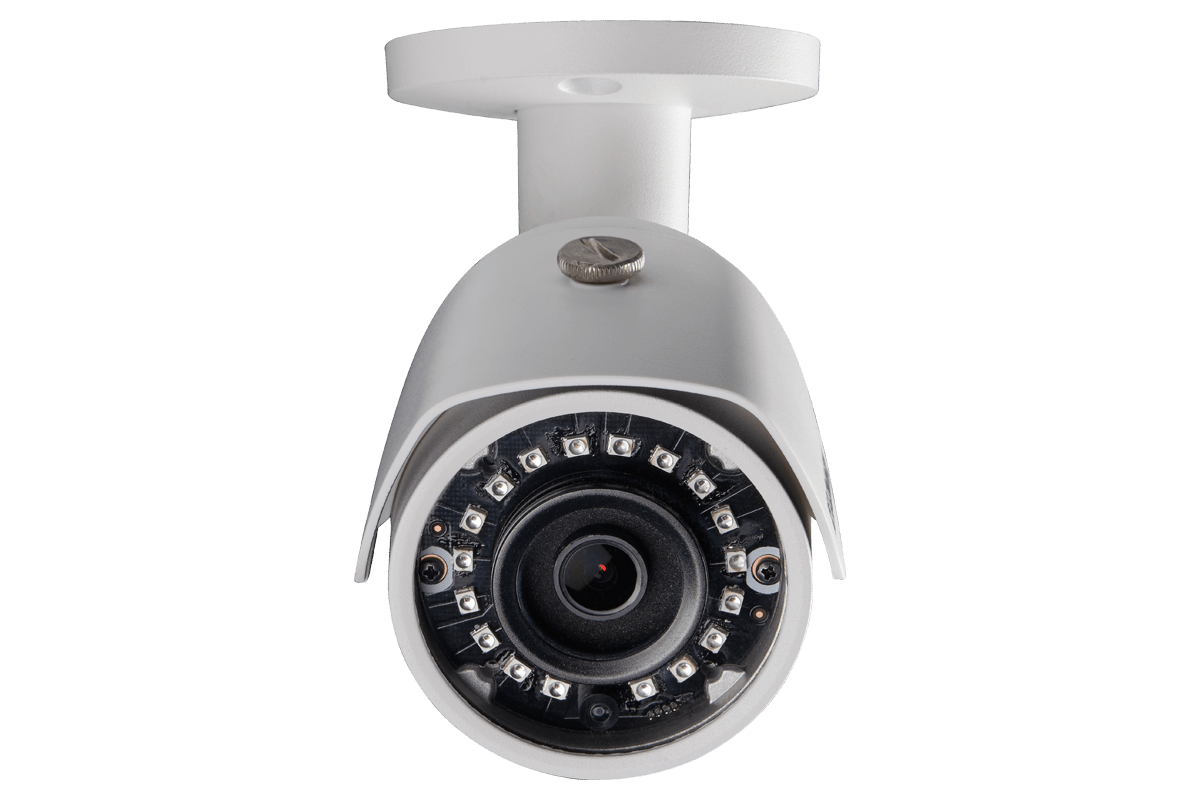

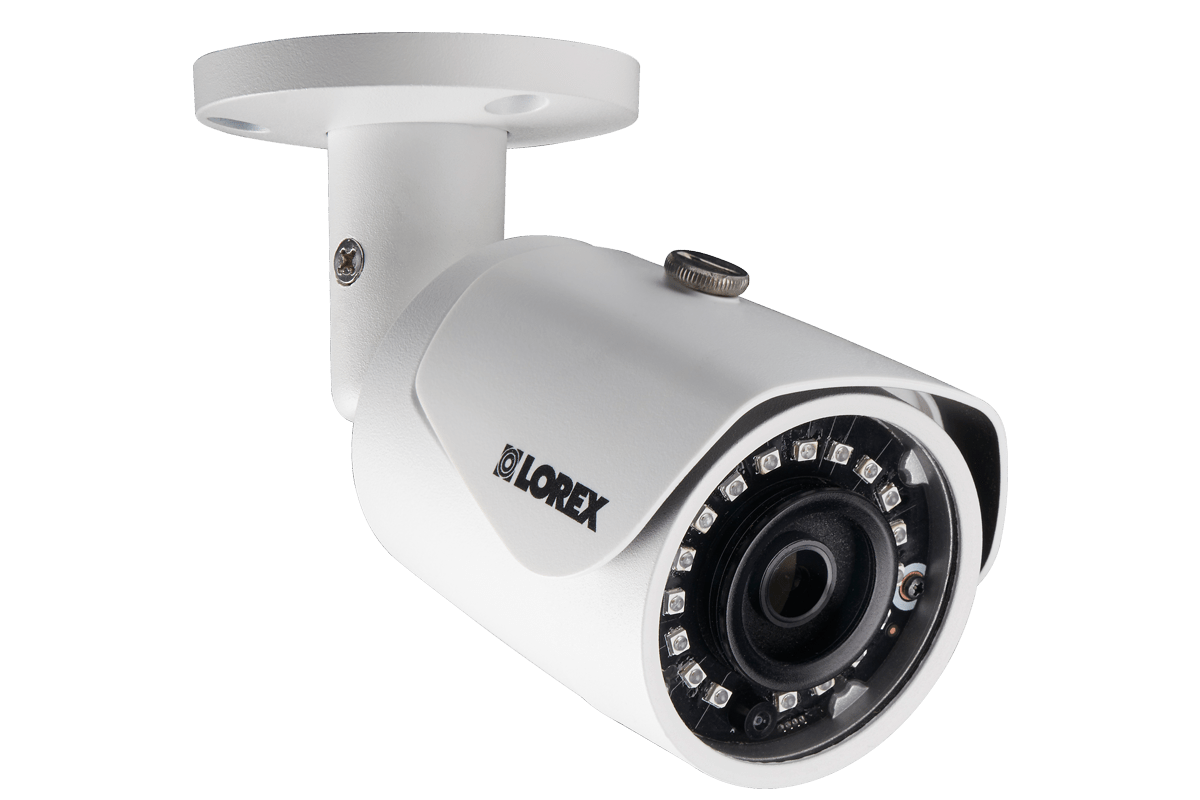

LNB3163

3MP HD IP Security Camera Features:

  • High definition 3MP image sensor delivers 50% more detail than 1080p1
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness2
  • Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • 75° field of view (horizontal)
  • Ceiling / wall mountable
  • Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
  • 60ft (18m) UL-compliant cable suitable for surface and in-wall installation
  • Extend the camera’s video and power with a single Ethernet cable up to 300ft (91m) from the recorder
  • Single-screw bracket adjustment for faster installation
  • Cold climate capability (-22°F / -30°C)
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
Image Sensor 1/3" 3MP
Video Format NTSC / PAL
Effective Pixels H: 2304 × V: 1536
Resolution 3MP (2048×1536) @ 25fps
Scan System Progressive
S/N Ratio ≥56dB (AGC OFF)
Iris EIS
AES Shutter Speed 1/3 (1/4) ~ 1/100,000s
Min. Illumination 0.7 lux without IR, 0.4 lux with IR
Video Output IP
Lens / Lens Type 2.8mm F2.0 / Fixed
Field of View (Horizontal) 75°
Termination RJ45 Ethernet / 12V DC Power Barrel (optional)
IR LED Type 850nm
Night Vision Range 130ft (40m) / 90ft (27m)
Color Night Vision™ Yes
Power Requirement PoE (Power over Ethernet) Class 3 / 12V DC
Power Consumption Max. 285mA / 3.4W
Operating Temp. Range -22° ~ 140°F / -30° ~ 60°C
Operating Humidity Range <95% RH
Environmental Rating IP66 (Indoor / Outdoor)
Weight 0.9lbs / 0.4kg

Each LNB3163 Includes:

1 × IP Bullet Camera
1 × Mounting Kit
1 × 60ft Cat5e Cable

1. Compatible with all Lorex HD NVRs except for LNR100 / LNR200 / LNR300 Series. For the most up-to-date list of compatible recorders, visit www.lorextechnology.com/support
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.
