1. Compatible with select 4MP cameras, 1080p & 720p MPX cameras and standard analog cameras. For a list of compatible cameras please visit www.lorextechnology.com/compatibility
2.Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.3. HDMI output up to 4K (8/16ch), 4ch supports up to 4MP output. VGA output is 1080p for all models. Up to 2K (4MP) recording resolution is limited to a maximum of 4MP per channel. Image quality and resolution is dependent on the type of camera connected to the DVR. VGA output is limited to 1080p resolution.
4. Requires a high speed internet connection and a router (not included). A minimum upload speed of 3.5Mbps is required for the best video performance. Up to 2 devices may connect to the system at the same time.

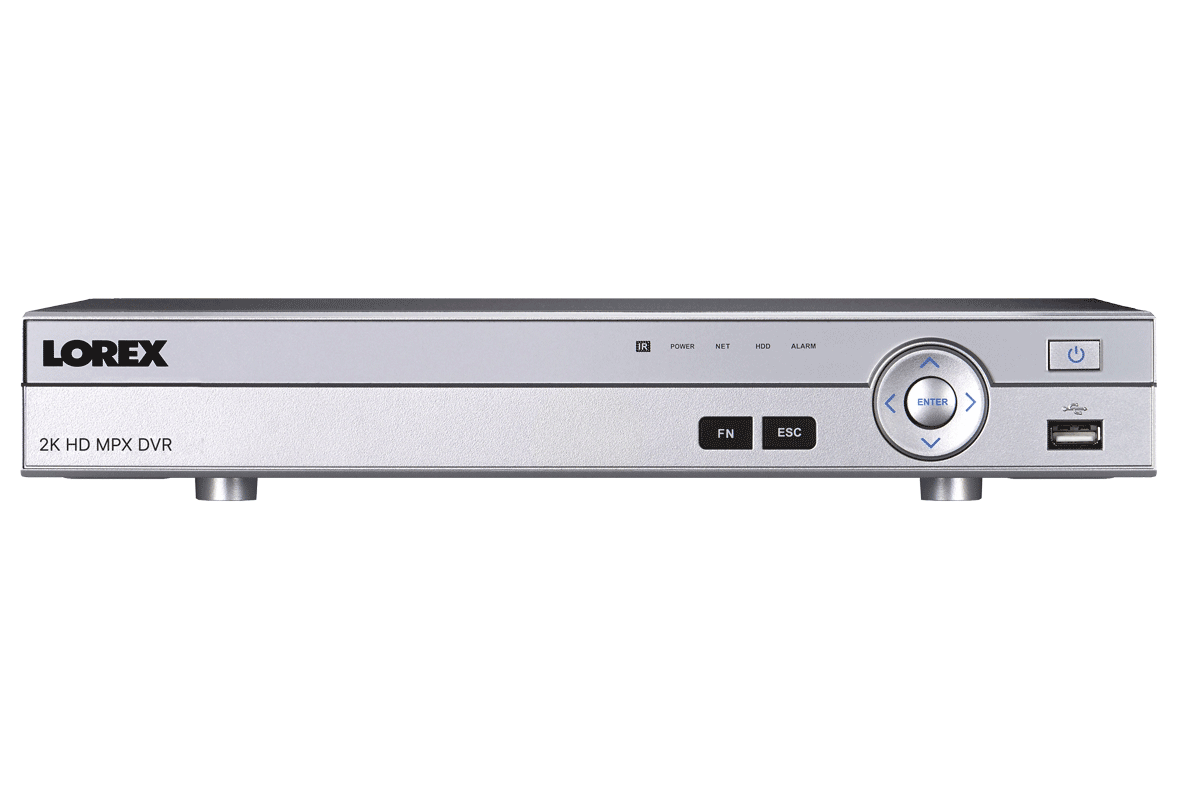

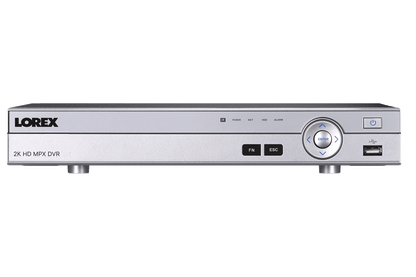

Choose this powerful 4-channel 2K resolution Digital Video Recorder (DVR) to be the cornerstone of your MPX security camera system. It has been built to handle the workload required of a 24/7 monitoring system, and includes a wide variety of features to help you monitor faster and smarter. Designed to work with advanced megapixel (MPX) security cameras, this DVR can provide you with exceptionally detailed 2K resolution video and smooth on-screen movement. With easy security camera connections and a straightforward user interface, this DVR is perfect to help you protect your property and your loved ones around-the-clock.
DVR supports up to 4 cameras
Double the resolution of HD 1080p
Maximum Capacity 1 x 8TB hard drives
2K resolution security footage
In order to capture the details you need, you need a security DVR that can handle recording high quality security footage. Thankfully, this DVR is capable of recording crystal clear 2K resolution footage on all channels*. This resolution is double that of 1080p, and will provide you with richer detail and higher quality digital zooms.
*4MP High Definition MPX cameras are required to take advantage of 4MP recording.
The 2K difference
SuperHD 2K video offers clear identification and exceptional detail, ensuring that nothing is left to the imagination. This higher resolution (2592 × 1520 pixels - compared to 1920 × 1080) will provide you with a better chance to capture important details, such as faces. Doubling the amount of pixels will also vastly improve the quality of digital zooms when reviewing footage. This means that if you see something in the distance of your footage, you will be able to digitally zoom in twice as far before the image starts to blur together.
Real-time 30FPS recording rate
Choose to record 2K resolution at 12 frames per second (FPS) or record at a real-time 30 frames per second (FPS) rate at 1080p resolution. This high frame rate provides real-time motion, ensuring that you don't miss the best moments.
Remote viewing from your mobile with FLIR Cloud™
The DV800 Series DVR is designed for use with our innovative hassle-free Flir Cloud™ app Using FLIR Cloud™, you can quickly and easily view your security system remotely from your smartphone or tablet. There are no difficult port forwarding or other complicated network setups either. Simply download the free app, scan the QR code on the DVR and your cameras will appear for you to monitor (or review footage). You can also program the app to send you motion-activated push notifications and email alerts with screenshot attachments straight to your phone to keep you connected to your property at all times.

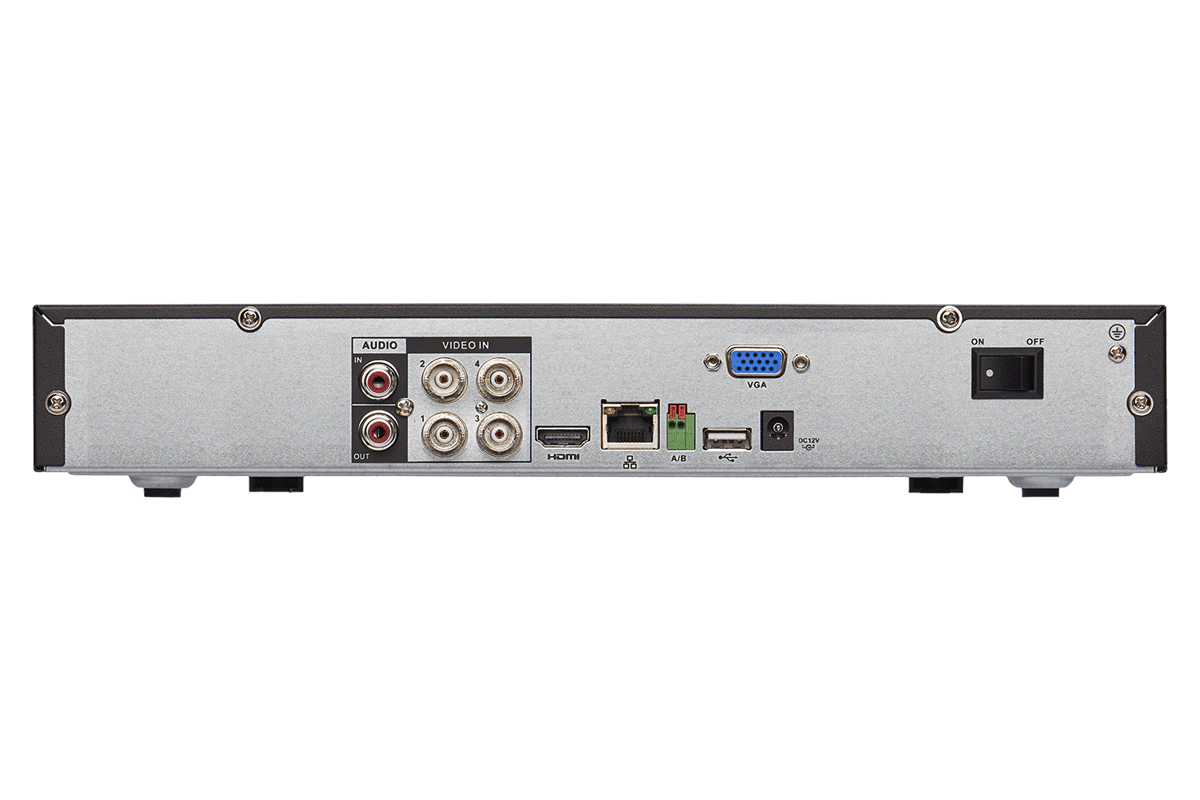

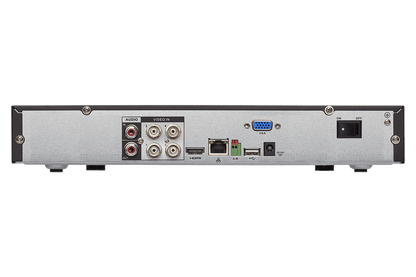

Single cable camera connection
Standard siamese BNC cabling is used to connect MPX security cameras. This BNC cable provides both video and power transmission up to 300ft for an easy-to-install process that will have your surveillance system up and running in no time. If needed, MPX HD cameras can be installed further than 300ft away, but the camera will need to be plugged in directly to an electrical outlet.
Supports a full range of MPX, analog, CVI, and wireless cameras
This DVR is compatible with our full line of high definition MPX and wireless security cameras (excluding wire-free security cameras). It is also backward compatible, meaning older analog and CVI security cameras will still work as well.
Upgrade older DVR systems
The technology within a Lorex DVR has changed drastically over the past few years. Thankfully the way in which camera cables are connected to it has not. This means that it is extremely easy to upgrade your older DVR security system to a new one. You can also easily swap your older analog cameras for brand new HD ones using the same cabling.
Reliable security grade hard drive
DVRs such as this are capable of working 24/7 without a break. Thankfully, so is the 1TB hard drive within it. Lorex uses security certified hard drives that are manufactured specifically to meet the high workload demands of continuous security monitoring. This means that you can rely on this professional grade hard drive to safely store weeks (or even months) of security footage. It is also possible to manually upgrade the hard drive within the DVR to a hard drive up to 8TB in size.
Visit our Hard Drive Calculator to estimate your desired specifications.
Different recording modes
This DVR has three different recording options to suit your needs. You can record footage continuously, during scheduled times, or when movement is detected. These options can be customized with each of your security cameras, which means you can have your most important camera recording all of the time while lower activity cameras can be programmed only to record on motion. To be safe, this DVR includes a pre-recording function that goes along with the motion recording option. This feature will go back to record the five seconds before the motion is detected, so you never have to worry about missing those first vital moments.
You don't have to worry about storage management with this DVR. It is designed to automatically overwrite the oldest data with the newest data when the hard drive becomes full. This means that you will never run out of storage space. Just make sure to save any important footage before it gets overwritten.
Automatic recovery after power failure
An auto-recovery feature will automatically reboot your DVR once it regains power. This means that you don't have to do a thing - your system will simply start recording again within minutes. A Watch Dog function is also built-in to this DVR that continuously monitors the system for potential system errors. If it detects a critical error, Watch Dog will automatically reboot the system, which helps ensure system stability, keeps your cameras recording, and prevents future system failures.
