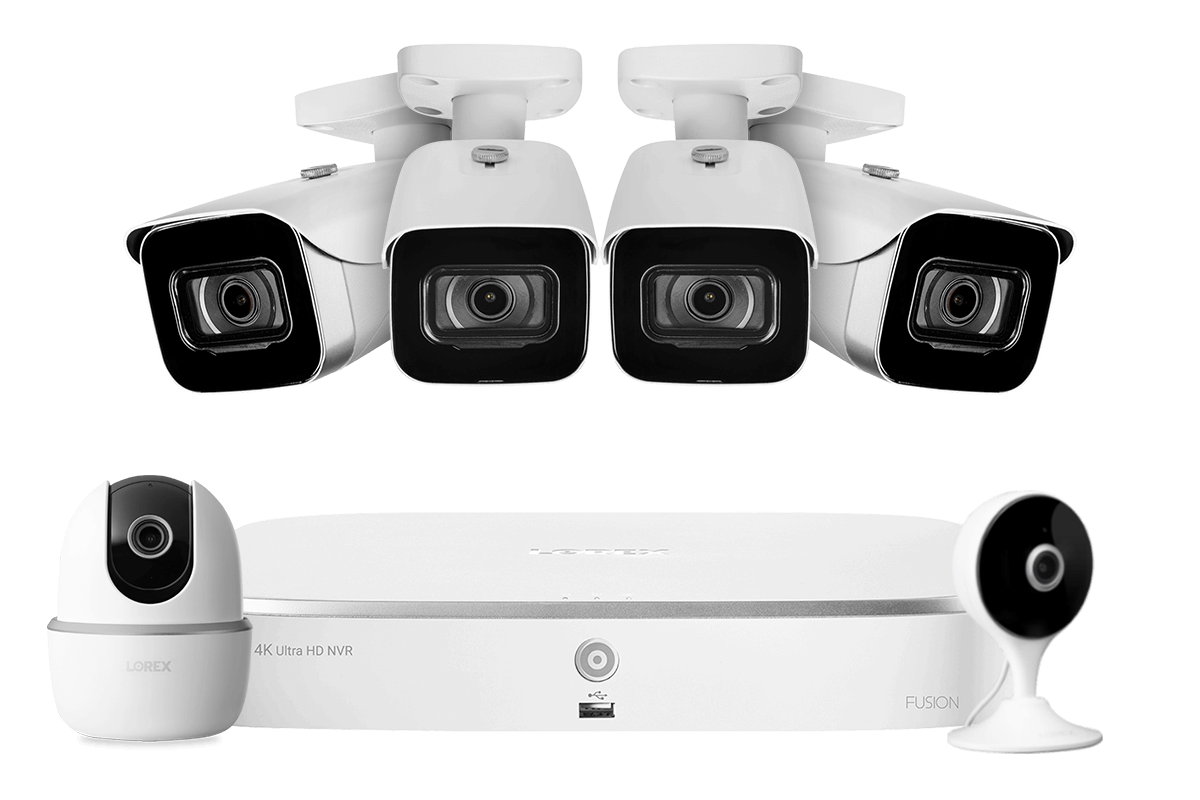

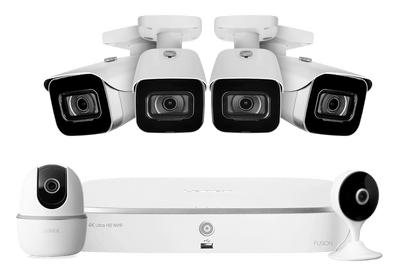

Lorex Fusion 4K 16 Camera Capable (8 Wired + 8 Wi-Fi) 2TB NVR System with 4 IP Bullet Cameras, One 2K Pan-Tilt Camera and One 2K Indoor Wi-Fi Camera

FN4K2-84WB-JP
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Welcome to the next generation of Fusion. This revolutionary NVR has 8 wired channels and 8 Wi-Fi channels. This allows you to combine the reliability and performance of the included 4K IP Security Cameras with the versatility and convenience of Smart Home Wi-Fi Cameras, Video Doorbells, and Floodlights to create a tailored security system perfect for your property.



See Clearly,
Day and Night




Ultra HD Resolution

Color Night Vision



Built for the outdoors

Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.



140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof

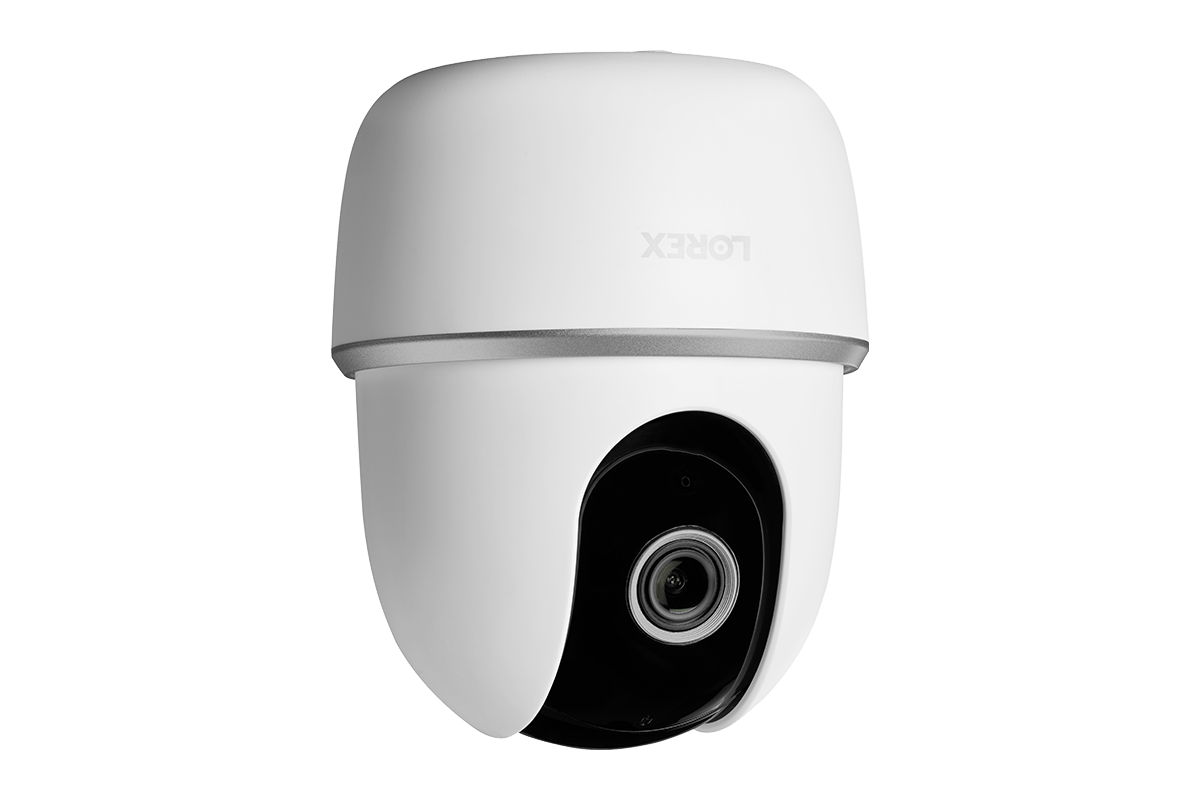

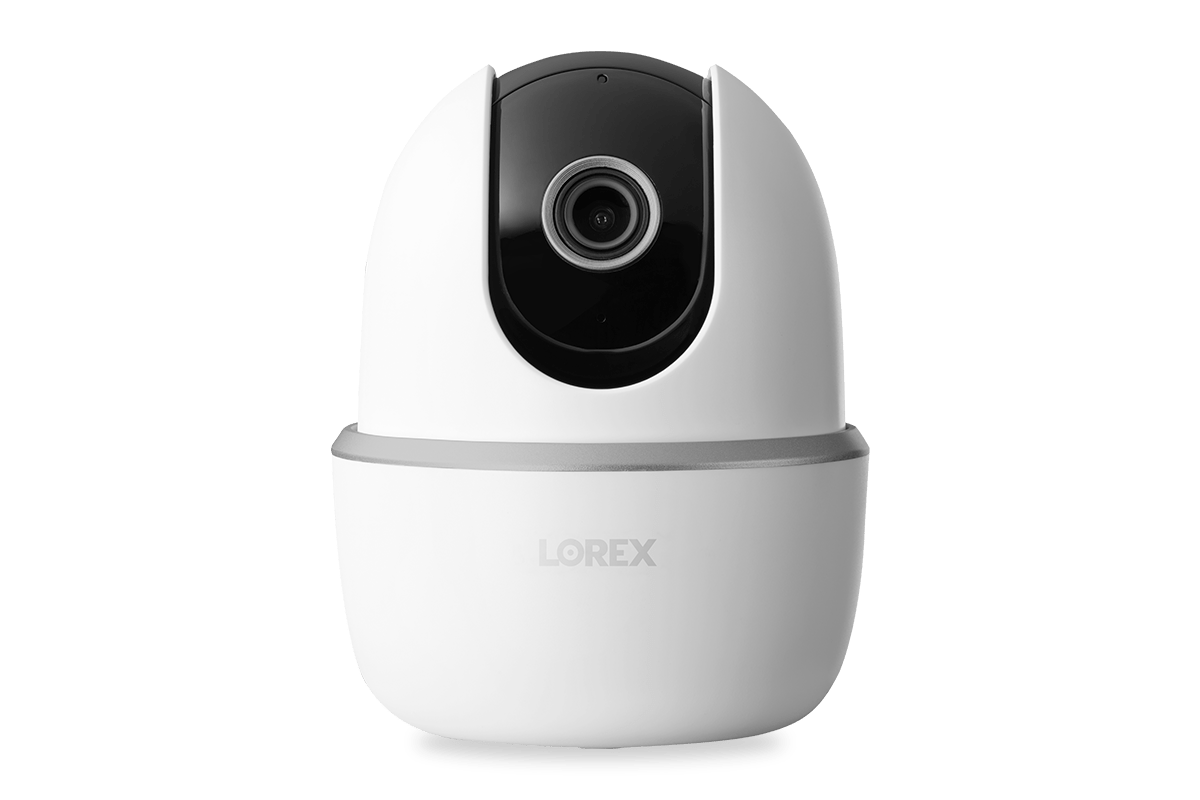

2K Pan-Tilt Indoor Wi-Fi Security Camera

This camera's Pan and Tilt feature allows you to view an entire room with just one camera, while the Privacy Mode ensures that the camera lens is hidden.

Learn More

The Pan and Tilt feature allows the camera to swivel left and right and tilt up and down for expanded coverage. The digital zoom feature on the Lorex app will also help you get closer to the action.

Avoid false alerts and unnecessary notifications with person detection, which is designed to recognize when a person enters the camera's field of view.

Use the 2-Way Talk feature to speak and listen to the person on the other end of the camera.

Enable Privacy Mode using the Lorex app to temporarily disable your camera. This may be useful while you're at home and don't need the camera to record or send notifications.

The camera will automatically switch to infrared night vision when light is limited. With a Night Vision Range up to 32ft (10m), you won't miss a thing.

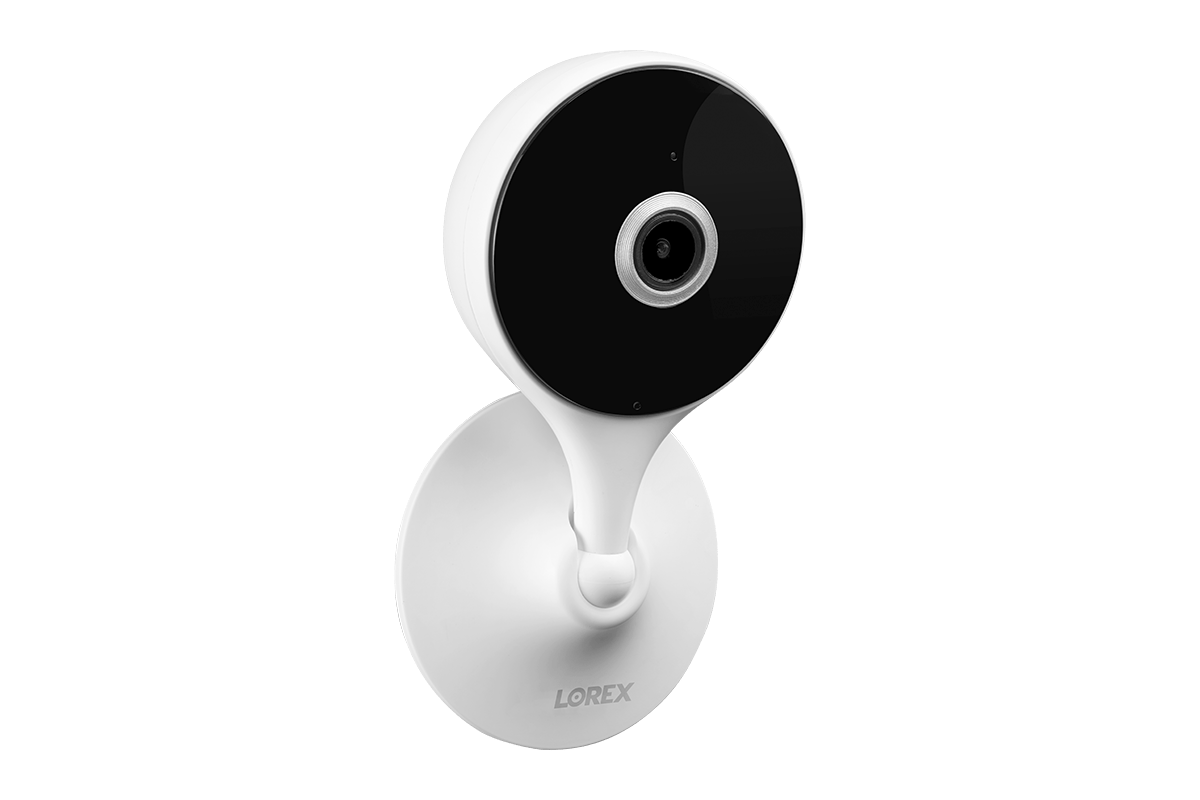

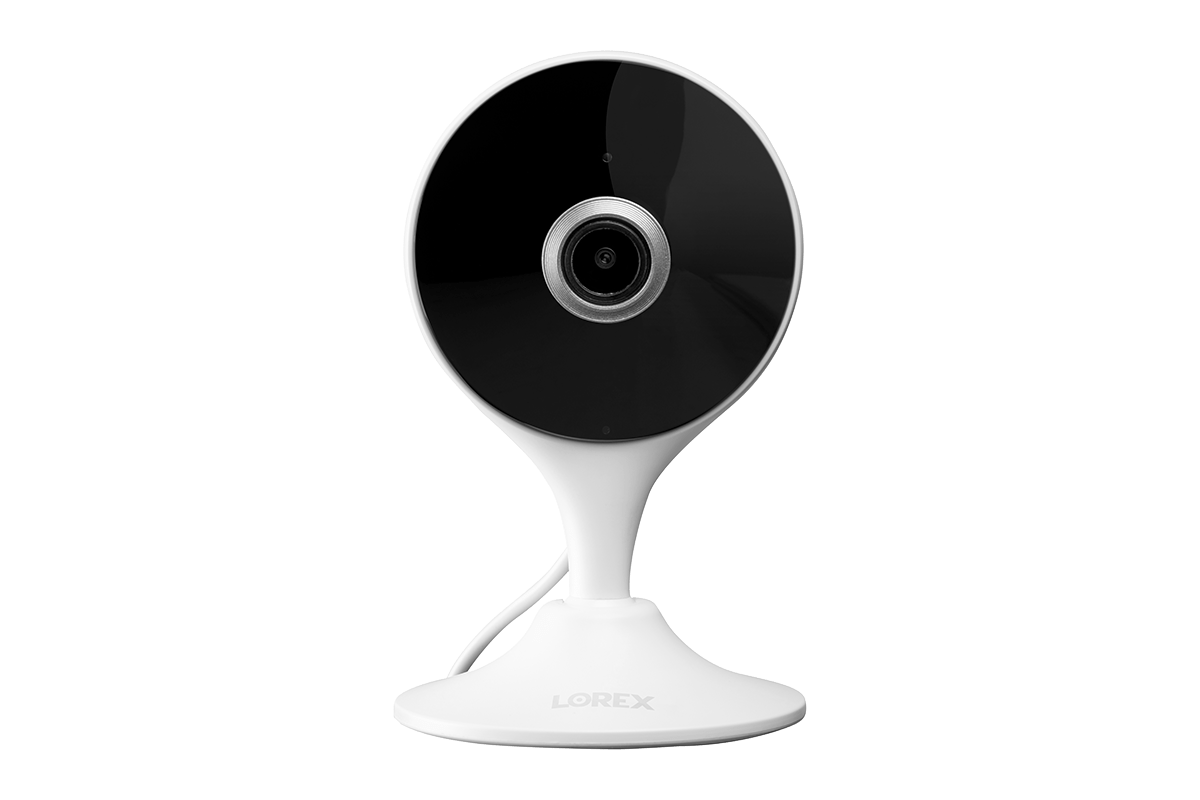

2K Indoor Wi-Fi Security Camera

The compact, lightweight design and magnetic base promise flexibility in placement, while the included mounting kit allows for ceiling or wall installation.

Learn More

A 4MP image sensor provides 2× the resolution as 1080p. This creates exceptionally sharp and detailed video.

Avoid false alerts and unnecessary notifications with person detection, which is designed to recognize when a person enters the camera's field of view.

Use the 2-Way Talk via the Lorex app to talk and listen to the person on the other end of the camera.

Keep your footage private and secure with the camera's built-in local storage or use the NVR's included hard drive storage.

When light is limited, the camera will automatically switch to infrared night vision so you won't miss a thing.




Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa

Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.




Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 8 wired and 8 Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.




All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*

Lorex App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.



*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.


Fusion Devices


Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.



What's Included?

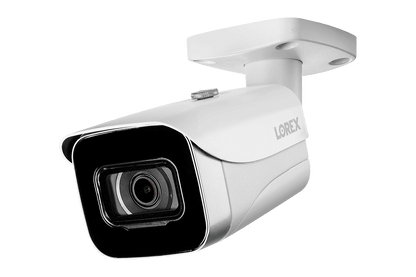

V261LCD Overview

Dimensions (WxDxH): 2.8" x 7.1" x 2.8" (70mm x 180mm x 70mm)
Weight: 1.15lbs / 0.52kg

Package Contents:

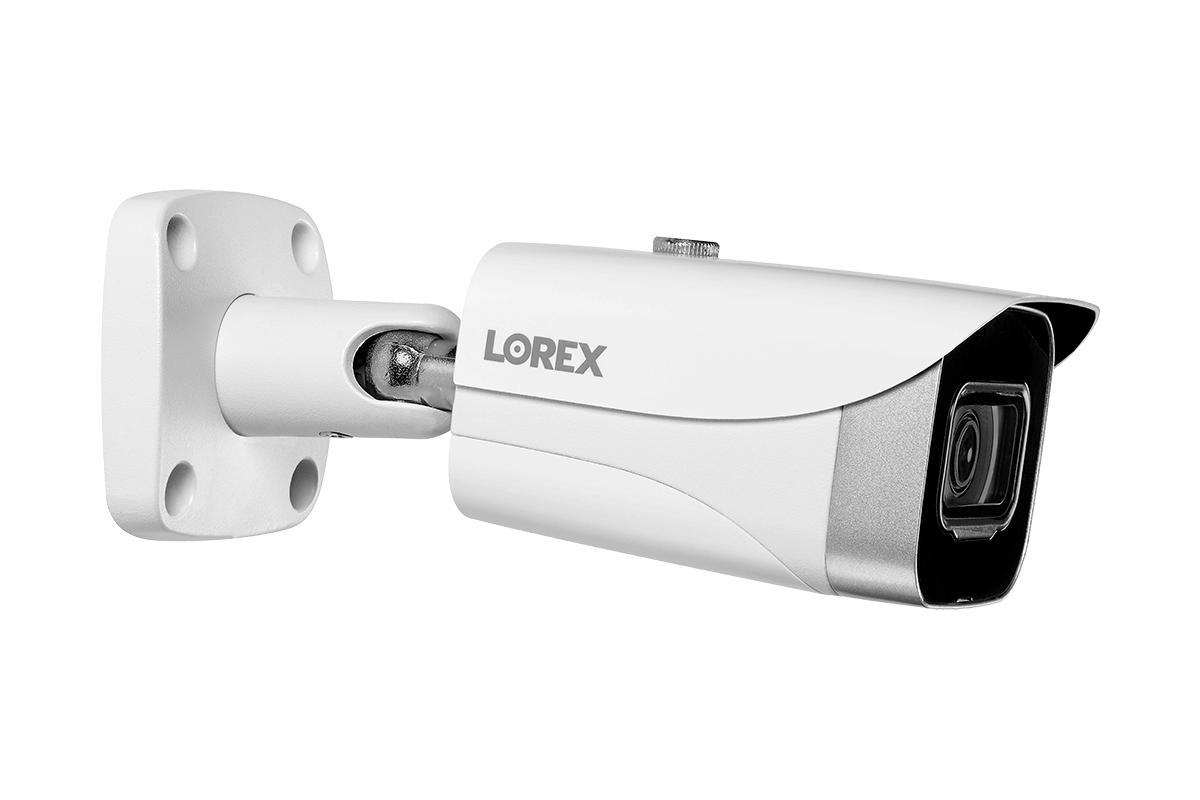

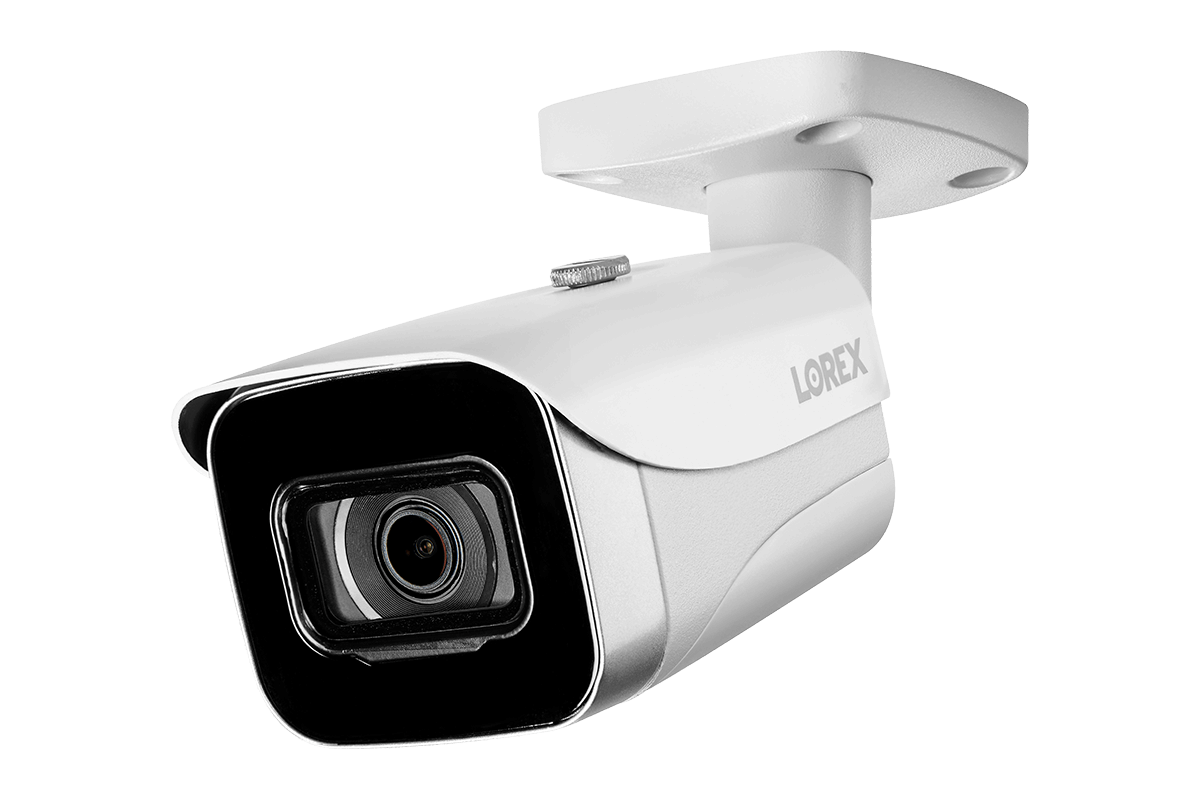

4K IP Bullet Camera

Mounting Kit

Cat5e Ethernet Cable

Quick Start Guide


  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  • See more with a wide-angle 105° field of view
  • HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
  • Weatherproof rated (IP67)2
  • Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
  • Aluminum Alloy housing, designed to withstand harsh weather conditions
  • Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)3
  • Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness4
  • A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
W462 Overview

Dimensions:
Height: 4.2" (107mm)
Width: 3.4" (86mm)

  1. Status indicator
  2. Microphone
  3. Device QR code
  4. microSD slot
  5. Reset button
  6. Speaker
  7. Ethernet port
  8. Power port

Package Contents:

Camera

USB power adapter

USB power cable

Mounting tape

Mounting bracket

3 × Anchors and screws

W461ASC dimensions

Dimensions (WxDxH): 2.7" x 2.7" x 4.3" (68mm x 68mm x 109mm)
Weight: 0.53lbs / 0.24kg

Package Contents:

2K Wi-Fi
Camera

16GB MicroSD
Card

Universal
Mount

Power
Adapter

Mounting
Kit

Quick Start
Guide

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

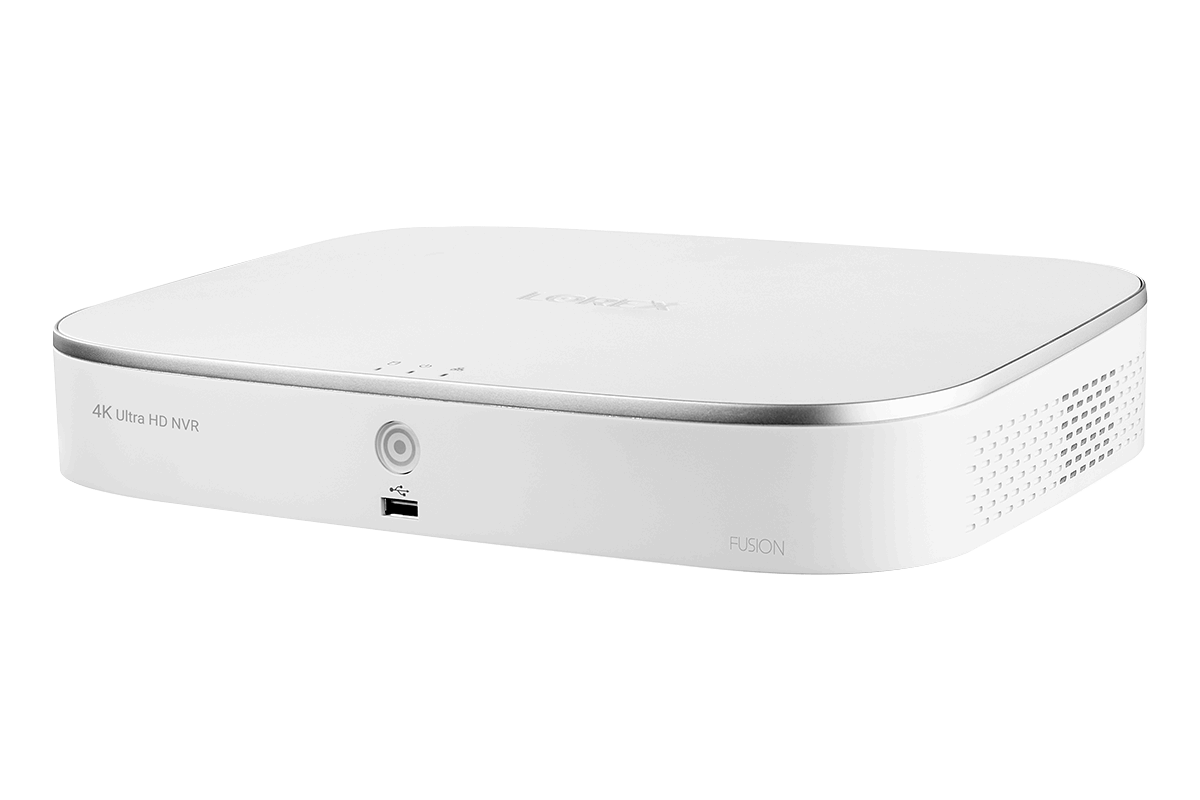

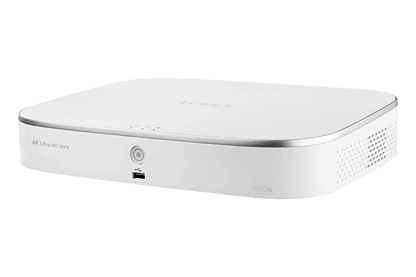

N845 Front Overview

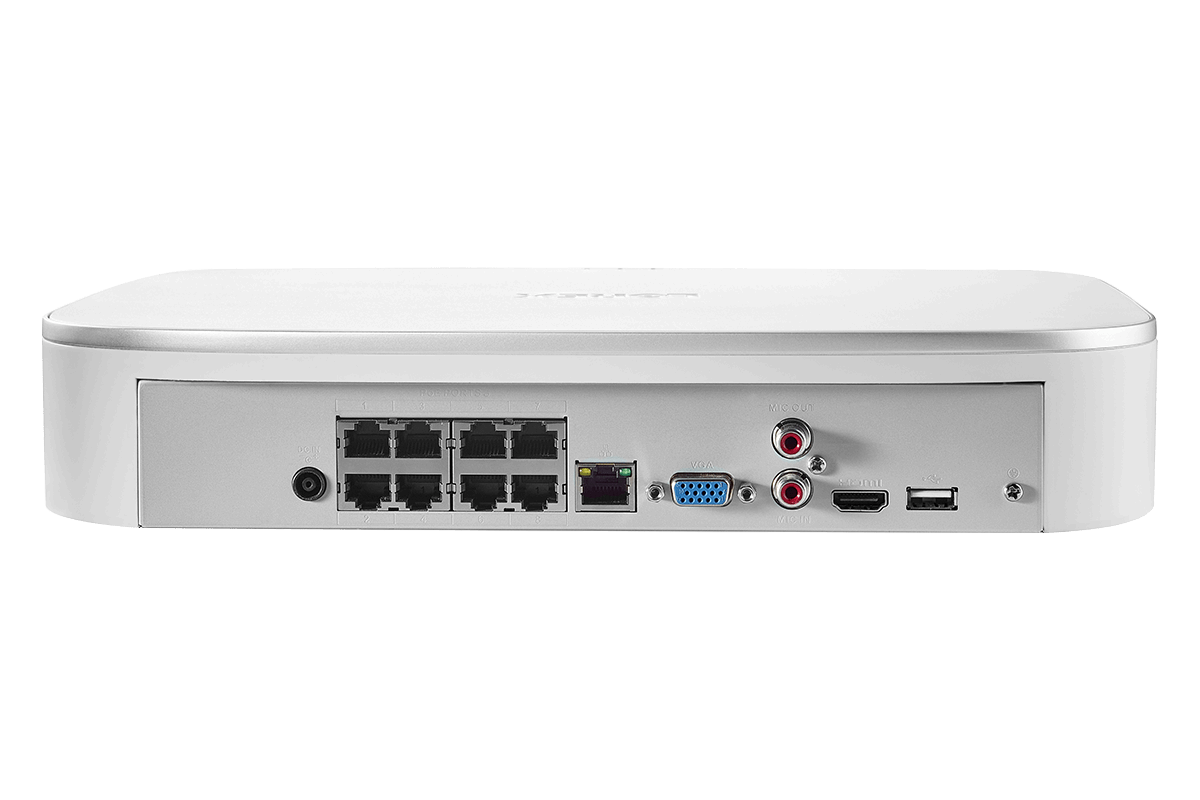

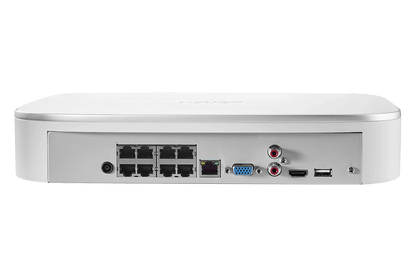

N845 Back Overview

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Hard Drive LED
  2. Power LED
  3. Network LED
  4. USB Ports
  5. Info / Panic Button
  6. Power Port
  7. PoE Ports
  8. LAN Port
  9. VGA Port
  10. Audio In / Out
  11. HDMI Port

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 8 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
