Single Port IP & PoE over Coax Set (400m/1300ft end-to-end converters)

Single Port IP & PoE over Coax Set (400m/1300ft end-to-end converters)

SKU: SKU: ALP-ECP-01T/RNew Arrival

Regular price $199.99
Regular price Sale price $199.99
$199.99/ea
Volume Pricing
  • 1 Buy 1 $199.99/ea
  • 2 Buy 2, get 5% off $189.99/ea
  • 4 Buy 4, get 10% off $179.99/ea
  • 8 Buy 8, get 15% off $169.99/ea
 More payment options
Single Port IP & PoE over Coax Set (400m/1300ft end-to-end converters)
Single Port IP & PoE over Coax Set (400m/1300ft end-to-end converters)
$199.99

Data + PoE over Any COAX

400m (1300ft) Long Range

PoE from NVR to IP Camera

8K High-Quality Video Stream

Surge / Short Protection

Professional CCTV Quality

Simplified Installation

Cost Saving

Worldwide Certification

The ECP-01 Series are high-speed, long-distance Ethernet & PoE extenders that enable the transmission of Ethernet signals and PoE up to 400m through coaxial cables in various situations. They offer a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ECP-01 series supports easy installation utilizing existing coaxial cables. With the long-distance transmission feature, these devices easily overcome the 100-meter distance limitation and significantly reduce construction costs compared to fiber optic configurations.

Connection Diagram

Connection Diagram

*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.

Product Specifications

Model ECP-01T ECP-01R
Interface
Coax 1 x 75Ω BNC (Female)
- Ethernet over Coax (B-LinX
Ethernet 1 x RJ45 - 100 Base-T
Transmission Rate 100Mbps Full Duplex
(100Mbps between Intercoax devices)
Transmission Distance
Ethernet up to 400 m when 100Mbps is used
up to 1000 m when 10Mbps is used
(5C-HFBT, RG-59 or better)
PoE (PoC) Up to 400meter (RG-59, RG-6)
LED Indication Ethernet 1 x Link (Yellow) / 1 x ACT (Green)
Power
Input B-Linx or DC48V~57V PoE Switch or DC48V~57V
PoE Output IEEE802.3af (PoE),
IEEE802.3at (PoE+),
Extra PoE up to 60W with 57V Power Adaptor
PoE Not Supported
PoC Only
Model ECP-01T ECP-01R
Mechanical
Dimension 83(L) x 51(W) x 24(H)mm
Weight 52g
Environment
Operating Temp -20 ~ 60°C
Storage Temp -30 ~ 80°C
Relative Humidity 10% ~ 90%
Compliance
Certification FCC, CE, KC, RoHS
Surge Protection IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)

What's Included?

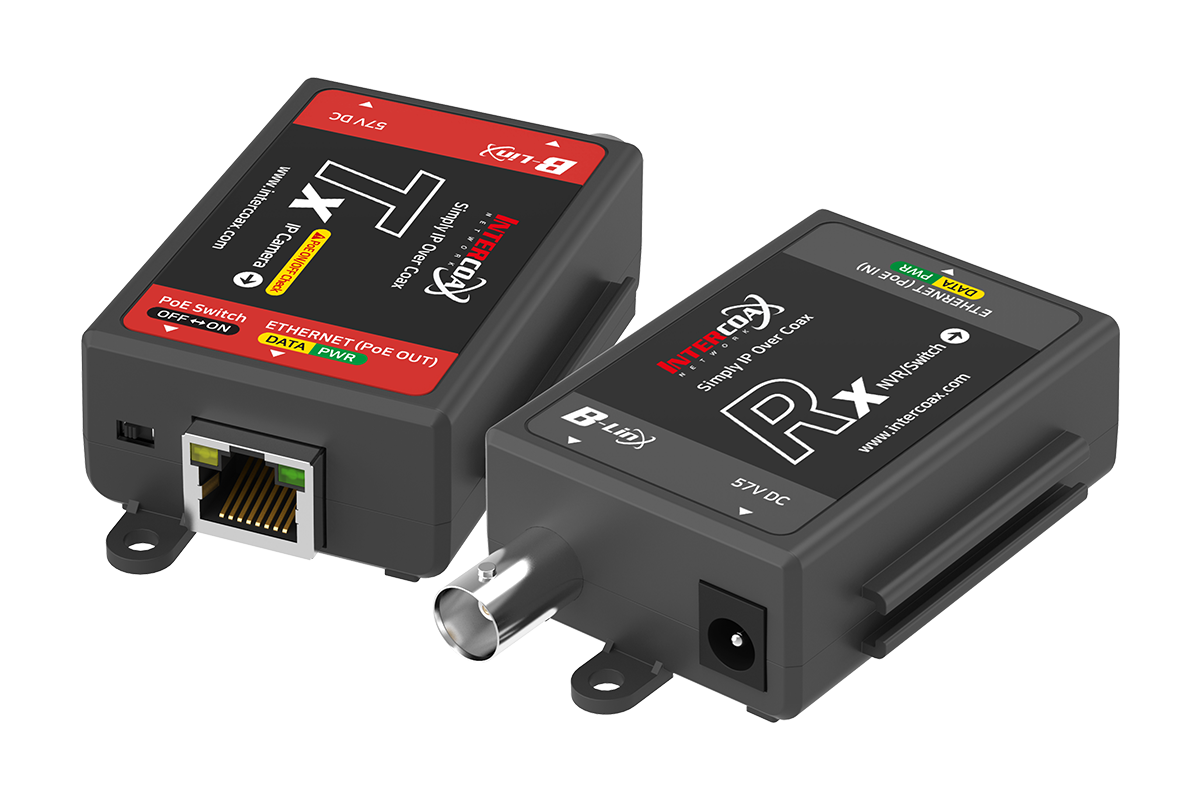

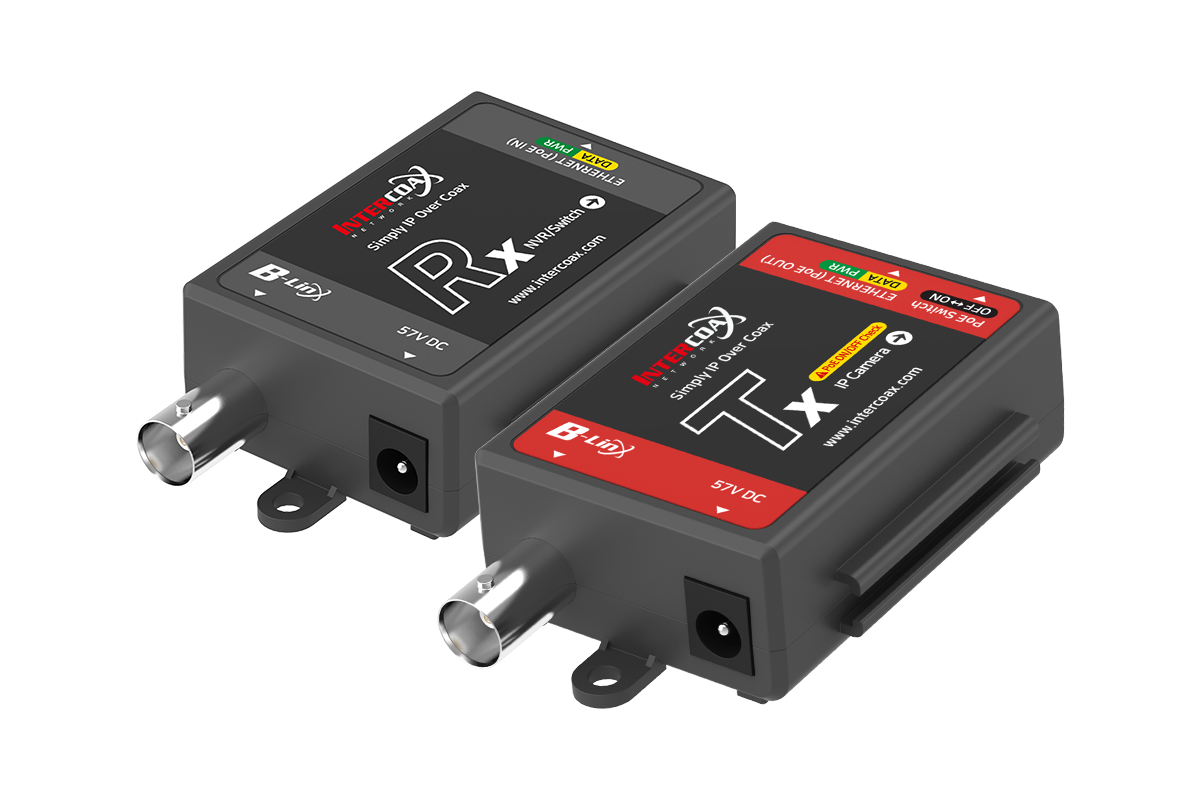

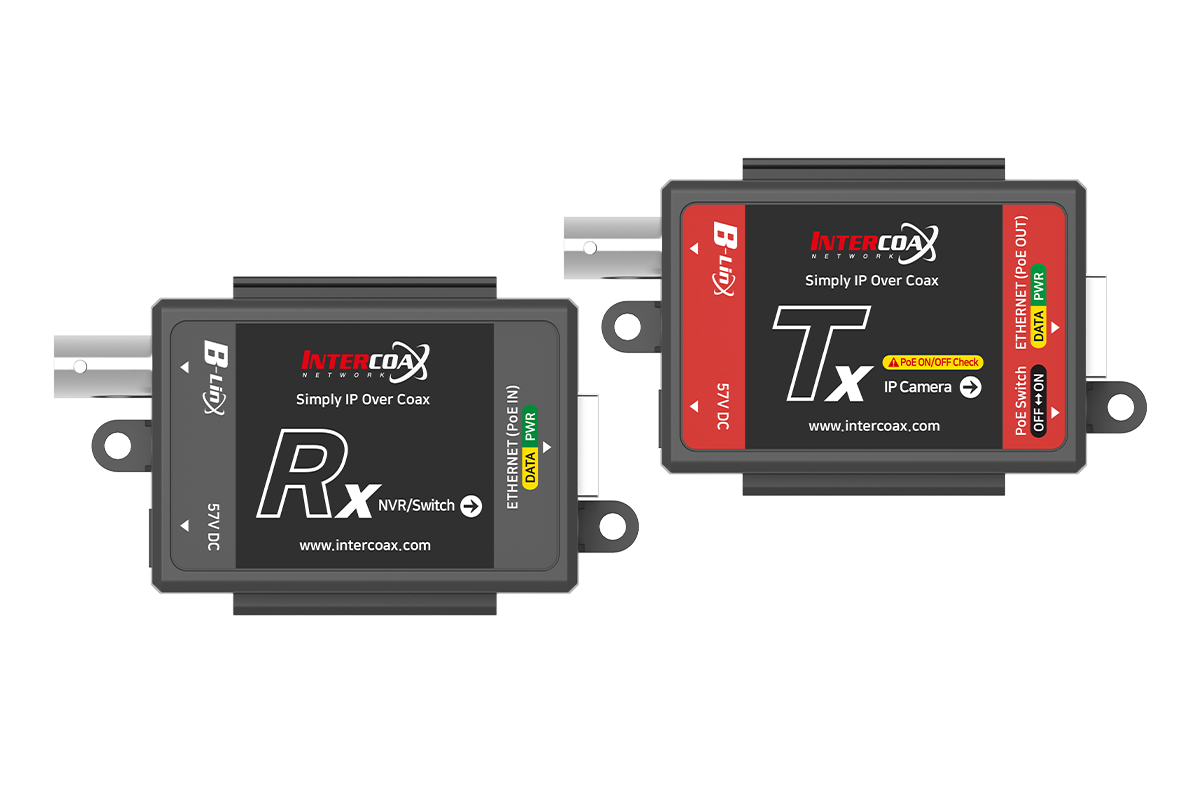

ECP-01TR Overview

Package Contents:

ECP-01T
(Transmitter)

ECP-01R
(Receiver)

Manual

Product Compatibility

All Lorex IP Security Cameras

compatible

Product Support

ALP-ECP-01T/R - Single Port Ethernet over Coax Transmitter / Receiver
