Lorex 8-Port Ethernet Gigabit Ethernet PoE+ Unmanaged Switch with 120W PoE Budget

Name: Lorex 8-Port Ethernet Gigabit Ethernet PoE+ Unmanaged Switch with 120W PoE Budget
Brand: Lorex
SKU: AX8
Price: 99.99 USD
Availability: InStock

Lorex 8-Port Ethernet Gigabit Ethernet PoE+ Unmanaged Switch with 120W PoE Budget

SKU: SKU: AX8New Arrival

$99.99

Quantity

OR

Lorex 8-Port Ethernet Gigabit Ethernet PoE+ Unmanaged Switch with 120W PoE Budget

$99.99

Expand the reach and simplify the cabling of your NVR security camera system with this 8-Port Gigabit Ethernet PoE+ Unmanaged Switch.

Plug, Play, Power: Unmanaged PoE Switch

Unmanaged PoE switches offer a hassle-free solution with reliable power delivery. No complex setup required – simply plug it in and connect your PoE security cameras.

Powerful 120W PoE+ switch

This PoE+ switch can handle an output up to 30 watts of power from the PoE ports, with a total output of 120W. Considering that our average cameras use less than 6W, you can efficiently power up to 8 cameras with this 8-port switch, utilizing the full 120W capacity.

Flexible Surveillance System Design

Use this PoE switch to extend the distance of your cameras up to 100 meters (328ft). Additionally, you can power other IP devices like video phones, VoIP phones, access points, and repeaters.

Gigabit PoE: Essential Speed for Today's Security Cameras

This Gigabit PoE switch ensures smooth streaming of high-resolution footage, flawless operation of smart functions, and future-proofs your system for demanding security needs.

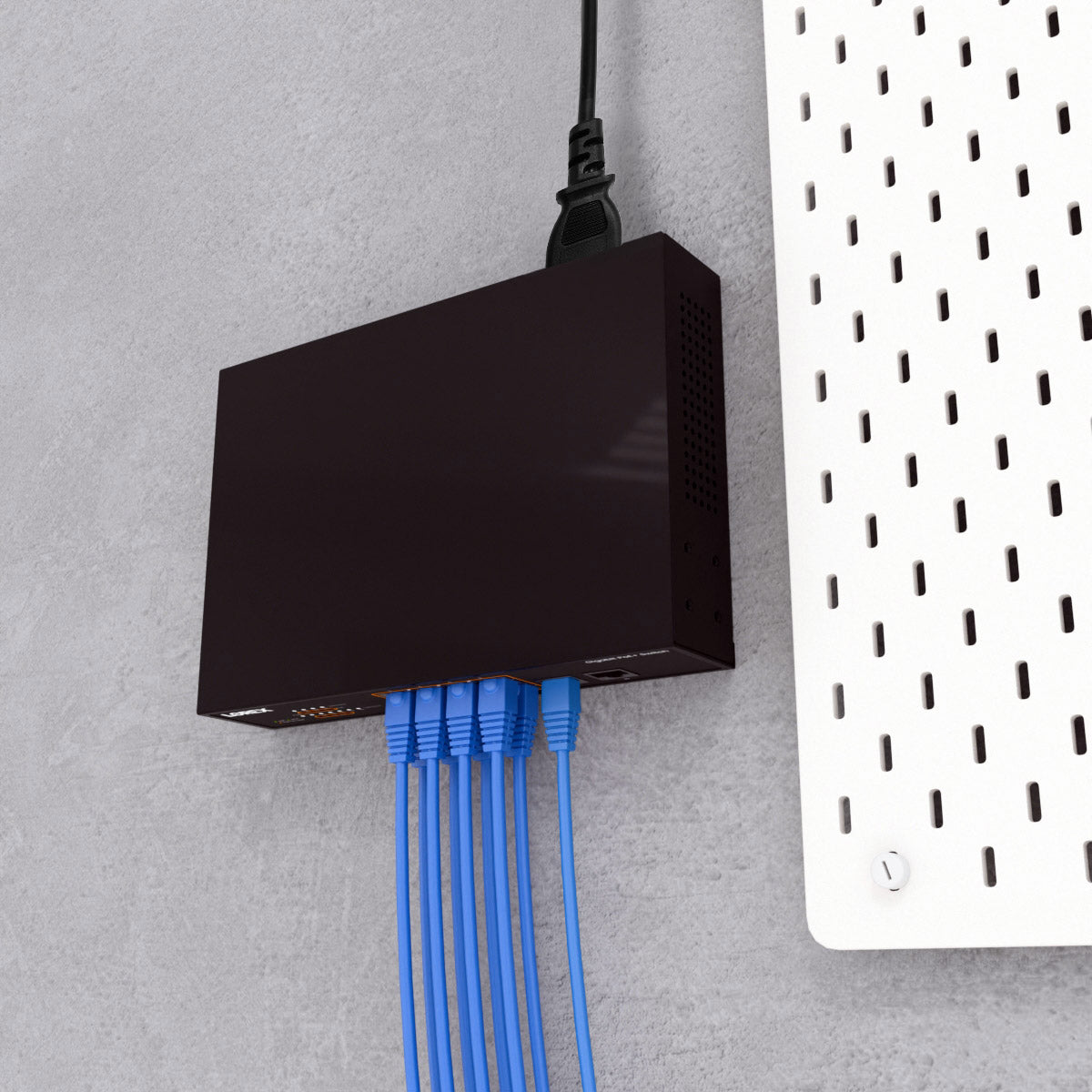

Quick and Easy Mounting

Easily mount this PoE+ switch flush against a wall or on a server rack using its built-in mounting holes, ensuring a clean, organized, and aesthetically pleasing setup.

Product Specifications

Interface	10 × 10/100/1000Mbps RJ45 ports
PoE Standard	IEEE802.3af/at
PoE Ports	1 to 8
Total PoE Power	120W
Power Supply	130W
Max PoE Port Outputy	30W
Indicators	PWR (Green), LNK/ACT (Green), PoE (Orange)
Network Media	10BASE-T: UTP Cable (≤ 100m) 100BASE-TX: UTP Cable (≤ 100m) 1000BASE-T: UTP Cable (≤ 100m)
MAC Address Table	2K, automatic study, automatic updates
Jumbo Frame	9K Bytes
Packet Buffer	2M bit
Transfer Mode	Store-and-forward
DimePacket Forwarding Rate	14.88Mbps
Bandwidth	20Gbps

Fan	1 fan
Product Dimensions (L × W × H)	8.66 × 5.90 × 1.73” / 220 × 150 × 44 mm
Green Energy Saving	Support IEEE802.3az
Voltage Input	100 to 240 VAC, 50/60Hz
Operating Temperature	32 °F to 104 °F / 0 °C to 40 °C
Storage Temperature	-40 °F to 158 °F / -40 °C to 70 °C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Surge Protection	Common mode ± 4KV, Differential mode ± 2KV
Certifications	FCC, IC, CE, UKCA
MTBF	> 50000 hours
Electrostatic Standard	Contact ± 6KV, Air ± 8KV
