Key Features
- Easy Install
- Weather-resistant
- Compatible with Lorex Junction Box
- Load Bearing Capacity: 1kg (2.2lb)
- Length: 2.5ft (30in)
Optimal Coverage, Professionally Built

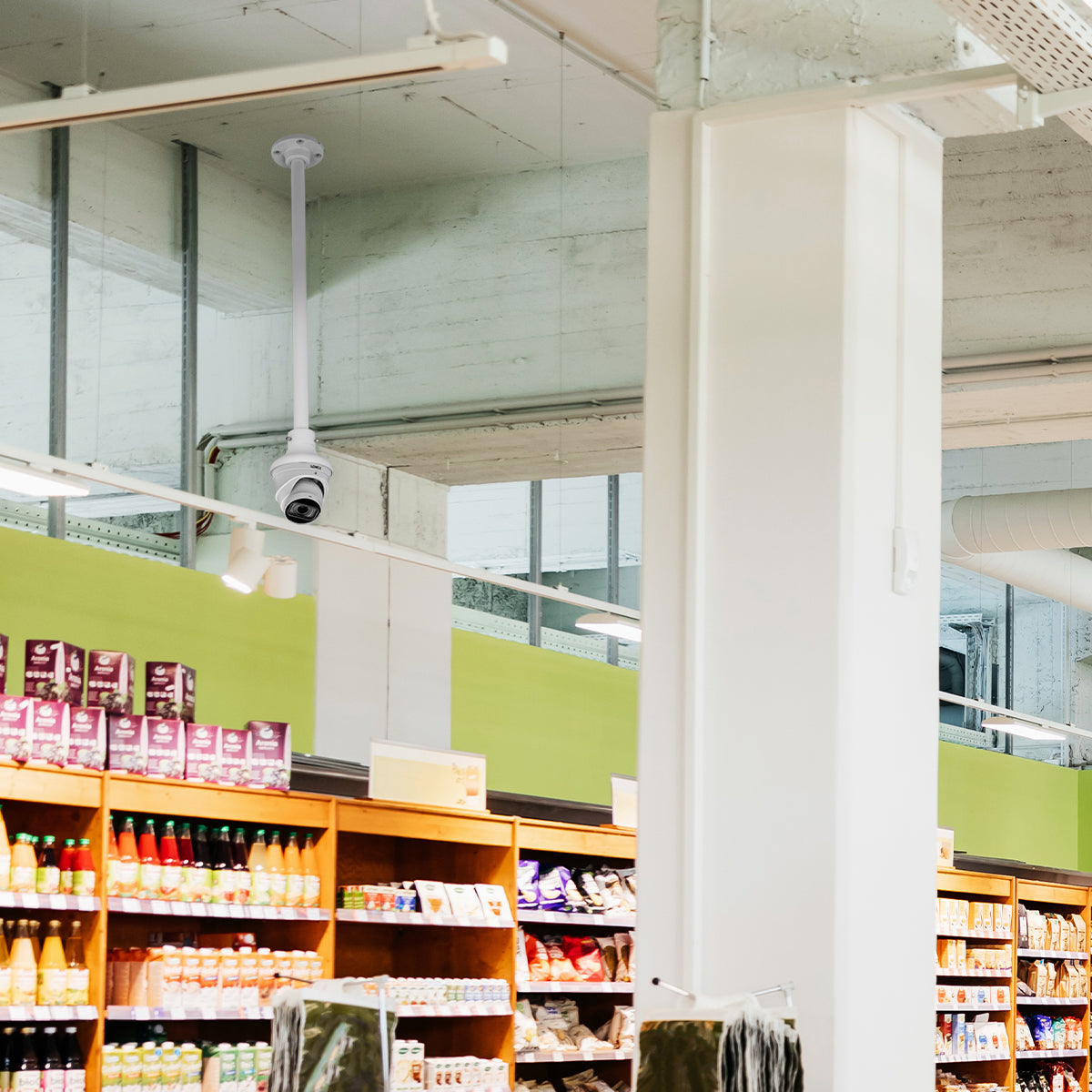

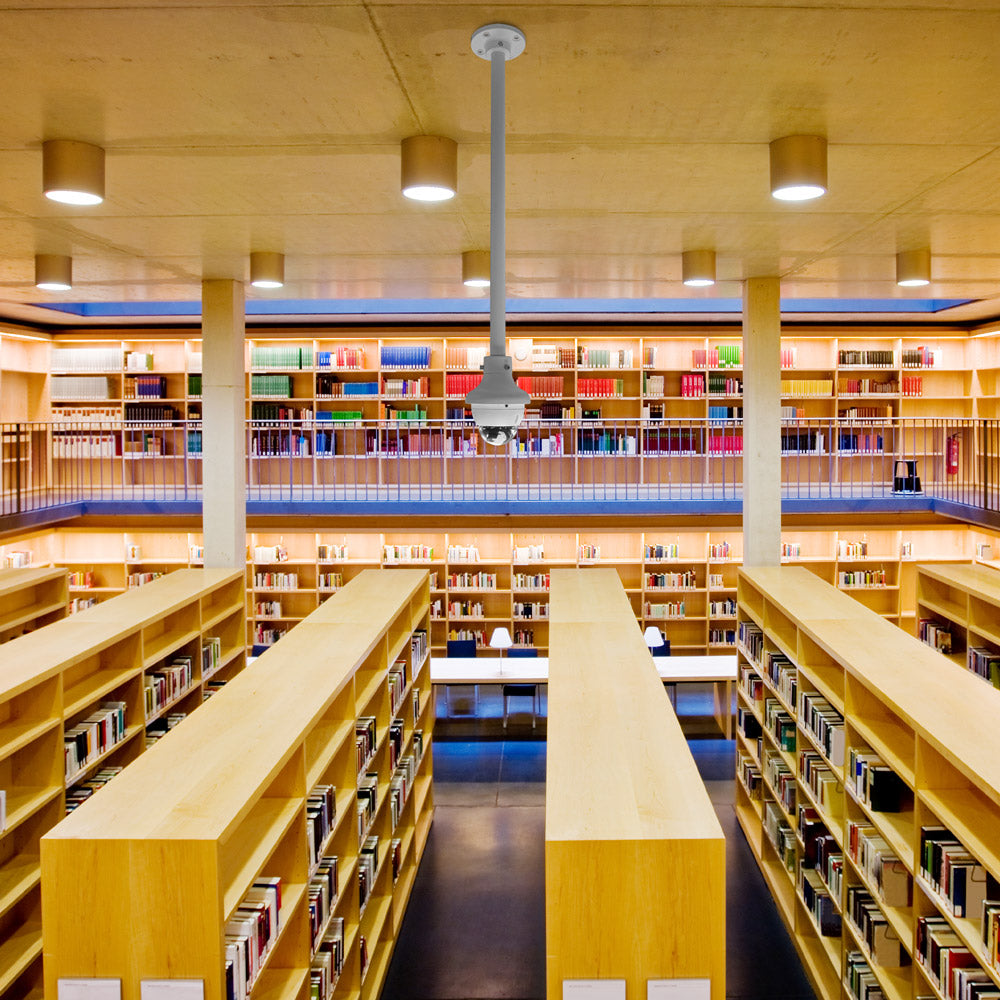

Get the most optimal view from your security camera with the Lorex Ceiling Mount Bracket. The bracket pole extends from the mounting surface to avoid any obstructions and to increase the camera's field of view so you can see more of your business. Compatible with Lorex Round Junction Box (Model: ACCJ7R3B) to attach a wide variety of dome, turret, and bullet cameras.
Easy Install
Simply attach your camera to the ceiling mount bracket with the included tool kit.
1
Feed the cable to the ceiling mount
2
Install the mount to the desired location
3
Attach and secure the camera to the mount
Built to Last
Get security year round with the weather-resistant ceiling mount bracket, designed to withstand harsh weather conditions. The ceiling mount can tolerate extreme temperatures ranging from -40C to 60C (-40F to 140F).
Compatible with Lorex Junction Box
Use the ceiling mount bracket with the Lorex round junction box (ACCJ7R3B / ACCJ7R3W) to attach a wide variety of compatible cameras.
Product Specifications
| Material | Aluminum and aluminum alloy |
|---|---|
| Finishing | Power spray |
| Color | White |
| Operating Temperature | -40 °F to 140 °F / -40 °C to 60 °C |
| Humidity | <90% (RH) |
| Load Bearing | Bracket: 4.41lbs / 2kg
Adapter: 2.2lbs / 1.0kg |
|---|---|
| Dimensions |
Bracket: Φ5.07 × 30.2" / Φ128.8 × 767.0mm Adapter: 5.28 × 5.28 × 3.29" / 134.1 × 134.1 × 83.5mm |
| Weight |
Bracket: 1.98lb / 0.9kg Adapter: 0.66lb / 0.3kg |
What's Included?
Package Contents:
Ceiling Mount Bracket
Mount Adapter
Hex Wrench × 2
Locking Screw × 8
Product Compatibility
E581CB-Series 5MP High Definition IP Camera with Color Night Vision
requires junction box
E581CD, 5MP High Definition IP Dome Camera
compatible
E841CD - A Series A10 4K IP Wired Dome Security Camera with Listen-in Audio
compatible
E851AD, E851ADB - A Series A10 4K IP Wired Dome Security Camera with Listen-In Audio and IK10 Vandal Proof Rating
compatible
E863SD Series - 4K Smart Security Lighting Dome PoE IP Wired Camera
compatible
E891AB, 4K Ultra HD Smart Deterrence IP Camera
requires junction box
E892AB 4K Ultra HD Smart Deterrence IP Camera with Smart Motion Plus
requires junction box
E893DD - H Series H13 4K IP Wired Dome Security Camera with Smart Deterrence
compatible
E896DD - H Series H16 4K IP Wired Dome Security Camera with Smart Security Lighting
compatible
E910DD - H Series H30 4K+ 12MP IP Wired Dome Security Camera with Smart Security Lighting
compatible
LNB9242B - Nocturnal Series N3 4K Black IP Wired Bullet Camera with Listen-In Audio
requires junction box
LNB9252B - Nocturnal Series N3 4K White IP Wired Bullet Camera with Listen-In Audio
requires junction box
LNB9282B - Nocturnal Series N3 4K Black IP Wired Bullet Security Camera with Motorized Varifocal Lens
requires junction box
LNB9292B - Nocturnal Series N3 4K Dome IP Wired Bullet Security Camera with Motorized Varifocal Lens
requires junction box
LND45DVB, LND45DVW - A Series A4 4MP IP Wired Turret Security Camera
compatible
LNE9242B - Nocturnal Series N3 4K Black IP Wired Dome Camera with Listen-In Audio
compatible
LNE9252B - Nocturnal Series N3 4K White IP Wired Dome Camera with Listen-In Audio
compatible
LNE9282B - Nocturnal Series N3 4K Black IP Wired Dome Security Camera with Motorized Varifocal Lens
compatible
LNE9292B - Nocturnal Series N3 4K White IP Wired Dome Security Camera with Motorized Varifocal Lens
compatible
LNE9383, LNE9393 - Nocturnal Series N4 4K IP Wired Dome Camera with Motorized Varifocal Lens
compatible
LNZ44P4B - PTZ Series 2K IP Wired Camera with 4x Zoom and IK10 Vandal-Proof Rating
compatible
LBV2521 Series 1080p HD Bullet Camera
requires junction box
C241DA-E 1080p HD Active Deterrence Security Camera
requires junction box
C581CB 5MP Super HD Weatherproof Night-Vision Security Camera
requires junction box
C581DA 5MP Super HD Active Deterrence Camera
requires junction box
C841CA Series 4K Ultra HD Security Camera
requires junction box
C861CF 4K Ultra HD Motorized Varifocal Security Camera
requires junction box
C881DA, 4K Ultra HD Active Deterrence Security Camera
requires junction box
C881DAB-Series 4K Ultra HD Active Deterrence Security Camera
requires junction box
C882DA 4K Ultra HD Active Deterrence Security Camera
requires junction box
C883DA 4K Ultra HD Active Deterrence Security Camera
requires junction box
LBV2531 Series 1080p HD Bullet Security Camera
requires junction box
LBV2711(S) Series 1080p HD security camera
requires junction box
LBV4711 Series 2K Bullet MPX Bullet Camera
requires junction box
LBV8531B 8MP Bullet Security Camera
requires junction box
LBV8541XB, 4K Ultra HD Active Deterrence Security Camera
requires junction box
LNB3163 Series 3 MP HD security camera
requires junction box
LNB4163 Series 4MP HD IP Camera
requires junction box
LNB4173 Series 4MP Super HD IP Security Camera
requires junction box
LNB4321 Series 4mp HD IP camera
requires junction box
LNB4421 - 4MP SuperHD IP Camera
requires junction box
Outdoor Round Junction Box for 3 Screw Base Cameras
compatible
E842CA, E842CAB - A Series A14 4K IP Wired Bullet Security Camera
requires junction box
E842CD - A Series A14 4K IP Wired Dome Security Camera
compatible
E863SB Series - 4K Smart Security Lighting Bullet PoE IP Wired Camera
requires junction box
E871AB - H Series H20 4K Dual Lens Wired Bullet Security Camera with Smart Security Lighting
requires junction box
E893AB - H Series H13 4K IP Wired Bullet Security Camera with Smart Deterrence
requires junction box
E894AB, E894ABB - H Series H14 4K IP Wired Bullet Security Camera with Smart Security Lighting
requires junction box
E895AB Series - Lorex 4K Deterrence Bullet AI PoE IP Wired Camera
requires junction box
E896AB - H Series H16 4K IP Wired Bullet Security Camera with Smart Security Lighting
requires junction box
E910AB - H Series H30 4K+ 12MP IP Wired Bullet Security Camera with Smart Security Lighting
requires junction box
LNB45ABB, LNB45ABW - A Series A4 4MP IP Wired Bullet Security Camera
requires junction box
LNE45DDB, LNE45DDW - A Series A4 4MP IP Wired Turret Security Camera
compatible
LNE95MDB, LNE95MDW - Nocturnal Series N4 Lite 4K IP Wired Turret Camera with Motorized Varifocal Lens
compatible
C221NA Series - 1080p CVI Wired Bullet Security Camera
requires junction box
C884DA Series - Lorex 4K Smart Deterrence CVI Wired Bullet Camera
requires junction box
W891UA Series - 4K Dual-Lens Wi-Fi Security Camera with Smart Security Lighting
requires junction box
