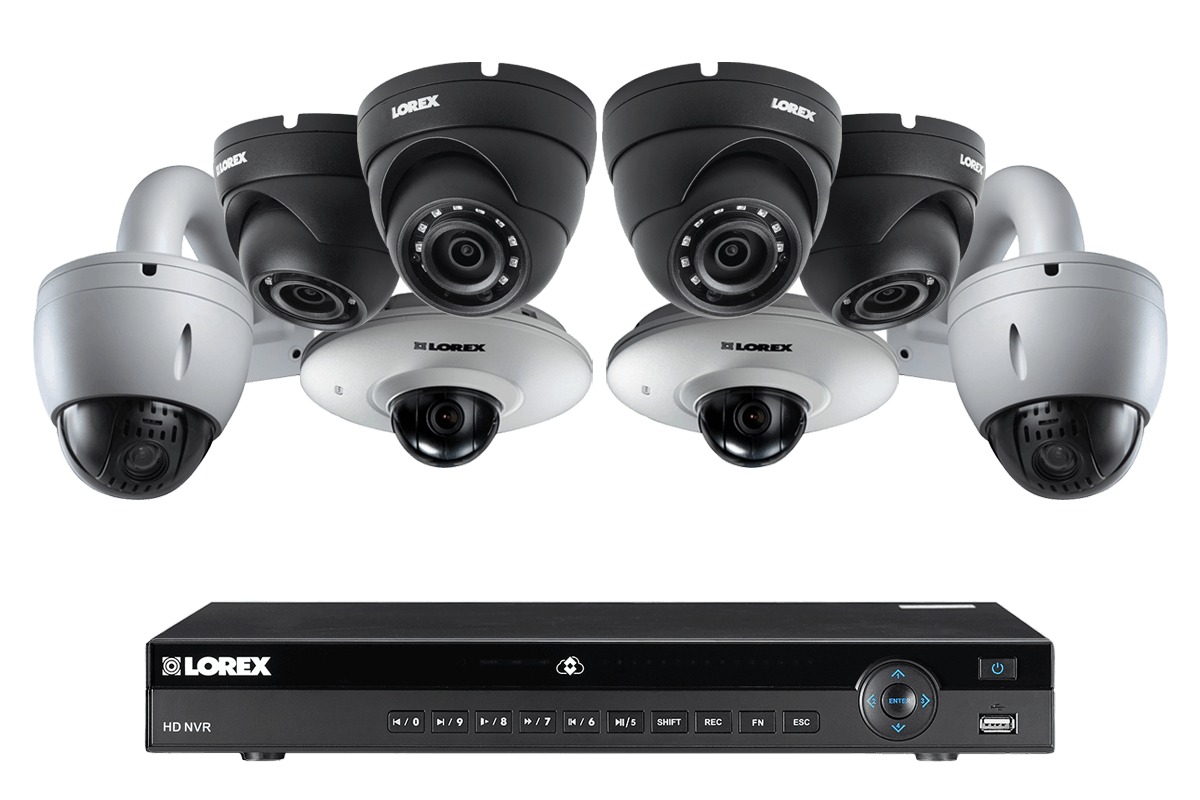

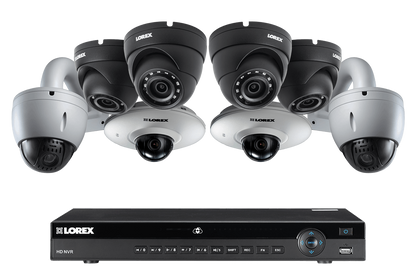

8 Channel IP Security Camera System featuring Four 2K Resolution Cameras, Audio and PTZ Function

HDIP8224AZ

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

HDIP8224AZ

The HDIP8224AZ security system from Lorex is powerfully versatile. It starts with our top-of-the-line 4K compatible NR900 Series NVR, combined with three different types of security cameras - including two micro pan-tilt cameras, two full sized pan-tilt-zoom (PTZ) cameras, and four 2K resolution Color Night Vision™ cameras. Used together, these cameras will create a virtually impenetrable property.

HDIP8224AZ

SPECIFICATIONS

8

CHANNELS

4K NVR can support up to 8 cameras

8

CAMERAS

Micro pan-tilt, PTZ and dome cameras

150FT

NIGHT VISION

Plus 4 featuring
Color Night Vision™

2TB

HARD DRIVE

Maximum Capacity 2 x 8TB hard drives



Detailed 2K security video

Capture the details you need (such as faces) with 2K resolution. Combined with the included NVR, the dome security cameras will provide stunning detailed video that will leave nothing to the imagination.

30 frames per second security recording

2K resolution - 2 x 1080p

1080p security cameras use a 1920 × 1080 pixel ratio. That is a total of 2,073,600 pixels. 2K security cameras use a pixel ratio of 2688 × 1520, totaling 4,085,760 active pixels. That is double the resolution of 1080p. This higher pixel count will provide you with sharper and more vivid video, as well as an increased ability to zoom in on distant objects.

30 frames per second security recording

30 frames per second recording

Your cameras can be programmed to record 2K video (dome cameras only) at 20 frames per second (FPS) or 1080p HD video at a real-time 30 FPS. Both of these high frame rates will provide you with smooth on-screen movement during live views or playback. A 30 FPS recording rate will also help you pause on the exact moment you need should you ever need to use the footage as evidence. This is because there are simply more frames available to choose from within each and every second.

HDR security camera

High Dynamic Range

Your dome and both sets of PTZ security cameras utilize a True High Dynamic Range (HDR) feature that will help improve video clarity in high-contrast lighting. It uses the difference between the darkest and lightest areas of the video to automatically adjust the picture's brightness, resulting in optimized, highly-detailed security video in all lighting conditions.

Digital Noise reduction security camera

DNR - Digital Noise Reduction

DNR (Digital Noise Reduction) technology is used by your security cameras to filter out noise (grain) from low-light settings, as well as any noise caused by motion. This provides you with a cleaner, more accurate image with better clarity, sharpness, and improved motion detection. It will also help reduce video file sizes as well, which will save you storage space on your NVR.

best color night vision bullet IP cameracolor night vision (CNV) bullet IP camera

Full color night vision

With most cameras there is usually an automatic shift from full color to black and white when lighting conditions change at night. These black and white infrared images ensured the maximum level of detail and clarity in low-light conditions. The LNE4422 dome security camera, on the other hand, takes this night vision to a whole new level with color night vision. This feature will:

  • Produce full color video, even in low-light conditions.*
  • Provide a further level of detail (the color of clothes or cars, for example).
  • Add increased contrast for easier detection and recognition of people and objects.

*Please note that ambient lighting is needed for full color night vision. The image will typically switch to black and white infrared in total darkness to ensure maximum quality night vision.

LNE4322B Night Vision Range
high end 1080p PTZ security camera

Security cameras that move

This system offers an incredible amount of property coverage. The two LNZ3522B cameras and the two LNZ32P12 cameras can each shift their field of view in almost any direction. Each offer:

  • Full 360° pan rotation.
  • Rapid panning speeds - 100° per second (LNZ3522B) and 300° per second (LNZ32P12).
  • Preset camera positions for quick retrieval.
  • Remote control of field of view (FOV) via NVR, smartphone, or tablet.

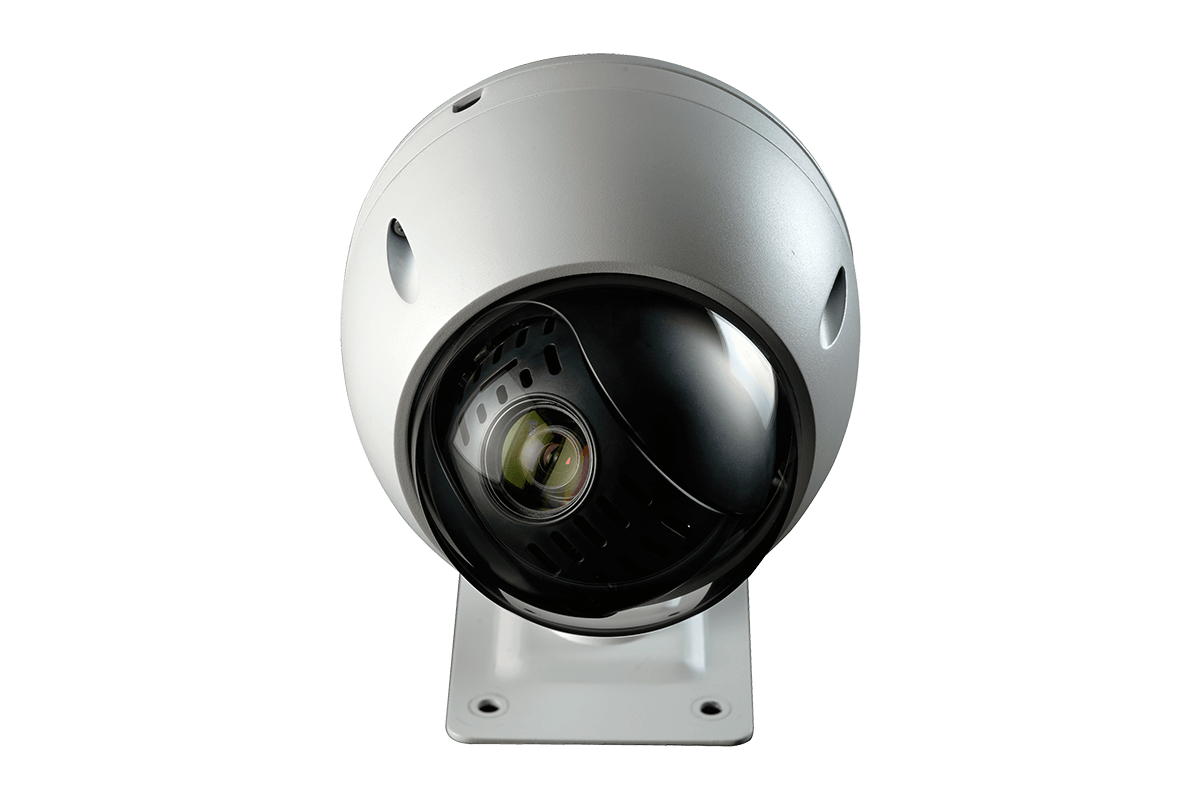

In addition to these features, the LNZ32P12 comes with a powerful 12x optical zoom and 16x digital zoom that can focus in on small or distant objects with enhanced definition. This remarkable camera can also be programmed with preset patterns, scan cycles and tours.

Audio HD security camera

Listen-in audio capabilities

This security system will provide you with a whole new layer of security monitoring. With the two LNZ3522B security cameras you will be able to hear and record audio. This capability can be an absolute game changer in the event of an intrustion. With this feature you will gain:

  • Additional information (such as voices or loud crashes).
  • Expanded coverage beyond the cameras field of view.
  • Help interpreting events (even if they occur off-screen).
* Please note, audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
** Audio playback is limited to one camera at a time, when channel is selected and video is in full-screen mode.
high def 1080p PTZ security camera

Micro and full-sized security cameras

A good strategy to protect your property is to combine overt security cameras with inconspicuous ones. This can help deter and catch potential intruders at the same time. With the HDIP8224AZ security system from Lorex you will receive two full-sized PTZ cameras and two micro sized pan-tilt cameras. These micro sized cameras are only 5 inches wide and 2 inches tall, which makes them perfect for discreet monitoring.

easy to install power-over-ethernet security system

Plug and play with PoE cabling

Every camera in this system only requires a single Ethernet cable connection. This all-in-one Ethernet cable provides everything you need thanks to Power-over-Ethernet (PoE) technology. Simply click the included CAT5e cable into the camera and NVR and your camera will be ready to go. Not only will PoE cabling save you time and money on installation, it will also:

  • Provide power to the camera.
  • Keep a strong network connection.
  • Transmit video and audio.
  • Enable remote control of the pan-tilt functions of the LNZ3522B and the PTZ functions of the LNZ32P12.
  • Allow you to expand your coverage up to 300 feet from the NVR (PoE switch compatible if more is needed)
  • Provide flexibility when choosing camera positions since no electrical power outlet needs to be close by.
security camera wall mount

All-weather wall mounts included

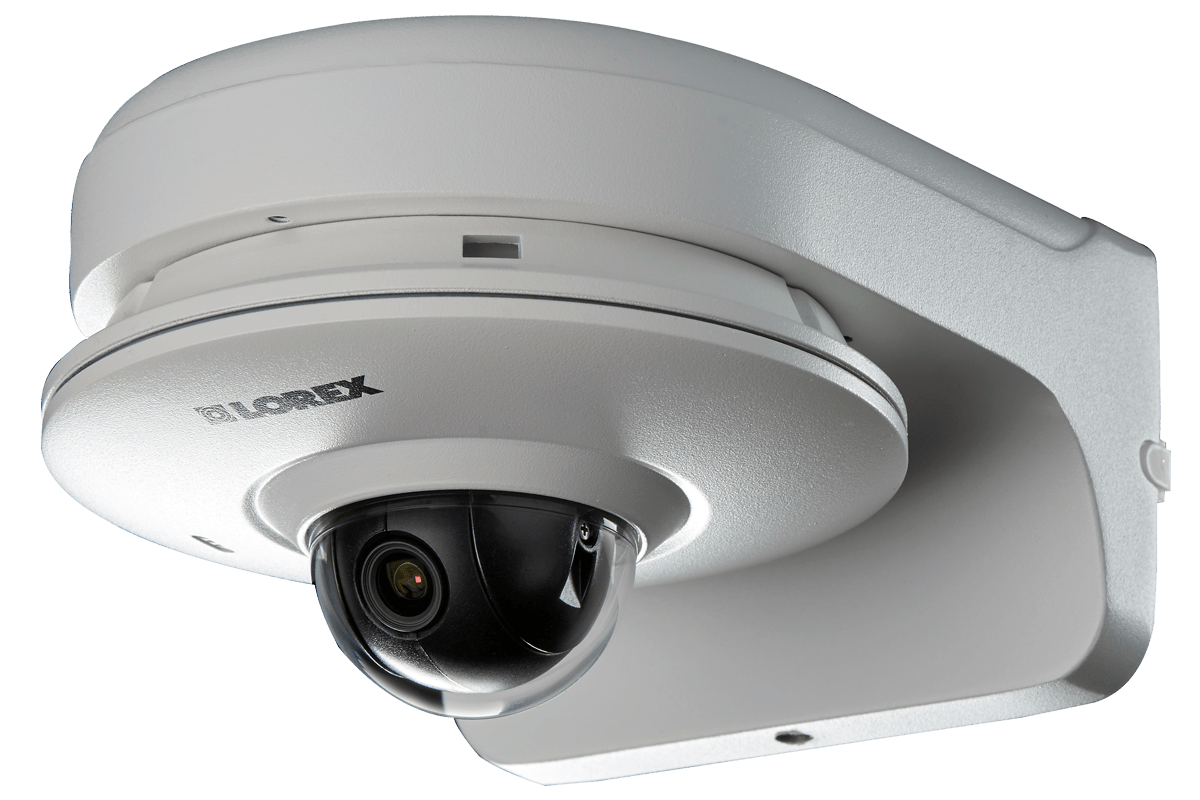

The LNZ3522B cameras come with wall mounts that easily attach them to the side of any wall. This aluminum camera mount is fully weatherproof. It is also designed to be compact and to hide the camera cables so they cannot be cut.

Lorex Cloud App

Free remote viewing on your smartphone or tablet

Have your system at your fingertips no matter where you are in the world. This system is designed for use with our free Lorex Cloud™ app. This app is easy to set-up and gives you total control of your system from your smartphone or tablet. With Lorex Cloud, you will be able to:

  • Watch live camera feeds or playback.
  • View easy-to-read motion activity timelines.
  • Receive instant push notifications or emails for motion triggered events.
  • Remotely control the field of view of the pan-tilt and PTZ cameras.

Works With

System compatibility
System compatibility
HD weatherproof outdoor PTZ security cameras

Rugged outdoor security cameras

Don't fear mother nature. Every camera in this system comes with IP66 weatherproof rating. They can withstand extreme weather conditions of all kinds. So don't worry - install your cameras wherever you need them most.

LNE4422

LNE4422

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

LNZ3522B

LNZ3522B

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-4°F | -20°C

Cold Rating

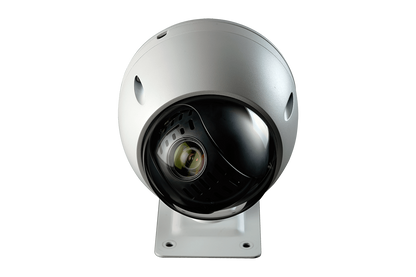

LNZ32P12

LNZ32P12

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

14°F | -10°C

Cold Rating

-
Metal Housing

Heavy duty metal housings

All of the cameras in this system are housed by a solid metal exterior. This corrosion-resistant aluminum makes these cameras perfect for outdoor use, protecting them from the wear and tear of all kinds of weather. It also makes them strong enough to withstand large impacts, unlike conventional plastic security cameras.

Security grade 1 terabyte hard drive

A hard drive built for security recording

Lorex uses nothing but the best hard drives within our recorders. They are built specifically for security monitoring. The included NR900 Series NVR comes with a 2TB hard drive pre-installed. This hard drive is capable of:

  • Constant 24/7 operation.
  • Playback viewing without interrupting real-time recoding.
  • Mirror hard drive recording (back-up footage to an internal hard drive at the same time as recording to the primary hard drive).
HEVC security camera system

H.265 video compression

Lorex's LNE4422 security cameras come equipped with HEVC (also known as H.265) video compression capabilities. This compression will allow you to keep the 2K security footage, but without the 2K files sizes. This also means that you can record for longer time periods and view recordings from your phone or tablet with far less data.

NVR multiple recording modes - continuous recording scheduled recording motion recording

Different recording options to suit your needs

Not all of your cameras have to record all of the time. Although this is a good idea for high traffic areas, you can save plenty of hard drive space by programming select cameras to only record during scheduled times or only when movement is detected. It is important to note that motion recordings include a pre-recording function that will record the five seconds before the movement is detected. This ensures that you will never miss those first few vital moments of movement.

Automatic NVR security updates

Automatic NVR updates

Your NVR will always be protected from any new vulnerabilities thanks to automatic firmware updates. This means you don't have to do a thing to keep your system up-to-date. Just make sure your NVR is always connected to the internet.

Image resolution comparison

2K 4mp Comparison Chart
  2K HDIP HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording 4mp (2688

Video

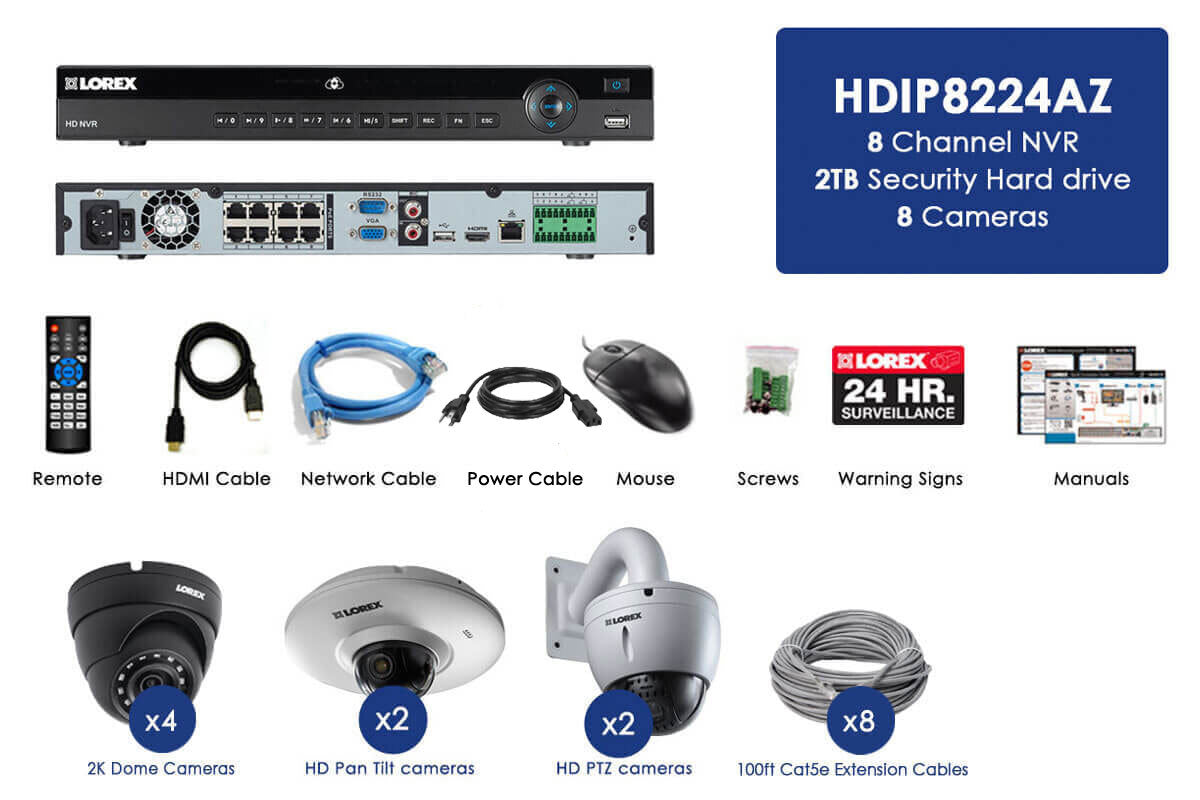

What's Included?

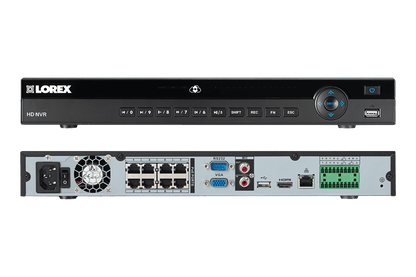

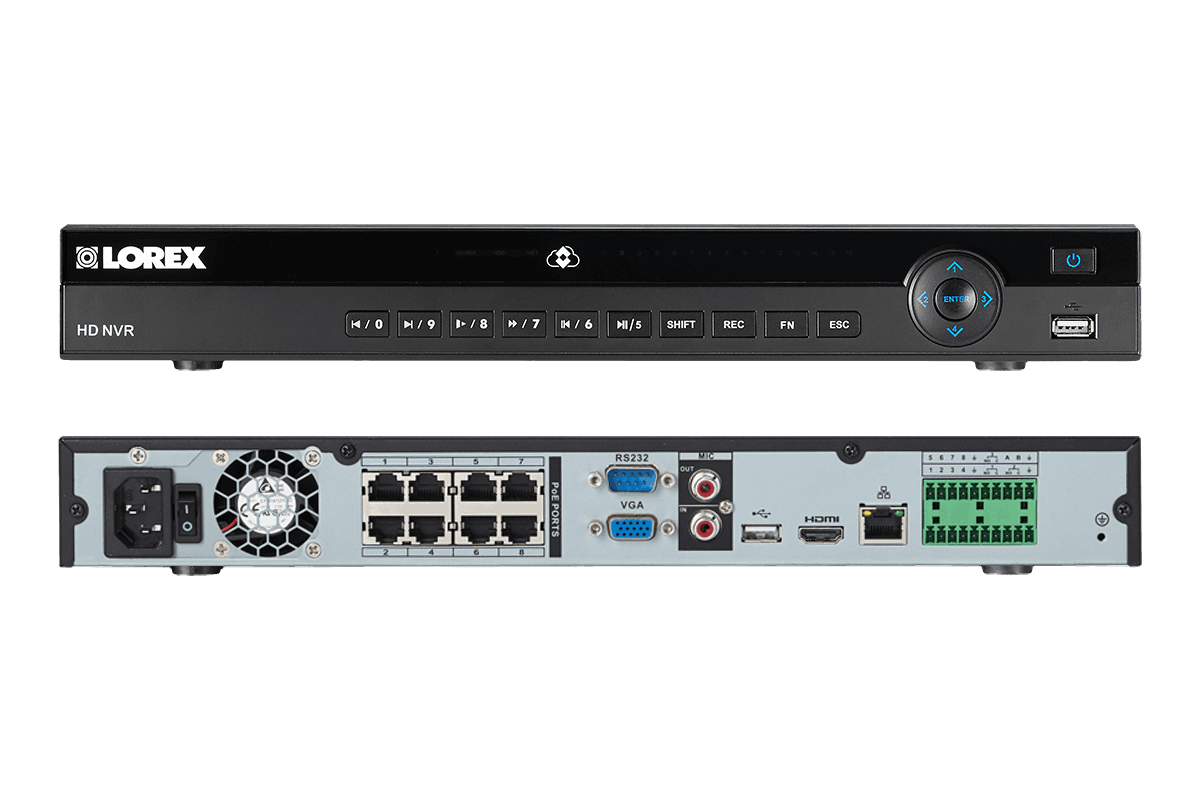

NR9082

8 channel, 4K ultra HD network video recorder:

  • Real-time recording up to 8MP on all channels - 4× the detail of 1080p
  • Supports industry-leading 4K recording 1
  • 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • Lorex Cloud™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™) 2
  • PC and Mac compatible - Lorex Cloud™ video management software gives you complete control over your security systemfrom anywhere 2
  • 24/7 security-grade pre-installed hard drive 3
  • Expandable high capacity storage up to 16TB (2×8TB HDD)
  • Automatically detects compatible IP cameras in the network 4
  • 4K video output - view multiple HD channels at once in full resolution on a 4K TV
  • H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing 3
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time asrecording to the primary hard drive 5
  • Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date 6
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD amp; 4K TVs

Each NR9082 Includes:

1 × NVR
1 × Power cable
1 × Remote control
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 8MP IP cameras are required to take advantage of 4K recording.
2. Requires a high speed internet connection and a router (not included). A minimum upload speed of 3.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support
3. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
4. Compatible with Lorex PoE HD IP cameras only. For a list of compatible cameras, please visit www.lorextechnology.com/support
5. Mirror recording requires a second hard drive (not included) to be installed in the NVR. Mirrored hard drive must be as large or larger than the primary hard drive to backup all recordings. Backup begins from when the mirrored hard drive is installed and configured.
6. Both firmware and software must be updated to latest version to ensure remote connectivity. Firmware updates are pushed to the NVR automatically over the Internet (available at www.lorextechnology.com). Always update to the latest software after upgrading the NVR firmware.

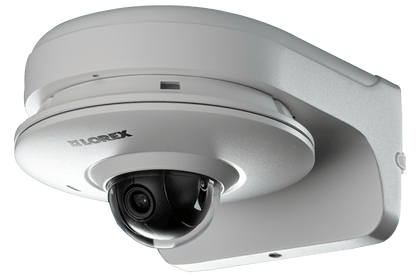

LNZ3522B

Micro Pan-Tilt Dome IP Security Camera Features:

  • High definition 1080p resolution 2.1MP Sony Exmor® image sensor
  • Full 360° pan rotation for complete area coverage and up to 100° per second panning speed
  • Micro dome form factor only 5” in diameter and just over 2” tall
  • 25 programmable preset positions
  • Built-in microphone for listen-in audio
  • Wide angle 3.6mm lens with 90° field of view
  • Plug-and-play setup with a single network cable for video, power, audio and Pan-Tilt control
  • Program preset viewing points when connected to a compatible NVR1
  • Remote control of the Pan-Tilt camera using a smartphone or tablet when connected to a compatible NVR1
  • 3D DNR (Digital Noise Reduction) for clear images at night
  • ClearNight imaging for superior low light performance2
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
  • Extreme temperature performance (-4° ~ 140°F / -20° ~ 60°C)
  • Vandal-proof heavy-duty durable metal housing
  • Simple installation of video, power and audio through a single cable with Power over Ethernet (PoE)
  • 60ft Ethernet extension cable included
  • Expand your coverage with extension cables up to 300ft from the NVR
  • Ceiling mountable

Each LNZ3522B Includes:

1 × Dome Camera
3 × Mounting Screws
3 × Mounting Anchors
1 × Mounting Template
1 × 60ft Ethernet Cable
Instruction Manual

1. Compatible with Lorex HD NVR LNR100 / LNR400 / LNR500 Series only.
2. This camera features an ultra-low light sensitive image sensor and therefore does not feature Infra-Red LEDs. The camera requires ambient lighting (for example, street/building lighting, star or moon light) to render a night time image. In total darkness (zero Lux) the camera will not produce a night time image and therefore the camera should not be installed in areas with complete darkness.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

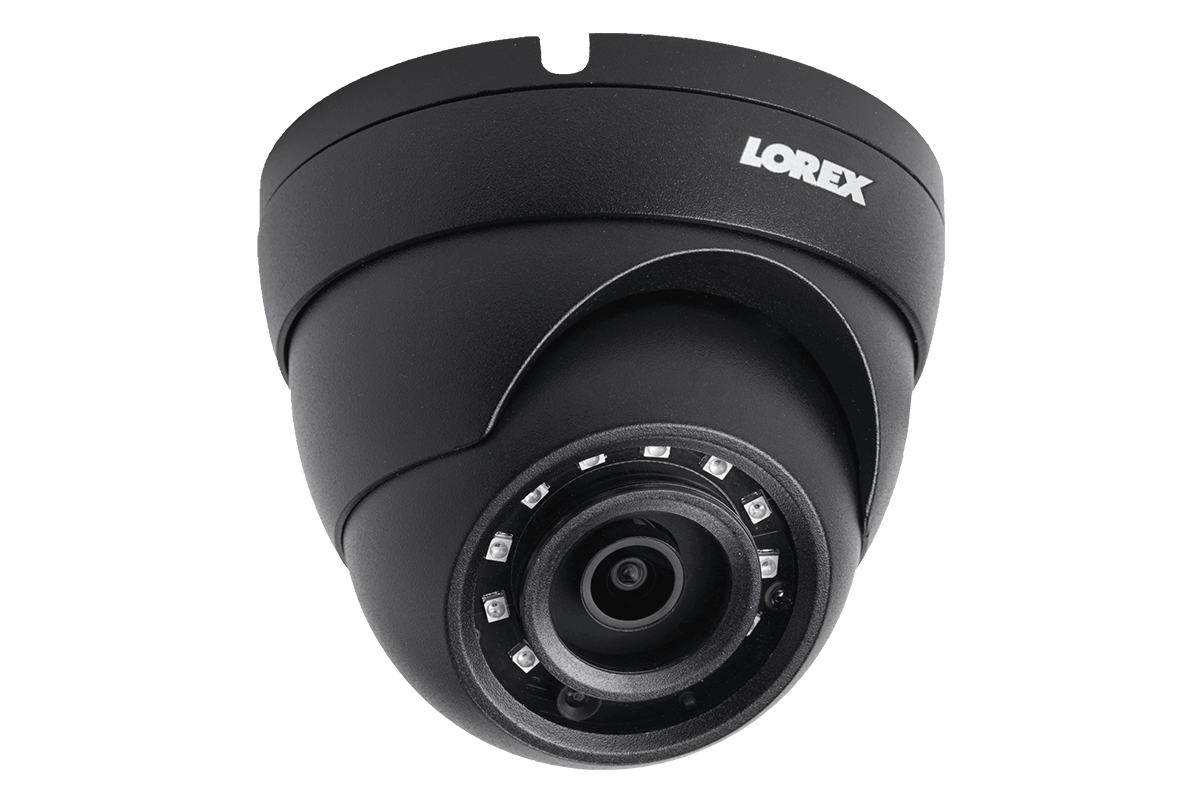

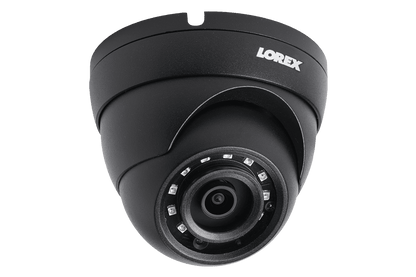

LNE4422

Weatherproof 2K 4mp HD Night Vision IP Dome Security Camera Features:

  • High definition 4mp image sensor delivers double the detail of 1080p1
  • 4mp Super HD video recording provides superior quality for reviewing fine details in heightened resolution
  • Color Night Vision™ provides full color images at night, letting you identify objects and people more accurately than in black & white2
  • IR night vision range up to 150ft (40m) in ambient lighting and 90ft (27m) in total darkness3
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4
  • True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
  • Intelligent compression saves recording space by optimizing video performance based on available bandwidth
  • Wide angle 90
