1. 4K (8MP) Ultra HD cameras are compatible with select Lorex 4K HD DVR recorders. For a full list of compatible recorders, visit www.lorextechnology.com/compatibility
2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
3. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
4. Not intended for submersion in water. Installation in a sheltered location recommended.
5. This camera should only be used with the supplied cable and power adapter, or an extension cable meeting the specifications listed in the Quick Setup Guide / Installation Guide. The use of any other power adapter or cabling will adversely affect performance.
* Per camera in multi-camera packs.
** A multi-camera power adapter that provides power to multiple cameras or individual power adapters may be provided depending on product configuration.
Features

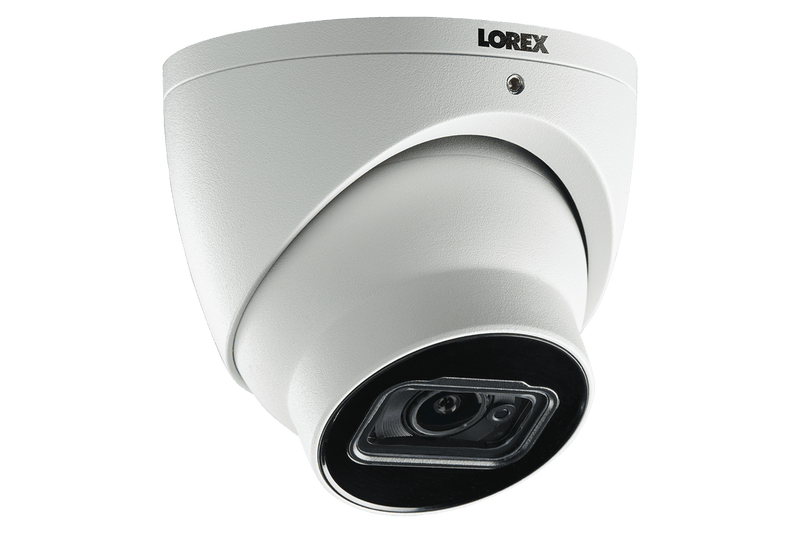

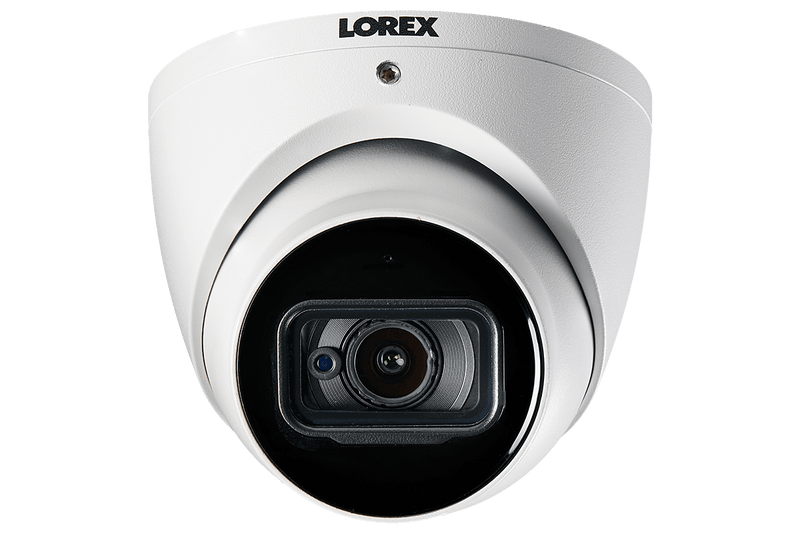

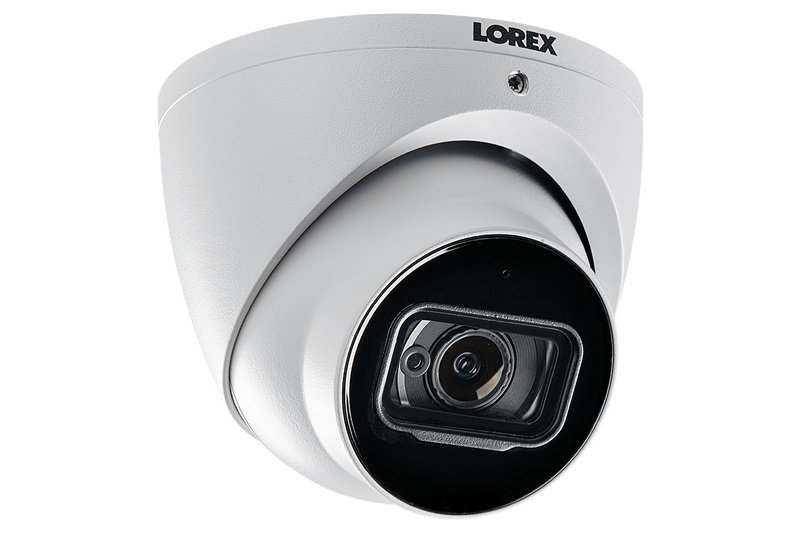

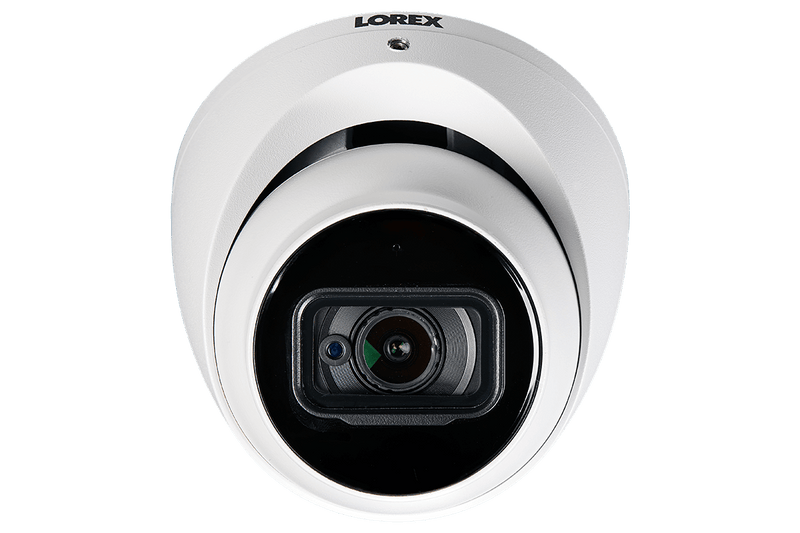

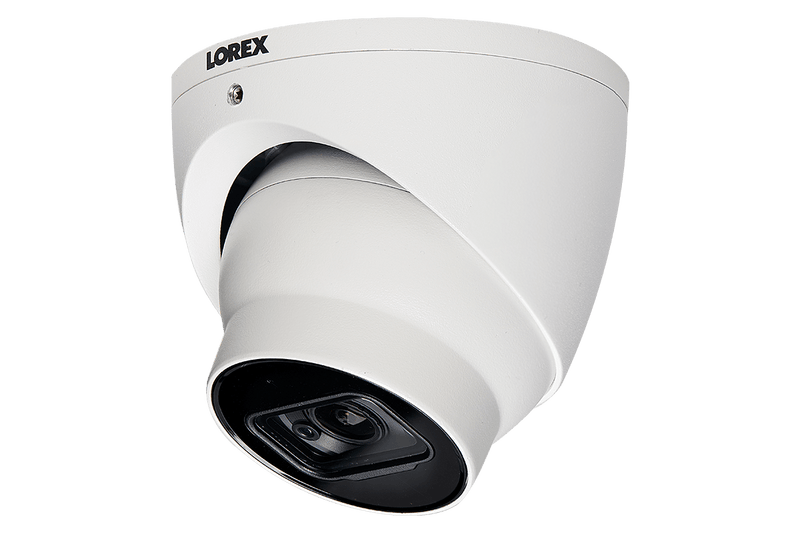

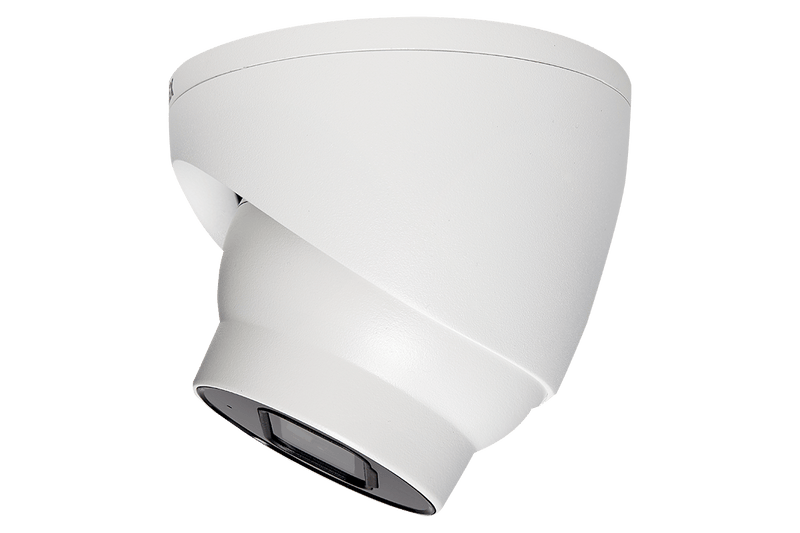

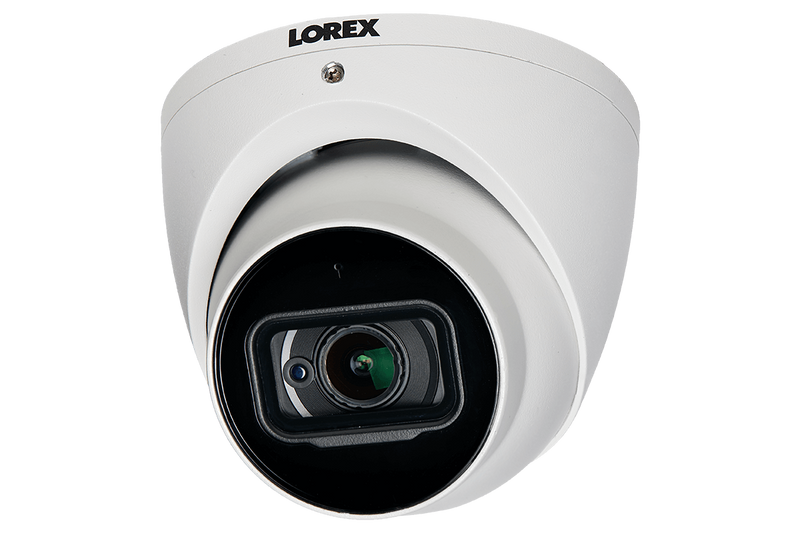

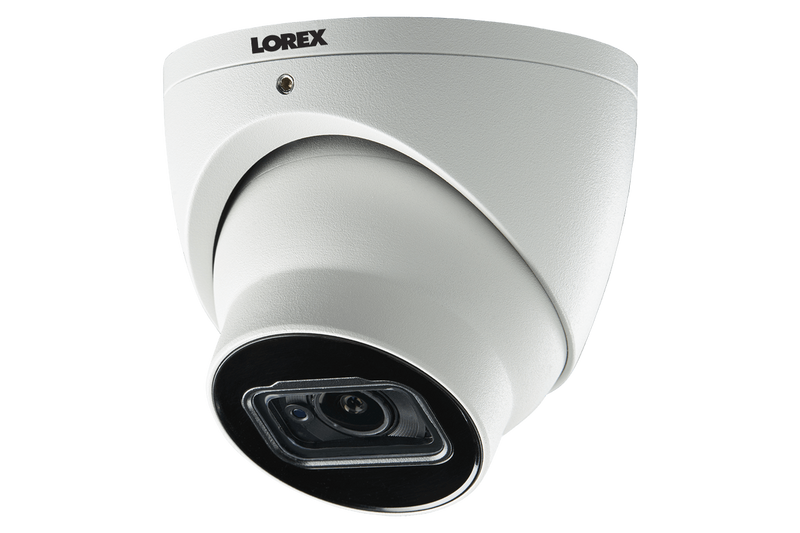

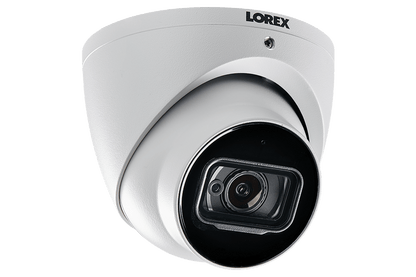

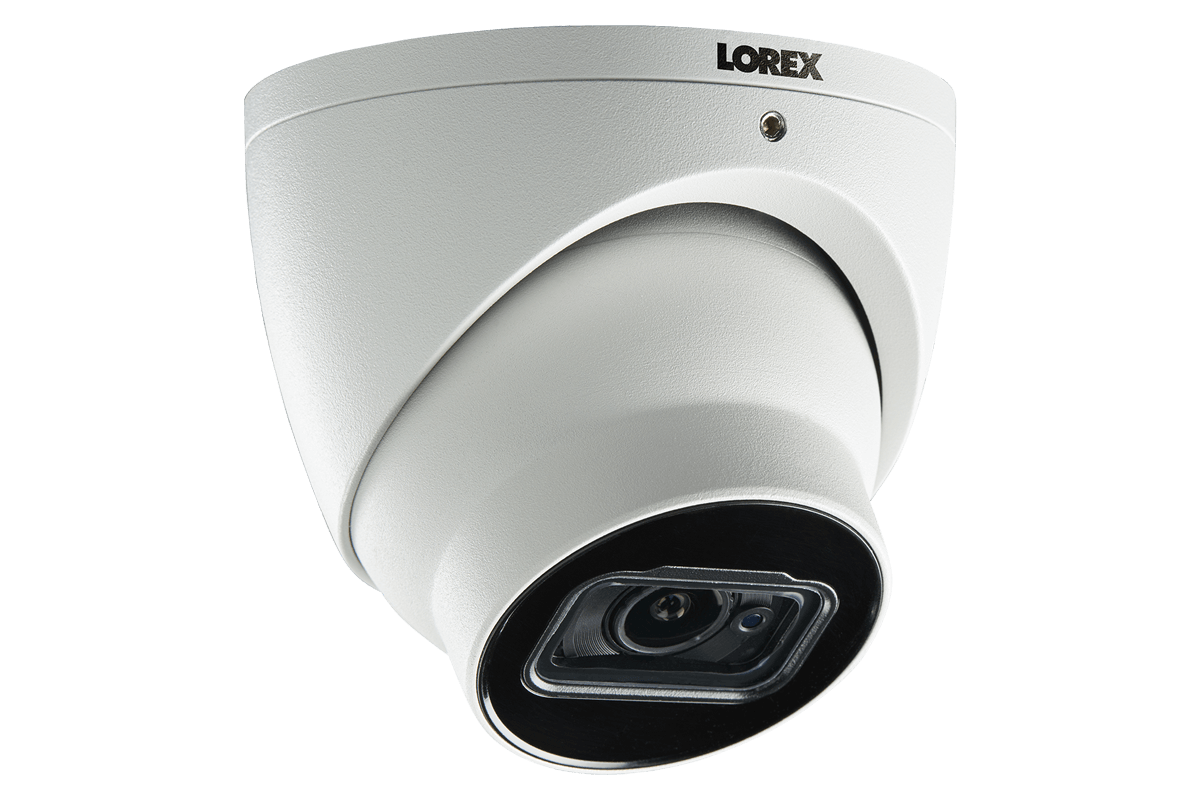

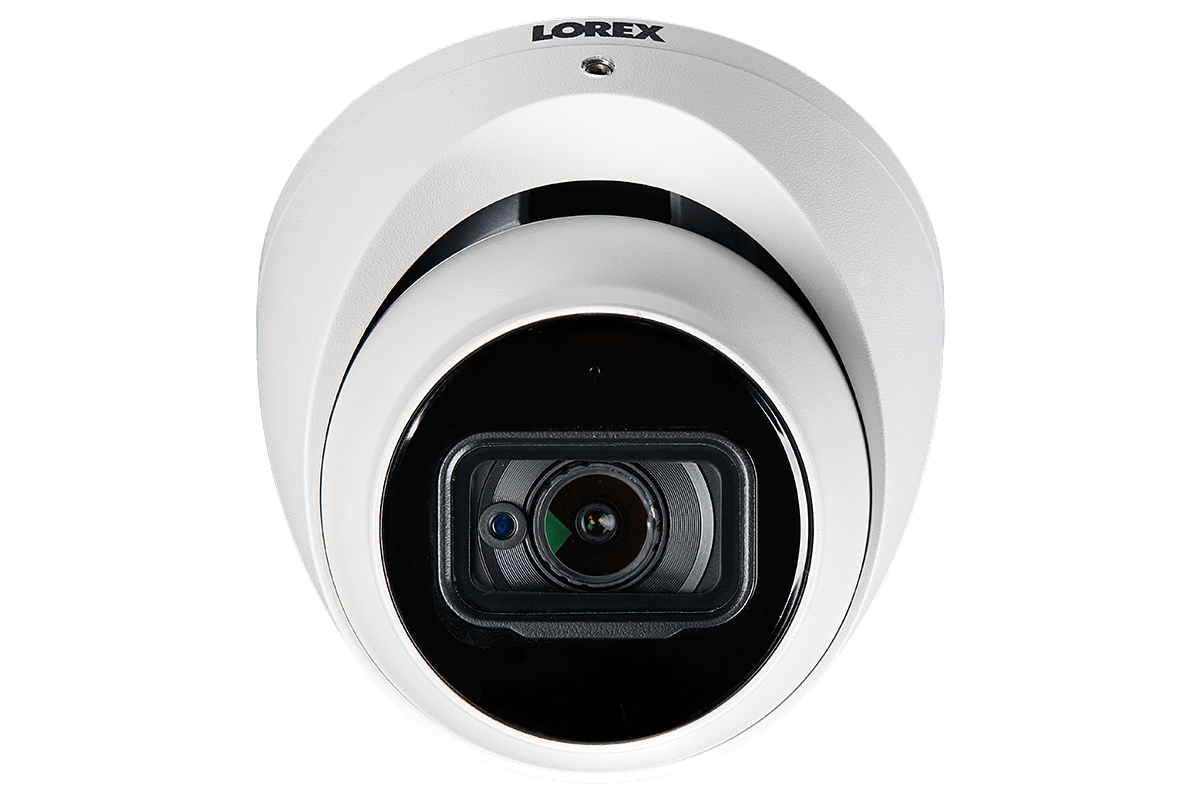

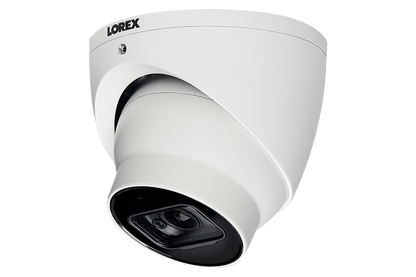

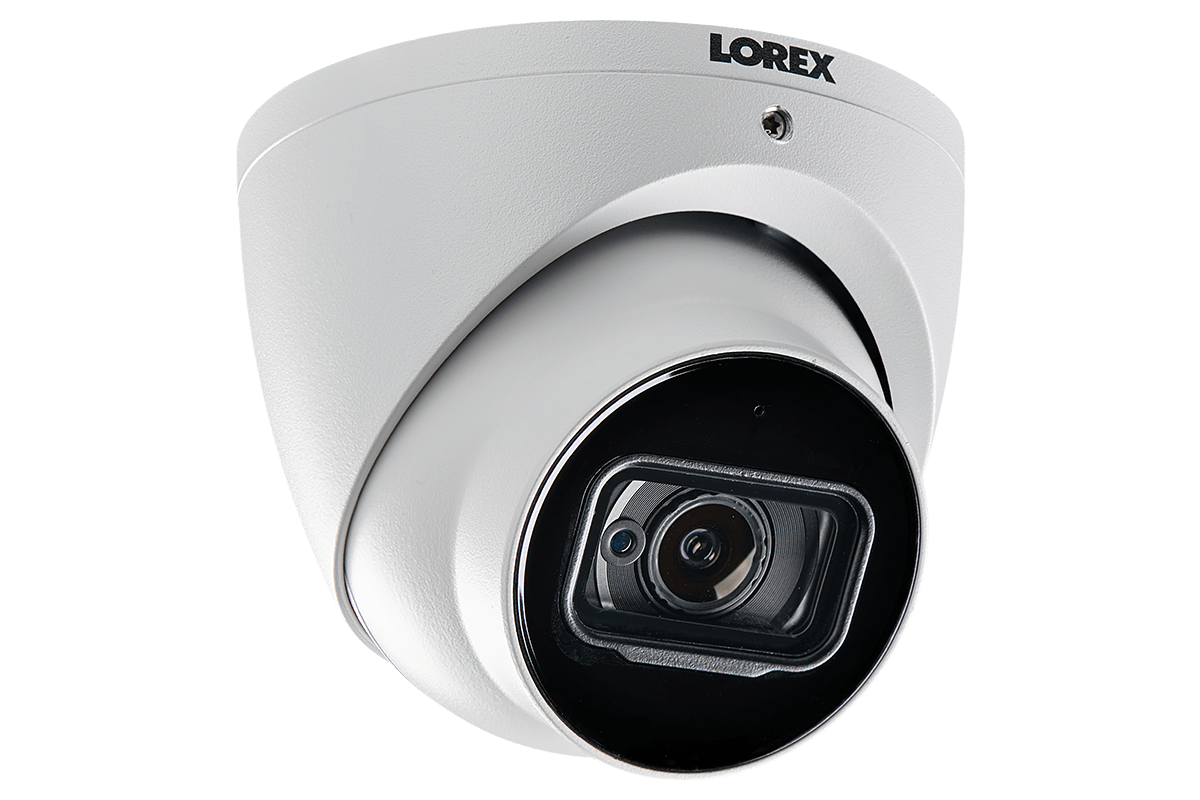

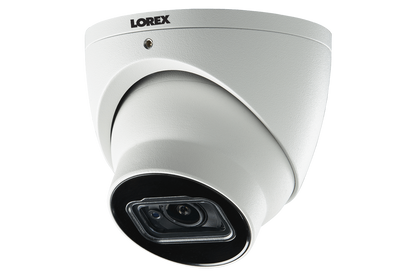

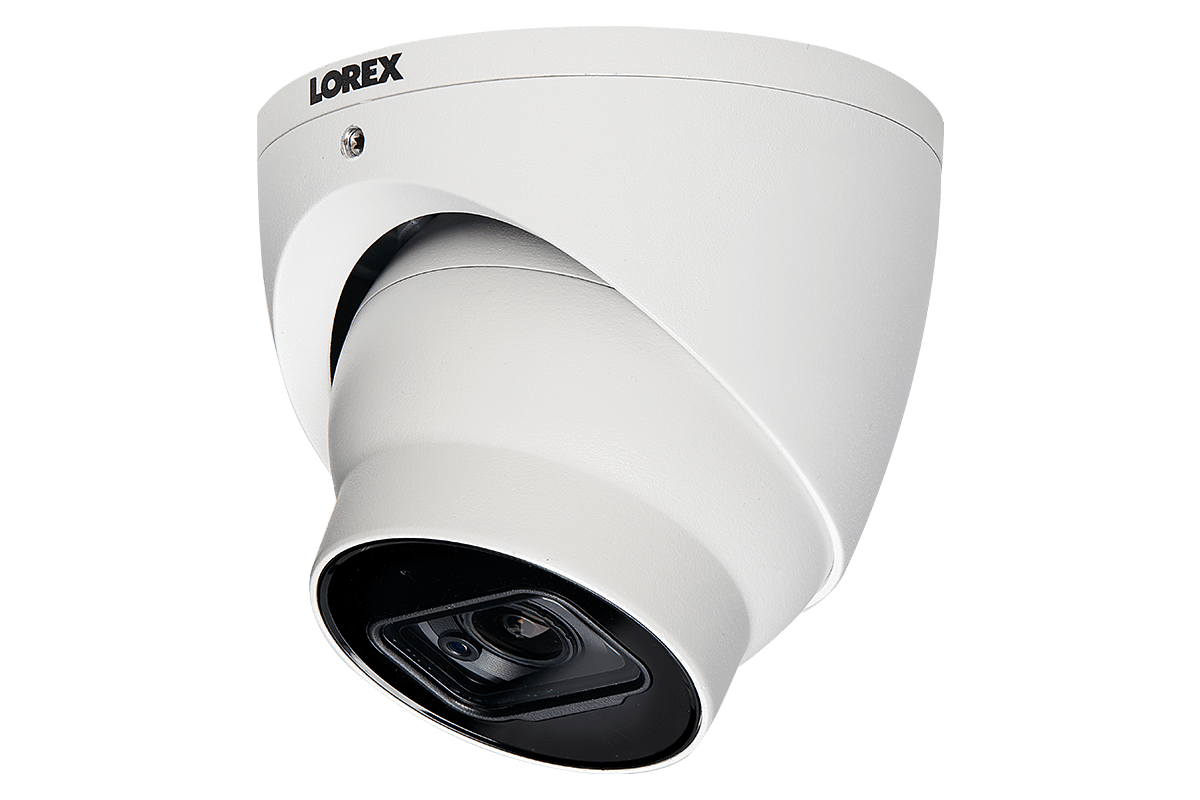

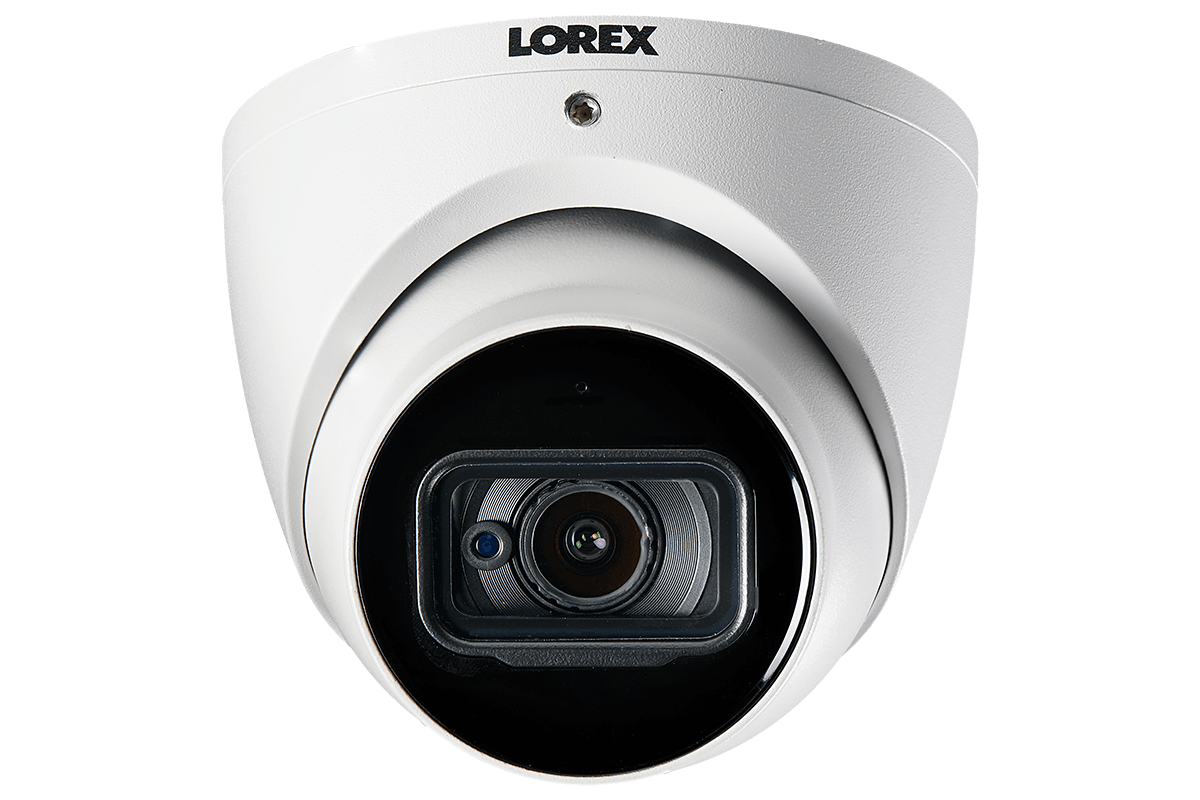

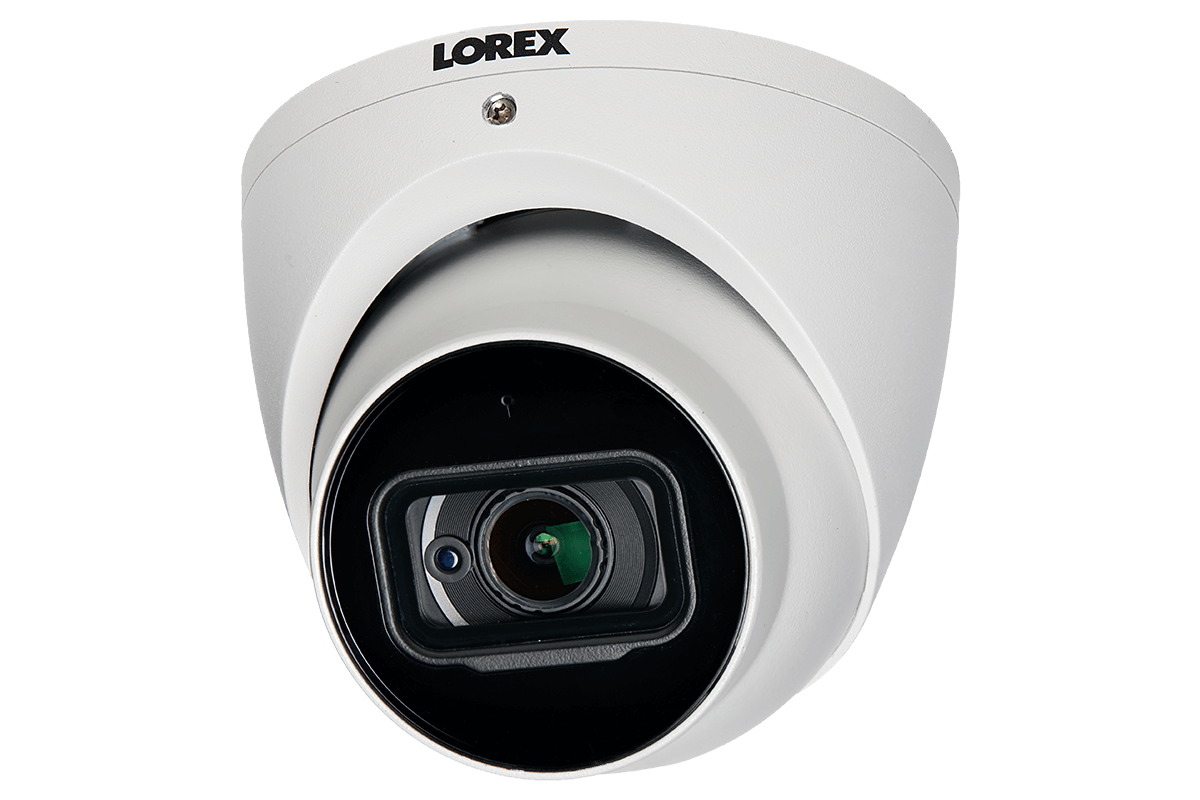

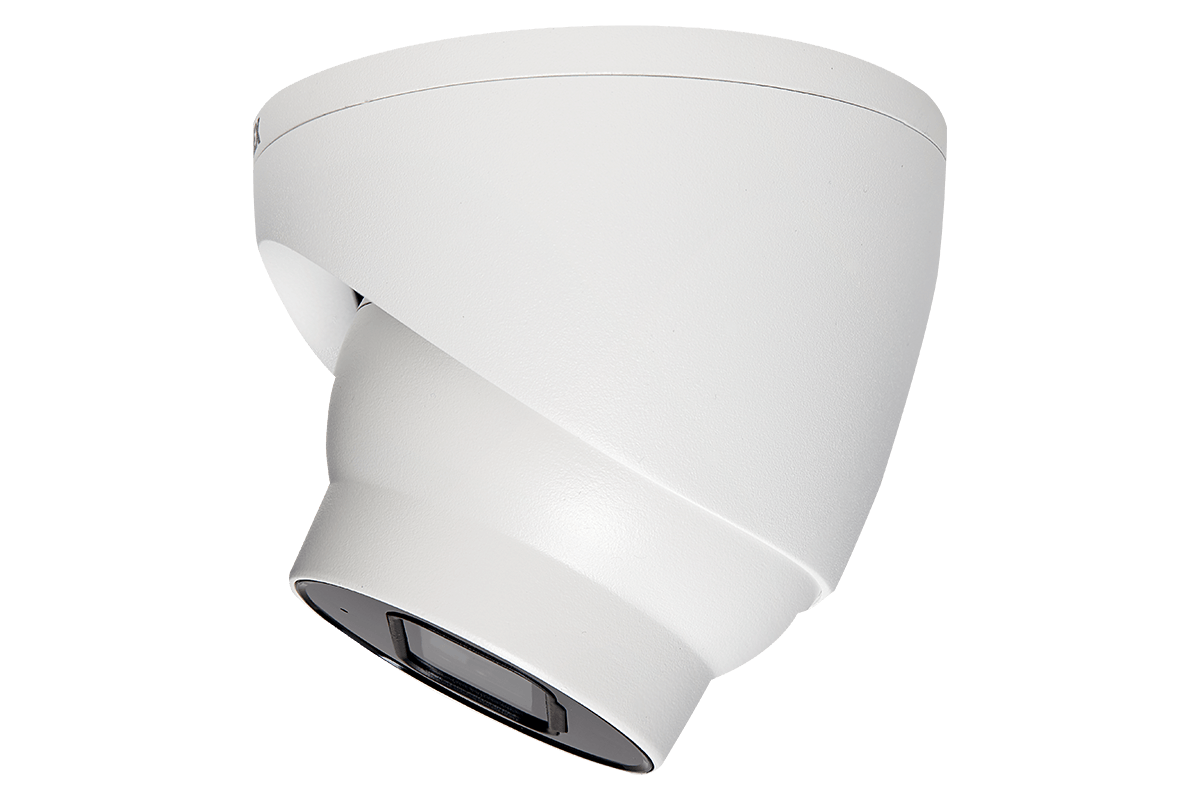

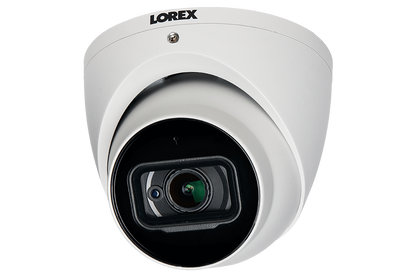

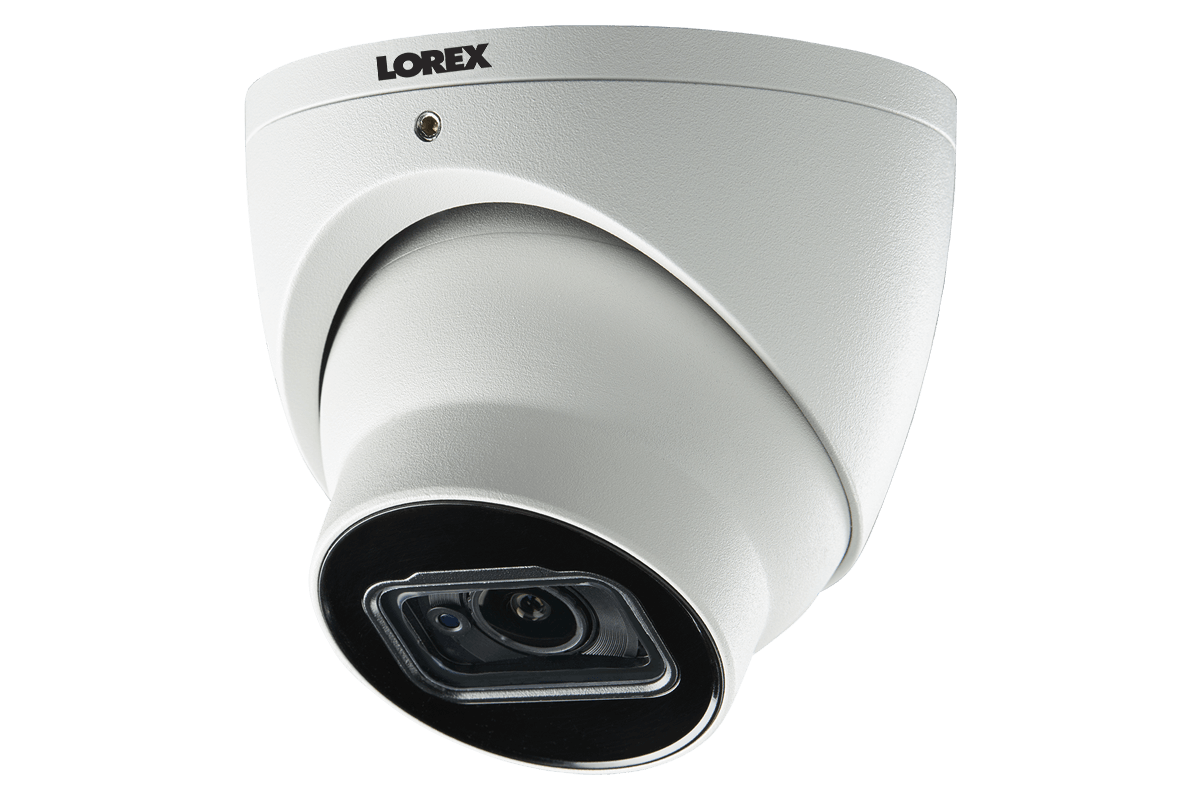

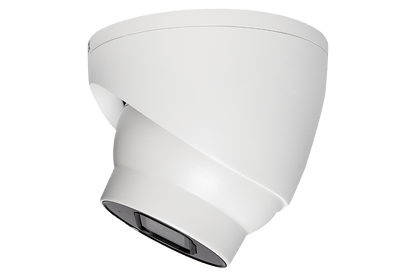

Don't ever miss those vital details again with this 4K MPX dome security camera from Lorex. This security camera will bring a whole new level of detail and clarity to your home or business surveillance needs thanks to the 8-megapixel image sensor at its core. Capable of recording 4× the resolution of 1080p (4K), this Ultra HD security camera will give you the best chance to capture specific details (such as distinctive facial features). This security camera is also fully weatherproof (IP67-rated) and comes with our revolutionary Color Night Vision™ (CNV) technology that will continue to deliver full-color video in low-light conditions.
LEV8532 Series
SPECIFICATIONS
8 MP camera
MPX security camera
4K
RESOLUTION
4x the resolution of HD 1080p
150FT
NIGHT VISION
Maximum night vision range
87°
FIELD OF VIEW
Ideal for monitoring wide, open areas

Ultra HD security camera
The main reason to purchase a security camera is to capture useful evidence should an incident ever occur on your property. This 4K camera will do just that. It is capable of recording a 4K pixel resolution of 3840 × 2160 - that's 4× the amount of pixels of 1080p resolution. A foremost benefit of this higher resolution is that it allows for greater digital zooms while reviewing video. This means that details in the distance of the video will remain visible for longer as the digital zoom is applied.

Straightforward connection
This MPX security camera comes with a siamese coaxial cable (60ft) to connect it to an Ultra HD DVR (not included). This single cable splits into two heads at both ends (one head is for power, the other for video). Simply connect the video cable to the DVR and the power cable to an electrical outlet. Then connect the other two ends to the corresponding connections on the camera for an easy plug-and-play installation.
See at night - in color!
The 4K Ultra HD dome camera uses our Color Night Vision™ technology in low light conditions. Without any external lighting sources, the camera will automatically switch to infrared black and white night vision. With this camera, you can expect to see up to 150ft (46m) in ambient nighttime conditions and up to 100ft (31m) in total darkness. Smart IR imaging also ensures that close-up objects or people will not be over-exposed by the infrared lights.


Full Metal Camera Housing
Built using the same heavy-duty aluminum that is used in the construction of airplanes, this Lorex camera is strong enough to withstand large impacts, unlike conventional plastic security cameras.

IP67 weatherproof rating
Install this security camera wherever you need it. It is manufactured to be fully weatherproof (IP67), so you can count on all-season security monitoring that never stops working.

Built to endure the cold
Your Lorex security camera is perfect for those living in extremely cold atmospheres. They can endure sub-zero temperatures as low as -22°F / -30°C.
What's Included?

- View in exceptional 4K (8MP) Ultra High Definition with an image sensor that delivers four times the detail of 1080p1
- 4K (8MP) Ultra HD video recording provides superior quality for reviewing fine details in increased resolution
- Infrared cut filter ensures accurate color representation
- Color Night Vision™ provides color images (with ambient lighting from porch or street lamps) letting you identify objects and people more accurately than in black & white2
- Night vision range up to 150ft (46m) in ambient lighting and 100ft (31m) in total darkness3
- Close up recognition in the dark with SmartIR
- Large 1/2" image sensor offers very high quality night time video
- ClearNight imaging for improved low light performance and improved recording efficiency
- Split glass design minimizes IR reflection
- Weatherproof for outdoor & indoor installation (IP67 Rated)4
- Extreme temperature performance (-22° ~ 140°F / -30° ~ 60°C)
- 87° horizontal field of view
- Durable metal housing
- 3-axis design for wall / ceiling mounting
- Includes 60ft video/power cable for simple installation5
Image Sensor | 4K (8MP), 1/2" CMOS |
Video Format | NTSC / PAL |
Effective Pixels | H: 3840 V: 2160 |
Resolution | 4K(8MP)@15fps |
Scan System | Progressive |
Sync System | Internal |
S/N Ratio | >65dB (AGC Off) |
Iris | AES |
AES Shutter Speed | 1/30 ~ 1/100,000 sec. |
Min. Illumination | 0.01 Lux without IR LED, 0 Lux with IR LED |
Video Output | MPX |
Lens / Lens Type | 3.6mm F1.6 / Fixed |
Field of view (Horizontal) | 87° |
Termination | BNC Type |
IR LED Qty / Type | 2 pieces (High Power) / 850nm |
Night Vision Range | 150ft (46m) / 100ft (31m) |
Power Requirement | 12V DC ±10% |
Power Consumption | Max. 585mA (w/IR), 7.0W |
Operating Temp. Range | -22°F ~ 140°F / -30° ~ 60°C |
Operating Humidity Range | <90% RH |
Environmental Rating | Weatherproof (IP67) |
Weight (including stand) | 0.7lbs / 0.3kg |
