HD 1080p Surveillance Camera System with Free 24"" LED Monitor and 16 Ultra-Wide 160

MPX1616MUW
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

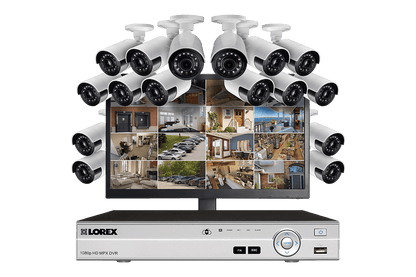

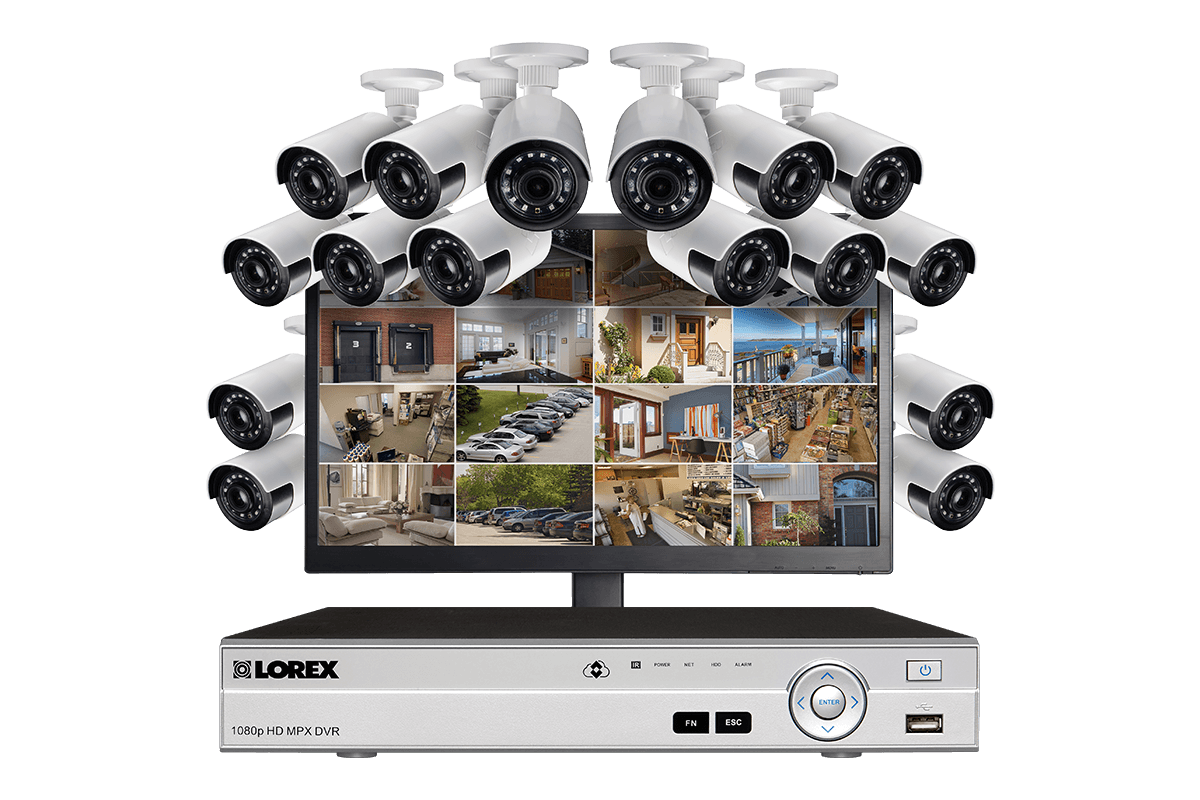

MPX1616MUW home security system

Protect what matters most with surveillance monitoring in stunning 1080p high definition. This complete web exclusive surveillance system features our popular DV7163 HD digital video recorder (DVR). It also includes sixteen 1080p wide-angle bullet security cameras, with night vision capability. To top it off, this well-rounded surveillance system comes with a widescreen 24-inch LED monitor. All that combined makes the MPX1616MUW surveillance system well-equipped to protect many types of properties.

MPX1616MUW

SPECIFICATIONS

16

CHANNELS

1080P DVR can support up to 16 cameras

16

CAMERAS

16 ultra wide HD security cameras

90FT

NIGHT VISION

Maximum night vision

3TB

HARD DRIVE

Maximum capacity 1 x 4TB hard drive

>
HD Home security monitoring in 1080p resolution


1080p HD security monitoring

When it comes to security monitoring nothing should be left to the imagination. HD quality can be the difference in identifying vital details such as faces. Smooth on-screen movement provided by the 30 frames-per-second frame rate (in 720p mode) ensures you never miss a moment.

Video - super wide angle security camera four-pack

Super wide angle security cameras

These ultra wide angle security cameras are the optimal choice for large area or doorway monitoring. They provide superior coverage thanks to their broad 160° diagonal / 120° horizontal field of view. Whether you need to monitor a large room, your front doorway, or a wide backyard, one wide angle security camera can often take the place of multiple standard viewing cameras.

wide angle security camera
Extend security coverage up to 800ft for long distance security monitoring

Analog HD technology for easy installation

Only a single RG59 siamese BNC cable is needed to connect the camera to power and the DVR for an easy and clutter-free set-up. If needed, analog HD cameras like the LBV2561U HD security camera can be placed up to 800 feet away from the DVR - making them ideal for securing large properties (see documentation for complete details).

Lorex Cloud App for smartphones

Anytime secure remote access with Lorex Cloud™ App

Connect your DVR to our innovative and hassle-free Lorex Cloud™ app to securely access your system from a smartphone or tablet. With iOS® and Android™ options, your surveillance system will always be at your fingertips. See what your cameras see (or watch their recorded footage) from virtually anywhere in the world. Enable amazing features like push notifications and instant email alerts for motion-triggered events to add another level of security to your property.

Works With

System compatibility
System compatibility
professional night vision HD surveillance system

Reliable night vision security monitoring

Capture the details you need around-the-clock with the LBV2561U’s cutting edge infrared (IR) LEDs - see up to 90ft / 27m in ambient lighting and up to 60ft / 18m in total darkness. They also feature SmartIR technology that helps with close up recognition of objects in the dark. ClearNight imaging provides superior low light performance and improves recording efficiency.

LBV2561U Night Vision Range
Energy efficient 24 inch LED monitor

24-inch energy efficient LED monitor

Lorex’s exclusive MPX1616MUW surveillance system includes an eco-friendly 24-inch LED monitor. Fit all sixteen channels on the screen at once to create a handy hub for accessing your surveillance system locally. Simply connect the DV7163 DVR to the monitor using the included HDMI cable to have your security station up and running in no time.

all year IP66 weatherproof rated security cameras

Extreme temperature weatherproof surveillance system

The LBV2561U HD security camera is built to survive. IP66 rated, they are well-suited for both indoor and outdoor installations. They are able to withstand the most unforgiving climates. Vandal resistant design and lightweight polycarbonate housings make these security cameras a worry-free choice for all-season security monitoring.

LBV2561UW

LBV2561U

Heat Rating

122°F | 50°C

Heat Rating

Cold Rating

-4°F | -20°C

Cold Rating

Security HDD for HD security monitoring

Professional security certified hard drive

The 3TB security certified hard drive in the MPX1616MUW’s DVR is specifically manufactured to manage high workloads. It can be in constant operation and will safely continue recording even while you review footage. Trust top quality functionality - the hard drive can save weeks (even months) of reliable security footage. Record at a lower resolution or program scheduled recording times to maximize hard drive space. The motion-triggered recording option saves additional storage space by keeping watch 24/7, but only recording when movement is detected.

1080 MPX Comparison Chart
  HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording Full 1080p HD (1920x1080) 720p HD (1280x720) Analog 1080p HD (1920x1080) 720p HD (1280x720)
Platform 1080p HD NVR systems 720p HD NVR systems 1080p HD DVR systems 720p HD DVR systems
Video Digital IP / RJ45 connection Digital IP / RJ45 connection Analog BNC / RG59 connection Analog BNC / RG59 connection
Power PoE (Power over Ethernet) PoE (Power over Ethernet) Standard DC power Standard DC power
Installation Connect cameras to NVR or to router/LAN Connect cameras to NVR or to router/LAN Cameras require wired connection to DVR Cameras require wired connection to DVR

Video

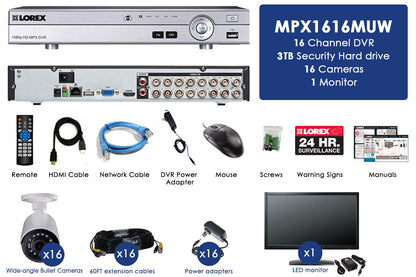

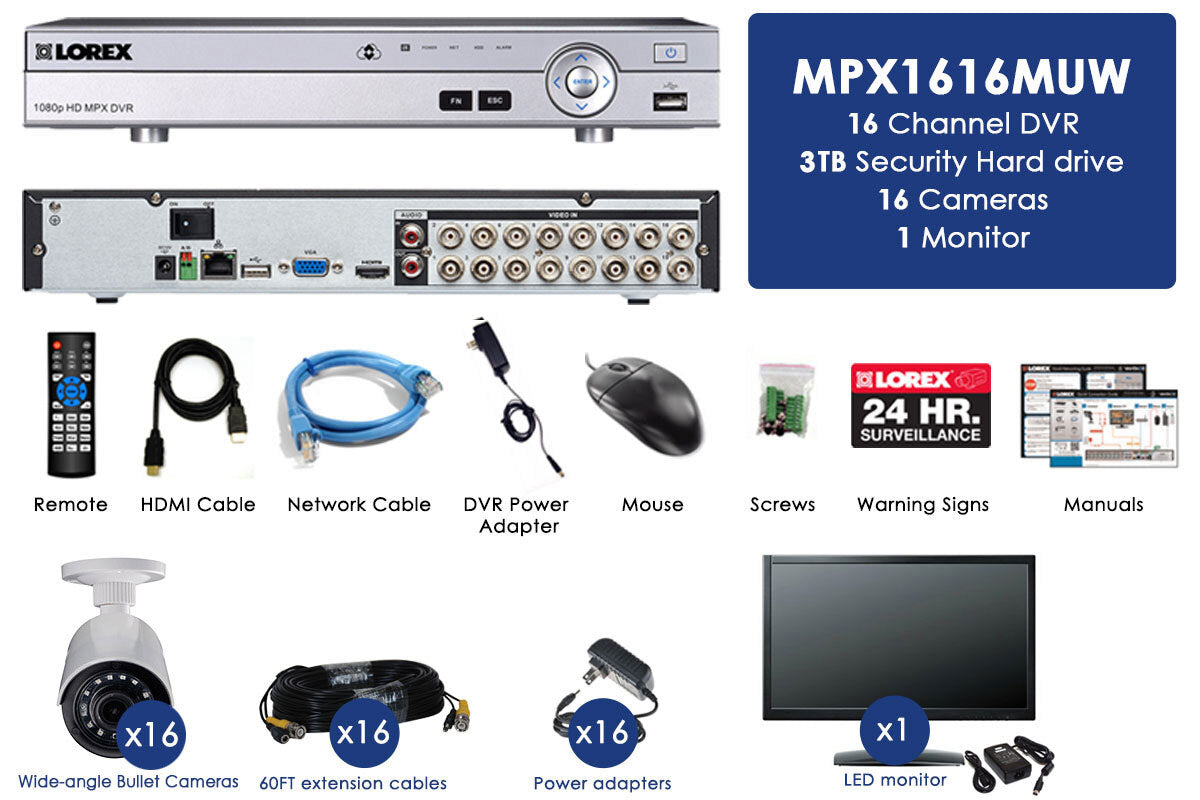

What's Included?

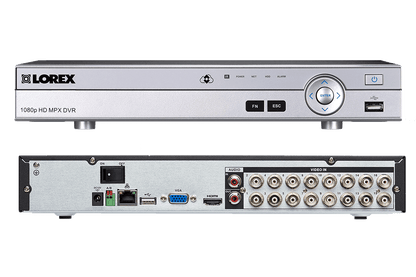

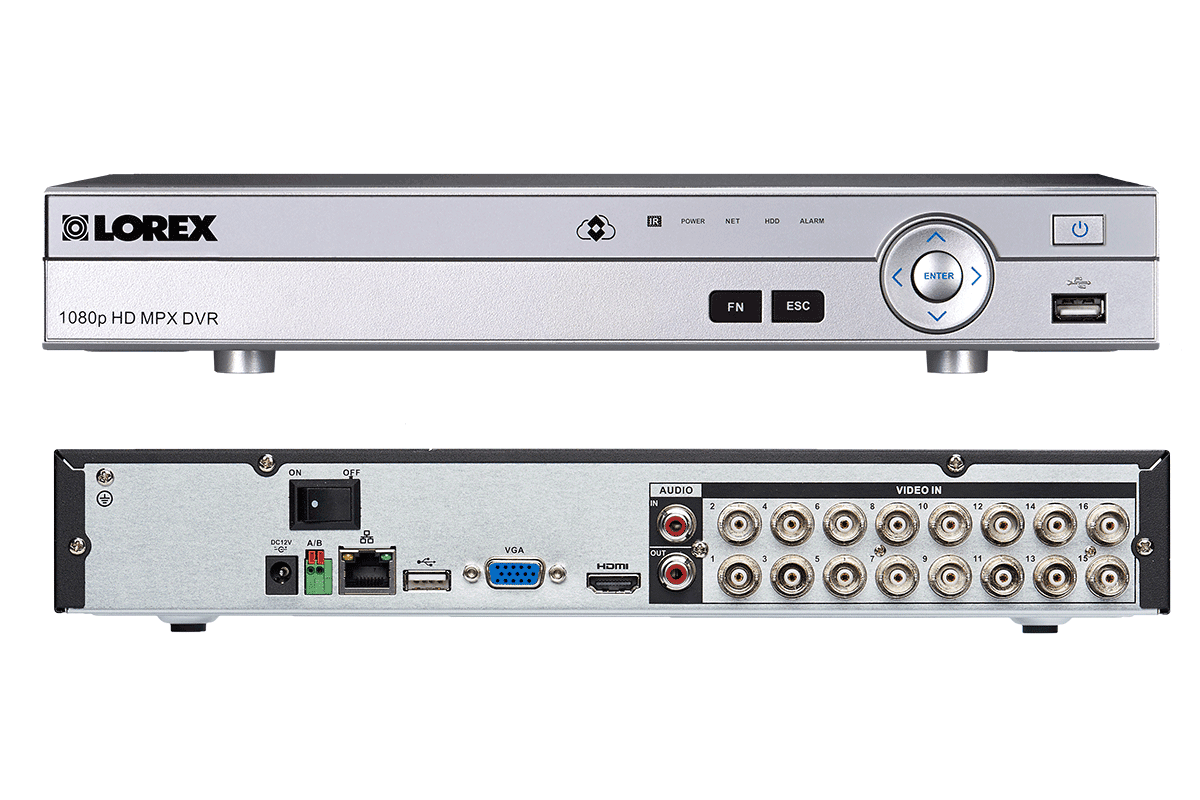

DV7163

16 channel, analog HD 1080p security DVR:

  • True high definition 1080p recording on all cameras1
  • 24/7 security-grade hard drive
  • Continuous, scheduled and motion recording
  • PTZ cameras supported, remote control through App1
  • H.264 video compression2
  • HDMI cable included for simple connection to HD TVs3
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade
  • 3-Step remote view with Lorex Cloud4
  • PC and Mac compatible 5
  • Instant mobile viewing on smartphones and tablets5
  • Advanced apps with live viewing, playback, video recording, and snap shot
  • Mobile push notifications of motion events and email alerts
  • Dual streaming to conserve bandwidth

Each DV7163 Includes:

1 × DVR
1 × HDMI Cable
1 × Remote Control
1 × Power adapter
1 × Mouse
1 × Ethernet Cable
Quick Start Guides

1. Compatible with Lorex 1080p and 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. HDMI output (1920x1080) HD for high definition multi-channel live viewing only. 1080p recording resolution is limited to a maximum of 1920x1080 per channel. Image quality and resolution is dependent on the type of camera connected to the DVR.
4. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 2 devices may connect to the system at the same time.
5. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

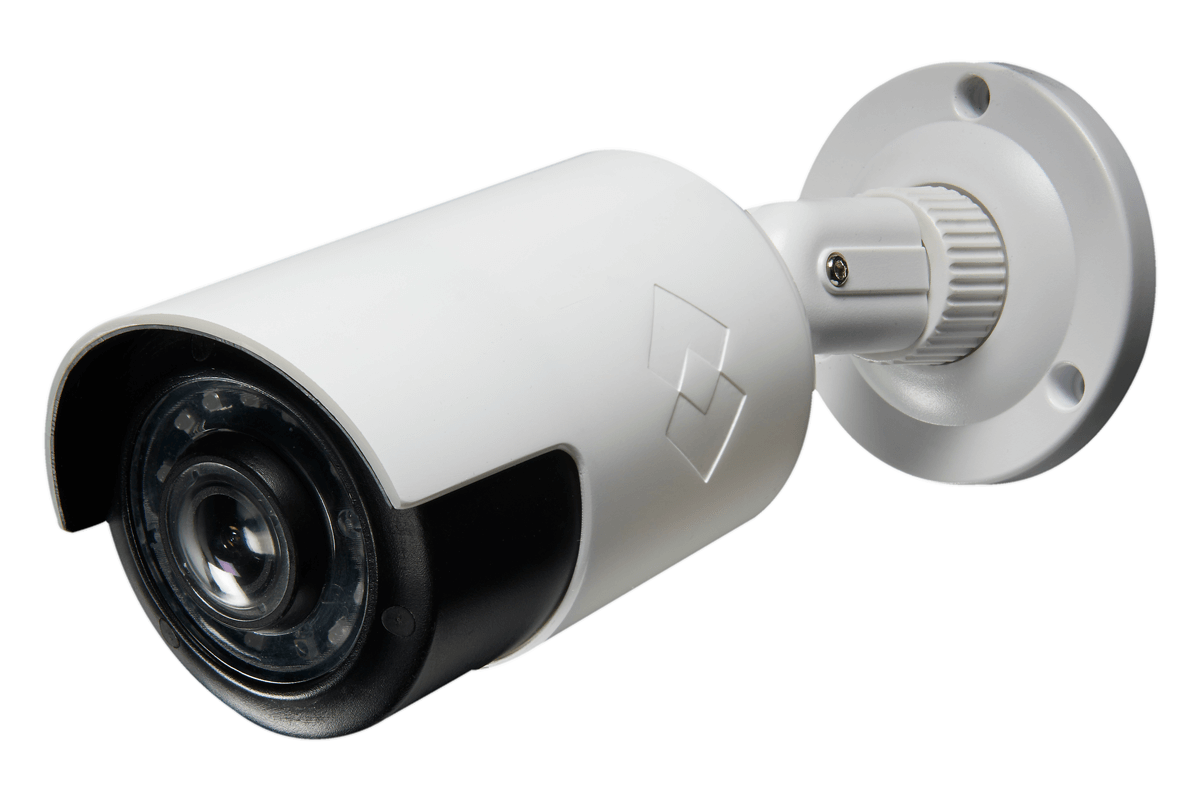

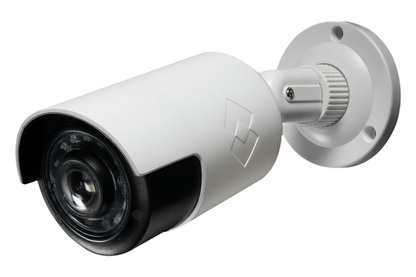

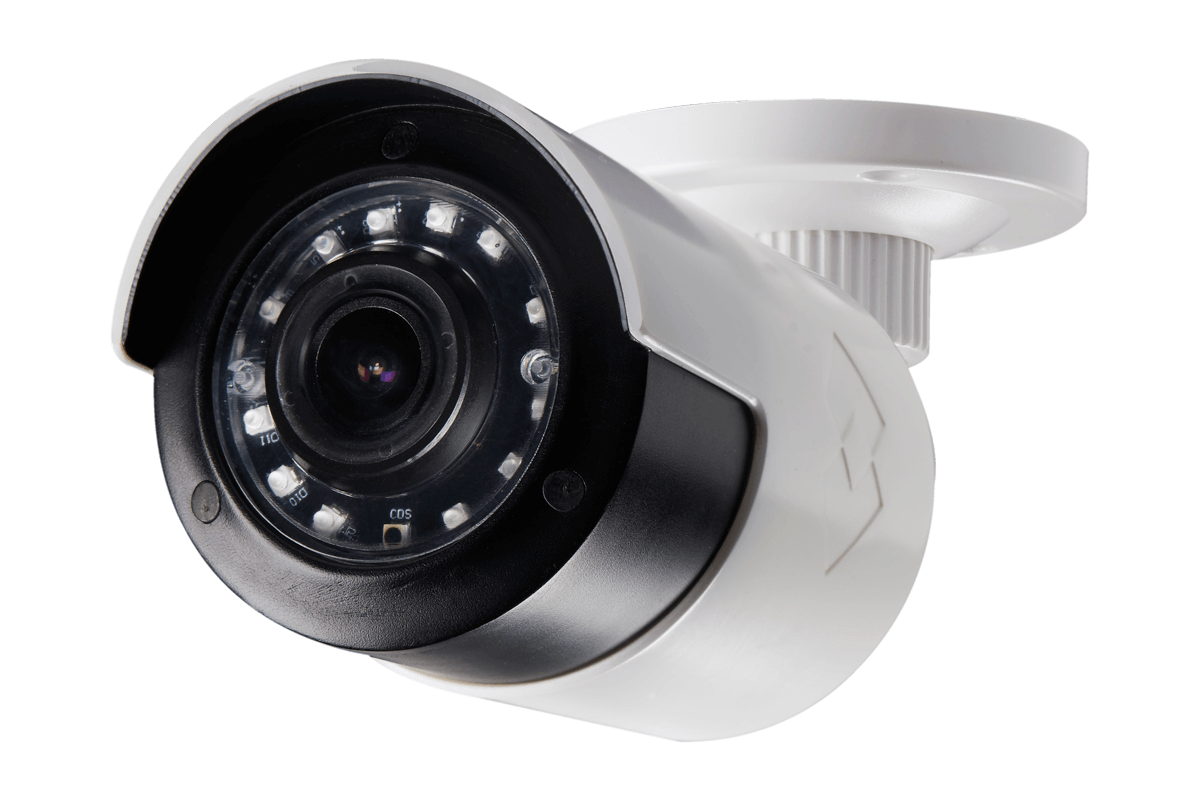

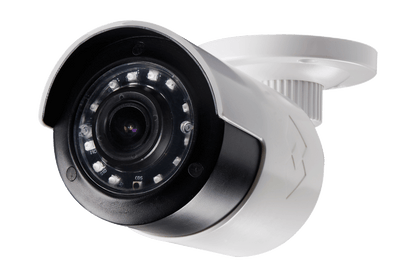

LBV2561U

1080p HD super wide-angle security camera:

  • High definition 1080p image sensor1
  • Ultra-Wide field of view captures the entire scene for superior coverage
  • Night vision range up to 90ft (27m) in ambient lighting and 60ft (18m) in total darkness2
  • Close up recognition in the dark with SmartIR
  • Infrared cut filter ensures accurate color representation
  • Anti-glare feature ensures clear images under strong lighting conditions
  • Split glass design minimizes IR reflection
  • Versatile ceiling or wall mounting options
  • Vandal resistant design with cable pass-through bracket and durable Polycarbonate construction
  • UL compliant cable suitable for surface and in-wall installation
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3

Each LBV2561U Includes:

1 × Night Vision Camera
1 × Mounting Kit
1 × 60ft Extension Cable
1 × Power Adapter*

1. 1080p HD cameras are compatible with Lorex 1080p HD DVRs only. For a list of compatible recorders please visit lorextechnology.com/support.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

*A Multi-Camera Power Adapter that provides power to multiple cameras or individual power adapters may be provided, depending on product configuration.

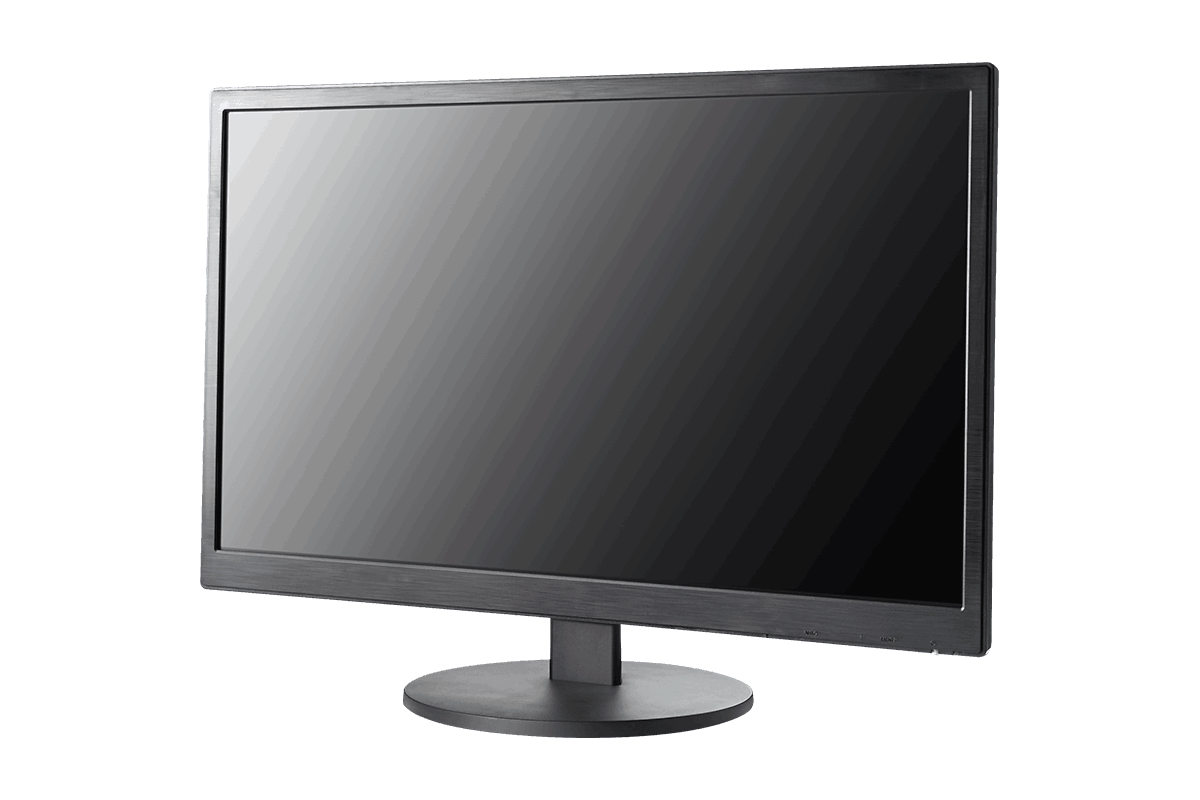

L24LE10B

Surveillance Monitor Features:

  • Display: 23.6" viewable image with 16:9 aspect ratio
  • Resolution: Max 1080P (1920 x 1080)
  • Color resolution: approx. 16.7 million
  • Response time: 5ms
  • Contrast Ratio (DCR): 20,000,000:1
  • Power Source: Universal 100~240VAC,50/60HZ
  • Power Consumption: 23 W
  • Unit Dimensions: 22.3" (W) x 15.6" (H) x 7.5" (D) / 561.3mm (W) x 399.6mm (H) x 199.3mm (D)
  • Weight (NET): 8.15lbs / 3.7kg
>

Each L24LE10B Includes:

1 × 23.6" monitor with stand
1 × AC adaptor
1 × 15 pin VGA cable
1 × Instruction manual

Specifications are subject to change without notice.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
