H Series

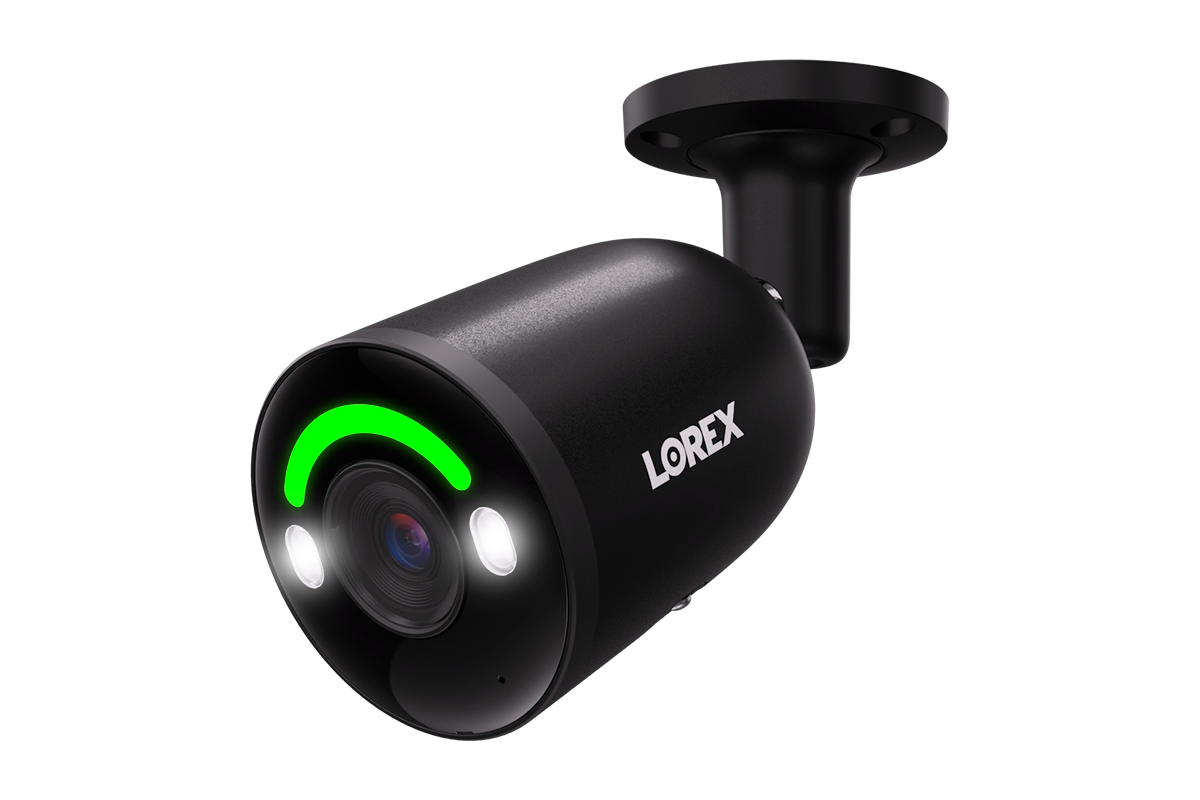

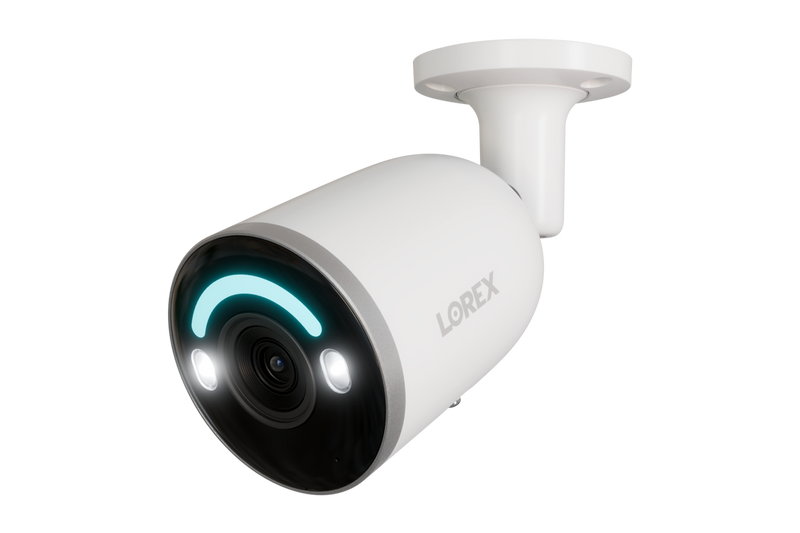

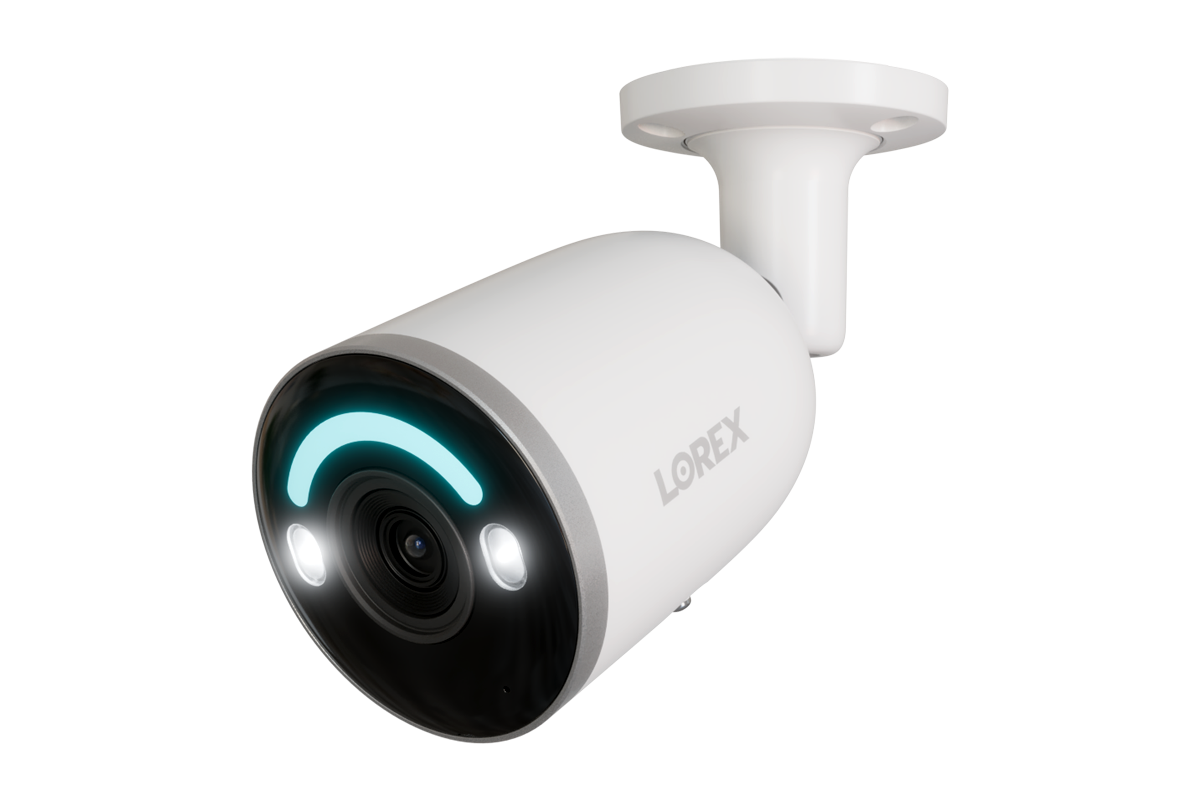

Lorex H12 4K IP Wired Bullet Security Camera with Smart Security Lighting and Smart Motion Detection (Cable not included)

Lorex H12 4K IP Wired Bullet Security Camera with Smart Security Lighting and Smart Motion Detection

SKU: E863SB

$139.99
$139.99
$139.99/ea
Volume Pricing
  • 1 Buy 1 $139.99/ea
  • 2 Buy 2, get 2% off $137.19/ea
  • 4 Buy 4, get 5% off $132.99/ea
  • 8 Buy 8, get 10% off $125.99/ea
OR
Color
🛈
Cables sold separately. Purchase extension cables here.
No Monthly Fees Own it. No subscriptions required.
Lorex H12 4K IP Wired Bullet Security Camera with Smart Security Lighting and Smart Motion Detection
Lorex H12 4K IP Wired Bullet Security Camera with Smart Security Lighting and Smart Motion Detection
$139.99

Introducing a premium security camera with all the features you need to protect your property - The Lorex 4K IP Wired Bullet Security Camera, a perfect addition to your NVR security system.



Resolution

Smart Security
Lighting

Color Night
Vision

IP67
Weatherproof

2-Way
Talk

Person and Vehicle
Detection



Capture the details you need

4K recording can make all the difference. It provides an exceptionally high level of clarity to help you capture important details while also improving post-recording digital zooms.



4K Resolution



Don’t lose any details at night

Lorex’s Color Night Vision (CNV) delivers full-color video in low-light situations, so you don’t miss any visual details. CNV works best with plenty of ambient lighting, but not to worry, in total darkness, this camera will use its powerful infrared LEDs for crisp black and white footage.



Color Night Vision

Black & White (IR) Vision



Customize light colors with
Smart Security Lighting

The customizable smart LED light band comes with 16.7 million color options to choose from.



Smart Security Lighting

Proactive Security

Stay one step ahead and stop events before they happen with the motion-activated warning lights and siren.



Dual Warning Lights

Siren




Smart Motion Detection (Person and Vehicle)

Person and vehicle detection helps identify and categorize motion events. It also limits the number of motion alerts sent to your smartphone to only detections caused by people of vehicles.



Person Detection

Vehicle Detection




Answer Instantly

Communicate with a tap of a button, thanks to pre-recorded Quick Response Messages.



Quick Response

2-Way Talk



All season security

Our highest weatherproof rating (IP67) and its extreme temperature tolerance ensures this camera delivers year-round coverage for years to come.



140°F | 60°C Heat Rating

-40°F | -40°C Cold Rating

IP67 Weatherproof




Wired Reliability

Enjoy the reliability that a wired security camera has to offer. Connect this camera to a compatible NVR for a stable camera connection, 24/7 continuous recording and the ability to record without internet.



Product Specifications

General
Video Transmission Technology IP
Image Sensor 1/2.7” CMOS
Video Format NTSC
Video Compression H.265/H.264 (Main Stream & Sub Stream)
Optical
Viewing Angle (H ×V ×D) 106° × 56° × 125°
Lens/Lens type 2.8mm F1.6 / Fixed
Video Output
Resolution / Frame Rate 4K/8MP@15fps, 5MP@30fps, 1080p@30fps, 720p@30fps
Effective Pixels 3840 (H) × 2160 (V)
HDR Yes
Network Port RJ45
Audio
Microphone / Speaker Yes / Yes
Siren Yes (Siren sound options available)
Two-way Talk Yes
Night Vision
IR Night Vision Range 98.43 ft / 30 m
Color Night Vision Yes
Special Features
Smart Motion Detection Yes - Person and Vehicle Detection
Detection Types Vehicle, Person
Supports in App Quick Messaging Yes
Active Deterrence Yes - Warning Light + Siren + Pre Recorded Message
Smart Security Lighting Yes
Additional Specifications
Camera Housing Material Aluminum Alloy
SD Card Slot Yes*
Power Requirements PoE (Power over Ethernet Class -802.3af) / 12V DC
Power Consumption (max) 9.6W (DC12V), 11W (POE)
Camera Dimensions (W × D × H) 2.9 × 6.9 × 2.8” / 73 × 175 × 70 mm
Camera Weight 1.15 lb / 0.52 kg
Operating Temperature -40 °F to 140 °F / -40 °C to 60 °C
Humidity ≤ 95% RH
Environmental Rating IP67 (Indoor/Outdoor)

*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing

What's Included?

E863SB Overview
  1. Ethernet Connector
  2. 12V DC Power Connector
  3. Cable Notch
  4. Adjustment Screw
  5. Speaker & Siren
  6. Reset Button
  7. MicroSD Card Slot
  8. Smart Security Lighting
  9. Camera Lens
  10. Warning lights (2×)
  11. Microphone
  12. IR Sensor


Package Contents:

4K Bullet Camera

Mounting Kit

Product Compatibility

Product Support

Product Compatibility List Manuals & Downloads Support
Articles

Product Reviews

Overall rating: 4.3 / 5 from 20 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["quality","cameras","picture"].

Review highlights

Reviews

Have installed 13 cameras on

"Have installed 13 cameras on our storage business and residential home, shop, and carports. The new video system accomodates 18 cameras, so when completed will provide excellent security along with our lighting system, back up bateries, all hard wired in. Excellent products"

— Wayne M. (5/5)

My Lorex system is a

"My Lorex system is a NVR/DVR from 5 years ago. I have some legacy IP cams that are 10 years old and occasionally those fail (10 years is a long life. I've been replacing these with the newer Lorax cameras from time to time. I bought this camera not knowing if it would work with my legacy 4K Lorex DVR system. However, it works great. Resolution is fantastic. With my DVR I can't enjoy all of the features of this camera because it is made for the newer class Lorex DVRs that have more options. However, well worth the money and a great add-on to my old legacy 4K IP Cabled ultra DVR 16 camera system."

— Robert M. (5/5)

Overall, the quality of the

"Overall, the quality of the cameras is good. The functions for setting up the zones, motion triggers, and other parts of the software are not easy to understand. What gets set on the NVR doesn't translate well to the app. I would give the cameras a 5 and the setup of the software a 2."

— Doug K. (3/5)

Out of four cameras one

"Out of four cameras one of them is not working out of the box. I tried to contact Lorex, I didn't get any reply"

— Ziad A. (1/5)

The cameras connected to the

"The cameras connected to the NVR with no issues, and the video quality is excellent."

— Henry B. (5/5)

LORES CAMERAS

"Lorex cameras are very good, durable, reliable cameras that are very easy to install/program. The only issue I encountered was that I tried to use my existing cat5e cable and there were technical problems with 40 of my bullet cameras. I recommend that Lorex include cat5e cabling with all their camera packages."

— Boisy P. (5/5)

Great picture, easy to talk

"Great picture, easy to talk through"

— Mark M. (5/5)

Great product

"Great product"

— Eric L. (5/5)

Works better than the type

"Works better than the type that came with my n847 Nvr but falls short of my needs and is not upgradable. Your products are good quality but the sales information and technical information after the sale is lacking."

— Michael N. (3/5)

KUDOS Lorex

"I've had my cameras for years. I am very pleased with them . Raj has helped me in the past and if ever I need assistance again . . . I hope that it's him . My optics are very clear and if I ever need to upgrade , it will be with Lorex ."

— W. M. (5/5)

Q&A

Is this camera works on Wi-Fi and 110 v.
No, this is an IP camera. It does not work on Wi‑Fi or 110V power. It requires DC12V (9.6W), PoE (11W).
I was wondering if this Lorex H12 4K IP Wired Turret Security Camera with Smart Security Lighting and Smart Motion Detection do the audio recording ? Thanks 6 Reviews Regular price$179.99 Regular price
Yes, this camera supports audio recording.
Will this system work with my existing Lorex cameras model number LNB4173?
Please get the recorder model and contact our sales team; they will be happy to help you check compatibility and suggest the best option for your security needs. Sales Help: 1-888-425-6739
I got a pored ip fixeed bullet camera 4 of the camera And a round station camera what else do I need to get this working. I bought this at a olive auction would like to hoook this up
You can contact our technical support team by phone. They will be happy to assist you with information on proper installation. Technical Support: 1-888-425-6739
Other brands with the identical cameras are able to connect their wired cameras to their mobile app standalone, when will lorex provide device IDs to their wired cameras.
There are no updates on when these cameras will have QR code for remote access as a standalone device.
>
