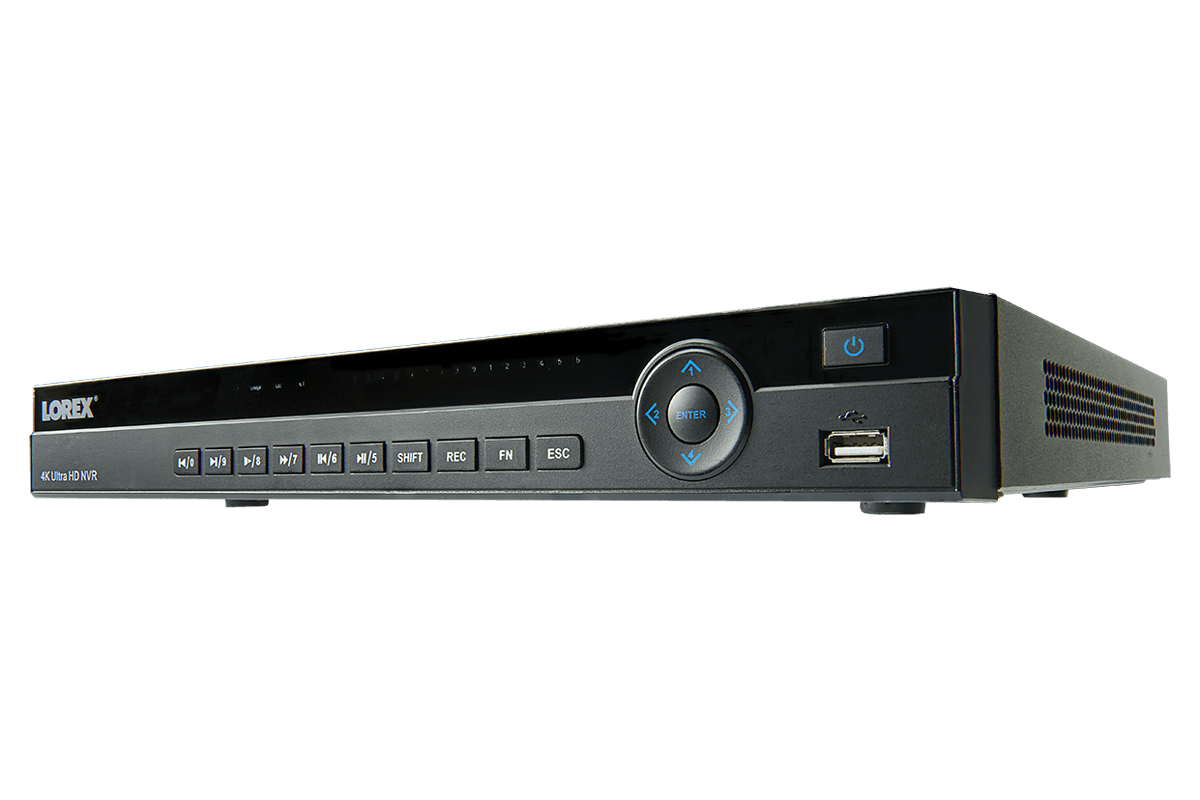

4K Ultra HD 16 Channel Security NVR, 3TB Hard Drive, POE, Records 4K (4 x 1080p) at 30FPS, with Audio Recording
4K Ultra HD 16 Channel Security NVR, 3TB Hard Drive, POE, Records 4K (4 x 1080p) at 30FPS, with Audio Recording
4K Ultra HD 16 Channel Security NVR, 3TB Hard Drive, POE, Records 4K (4 x 1080p) at 30FPS, with Audio Recording
4K Ultra HD 16 Channel Security NVR, 3TB Hard Drive, POE, Records 4K (4 x 1080p) at 30FPS, with Audio Recording
4K Ultra HD 16 Channel Security NVR, 3TB Hard Drive, POE, Records 4K (4 x 1080p) at 30FPS, with Audio Recording
4K Ultra HD 16 Channel Security NVR, 3TB Hard Drive, POE, Records 4K (4 x 1080p) at 30FPS, with Audio Recording
4K Ultra HD 16 Channel Security NVR, 3TB Hard Drive, POE, Records 4K (4 x 1080p) at 30FPS, with Audio Recording
4K Ultra HD 16 Channel Security NVR, 3TB Hard Drive, POE, Records 4K (4 x 1080p) at 30FPS, with Audio Recording
4K Ultra HD 16 Channel Security NVR, 3TB Hard Drive, POE, Records 4K (4 x 1080p) at 30FPS, with Audio Recording
zoom Roll over image to zoom in Click on image to zoom

4K Ultra HD 16 Channel Security NVR, 3TB Hard Drive, POE, Records 4K (4 x 1080p) at 30FPS, with Audio Recording

NR9163
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

NV8081

Lorex is proud to introduce industry-leading 4K resolution recording to their extensive line of consumer security products. This network video recorder (NVR) is compatible with IP security cameras from 720p all the way to 4K resolution. It contains sixteen built-in Power-over-Ethernet (PoE) ports and a 3 terabyte security certified hard drive. It can also be connected to our innovative Lorex Cloud app for easy remote monitoring from your smartphone or tablet. Whether you need it for your home or business, 4K resolution will provide the best chance to capture the specific details you need should an incident occur.

NR9163

SPECIFICATIONS

16

CHANNELS

4K NVR supports up to 16 cameras

4K

RESOLUTION

Ultra high definition resolution

3TB

HARD DRIVE

Expandable up to 16TB

Lorex Cloud App

Works With
Lorex Cloud™ App

Powerful HD recording and 4K capability

Ultra HD 4K resolution recording

This NVR is a powerhouse. It is capable of recording smooth 4K video in real-time (30 frames per second) on all sixteen channels. When utilized with a 4K security camera, this NVR ensures the highest level of clarity in your recordings. A higher resolution (3840

Video

What's Included?

NR9163

16 channel, 4K ultra HD network video recorder:
  • Real-time recording up to 8MP on all channels - 4× the detail of 1080p
  • Supports industry-leading 4K recording 1
  • 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • RapidRecap® - see the day in a minute with hours of activity compiled into a short video summary
  • Lorex Cloud™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™) 2
  • PC and Mac compatible - Lorex Cloud™ video management software gives you complete control over your security systemfrom anywhere 2
  • 24/7 security-grade pre-installed hard drive 3
  • Expandable high capacity storage up to 16TB (2×8TB HDD)
  • Automatically detects compatible IP cameras in the network 4
  • 4K video output - view multiple HD channels at once in full resolution on a 4K TV
  • H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing 3
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time asrecording to the primary hard drive 5
  • Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date 6
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD amp; 4K TVs
Operating System Linux (embedded)
Pentaplex Simultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels 8/16/32 Channels
Video IN 8ch: 8 PoE, 16/32ch: 16 PoE
Video OUT No
VGA OUT Yes
HDMI Yes
Audio IN 1 Line IN (RCA) for service only
Audio OUT 1 Line OUT (RCA) for service only
USB Port 1 at the back, 1 at the front
Alarm IN 4 Alarm IN
Alarm OUT 2 Alarm OUT
Video Output Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
PTZ control Lorex IP PTZ cameras only
Display 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36
Live Display Speed 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL
OSD ON/OFF
System Navigation USB Mouse, IR Remote Control, Front Panel Buttons
Motion Area Setting Fixed Grid (22×18)
Sensitivity Levels 100
Firmware Upgrade Automatic over the Internet & via USB device and network
User Authority By user group
Time Synchronization Automatic time sync by NTP server
Video Compression H.264 / H.265
Audio Compression G.711
Resolution Up to 4K (3840×2160), 1080p (1920×1080)
Record Rate 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP
Recording Resolution Setting Per camera for different resolutions
Recording Quality Control 6 Levels
Recording Schedule By hour, by day, by recording mode, by motion, by alarm, by channel
Pre Recording Max. 4 Secs
Post Recording Max. 5 Minutes
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes
Playback Channel 1CH/4CH@4K, 8CH@4MP, 16CH@2MP
Playback Speed Variable Max 16x
Playback Players Backup Player
Search By Time & Event
Log Search Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss
Audio Play Yes (audio camera required)
Storage Up to 2 HDDs (SATA)
Maximum Capacity Up to 2×8TB (16TB Max)
Backup Media USB Flash Drive & HDD
Backup File Format DAV or ASF File
Cloud Connection Lorex Cloud™
Supported Operating Systems Windows™ / Mac OS X
Remote Software Client Software (PC & Mac)
Email Notification Text with snapshot
Instant Smart Phone & Tablet Android™, iPad®, iPhone®
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Network Interface 10/100/1000-Base-TX, RJ-45
Network Bit Rate 320Mbps total, 48~8192kbps per camera
Power Consumption Approx. 15W (no HDD included)
Supply Voltage 100VAC-240VAC, 50/60Hz
Total PoE Power Output 130W (Max 25W per Camera)
Unit Dimensions (W × D × H) 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm
Unit Weight 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH

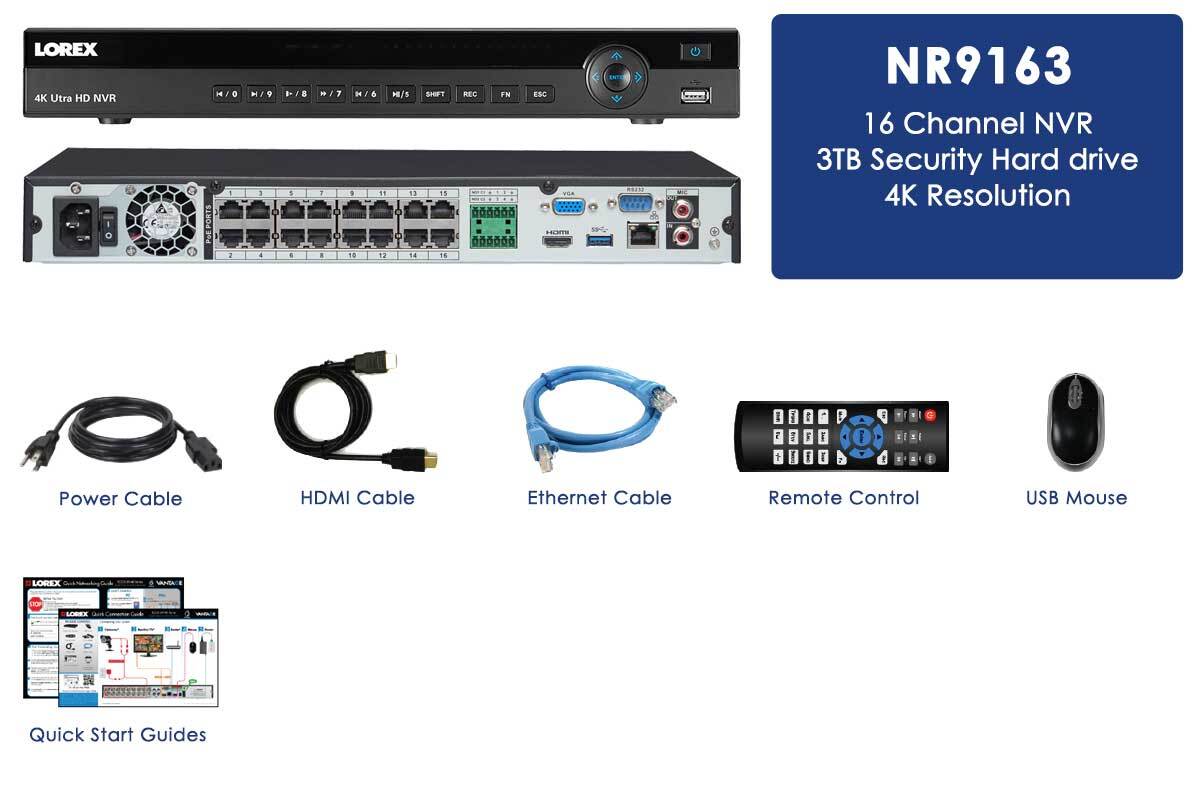

Each NR9163 Includes:

1 × NVR
1 × Power cable
1 × Remote control
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 8MP IP cameras are required to take advantage of 4K recording.
2. Requires a high speed internet connection and a router (not included). A minimum upload speed of 3.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support
3. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
4. Compatible with Lorex PoE HD IP cameras only. For a list of compatible cameras, please visit www.lorextechnology.com/support
5. Mirror recording requires a second hard drive (not included) to be installed in the NVR. Mirrored hard drive must be as large or larger than the primary hard drive to backup all recordings. Backup begins from when the mirrored hard drive is installed and configured.
6. Both firmware and software must be updated to latest version to ensure remote connectivity. Firmware updates are pushed to the NVR automatically over the Internet (available at www.lorextechnology.com). Always update to the latest software after upgrading the NVR firmware.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
