1. Compatible with Lorex 1080p and 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. HDMI output (1920x1080) HD for high definition multi-channel live viewing only. 1080p recording resolution is limited to a maximum of 1920x1080 per channel. Image quality and resolution is dependent on the type of camera connected to the DVR.
4. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 2 devices may connect to the system at the same time.
5. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support
HD 1080p Surveillance Camera System with Free 24"" LED Monitor and 16 Ultra-Wide 160
HD 1080p Surveillance Camera System with Free 24"" LED Monitor and 16 Ultra-Wide 160
SKU: SKU: MPX1616MUW
Protect what matters most with surveillance monitoring in stunning 1080p high definition. This complete web exclusive surveillance system features our popular DV7163 HD digital video recorder (DVR). It also includes sixteen 1080p wide-angle bullet security cameras, with night vision capability. To top it off, this well-rounded surveillance system comes with a widescreen 24-inch LED monitor. All that combined makes the MPX1616MUW surveillance system well-equipped to protect many types of properties.
MPX1616MUW
SPECIFICATIONS
16
CHANNELS
1080P DVR can support up to 16 cameras
16
CAMERAS
16 ultra wide HD security cameras
90FT
NIGHT VISION
Maximum night vision
3TB
HARD DRIVE
Maximum capacity 1 x 4TB hard drive
1080p HD security monitoring
When it comes to security monitoring nothing should be left to the imagination. HD quality can be the difference in identifying vital details such as faces. Smooth on-screen movement provided by the 30 frames-per-second frame rate (in 720p mode) ensures you never miss a moment.
Super wide angle security cameras
These ultra wide angle security cameras are the optimal choice for large area or doorway monitoring. They provide superior coverage thanks to their broad 160° diagonal / 120° horizontal field of view. Whether you need to monitor a large room, your front doorway, or a wide backyard, one wide angle security camera can often take the place of multiple standard viewing cameras.
Analog HD technology for easy installation
Only a single RG59 siamese BNC cable is needed to connect the camera to power and the DVR for an easy and clutter-free set-up. If needed, analog HD cameras like the LBV2561U HD security camera can be placed up to 800 feet away from the DVR - making them ideal for securing large properties (see documentation for complete details).
Anytime secure remote access with Lorex Cloud™ App
Connect your DVR to our innovative and hassle-free Lorex Cloud™ app to securely access your system from a smartphone or tablet. With iOS® and Android™ options, your surveillance system will always be at your fingertips. See what your cameras see (or watch their recorded footage) from virtually anywhere in the world. Enable amazing features like push notifications and instant email alerts for motion-triggered events to add another level of security to your property.
Works With
Reliable night vision security monitoring
Capture the details you need around-the-clock with the LBV2561U’s cutting edge infrared (IR) LEDs - see up to 90ft / 27m in ambient lighting and up to 60ft / 18m in total darkness. They also feature SmartIR technology that helps with close up recognition of objects in the dark. ClearNight imaging provides superior low light performance and improves recording efficiency.
24-inch energy efficient LED monitor
Lorex’s exclusive MPX1616MUW surveillance system includes an eco-friendly 24-inch LED monitor. Fit all sixteen channels on the screen at once to create a handy hub for accessing your surveillance system locally. Simply connect the DV7163 DVR to the monitor using the included HDMI cable to have your security station up and running in no time.
Extreme temperature weatherproof surveillance system
The LBV2561U HD security camera is built to survive. IP66 rated, they are well-suited for both indoor and outdoor installations. They are able to withstand the most unforgiving climates. Vandal resistant design and lightweight polycarbonate housings make these security cameras a worry-free choice for all-season security monitoring.
Professional security certified hard drive
The 3TB security certified hard drive in the MPX1616MUW’s DVR is specifically manufactured to manage high workloads. It can be in constant operation and will safely continue recording even while you review footage. Trust top quality functionality - the hard drive can save weeks (even months) of reliable security footage. Record at a lower resolution or program scheduled recording times to maximize hard drive space. The motion-triggered recording option saves additional storage space by keeping watch 24/7, but only recording when movement is detected.
 |
 |
 |
 |
|
| Recording | Full 1080p HD (1920x1080) | 720p HD (1280x720) | Analog 1080p HD (1920x1080) | 720p HD (1280x720) |
| Platform | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
| Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
| Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
| Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
What's Included?
DV7163
16 channel, analog HD 1080p security DVR:
- True high definition 1080p recording on all cameras1
- 24/7 security-grade hard drive
- Continuous, scheduled and motion recording
- PTZ cameras supported, remote control through App1
- H.264 video compression2
- HDMI cable included for simple connection to HD TVs3
- Accurate time stamps with NTP & daylight savings time
- Click and drag digital zoom in live view and playback
- 2 video outputs (HDMI & VGA) to connect multiple monitors
- Instant USB backup of live video from selected camera
- Automatic firmware upgrade
- 3-Step remote view with Lorex Cloud4
- PC and Mac compatible 5
- Instant mobile viewing on smartphones and tablets5
- Advanced apps with live viewing, playback, video recording, and snap shot
- Mobile push notifications of motion events and email alerts
- Dual streaming to conserve bandwidth
Each DV7163 Includes:

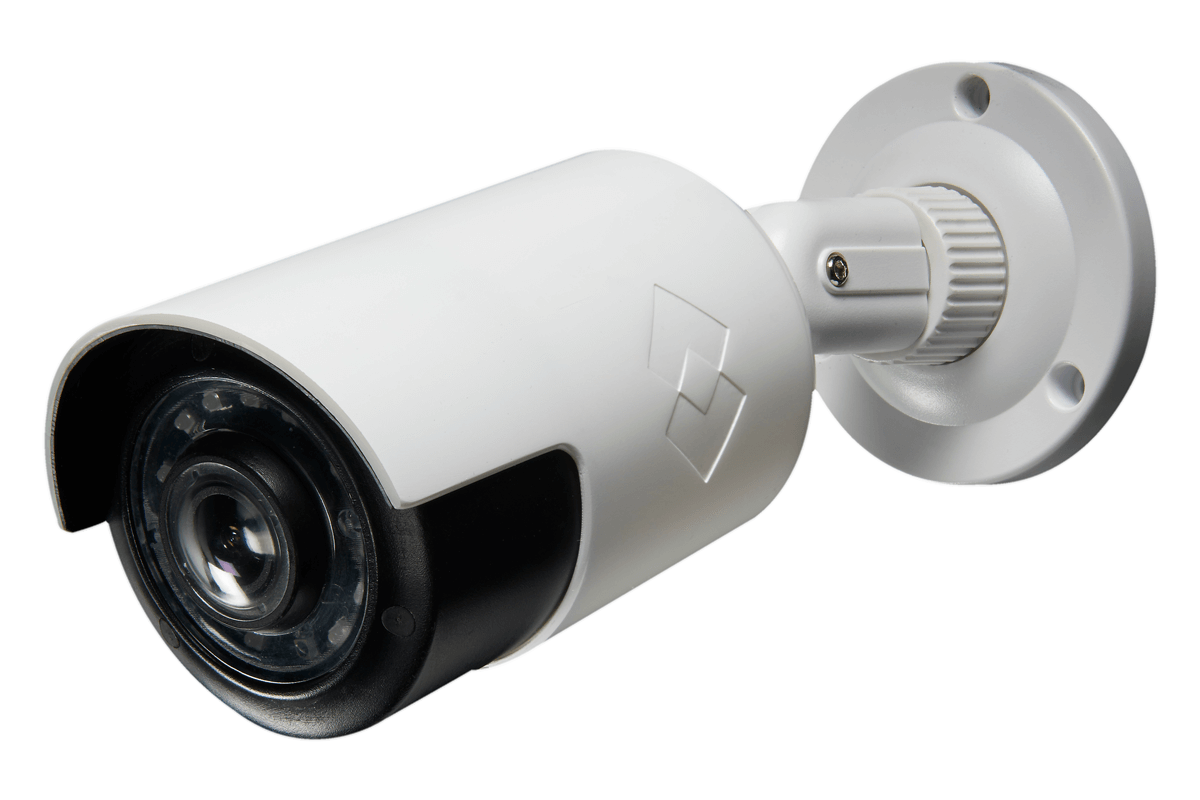

LBV2561U
1080p HD super wide-angle security camera:
- High definition 1080p image sensor1
- Ultra-Wide field of view captures the entire scene for superior coverage
- Night vision range up to 90ft (27m) in ambient lighting and 60ft (18m) in total darkness2
- Close up recognition in the dark with SmartIR
- Infrared cut filter ensures accurate color representation
- Anti-glare feature ensures clear images under strong lighting conditions
- Split glass design minimizes IR reflection
- Versatile ceiling or wall mounting options
- Vandal resistant design with cable pass-through bracket and durable Polycarbonate construction
- UL compliant cable suitable for surface and in-wall installation
- Weatherproof for outdoor & indoor installation (IP66 Rated)3
Each LBV2561U Includes:
1. 1080p HD cameras are compatible with Lorex 1080p HD DVRs only. For a list of compatible recorders please visit lorextechnology.com/support.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.
*A Multi-Camera Power Adapter that provides power to multiple cameras or individual power adapters may be provided, depending on product configuration.
L24LE10B
Surveillance Monitor Features:
- Display: 23.6" viewable image with 16:9 aspect ratio
- Resolution: Max 1080P (1920 x 1080)
- Color resolution: approx. 16.7 million
- Response time: 5ms
- Contrast Ratio (DCR): 20,000,000:1
- Power Source: Universal 100~240VAC,50/60HZ
- Power Consumption: 23 W
- Unit Dimensions: 22.3" (W) x 15.6" (H) x 7.5" (D) / 561.3mm (W) x 399.6mm (H) x 199.3mm (D)
- Weight (NET): 8.15lbs / 3.7kg
Each L24LE10B Includes:
Specifications are subject to change without notice.
