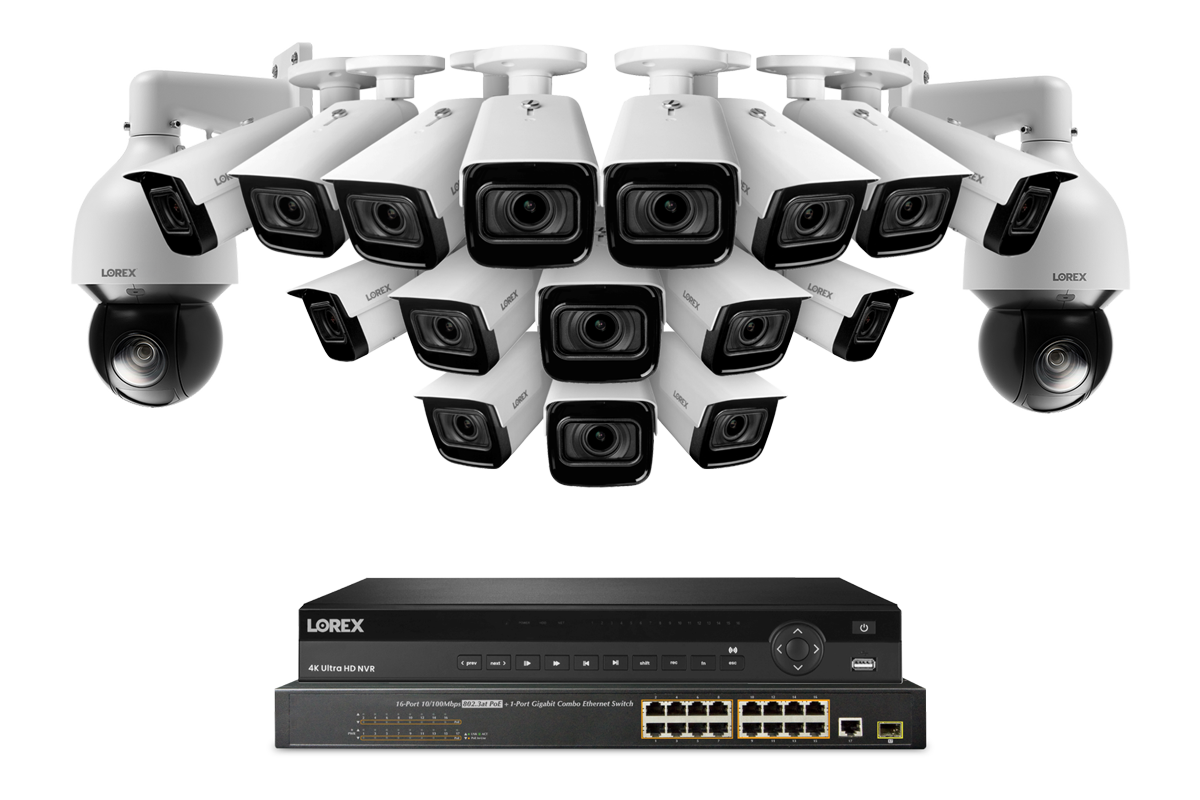

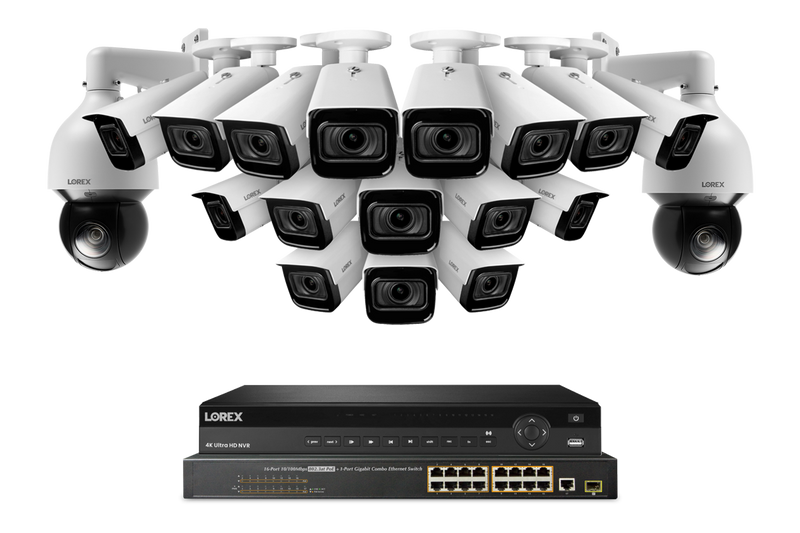

Lorex 4K (32 Camera Capable) 8TB Wired NVR System with 16 Nocturnal 3 Motorized Varifocal Lens Cameras and Two 4K 25x Pan-Tilt Zoom IP Cameras

TN884A38B-8F16-8P2
Sale price$999.99
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Know that your property is protected around-the-clock with this IP security camera system from Lorex. This system includes Nocturnal security cameras, 4K Pan-Tilt-Zoom cameras and a powerful 32-channel Network Video Recorder (NVR). Along with real-time 30fps 4K recording, Color Night Vision, and Smart Motion Detection, these security cameras include optical zoom lenses that allows you to adjust the camera's field of view to suit your monitoring needs. These features make this system an incredibly versatile security solution perfect for any home or business.


Lorex App Live View screenshot

Most of your security footage is of you!

Keep your recordings private and in your control.

Dedicated Local Storage

  • Keep Moments Private
  • All Data/Footage Stored Locally

In-Camera Edge AI

  • Detection Processed Locally
  • Private and Secure Data

Private by Design

  • Enhanced Privacy Features
  • Control Devices, Storage, and Settings

See the finest detail

  • 4K (8MP) Ultra HD resolution ensures clear and detailed footage.

  • Real-time 30 frames-per-second recording provides smooth motion and crisp snapshots.

  • Color Night Vision delivers enhanced nighttime clarity and additional details for video evidence (ambient lighting required).

  • IR night vision up to 150ft (46m) in low light and 98ft (30m) in total darkness makes sure your property is always protected during the night.



Always Know What's Happening

Keep an eye on trespassers and vehicles with advance AI features like Smart Motion Detection, which detects motion from person/vehicle. Use it with Auto Tracking* to cover a large area and to automatically detect, follow, and record moving objects, such as a person or vehicle. When an object triggers the motion detection rule, this camera will automatically use its pan/tilt rotation and zoom feature to lock in the moving object in the center of the screen and continue to follow it without missing any details.


Auto Tracking Person Detection
Auto Tracking Vehicle Detection

*Auto tracking feature is available on the the LNZ81P25 PTZ camera




Extreme Weather Capabilities

Rated IP67, these security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.

LNB9292B

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-40°F | -40°C

Cold Rating

LNZ81P25

Heat Rating

158°F | 70°C

Heat Rating

Cold Rating

-40°F | -40°C

Cold Rating




Create Unlimited PTZ Tours

Preset Tours Mobile


Expand your security coverage with fully automated PTZ tours with the included LNZ81P25 cameras. These tours are designed to cycle through a number of user-defined location presets. All of the pan, tilt, and zoom features can be used during a tour. You can also create a simple "pattern" movement that will automatically cycle the camera's viewpoint between two presets. These automated tour and pattern settings can be found in the NVR's PTZ settings menu. You can even program your NVR to change the tour / pattern based on the time of day within these settings.






Try our new Lorex Pro app

Enjoy an updated user experience with enhanced features and functionalities to maximize your security system control.



Local Storage - No Monthly Fees

  • Included in the NVR is an 8TB security-grade hard drive designed for advanced processing and the workload of 24/7 recording

  • 2 hard drive bays with up to 2 × 16TB of storage space

  • Storage mirroring for continuous back-up of data from one hard drive to another



What's Included?

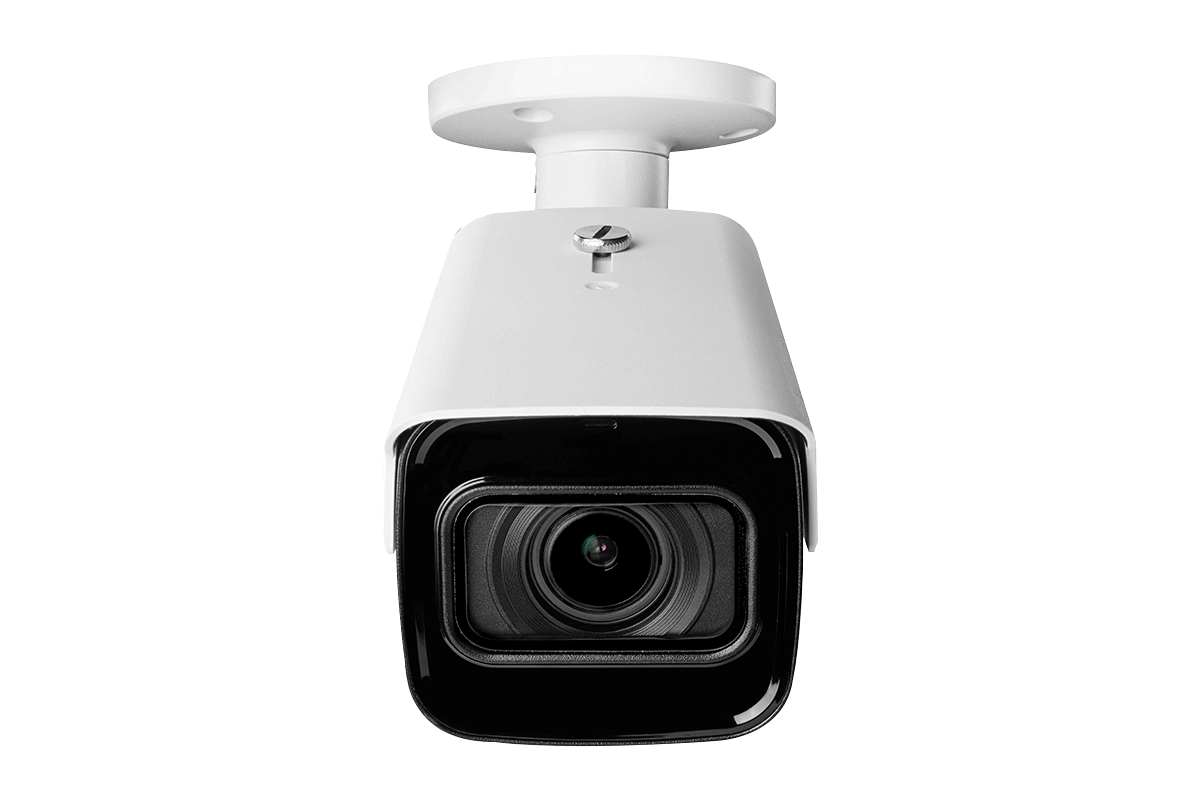

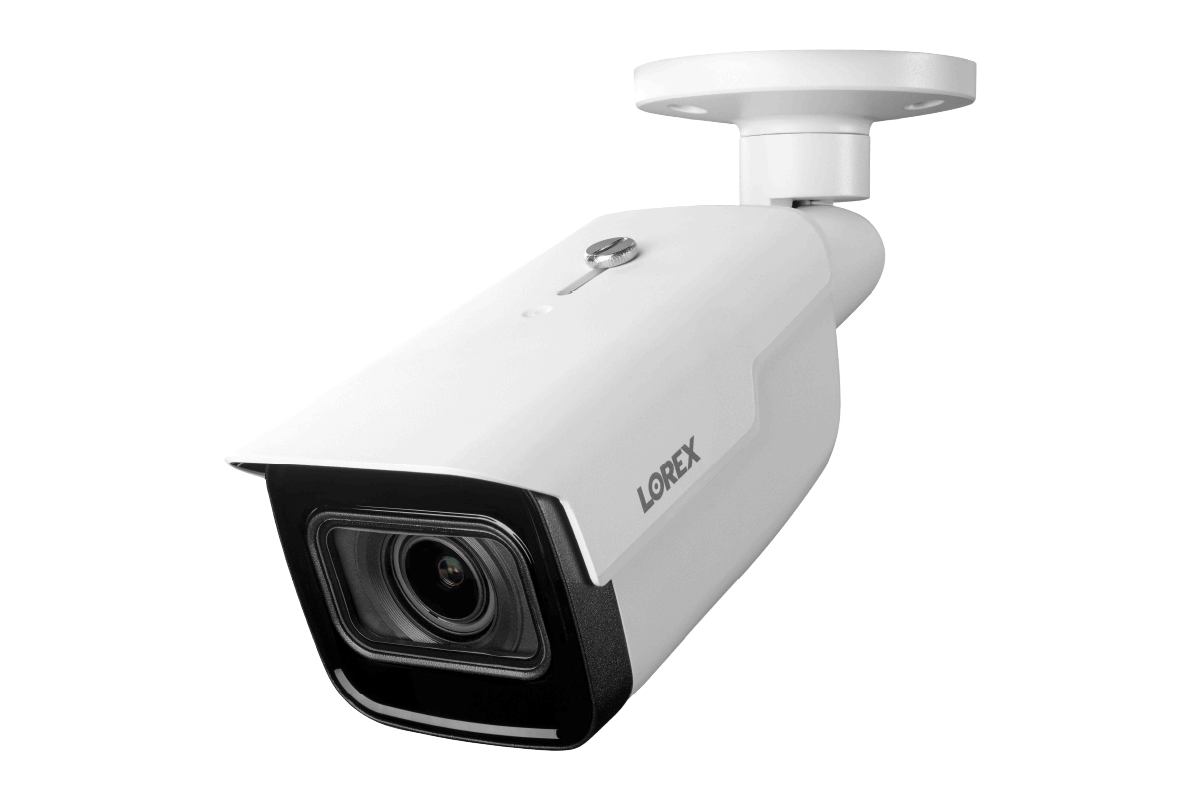

LNB9282B dimensions

Package Contents:

4K Nocturnal 3 MVF Camera

Mounting Kit

Allen Key

Ethernet Cable

  • 4K (8MP) Ultra HD resolution, ensuring clear and detailed footage1
  • See more with a with up to 113° field of view, depending on the level of zoom desired
  • Motorized varifocal lens provides 4× Optical zoom, enabling remote customization of your viewing area (and focus)
  • Record at a real-time 30 frames-per-second, providing smooth and clearer footage2
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection3
  • Receive motion notifications when only a Person or Vehicle is detected on your property from your Lorex App
  • Enhanced nighttime clarity with Color Night Vision™4 thanks to an impressive large format lens
  • Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness5
  • Weatherproof rated (IP67)6
  • Operates in temperatures low as -40°F (-40°C) and high as 140°F (60°C)
  • Aluminum Alloy housing, designed to withstand harsh weather conditions

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.

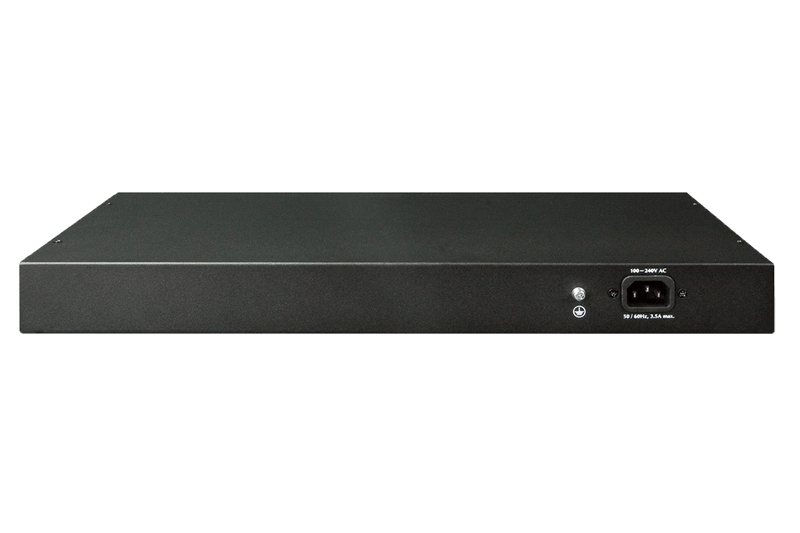

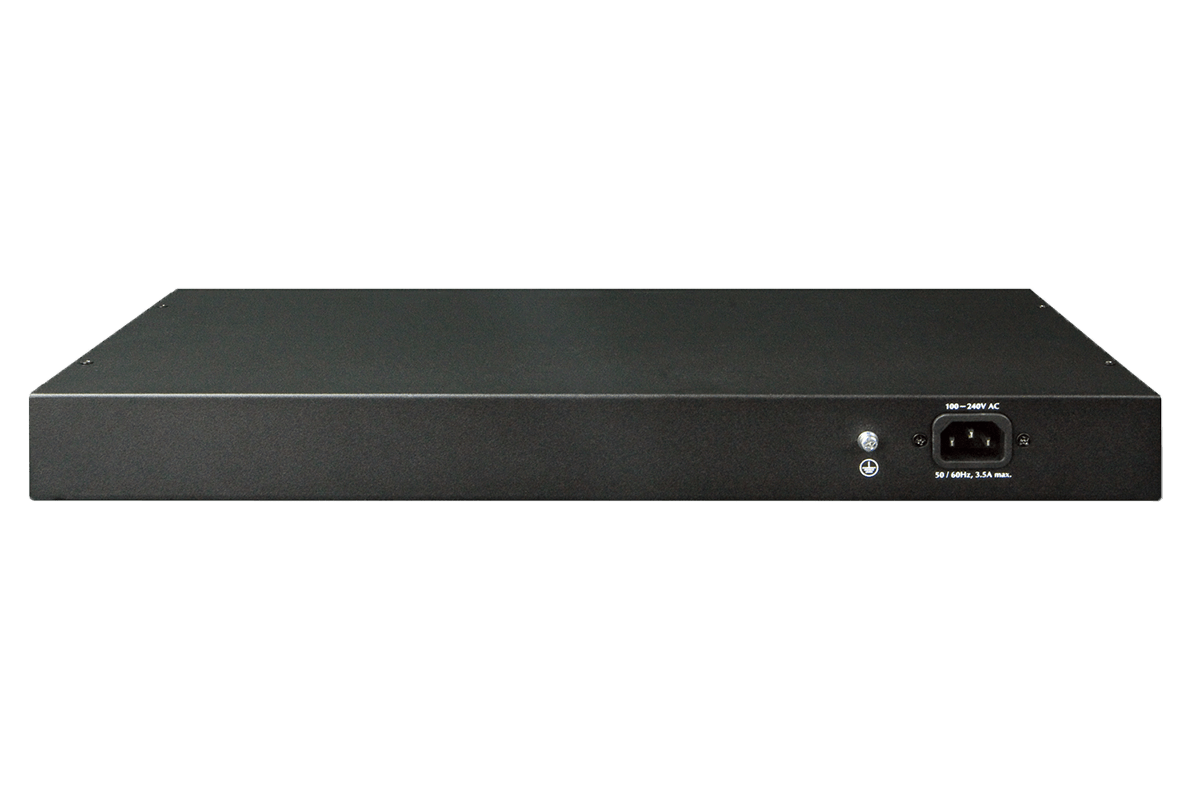

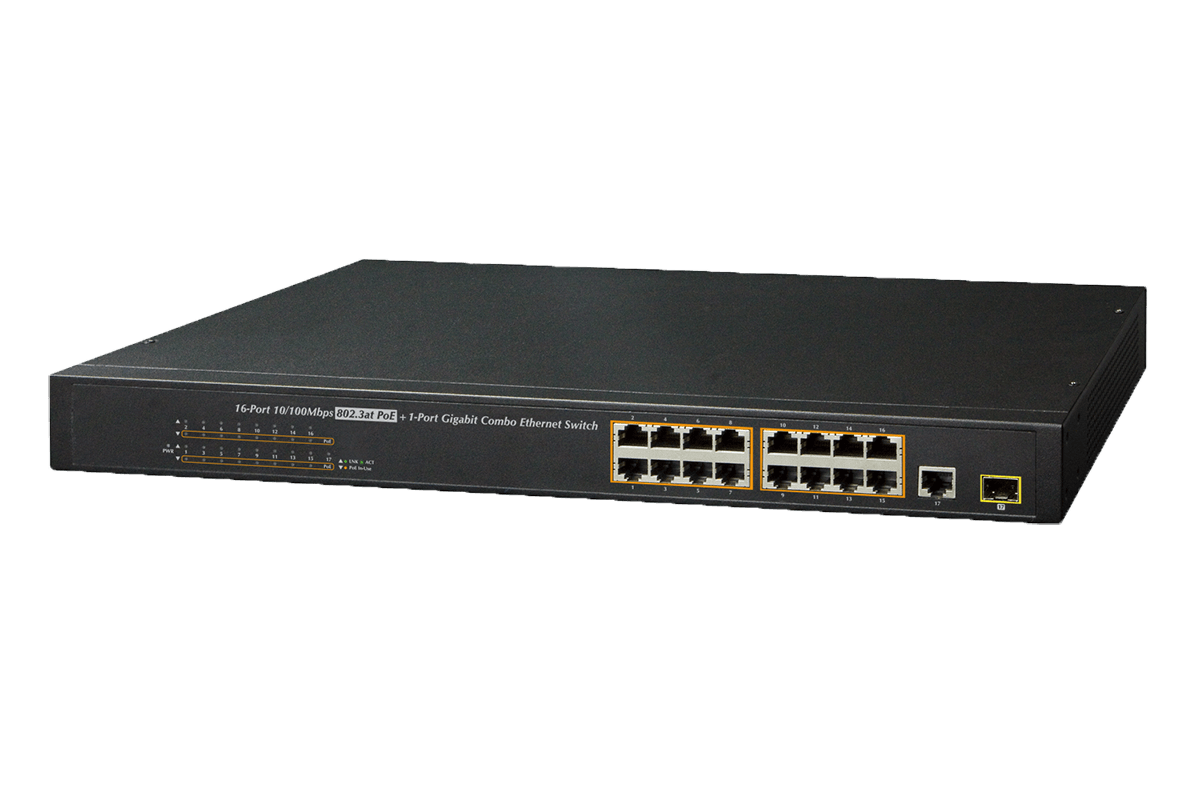

ACC front

Package Contents:

1 × PoE Switch

1 × Power Cord

2 × Rack Mount Bracket

8 × Mounting Screws

1 × SFP Dust Cap

4 × Rubber Feet

Quick Start Guide


  • Centralized power distribution - Easy all-in-one PoE switch
  • 1 Gigabit rated RJ45/SFP port for fast device/network connection
  • High speed transmission of IP surveillance data
  • 220W total PoE power budget (up to 30.8W per port)
  • Convenient Real-time PoE usage LED indicators

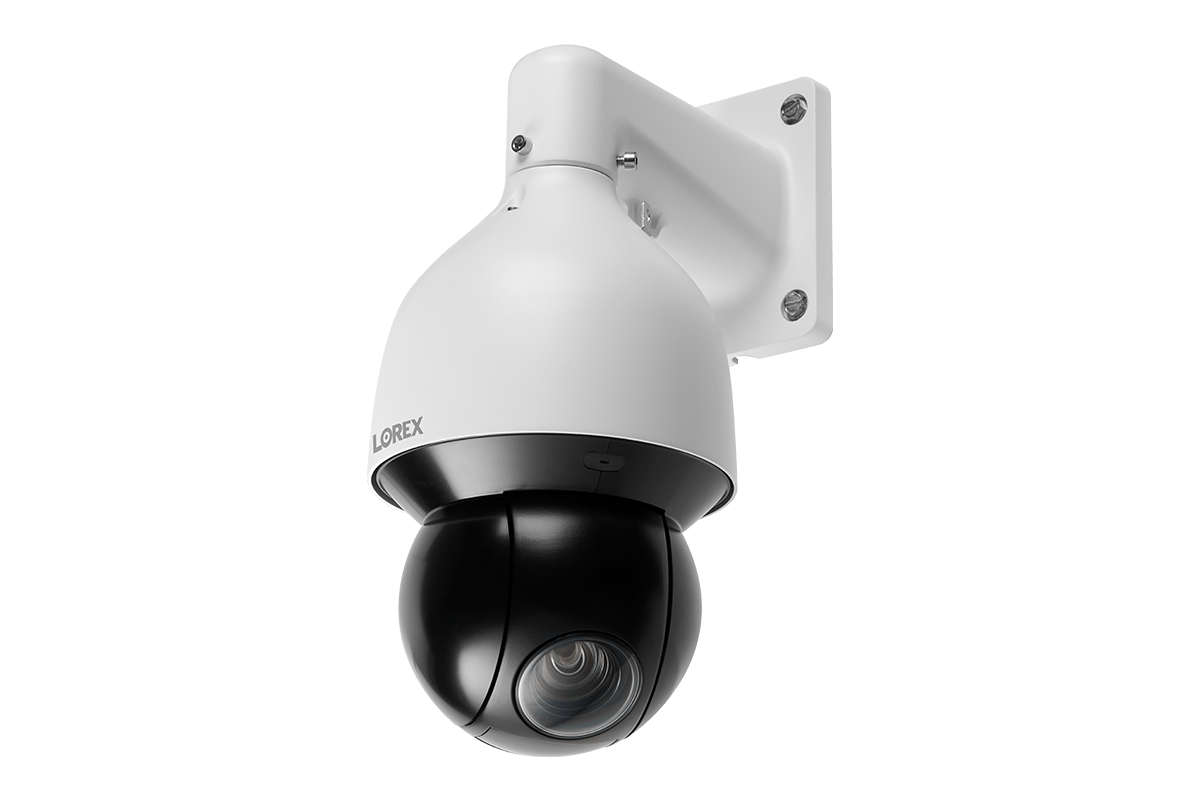

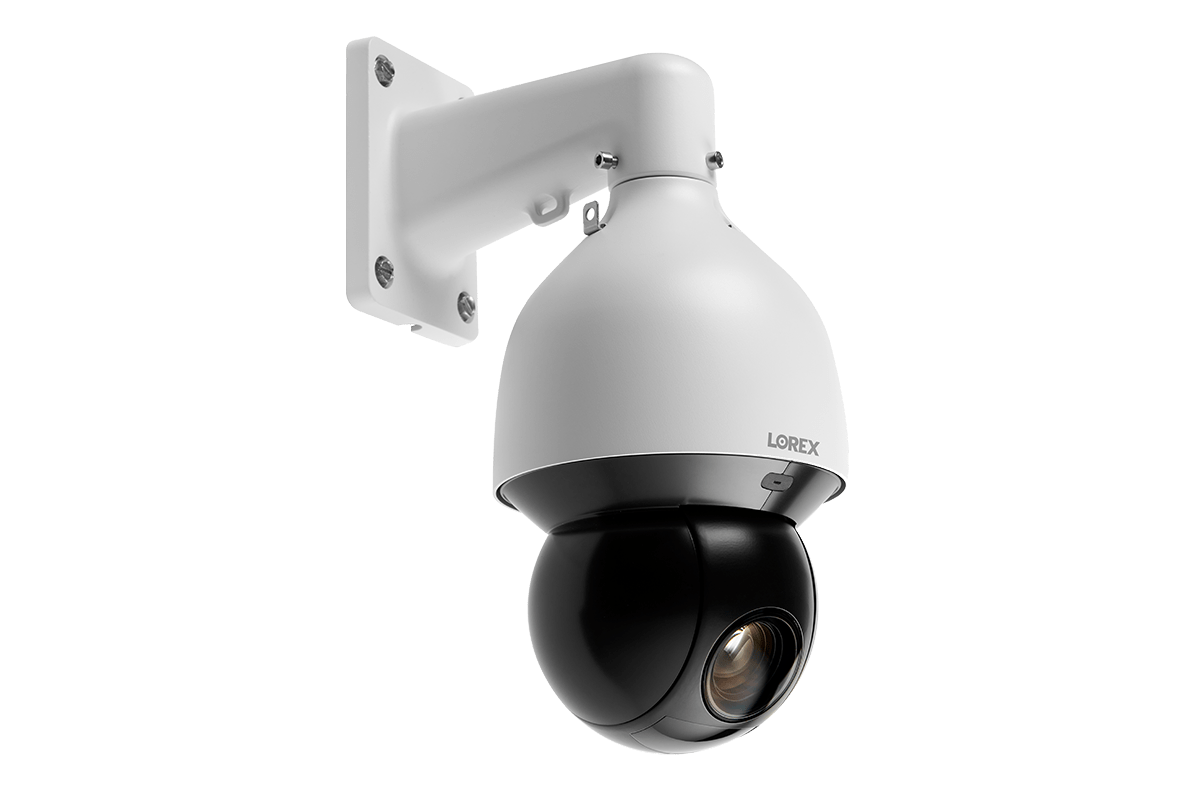

LNZ81P25 Front Overview

Weight: 5.3kg (11.7lbs)

Package Contents:

1 × PTZ camera

1 × Wall mount

1 × Power adapter & cable

4 × Mounting anchors, screws & flat washers

1 × ESD gloves

1 × Waterproof tape

1 × Waterproof connector

1 × Safety chain

1 × Allen key (A)

1 × Torx key (B)

3 × M6x14 screws

1 × Rubber ring


  1. Compatible with select Lorex analog HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Full color nighttime video typically switches to black & white IR night vision below 1 lux to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depend on the installation location, viewing area, and light reflection/absorption level of an object. In low light, the camera will switch to black and white.
  4. Not intended for submersion in water. Installation in a sheltered area recommended.
  5. Digital zoom is a function controlled by the connected NVR. For a list of compatible NVRs visit: www.lorex.com/compatibility
  6. A Cat5e cable is required to connect to a compatible NVR. Not included.

Lorex products are designed for consumer and business use only and not for US federal governments, federally-funded projects or contractors subject to NDAA.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

N884 Front Overview
  1. Power, Hard Drive & Network Statuses
  2. Channel Statuses
  3. Navigation Controls
  4. Power Button
  5. Playback Controls
  6. Switch Keyboards (shift)
  7. Start/Stop Recording (rec)
  8. Special Functions (fn)
  9. Back/Cancel (esc)
  10. Info Button
  11. USB Port

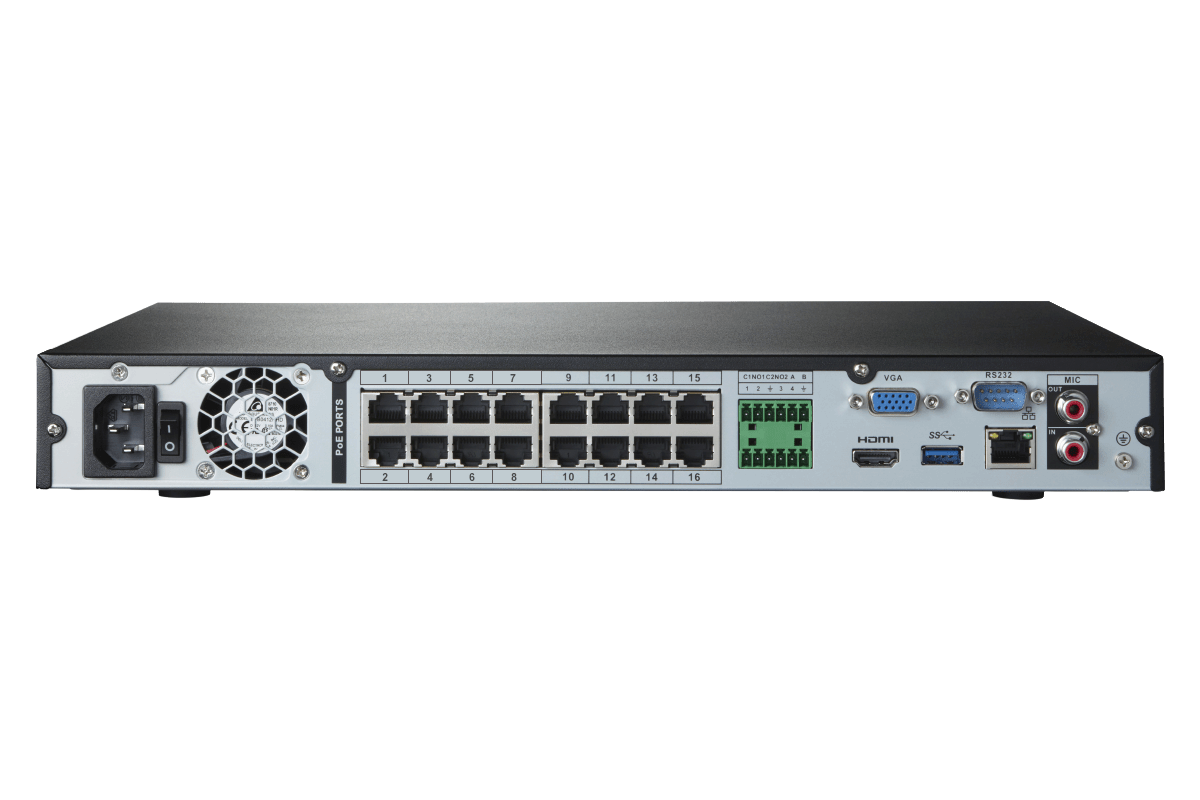

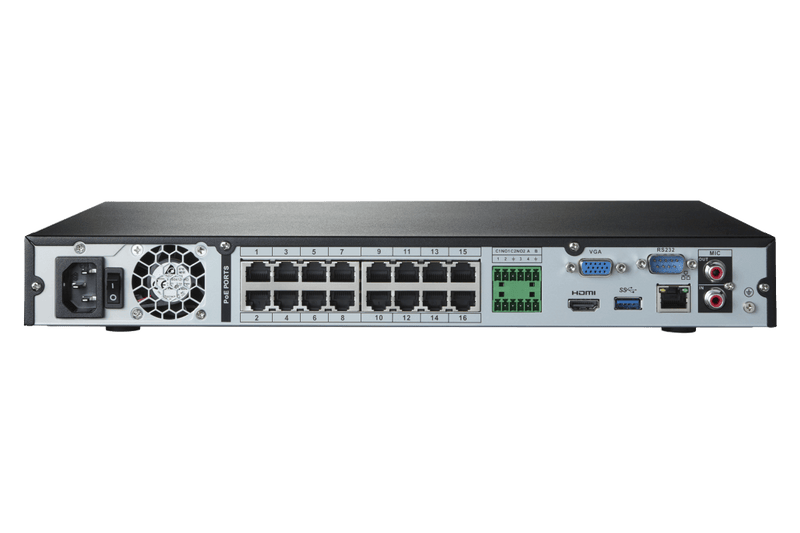

N884 Back Overview
  1. Power Connection
  2. Power Switch
  3. Camera Connection (PoE)
  4. RS485 Alarm
  5. Monitor Connection (VGA)
  6. RS232
  7. Audio In/Out
  8. Monitor Connection (HDMI)
  9. USB Port
  10. Network Connection (LAN)


Package Contents:

This 32-channel NVR has 16 ports. The other 16 channels can be utilized by adding a PoE switch (sold separately).

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

2 × 6-Pin Cable Adapter

Product Support

LNB9282B / LNB9292B Series - 4K Nocturnal 4 MVF IP Bullet Cameras

ACCLPS263B - 16-Channel PoE+ Switch

LNZ81P25 Series - Lorex 4K Ultra HD 25x PTZ IP Camera

N884 Series - Lorex 4K Pro Series Network Video Recorder
