A Smart All-In-One Solution for your Home Monitoring Needs
Stay centered with a smart and intuitive monitoring solution - The Lorex Smart Home Security Center (LSHSC). Security at your fingertips - using the touch screen interface, control, view and customize your settings and cameras. "Lorex, show me all cameras." Using the Lorex Voice™ Assistant, conveniently access your video feeds with just the sound of your voice. Need a recap of events while you were out today? Just ask: "Lorex, show me all motion events from front door camera between 1-3 pm". With privacy in mind, enjoy multiple safeguard options with the heightened privacy features. Your home security, your way - build a versatile home monitoring system to meet your needs by pairing various Lorex wireless cameras, devices and accessories. No monthly fees - keep recordings to yourself thanks to the built-in local storage.

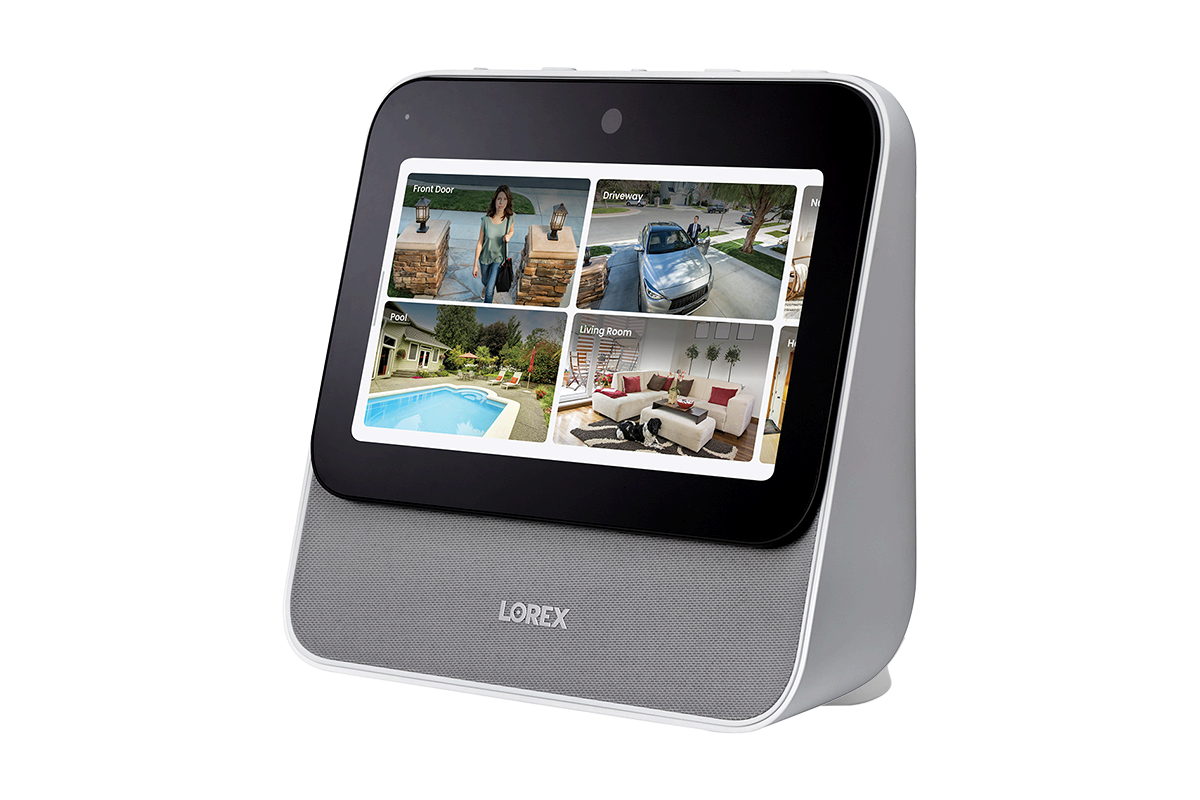

Touch, talk and view - an all-in-one smart solution for your home monitoring needs, The Lorex Smart Home Security Center.

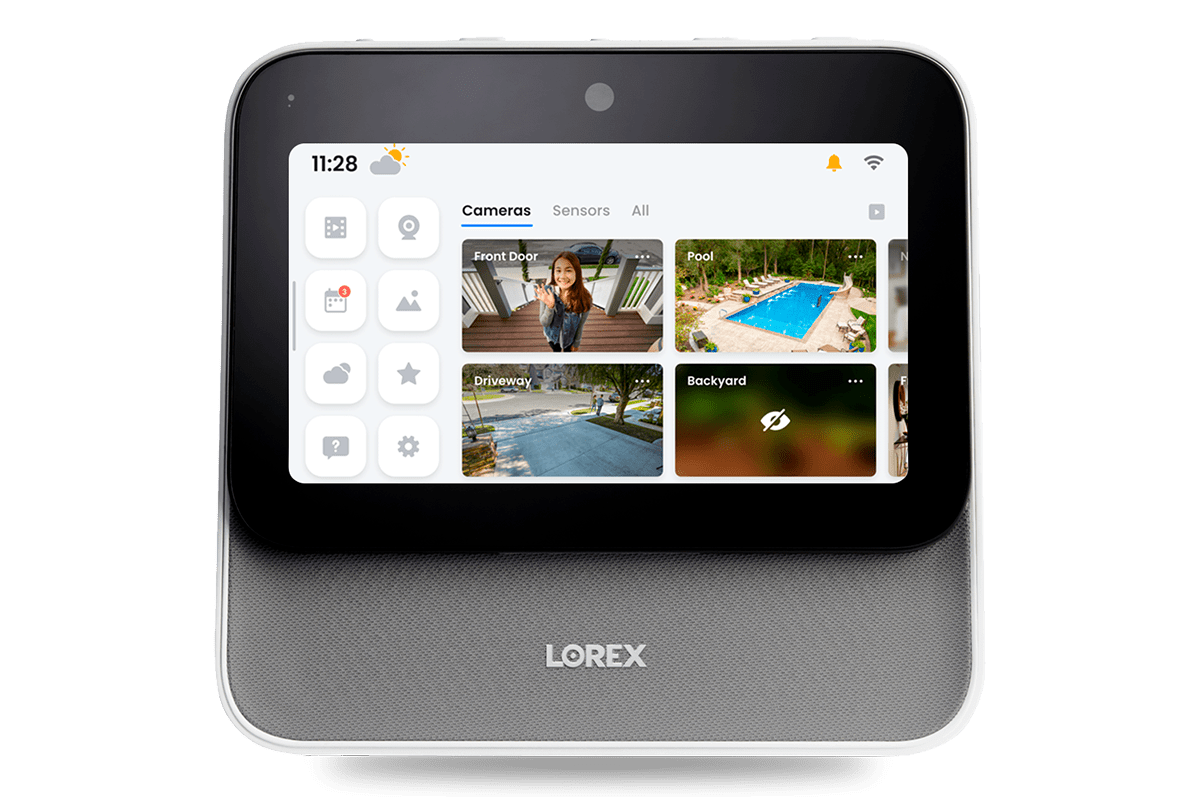

The intuitive interface and 7-inch touch display makes viewing and customizing your cameras and accessories easy1.
The built-in secure Lorex Voice Assistant™ means your conversations stay private.
Swipe right from the left edge of the screen to return to the previous screen
Swipe up from the bottom edge of the screen to return to the home screen
Swipe down from the top edge of the screen for the drop-down menu
Pair a variety of Lorex wireless devices and control them from the LSHSC.
The connection process for some LSHSC compatible devices differs:
Connect directly to the LSHSC
*Doorbell and LSHSC firmware updates required.
Connect to the Lorex Home App *
*Make sure to upgrade the camera to the latest firmware via the App
Quickly find what you are looking for by filtering events by type, device, date and time of the day.
View live footage or recordings from up to 4 cameras at the same time or view a single camera in full screen.
View not just your cameras but all the sensors connected to the LSHSC as well.
Swipe down to get access all the important features of the LSHSC.
Bring your treasured memory to life by personalizing your LSHSC lockscreen.
You won't have to look out the window to know the current weather conditions and forecast in your location.

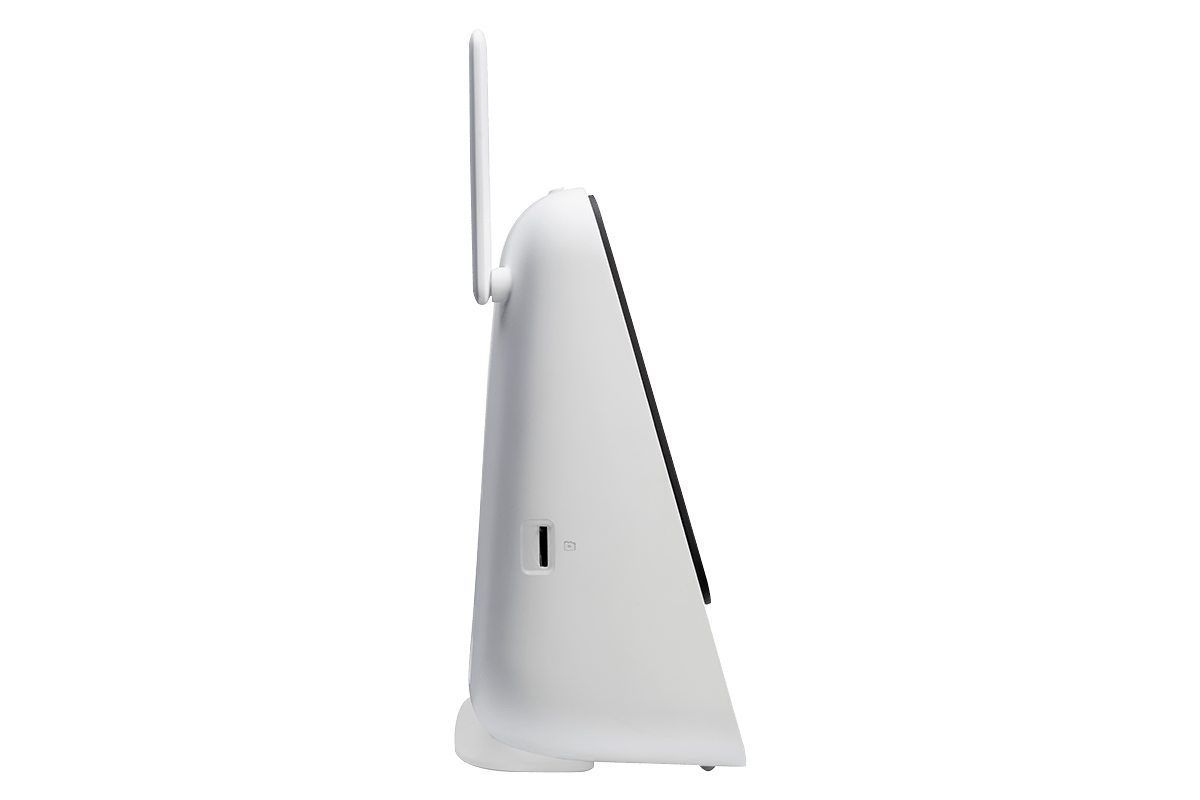

All video footage is safely stored on the microSD card located within the recorder. Upgrade the storage to a maximum of 256GB microSD and/or a 1TB M.2 2280 SATA SSD M.
Record 1080p HD or 2K QHD motion events (person, vehicle, etc.) from all your compatible Lorex devices.
You can connect up to 8× 1080p,
4× 2K cameras and up to 32 sensors.

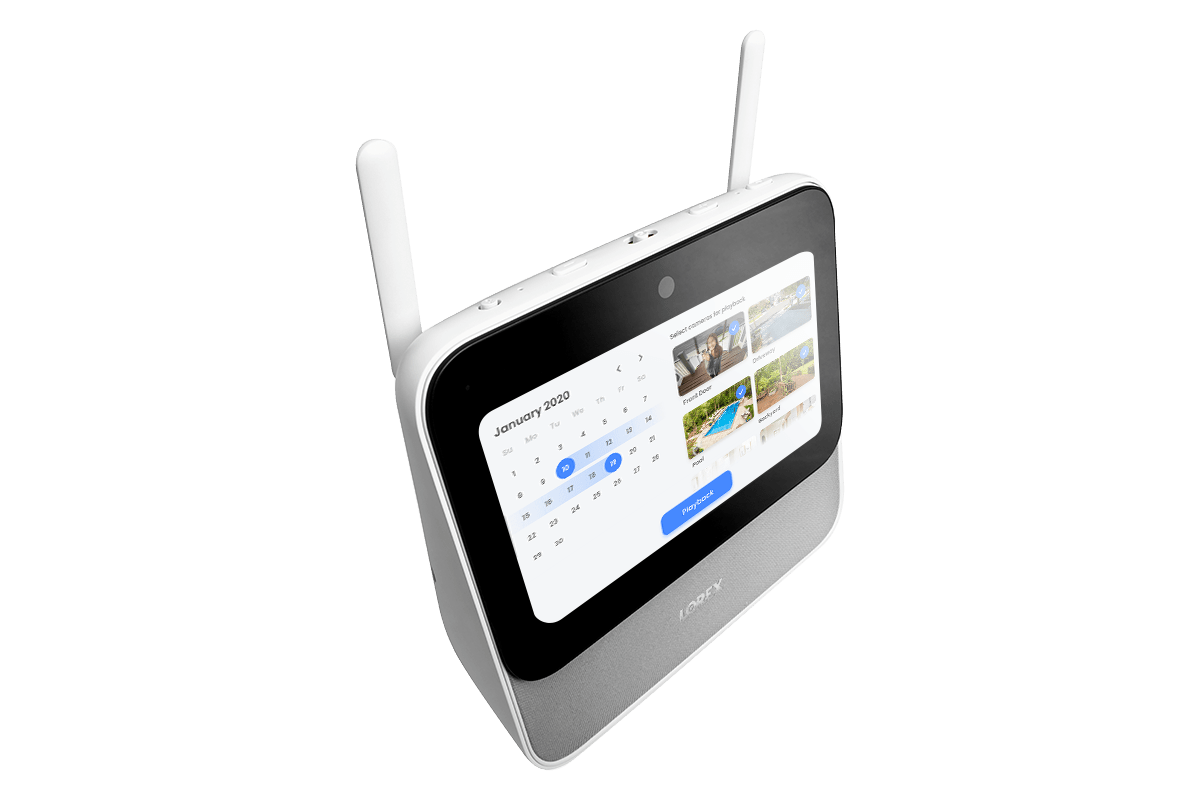

Use the included flexible antenna to optimize the signal or add an optional extender for hard to reach places (sold separately, AX62TR).
The WD Purple microSD card is designed specifically for continuously recording security cameras. It offers exceptional performance and reliability to meet the high demands of 24/7 HD video recording. The LSHSC can be upgraded to a maximum of 256GB microSD storage.

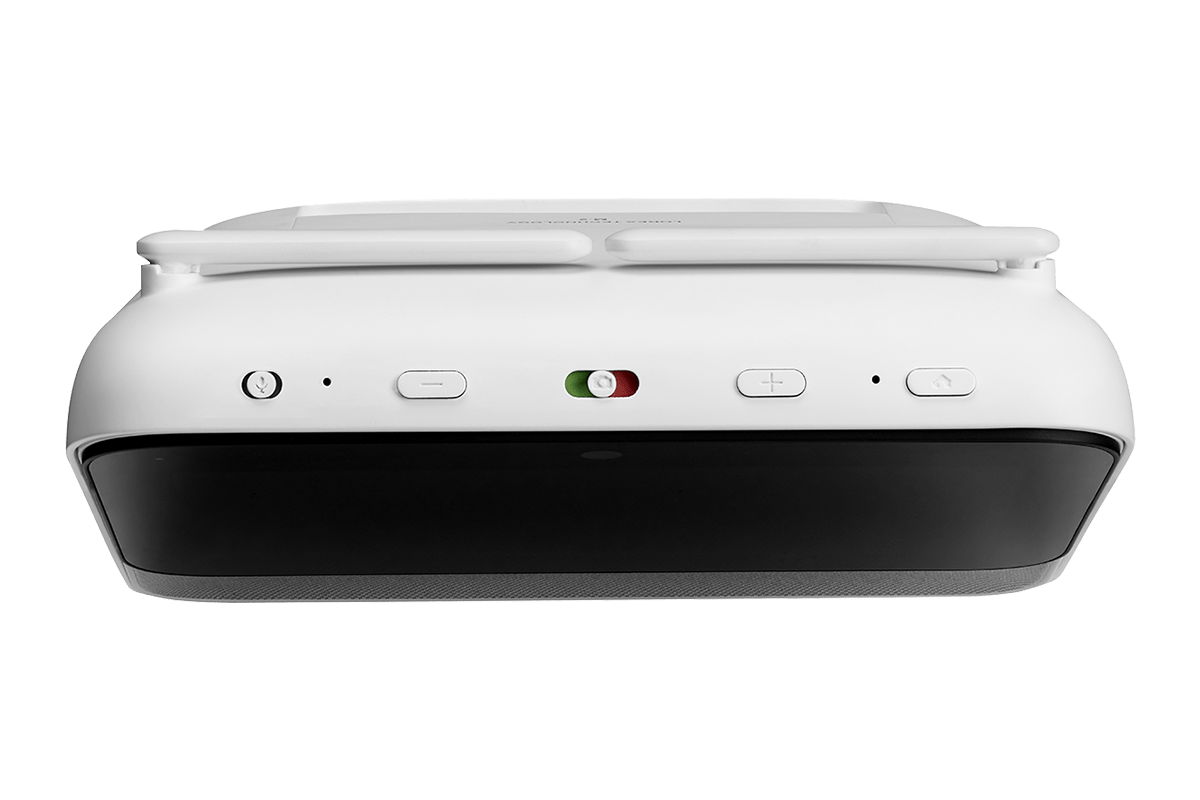

Flick the microphone switch to keep your conversations completely private.
Login to the LSHSC quickly with the Face Unlock* feature.
The lens of the built-in camera can be covered if not using the Face Unlock feature.

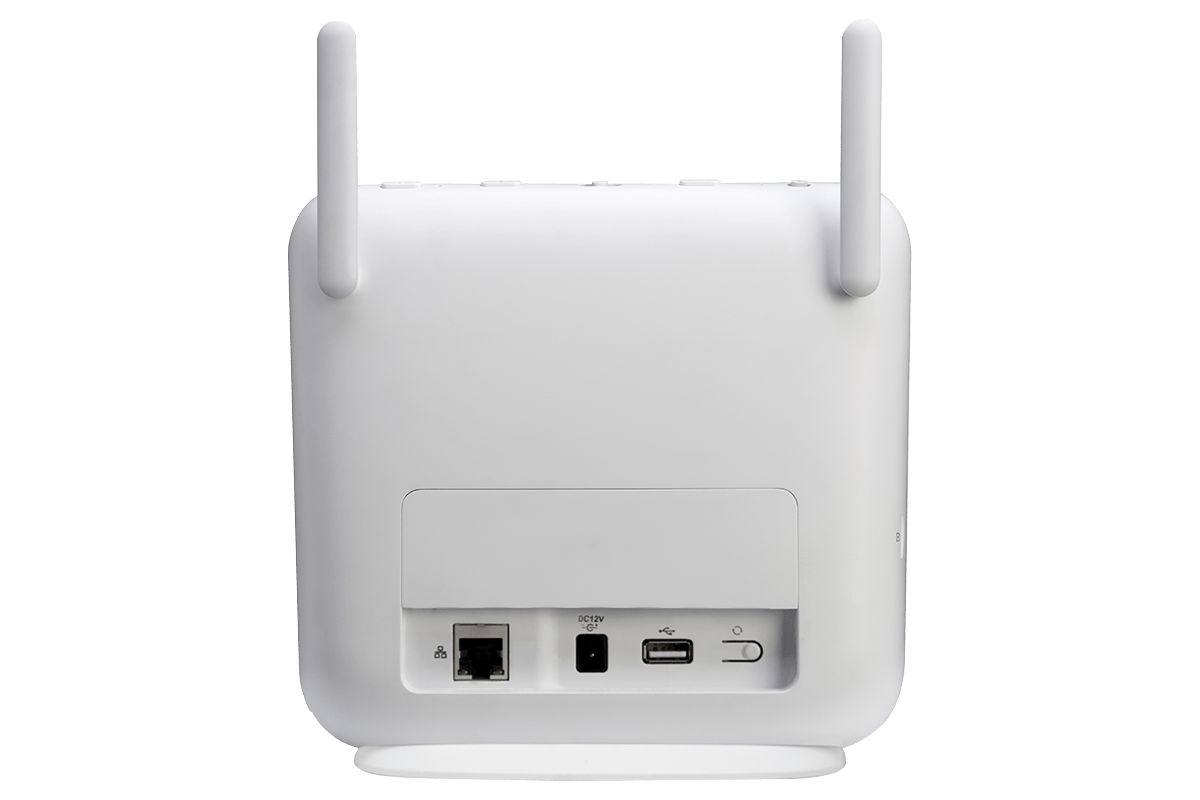

Connect to your home router using the provided Ethernet cable.
Connect to your home router wirelesly for flexible placement.
An internet connection is not required for operating and connecting to different Lorex devices.**
* Face unlock is limited to only 1 user and requires a well-lit area.
** An internet connection is required to use the Lorex Classic App to receive automatic update notifications.
Your home will always be within reach with help from the Lorex Classic App. This versatile app allows you to remotely access your LSHSC so you can easily view live videos, customize your system settings, playback recorded motion events and more.
Step 1. Connect your LSHSC to your network via Ethernet or Wi-Fi.
Step 2. On the LSHSC, go to Home Screen > Device Settings > Device Info > LSHSC, then tap Device ID to open the QR Code.
Step 3. Now, get your smartphone and open the Lorex Classic app, then tap + at the topmost right corner of the screen and scan the QR Code bring displayed on your LSHSC.
Step 4. Follow the on-screen instructions on adding your LSHSC to the Lorex Classic app.
Step 1. Go to Home Screen > Device Settings > Security Settings.
Step 2. Turn On or Off Require passcode to unlock or Face Unlock.
NOTE: Using the camera cover to hide the lens will not turn off the feature. It will simply prevent video capturing for the Face Unlock feature.
NOTE: In Offline Mode, you can still view your camera, and your sensors remain functional, but you cannot see your devices remotely from the Lorex Classic app.
Step 1. Go to Home Screen > Device Settings > Network Settings.
Step 2. Tap Wi-Fi Network, then toggle the button to on or off.
Step 3. Tap Wired Network, then toggle the button to on or off.
| Screen Size | 7" Diagonal |
|---|---|
| Screen Type | LCD Touch Screen |
| Audio | Full Duplex 2-way Audio |
| Microphone | 2 × Noise Cancelling Microphones |
| Built-in front camera | 1080p, support physical cover |
| Speakers | 3 × Speakers |
| Camera | Built-in |
| Wireless Camera Support | Up to 8×1080p or 4×2K |
| Wireless Sensor Support | Up to 32 |
| Simultanous Camera Viewing | Up to 4 channels |
| Voice Assistant | Lorex Voice Assistant |
| Privacy Features | Local Voice Assistant, Microphone Disconnect Switch, Camera Cover |
| Digital Zoom | Camera Dependent |
| Log-in Options | Password or Face Unlock |
| Status LED | Multi-color LED status bar indicator |
| Sensors | Ambient Light |
| Storage | microSD (up to 256GB) or M.2 2280 SATA SSD M (up to 1TB)* |
| Internet Recommendation | 2 cameras ~4Mbps / 4 cameras ~10Mbps @1080p upload speed** |
| Home Router Connectivity | 100Mbps Ethernet or 5GHz Wi-Fi |
| Device Connectivity | 2.4/5GHz Wi-Fi / BLE 5.0 |
| Ports | Power, Ethernet, 1 × USB |
| Weather Rating | Indoor only |
| Operating Temp. Range | 32~104°F / 0~40? |
| Languages | English |
| Power | 12V DC / 2A |
| Available Color | White |
| Dimensions | 7.5 x 3.6 x 7.0" / 19.0 x 9.1 x 17.7cm |
| Weight | 1.81lb / 0.92kg |
