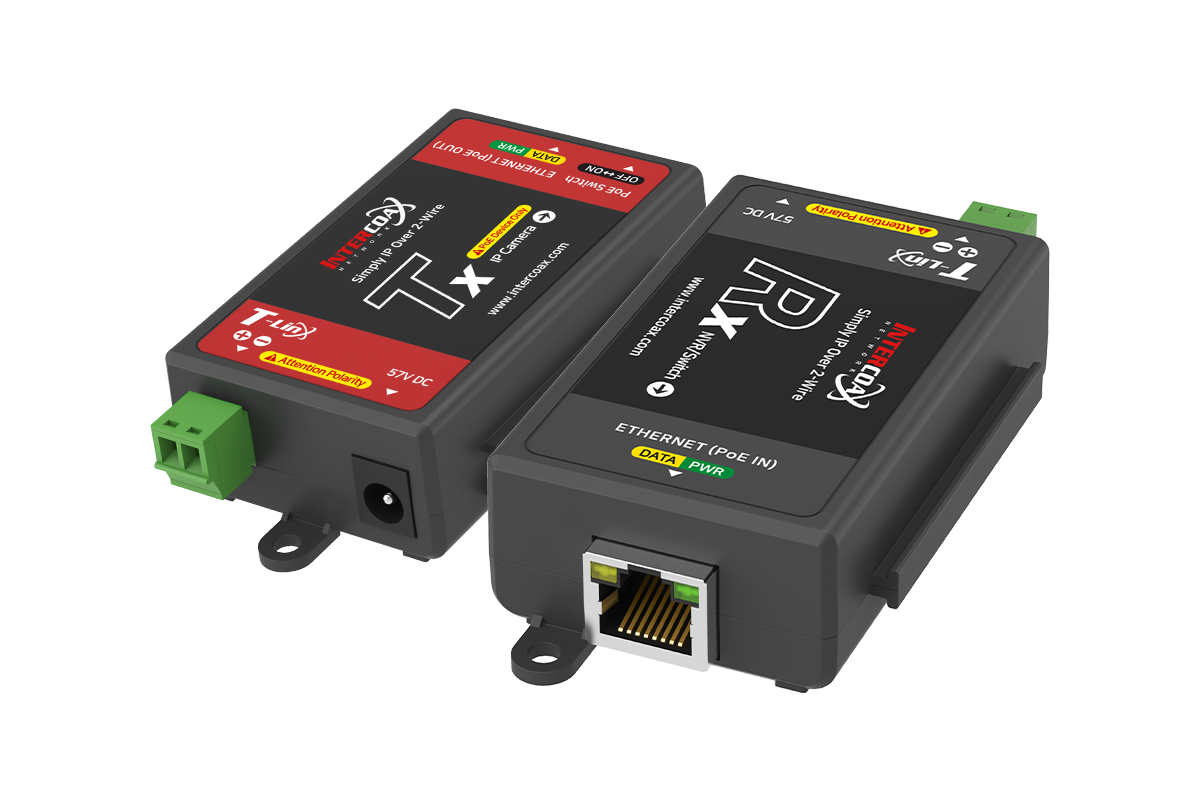

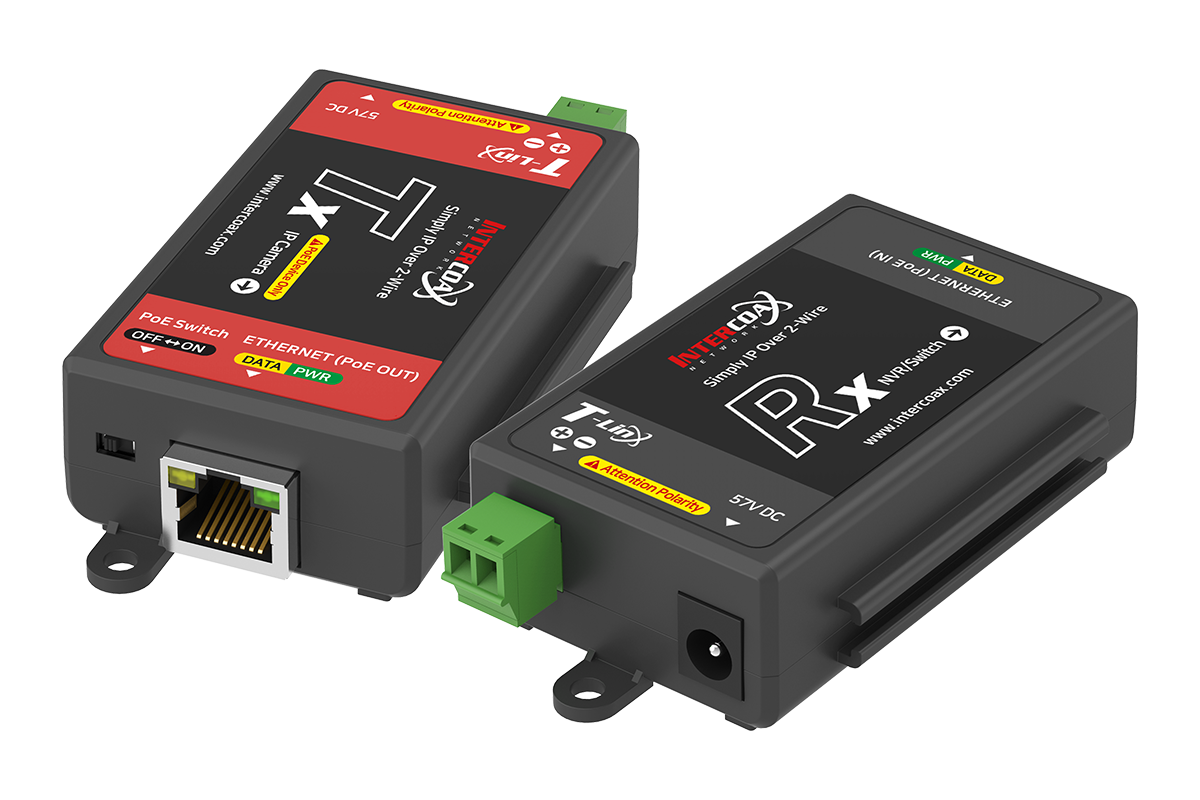

Single Port IP & PoE over 2-wire Set (300m/1000ft end-to-end converters)

ALP-ETP-01T/RNew ArrivalLorex for business badge
Sale price$199.99

Buy More, Save More

Buy 1 $199.99 USD/ea
Buy 2+, get additional 5% off $189.99 USD/ea
Buy 4+, get additional 10% off $179.99 USD/ea
Buy 8+, get additional 15% off $169.99 USD/ea
Purchasing for a Business? Join our Partner Program first for Specialty Pricing and more!
$199.99
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Data + PoE over 2-wire

300m (1000ft) Long Range

PoE from NVR to IP Camera

8K High-Quality Video Stream

Surge / Short Protection

Professional CCTV Quality

Simplified Installation

Cost Saving

Worldwide Certification

The ETP-01 Series are high-speed, long-distance Ethernet & PoE extenders that enable the transmission of Ethernet signals and PoE up to 300m through a single pair of twisted wires. They offer a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ETP-01 series supports easy installation utilizing existing UTP bundle cables or any single twisted pair cables. With the long-distance transmission feature, these devices easily overcome the 100-meter distance limitation and significantly reduce construction costs compared to fiber optic configurations.

Connection Diagram

Connection Diagram

Product Specifications

Model ETP-01T ETP-01R
Interface
2-Wire 1 x 2-Pin Terminal Block–Ethernet over 2-Wire cable
Ethernet 1 x RJ45 - 100 Base-T
Transmission Rate 100Mbps Full Duplex
(100Mbps between Intercoax devices)
Transmission Distance
Ethernet Up to 300m (1 Pair of Cat.5e)
PoE (PoC) Up to 300m (1 Pair of Cat.5e / 7W Camera)
LED Indication Ethernet 1 x Link (Yellow) / 1 x ACT (Green)
Power
Input T-Linx or DC48V~57V PoE Switch or DC48V~57V
PoE Output IEEE802.3af (PoE),
IEEE802.3at (PoE+),
Extra PoE up to 60W with 57V Power Adaptor
PoE Not Supported
PoC Only
Model ETP-01T ETP-01R
Mechanical
Dimension 93(L) x 51(W) x 24(H)mm
Weight 52g
Environment
Operating Temp -20 ~ 60°C
Storage Temp -30 ~ 80°C
Relative Humidity 10% ~ 90%
Compliance
Certification FCC, CE, KC, RoHS
Surge Protection IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)

What's Included?

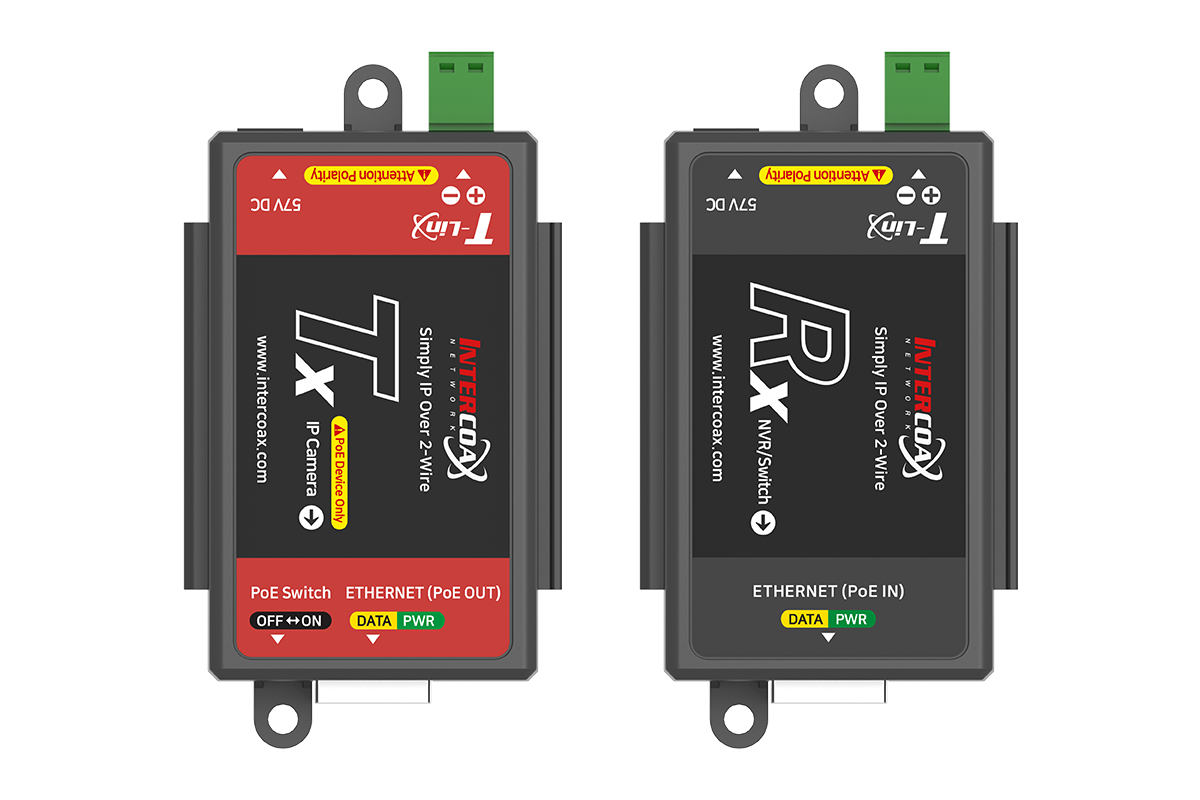

ETP-01TR Overview

Package Contents:

ETP-01T
(Transmitter)

ETP-01R
(Receiver)

Terminal
Connector x 2

Manual

Product Support

ALP-ETP-01T/R - Single Port Ethernet over 2-Wire Transmitter / Receiver
