Professional Single Port IP & PoE over Coax Set (1200m/4000ft end-to-end converters)

ALP-ECP-2601T/RNew ArrivalLorex for business badge
Sale price$749.99

Buy More, Save More

Buy 1 $749.99 USD/ea
Buy 2+, get additional 5% off $712.49 USD/ea
Buy 4+, get additional 10% off $674.99 USD/ea
Buy 8+, get additional 15% off $637.49 USD/ea
Purchasing for a Business? Join our Partner Program first for Specialty Pricing and more!
$749.99
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Data + PoE over Any COAX

1200m (4000ft) Long Range

PoE from NVR to IP Camera

1:N Daisy Chain Connection

Software Configuration

60W PoE++

8K High-Quality Video Stream

Surge / Short Protection

Simplified Installation

Cost Saving

Professional CCTV Quality

Worldwide Certification

The ECP-2601 is a high-speed, long-distance Ethernet & PoE extender that enables the transmission of Ethernet signals up to 2.4 km and PoE up to 1.2 km via Coax (or UTP, 2-wire) cables in various situations. It offers a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ECP-2601 supports easy installation using existing cables. With its long-distance transmission capability, this device easily overcomes the 100-meter distance limitation and significantly reduces construction costs compared to fiber optic configurations.

Connection Diagram

Connection Diagram

*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.
**Distance is based on RG-6 cable and 7 Watt IP Camera.

Product Specifications

Model ECP-2601T ECP-2601R
Interface
Coax 1 x 75Ω BNC (Female) - Ethernet over Coax (B-LinX)
Ethernet 1 x RJ45 - 10/100 Base-T with Auto-detect MDIX
Transmission Rate 95Mbps Full Duplex
(270Mbps between Intercoax devices)
Transmission Distance
Ethernet up to 2.4Km(RG-6)
PoE (PoC) up to 1.2Km (RG-6 / 7W camera)
LED Indication Ethernet 1 x Data-Link (Yellow)
EoC 1 x Join-Link (Green)
Power 1 x Power On(Amber)
PoE 1 x PoE Out (Red)
Encryption 128-bit AES
Model ECP-2601T ECP-2601R
Power
Input B-Linx or DC12V~57V PoE Switch or DC12V~57V
PoE Output IEEE802.3af(PoE),
IEEE802.3at (PoE+),
Extra PoE up to 60W
PoE Not Supported
PoC Only
Mechanical
Dimension 82.4(L) x 61.6(W) x 24(H)mm
Weight 77g
Environment
Operating Temp -20 ~ 60°C
Storage Temp -30 ~ 80°C
Relative Humidity 10% ~ 90%
Compliance
Certification FCC, CE, KC, RoHS
Surge Protection IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)

What's Included?

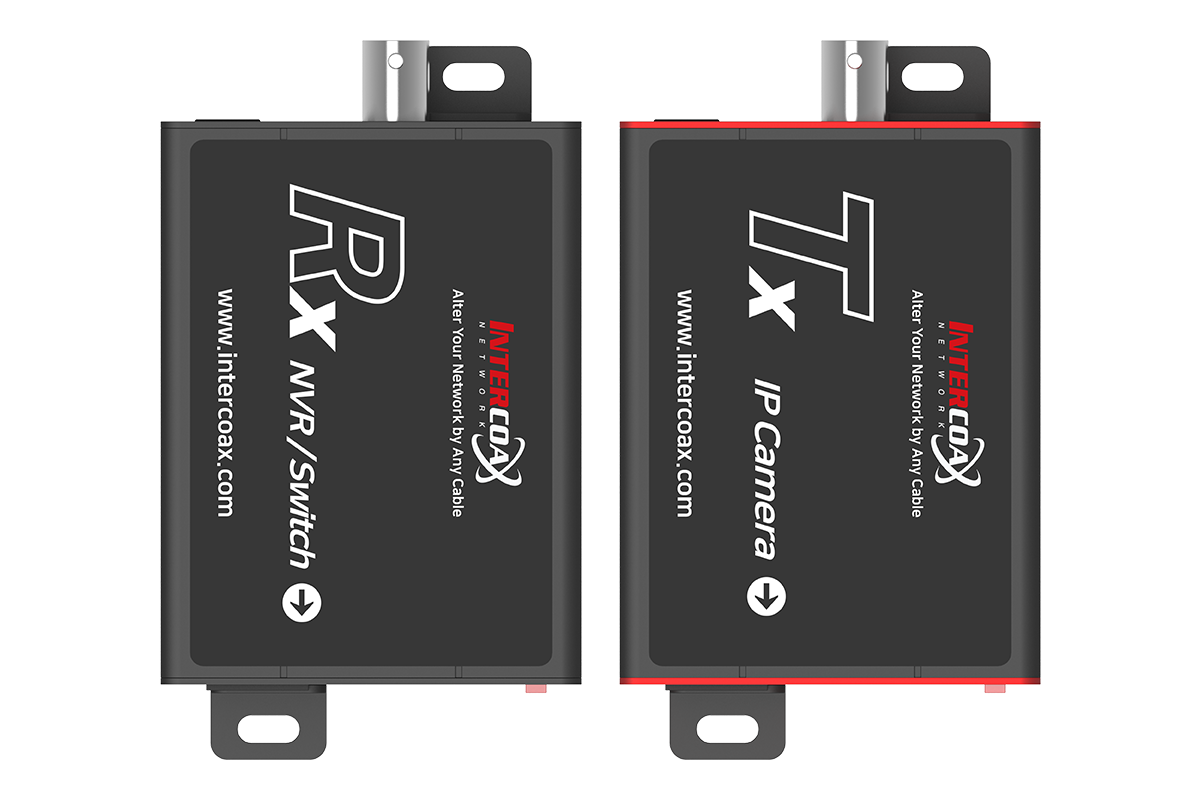

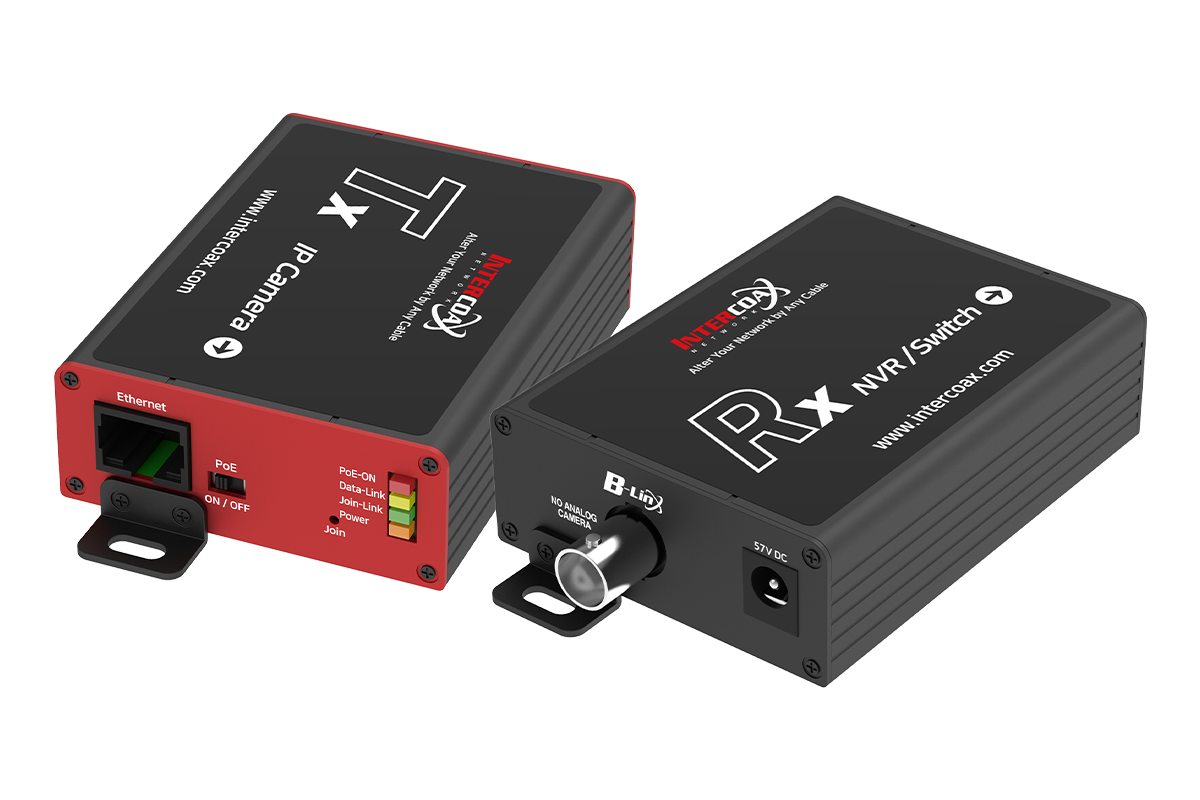

ECP-2601TR Overview

Package Contents:

ECP-2601T
(Transmitter)

ECP-2601R
(Receiver)

Bracket x 2

Screw x 4

Manual

Product Support

ALP-ECP-2601T/R - Premium Single Port Ethernet over Coax Transmitter / Receiver
