H Series
SKU: SKU: E872SB
Couldn't load pickup availability

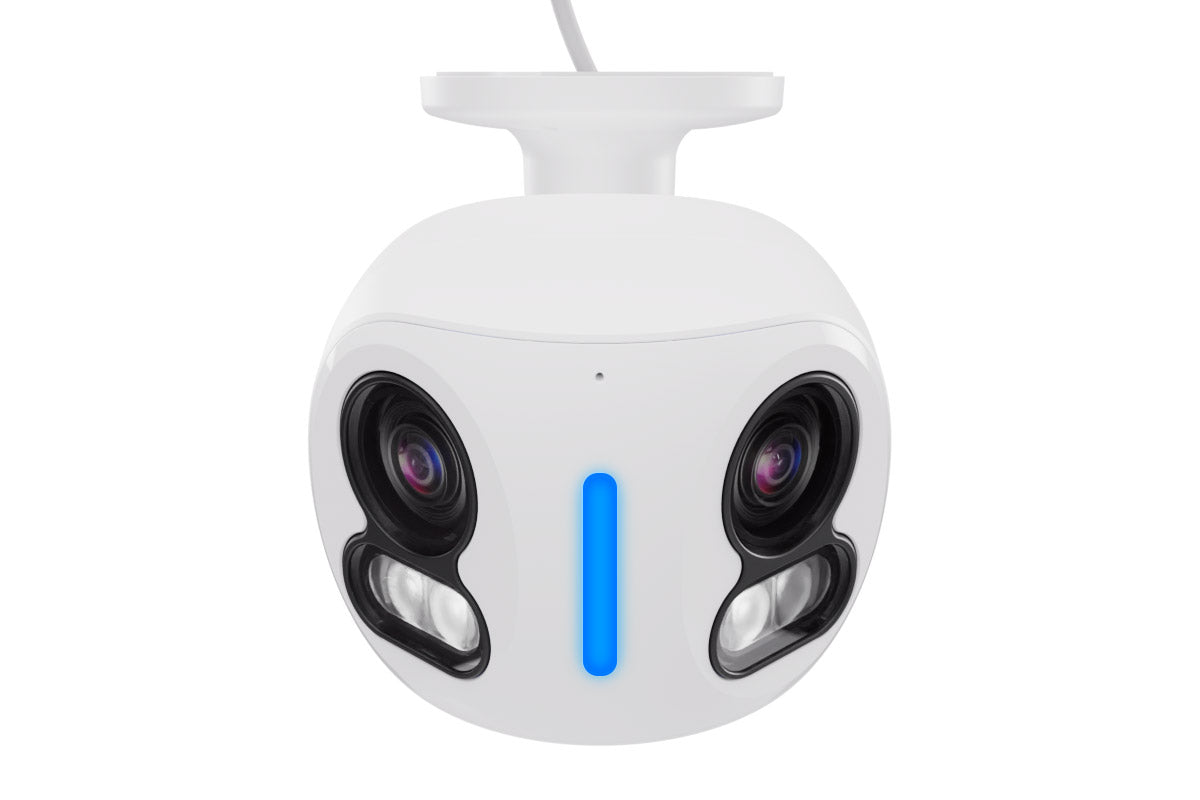

Enhance your surveillance with a full 180° panoramic perspective delivered by integrated dual lenses. Featuring 4K resolution, Color Night Vision, and Smart Security Lighting, this camera ensures comprehensive monitoring around the clock.
See the full picture with the Dual Lens system, which combines for a seamless 180° panoramic view so you can monitor more at once with ease.
Add colorful details and improve clarity with Color Night Vision*. In complete darkness, the camera will use its Infrared Night Vision to record crisp black and white video so you’re never left in the dark.
*Ambient lighting required
Add some colour to your security with the ability to personalize your LEDs with a choice of over 16 Million colors. Assign colors for motion events and camera modes, which can be seen from a distance deterring unwanted visitors in their tracks.
With proactive features like motion-activated warning lights and siren, this camera will help stop crime before it even happens!
Get detailed notifications regarding what type of motion is detected and personalize your settings to only receive the alerts you want. The 180° field of view has a slight curvature throughout, which enhances the detection feature accuracy.
In order to achieve the expansive 180° coverage, the two connected views are fused together with Image Stitching Technology. Depending on placement and distance factors, camera performance may adjust with curvature or misalignment.
*For best results, install the camera to be horizontally parallel to the ground (i.e. do not tilt/rotate sideways)

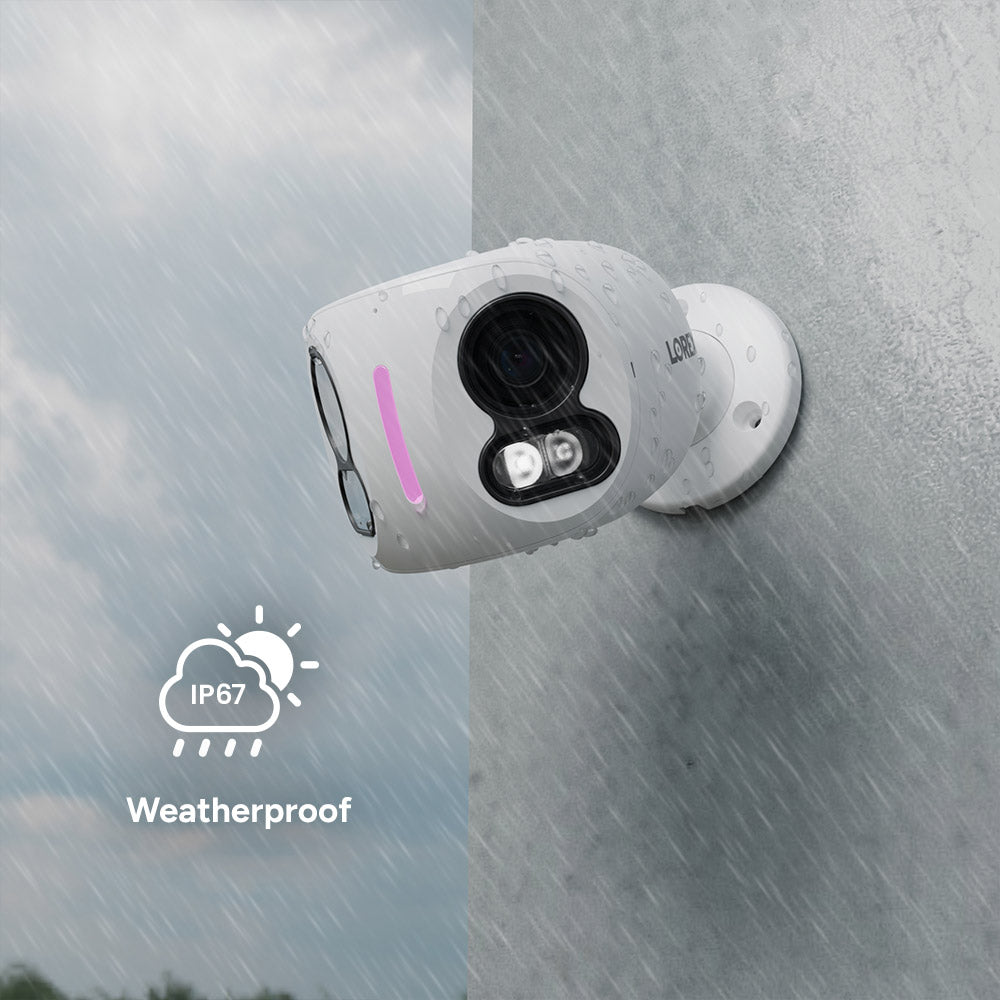

This camera is built to last. IP67 Rated, the housing protects against harsh conditions like snow, rain, dust and extreme heat, allowing for years of service, no matter the weather.
131°F | 55°C Heat Rating
-22°F | -30°C Cold Rating
IP67 Weatherproof Rating
Hear and speak to anyone through the camera using 2-Way Talk. If you're busy, select a Quick Response message to answer for you.
A stable wired camera connection provides reliable 24/7 security. You can customize where you want to install each type when integrating them into your property.
Automatically track, follow and zoom in on a person, vehicle or animal as they move across the field of view - all hands-free!
| Viewing Angle (diagonal) | 180° Panoramic View |
|---|---|
| Lens/Lens type | 2.1mm F1.6/Fixed |
| Resolution/Frame rate | 4096x1856@15fps, 2880x1312@15fps, 2048x932@15fps |
| Effective Pixels | 4096 x 1856 |
| Microphone/Speaker | Yes/Yes |
| Siren | Yes |
| Two-way Talk | Yes |
| Night Vision Range (Total Darkness) | 65ft (20m) |
| Night Vision Range Max. | 98ft (30m) |
| Color Night Vision | Yes, 0.008 Lux@F1.6 (Color 30IRE) |
| Smart Motion Detection | Package, Vehicle, Person, Face and Animal |
| Heat Mapping | Yes |
| Supports in App Quick Messaging | Yes |
|---|---|
| Active Deterrence | Warning Light, Siren, Pre-Recorded Message |
| Smart Security Lighting | Yes |
| Camera Housing Material | Alluminum Alloy + Plastic |
| Power Requirements | PoE (Power over Ethernet Class -802.3af)/12V DC |
| Power Consumption (max) | 8.2 W (12 VDC); 9.1 W (PoE) |
| Camera Dimensions (W x D x H) | 6.8 x 3.9 x 3.0" 172 x 99 x 76mm |
| Camera Weight | 1.75lbs / 0.79kg |
| Operating Temperature | -22°F (-30°C) ~ +131°F (+55°C) |
| Environmental Rating | IP67 |
4K Dual Lens Bullet Camera
Mounting Kit
Ethernet Extension Cable
*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing
