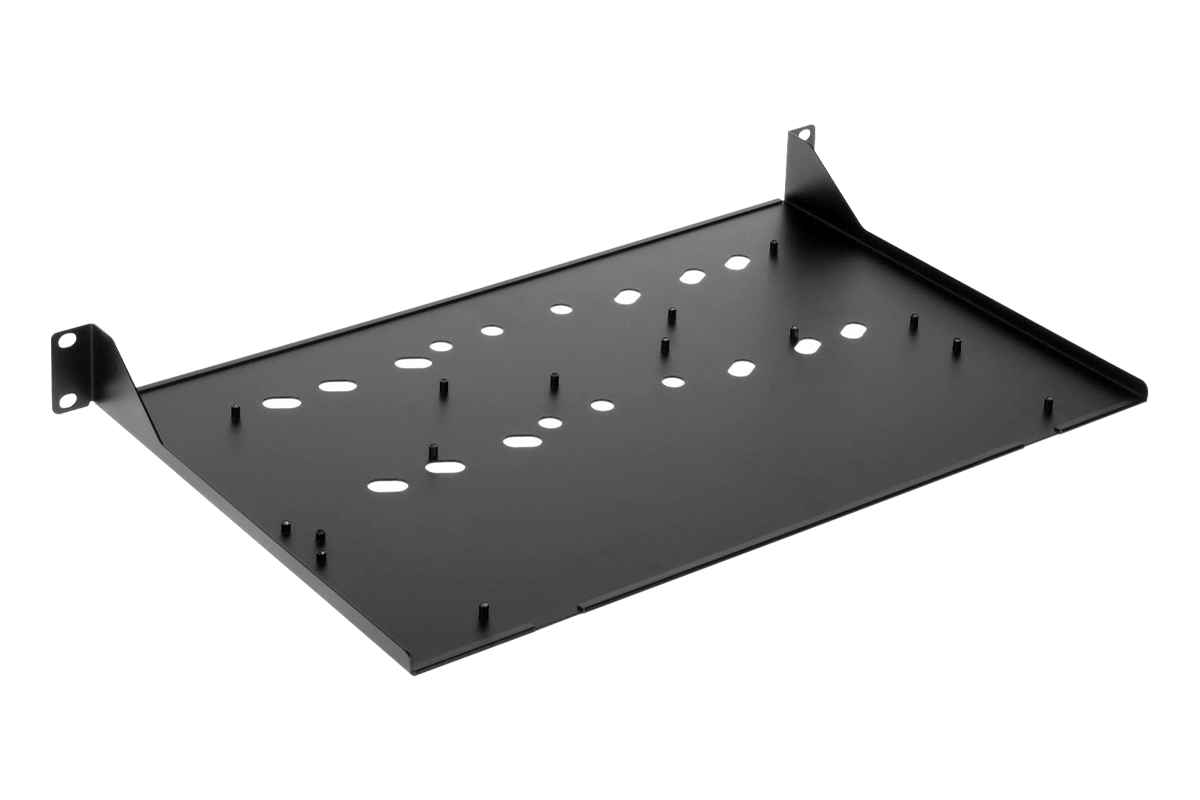

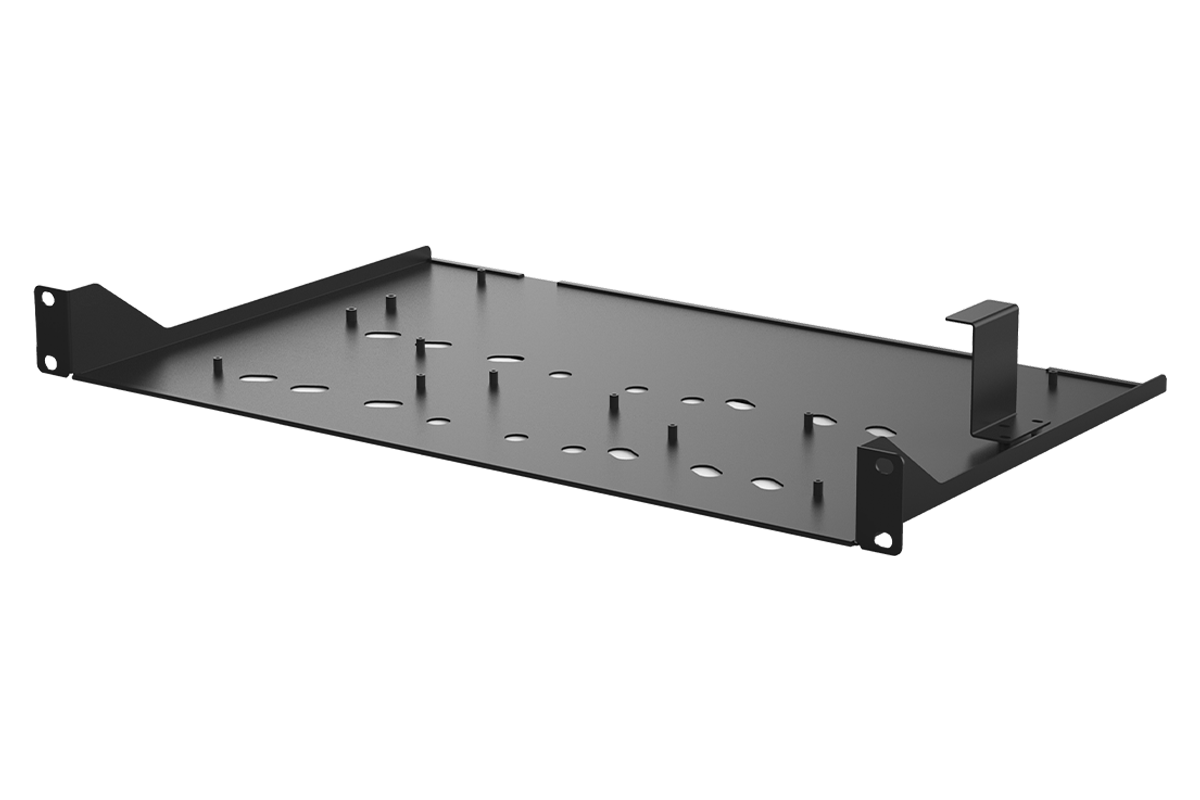

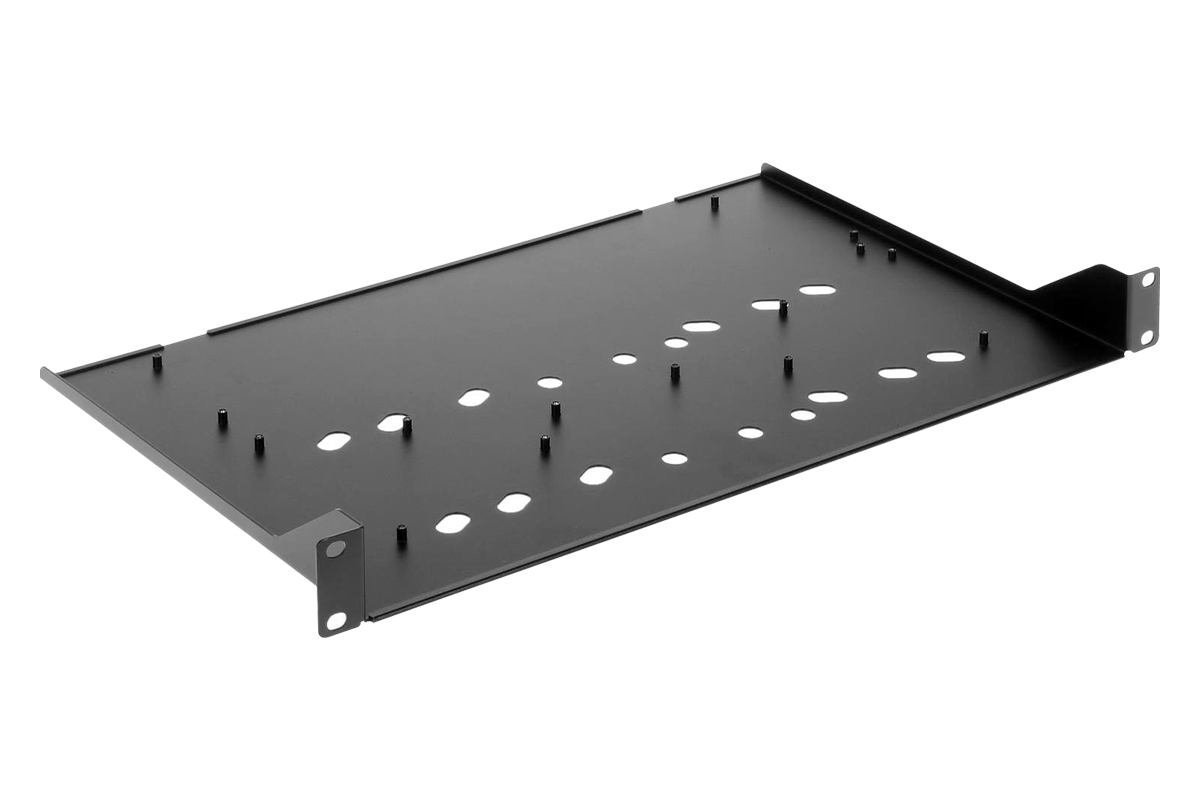

This Rack Mount Tray is designed for easy installation with Lorex NVR. Made with SPCC commercial cold-rolled steel, it is incredibly durable and can support up to 5kg. Compatible with Lorex NVRs N864, N883, and N884, as well as 19” 1U server rack cabinets, it is a reliable choice for storing and protecting your equipment.
Easy Installation
Compatible with 19" 1U server rack
Durable SPCC steel design, supports up to 5kg.
Compatible with select Lorex NVRs
Robust SPCC Steel Design
The rack mount tray is durable in design, comprised of SPCC commercial cold-rolled steel. Strong and reliable – with a weight capacity of up to 5Kg, it provides strength and secure support.
Quick and Easy Installation
Experience effortless installation by utilizing the provided screws in conjunction with Lorex NVR. This user-friendly system seamlessly integrates into a 19" 1U server rack cabinet, guaranteeing hassle-free compatibility and ensuring a streamlined setup process with minimal effort required.*
*Rack mounting screws and cage nuts are not included.
Product Specifications
| Material | SPCC / Steel |
|---|---|
| Dimension | 482.6mm x 281.2mm x 43.7mm |
| Operating Temperature | -40°C-60°C |
| Humidity | 0-90% RH |
| Loading Bearing | 5.0kg |
|---|---|
| Weight | 1.4kg |
| Color | Black |
| Applicable Model: | 1U/ Mini 1U/Compact 1U Storage Device |
What's Included?
Package Contents:
1 × Rack
1 × Bracket
5 × M3 Screws
2 × M2.5 Screws
Installation Manual
Product Compatibility
Product Support
AUSC-1B Rack Mount Tray for Lorex NVR
