1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
5. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will
also impact the accuracy of detection.
6. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
Features

Lorex Fusion Collection
This Fusion NVR system is united by our Lorex Home app, which can "fuse" the included wired 4K cameras and Wi-Fi Doorbell on the same NVR!

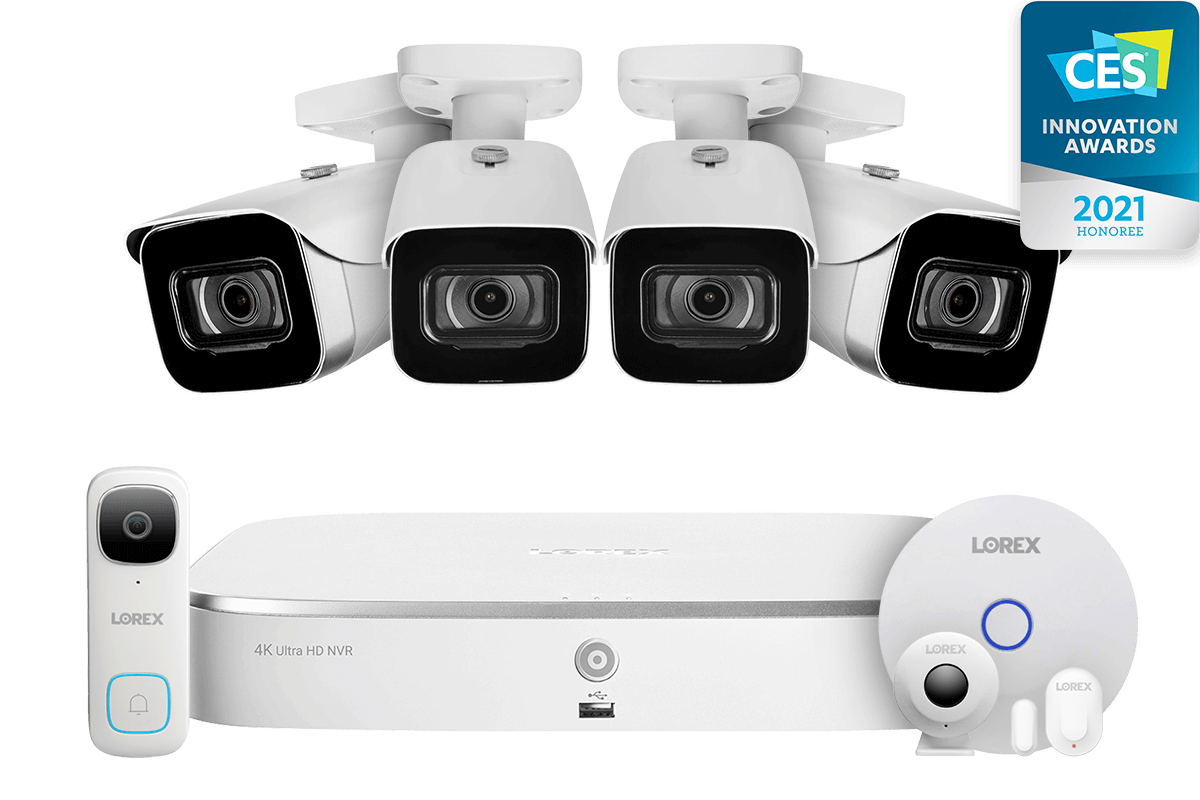

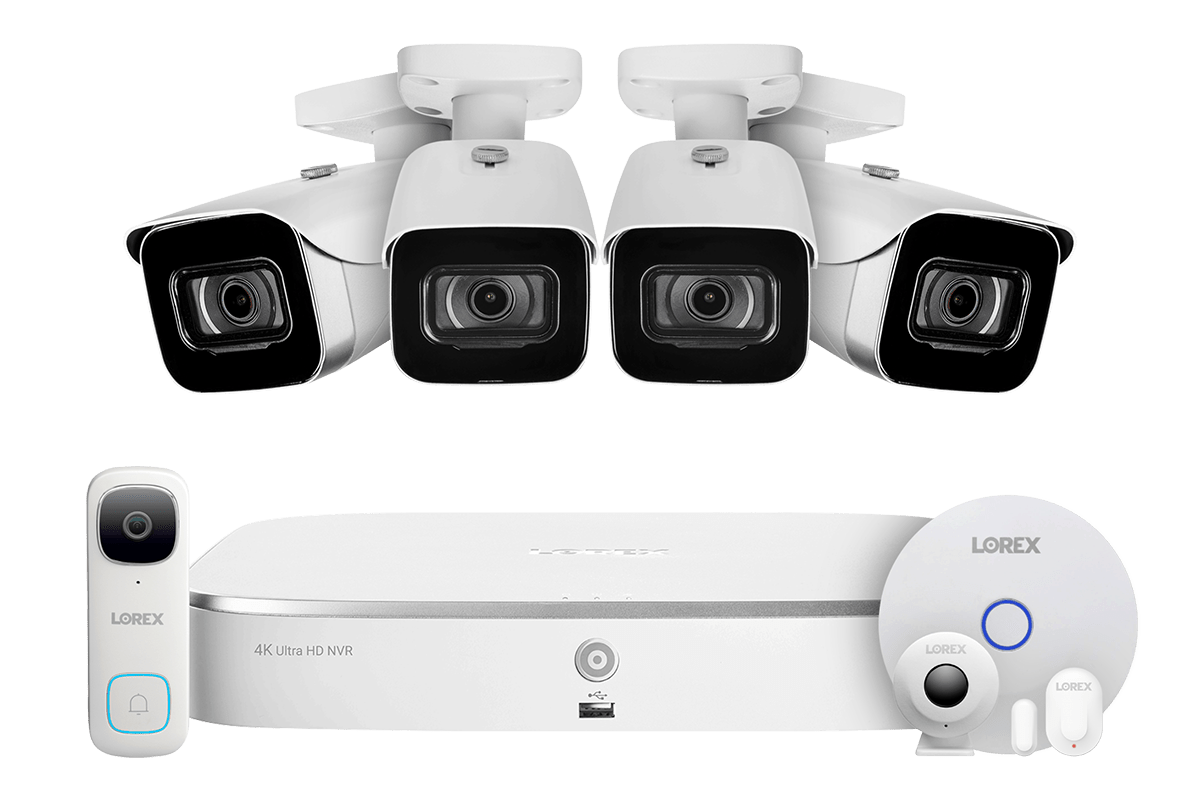

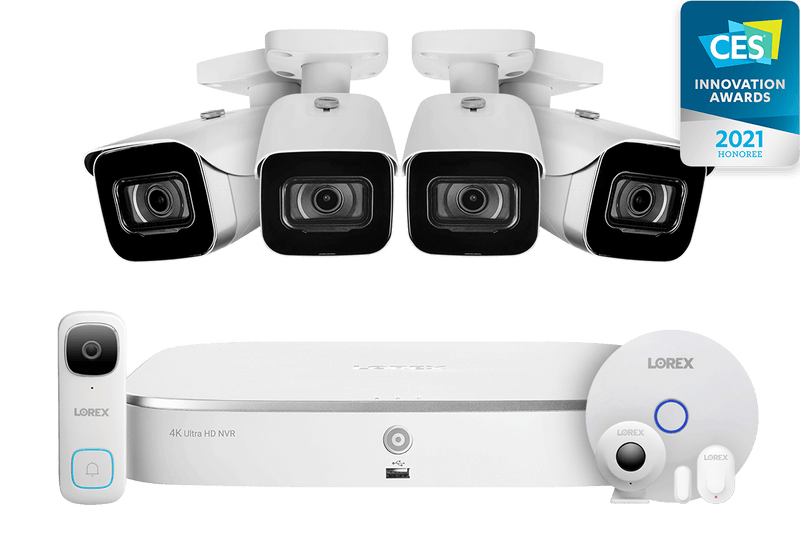

What's Included (N4K2-84WB-DS)

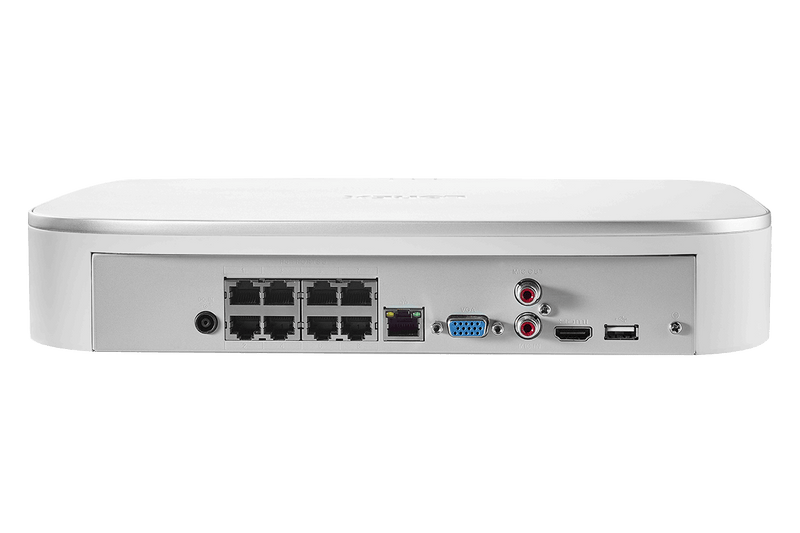

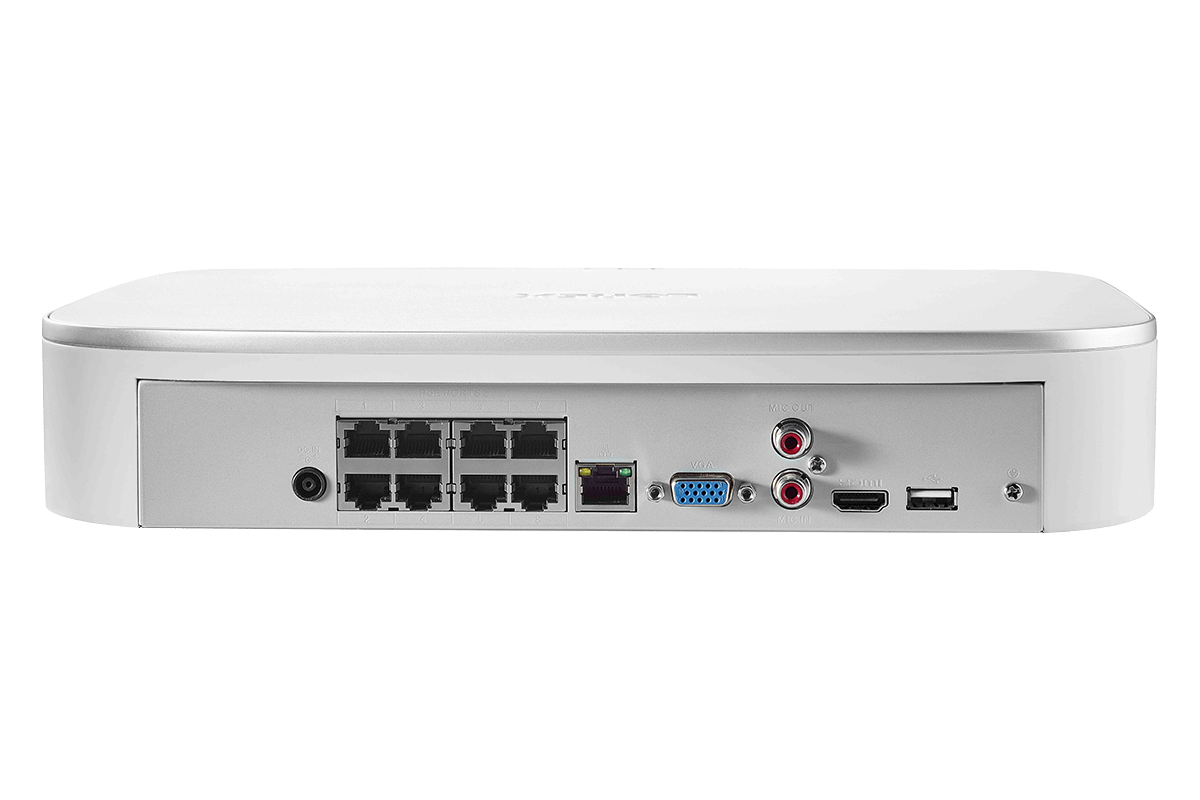

Wired NVR System
8 Channels | 4 Cameras | 2TB HDD

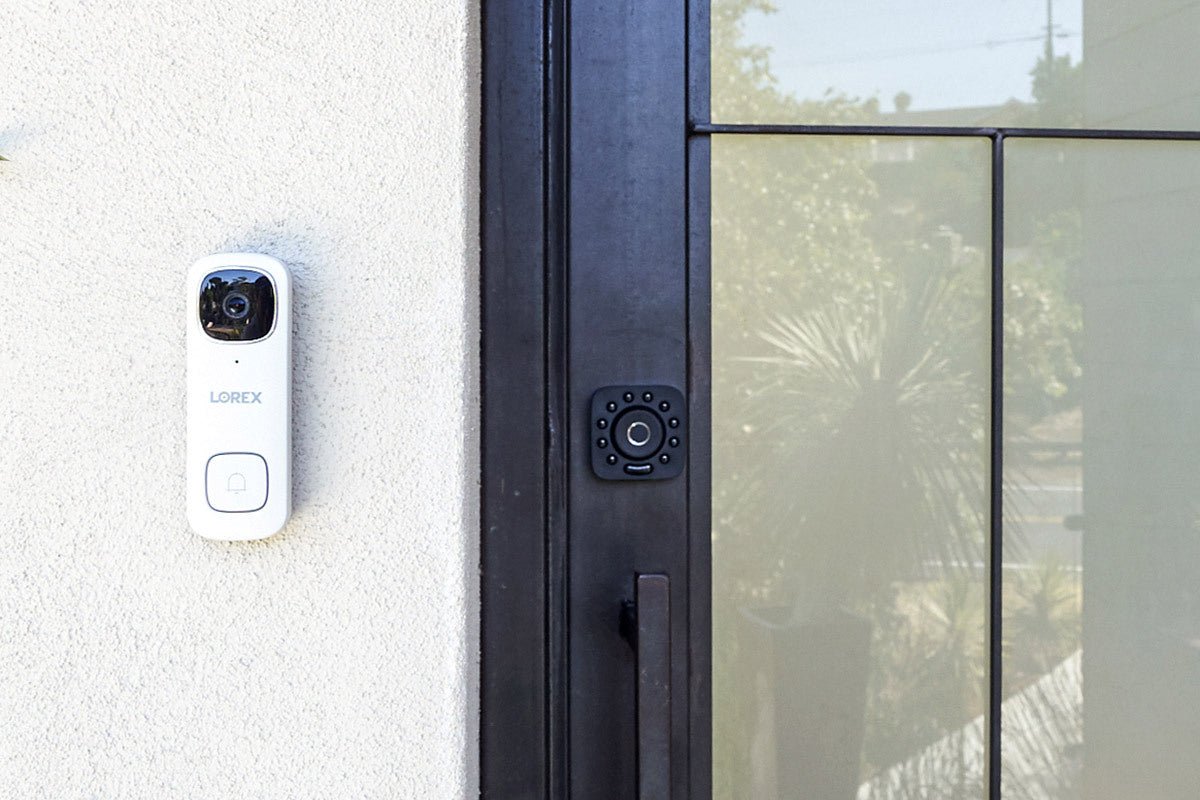

Wi-Fi Doorbell
1 × 2K QHD Doorbell

Sensor Kit
Lorex Sensor Hub & 2 Sensors

Our award-winning Fusion NVRs can incorporate two Wi-Fi devices through the Lorex Home App. This allows you to record them continuously for full coverage and secondary data backup.


Color
Night Vision™

IP67
Weatherproof

HEVC
Encoding

PoE
Installation


2K QHD
Recording

Pre-Recorded
Messages

Color
Night Vision™

Wired
Installation


Lorex Sensor Hub

Add-On Sensors
Add some vital security to your house without the video. Connect the Lorex Sensor Hub to the Lorex Home App to utilize the included Add-On Sensors. Up to 10 add-on sensors can be added to the Lorex Home Hub.


Smart Home Compatible


Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. You can also use the NVR with Chromecast, Firestick, and Apple TV to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.
What's Included?
- Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras1
- Digitally zoom in on distant objects for better clarity2
- Expand your security system with up to 8 IP cameras with built-in PoE ports
- Allows for Wi-Fi cameras to record continuously
- Back up continuous video from your Wi-Fi camera(s) to the recorder
- Quickly access your live footage with simple voice commands (compatible with Alexa and Google)4
- Control your Deterrence cameras features with your voice (compatible with Google Assistant only)4
- Use Smart Search to search through recorded footage and filter events for motion detected by a person or vehicle6
- Local built-in security-grade hard drive ensures only you can access your footage
- Max 6TB storage space with no hidden monthly cloud fees
- Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring

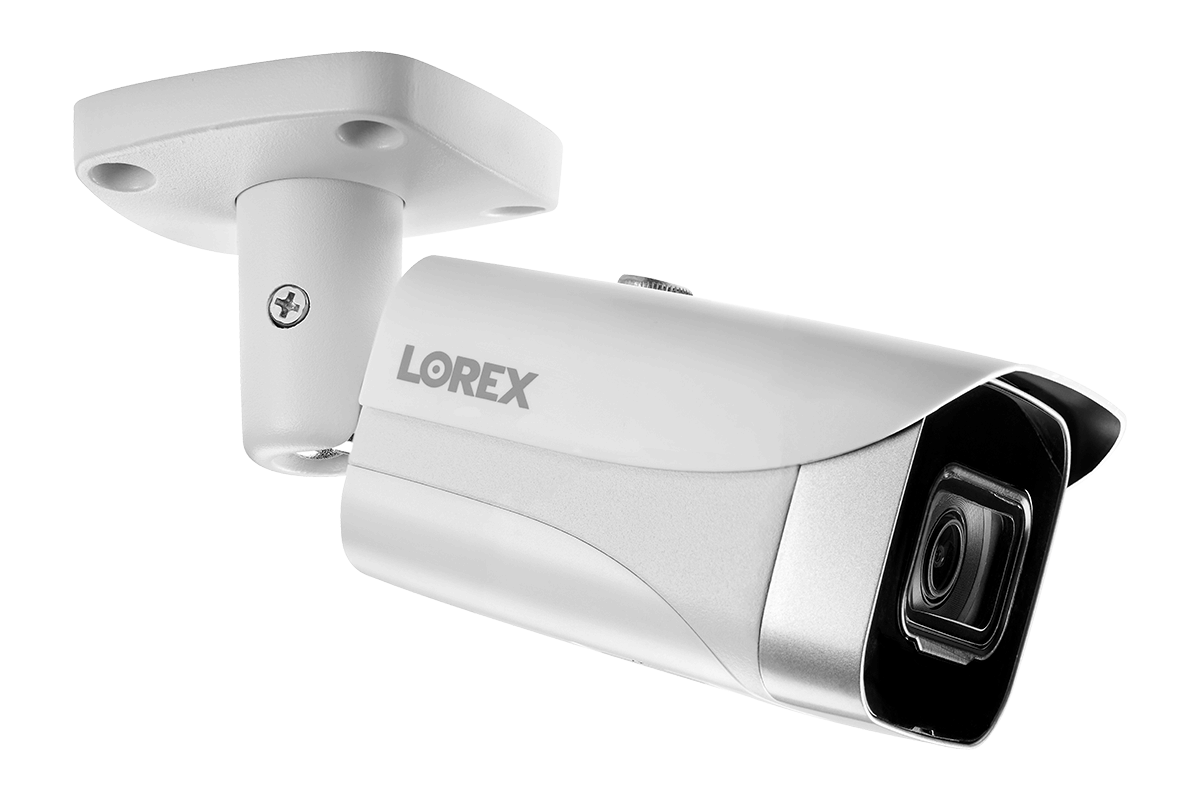

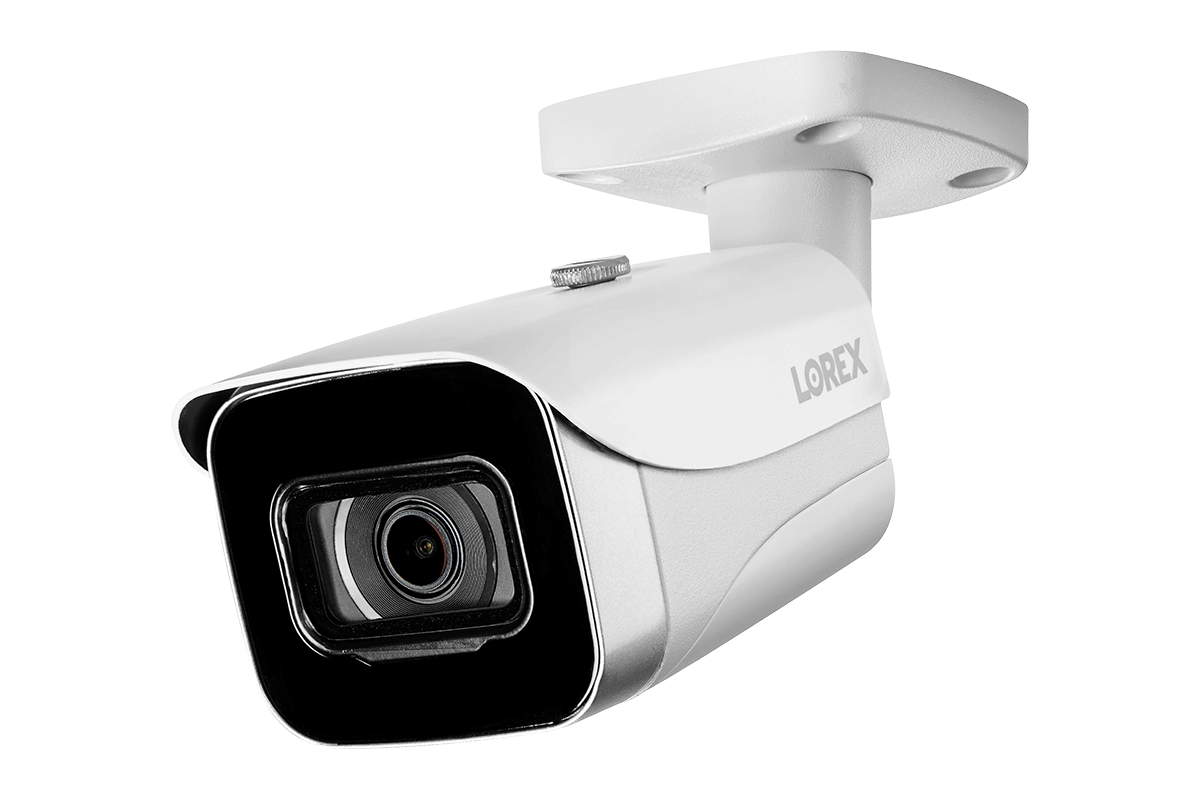

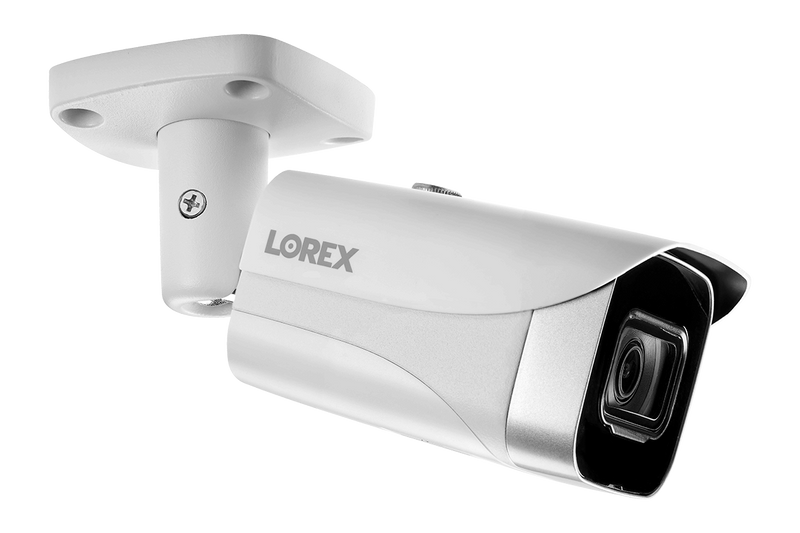

Each N842A82 Includes:
- 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
- See more with a wide-angle 105° field of view
- HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
- Weatherproof rated (IP67)2
- Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
- Aluminum Alloy housing, designed to withstand harsh weather conditions
- Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)3
- Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness4
Each E841CA-E Includes:
1. Compatible with select Lorex Series NVRs. For a list of compatible recorders, please visit www.lorex.com/compatibility
2. Not intended for submersion in water. Installation in a sheltered location recommended.
3. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
4. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 90ft/27m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.

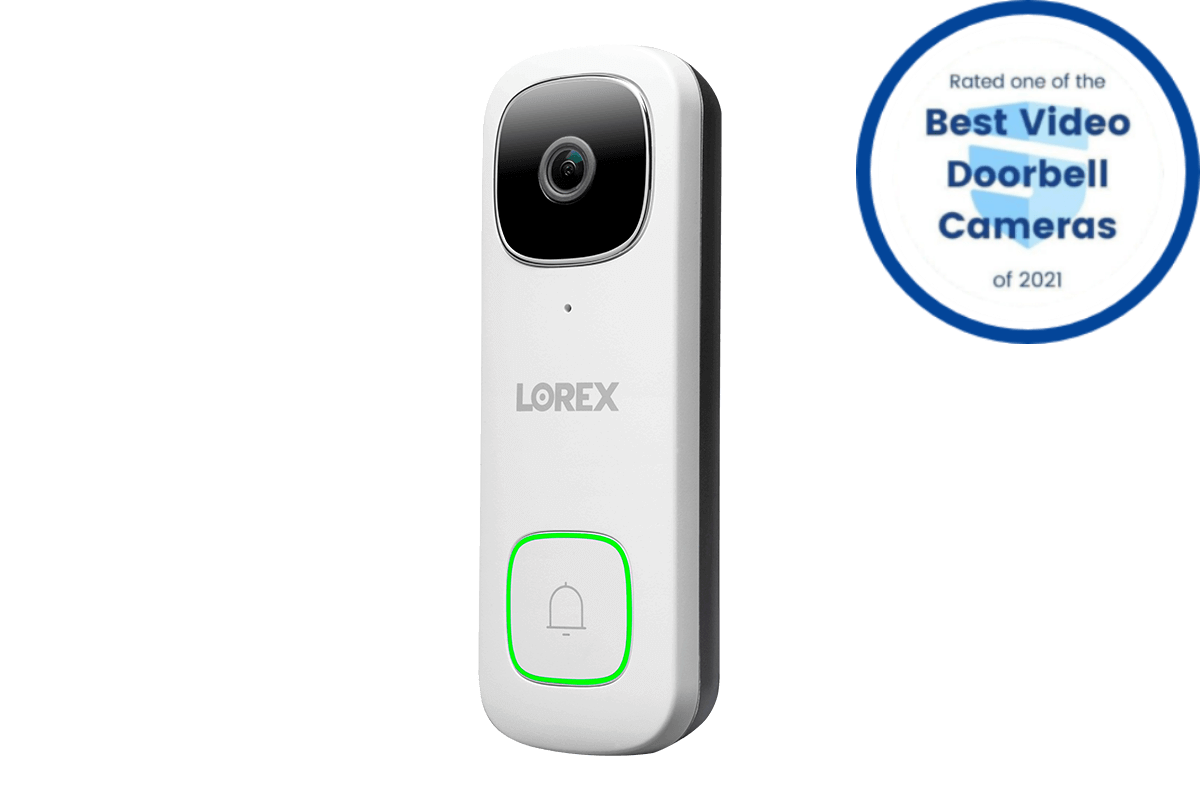

- Impressive 2K QHD Resolution for clear video quality.
- See more with the doorbell's 4:3 aspect ratio and 164° diagonal field-of-view.
- Get the best picture always with HDR imaging.
- Use pre-recorded messages or 2-way talk1 to greet visitors.
- Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person detected.
- Deter unwanted guests with the remote-activated siren.
- Be aware of activity around your doorstep with built-in Person Detection feature.
- Receive notifications from the Lorex Home™ app when motion is detection2.
- Local microSD storage, expandable up to 256GB.
- Adjust the viewing angle of your Video Doorbell with the included set of mounting bracket wedges.
- Pair with additional wired and wireless Fusion products to enhance your Lorex security experience.
- Be notified when someone rings the doorbell, as well as answer it without using your phone with Amazon Alexa™.
- Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.3
Each B451AJD Camera Includes:

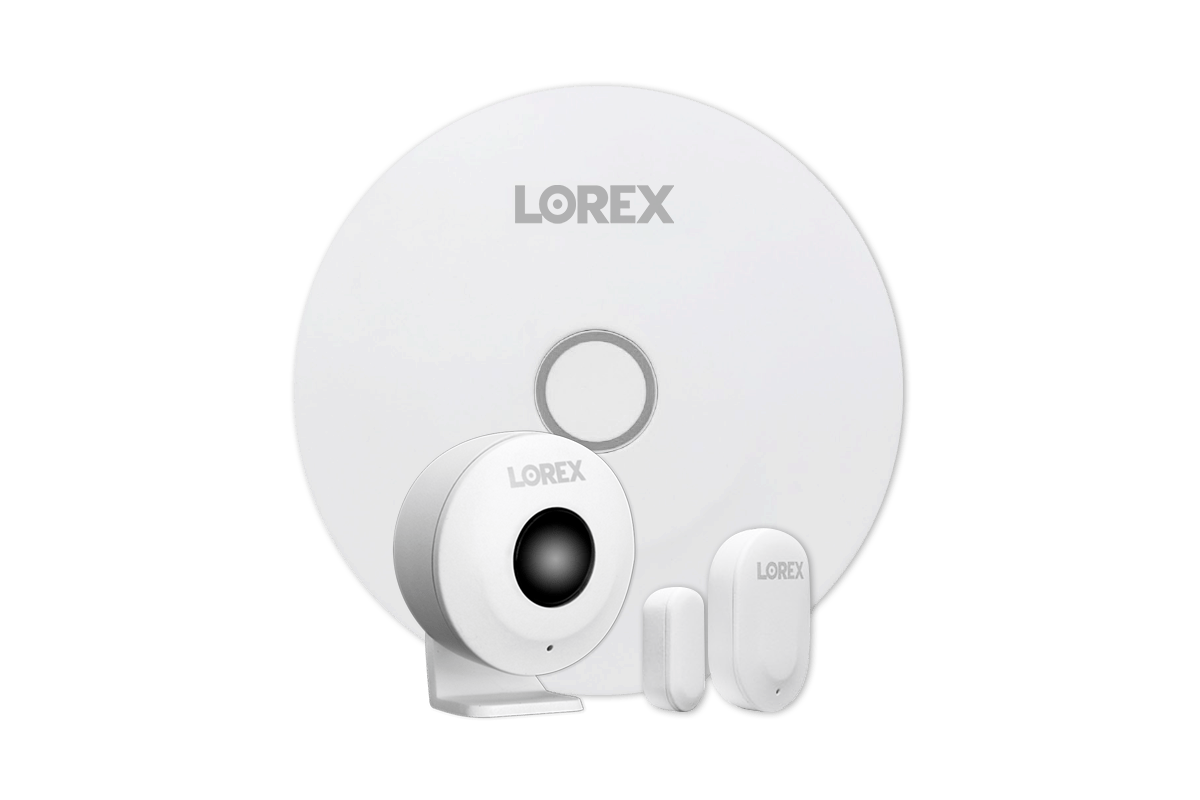

Smart Sensor
AY41TR-KTK1-MTK1
AY41TR Sensor Hub | |
---|---|
Color | White |
Power | Power adapter input: 100-240V AC, Power adapter output: 5V DC |
Connectivity | BLE5.0 |
Lights | Status Indicator Light |
Installation Type | Tabletop or wall mount |
Setup Requirements | Lorex Home APP |
Compatibility | Lorex DVR's or NVR's using Lorex Home APP |
Operating Conditions | Indoor Use |
Warranty | 1 year limited warranty |

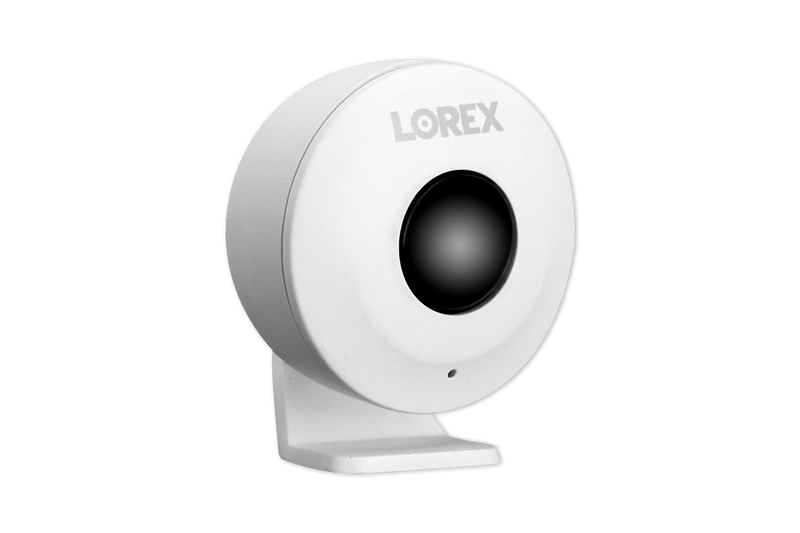

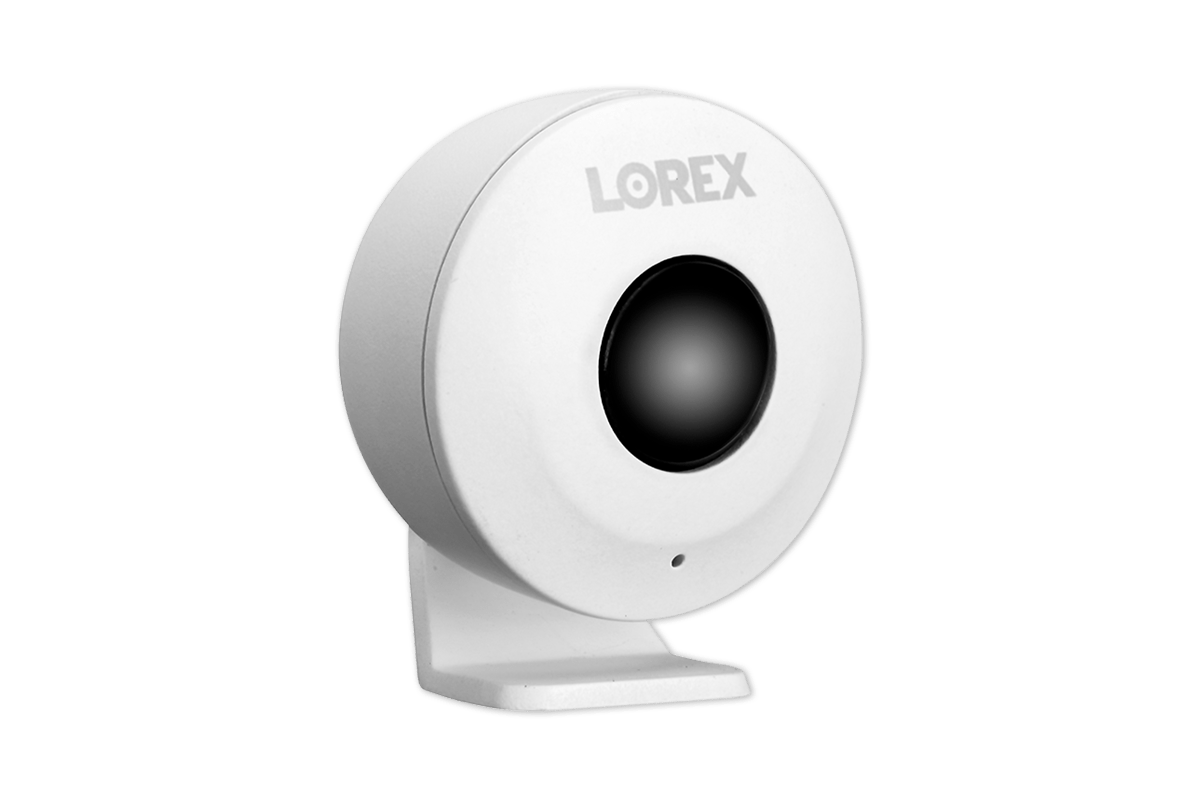

AM41TK PIR Motion Sensor | |
---|---|
Color | White |
Power | Battery: CR2450, included |
Connectivity | BLE5.0 |
Detection Range | 26ft Max.* |
Detection Angle | 110° Max. |
Installation Type | Tabletop, wall or ceiling |
Lights | Status Indicator Light |
Setup Requirements / Compatibility | Lorex Sensor Hub, Lorex Home Center |
Mounting | Adhesive, included |
Operating Conditions | Indoor Use |
Operating Temperature | 14°F ~ 113°F / -10°C ~ 45°C |
Operating Humidity | 0 ~ 95% RH |
Warranty | 1 year limited warranty |

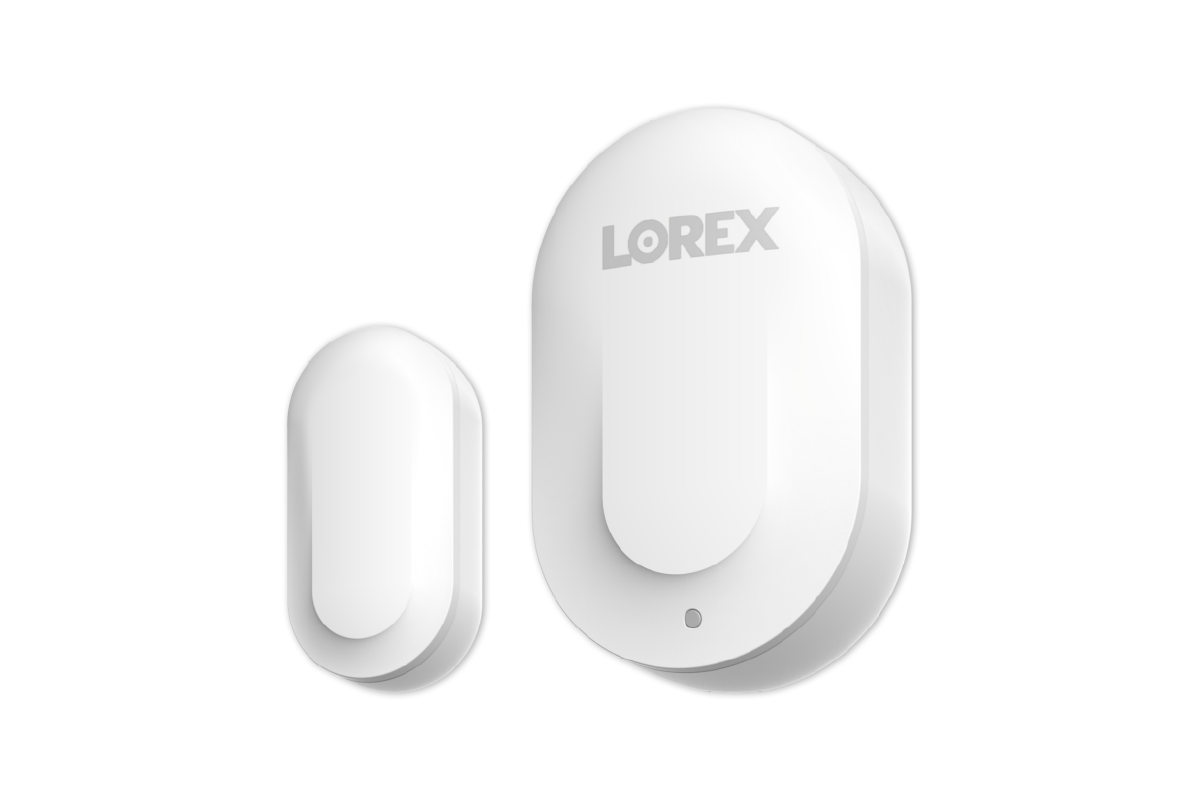

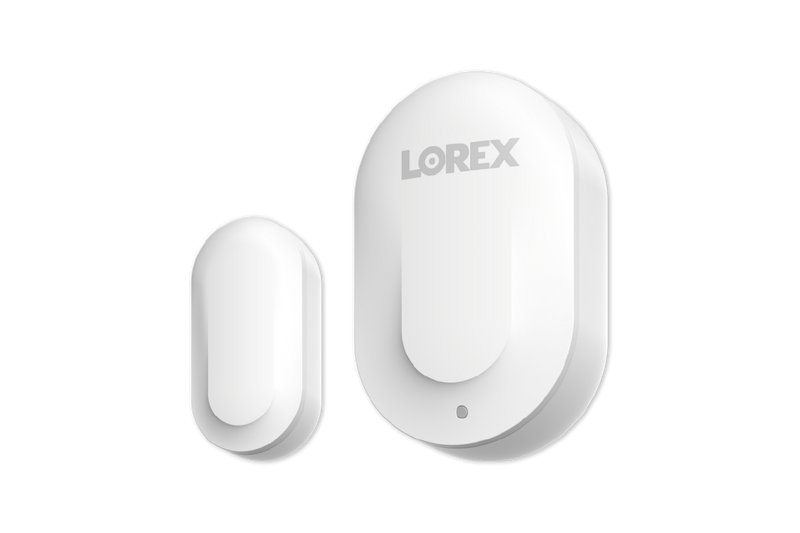

AK41TK Door / Window Sensors | |
---|---|
Color | White |
Power | Battery: CR1632, included |
Connectivity | BLE5.0 |
Lights | Status Indicator Light |
Installation Type | Tabletop or wall mount |
Setup Requirements / Compatibility | Lorex Sensor Hub, Lorex Home Center |
Mounting | Adhesive, included |
Operating Conditions | Indoor Use |
Operating Temperature | 14°F ~ 113°F / -10°C ~ 45°C |
Operating Humidity | 0 ~ 95% RH |
Warranty | 1 year limited warranty |
Each Smart Sensor Starter Kit Includes:
*Range will be affected by environmental factors
