8 Channel HD MPX DVR with 1TB HDD, 4 1080p Cameras with 130FT Night Vision

LHD84W

EXTENDED HOLIDAY RETURN PERIOD: Returns on items purchased between Nov 8th and Dec 31st will be accepted until Jan 31st, 2022

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

MPX82W home security system

Experience the gold standard in analog surveillance video that is second only to being there yourself. This HD DVR records video in real-time at 1080p HD on all 8 channels. Including 4 or 8 fully-loaded megapixel security cameras, this system uses standard BNC cabling to transmit stunning HD images for a surveillance experience like no other. Maintain vigilance with best-in-class image quality and view your world with new eyes.

LHD84W

SPECIFICATIONS

8

CHANNELS

1080P DVR can support up to 8 cameras

4

CAMERAS

4 HD 1080p security cameras

130FT

NIGHT VISION

Maximum night vision

1TB

HARD DRIVE

Maximum capacity 1 x 4TB hard drive

Lorex Cloud connectivity solution

Introducing Lorex Cloud™, our innovative hassle-free cloud connection service. Say goodbye to IP & router port forwarding issues - you can quickly and easily connect to your security system using a smartphone or tablet. Lorex Cloud™ will have you viewing your system remotely within minutes on your iOS® or Android™ device. Simply download the free App, scan the QR code and start viewing your world securely online! Stay abreast of important developments with push notifications for motion events, and instant email alerts with snapshot attachments.

Works With

System Compatibility
System Compatibility

The HD DVR is bundled with 1080p wired HD bullet cameras that provide superb surveillance footage both day and night. The cameras are ideal for indoor and outdoor applications, with a fully weatherproof, polycarbonate housing that stands up against intruders and the elements. See it all, day and night, with best-in-class low light clarity, close up recognition in the dark with Smart IR, and an impressive night vision range of up to 130ft (40m).

Security certified hard drive

Security certified hard drive included

Record to the security grade 100% duty-cycle hard drive designed for surveillance, providing weeks or even months of reliable video. Customize the recording settings to fit your needs. Record at 1080p HD (1920x1080) for the highest resolution, or change the settings to a lower resolution for extended recording time.

For those who already own a wired security system, upgrading to HD surveillance has never been easier - simply swap out your old BNC cameras for new 1080p wired HD cameras that use the same cabling. Extend the video signal up to 800ft (242m) with a single run of RG59 coaxial cable for flexible installation.

Extend video up to 800ft with RG59 coaxial cable

Connect the HD DVR to a TV or LCD monitor with industry standard HDMI and VGA inputs. The intuitive interface with simple menus and icons allow for easy & efficient security DVR programming. Other advanced features of the HD DVR include click-and-drag digital zoom in live view and playback, dynamic drag & drop camera assignment, and PTZ control through coaxial cabling.

LBV2521 weatherproof bullet security cameras

Cold climate weatherproof cameras

These rugged, weatherproof cameras are IP66-rated to ensure protection against all types of bad weather. Be it heavy wind, rain, or snow, we’ve engineered our cameras to withstand the most unforgiving of North American climates. They hold their own in temperatures as low as -22°F (-30°C) to ensure year-round security monitoring that never stops working. The cable pass-through design of the cameras combined with a lightweight Polycarbonate housing makes them virtually immune against vandalism.

LBV2521B

LBV2521B

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

LBV2521 night vision range
1080 MPX Comparison Chart
  HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording Full 1080p HD (1920x1080) 720p HD (1280x720) Analog 1080p HD (1920x1080) 720p HD (1280x720)
Platform 1080p HD NVR systems 720p HD NVR systems 1080p HD DVR systems 720p HD DVR systems
Video Digital IP / RJ45 connection Digital IP / RJ45 connection Analog BNC / RG59 connection Analog BNC / RG59 connection
Power PoE (Power over Ethernet) PoE (Power over Ethernet) Standard DC power Standard DC power
Installation Connect cameras to NVR or to router/LAN Connect cameras to NVR or to router/LAN Cameras require wired connection to DVR Cameras require wired connection to DVR

Video

What's Included?

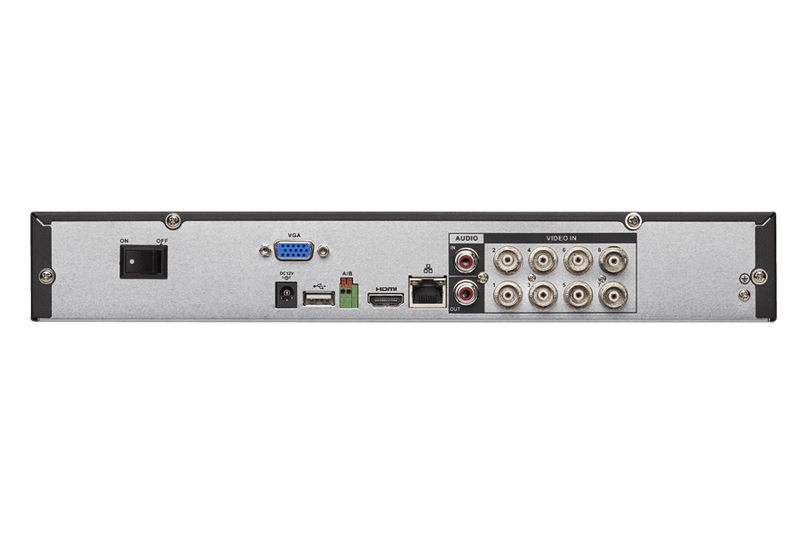

LHV2000

Digital Video Recorder features:

LHV2000
LHV2000
  • True high definition 1080p recording on all cameras1
  • 24/7 security-grade hard drive
  • Continuous, scheduled and motion recording
  • H.264 video compression2
  • HDMI cable included for simple connection to HD TVs
  • PTZ cameras supported, remote control through App1
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade
  • 3-Step remote view with Lorex Cloud™3
  • PC and Mac compatible 4
  • Free iOS and Android compatible apps
  • Advanced apps with live viewing, playback, video recording, and snap shot
  • Push notifications of motion events
  • Instant email alerts with snap shot attachment
  • Dual streaming to conserve bandwidth

Each LHV2000 Includes:

1 × DVR
1 × HDMI Cable
1 × Remote Control
1 × Power adapter
1 × Mouse
1 × Ethernet Cable
Quick Start Guides

1. Compatible with Lorex 1080p and 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time.
4. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

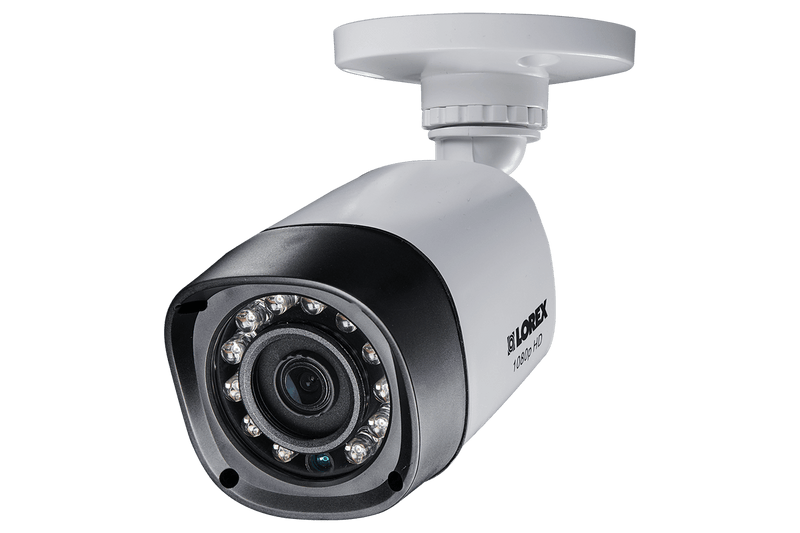

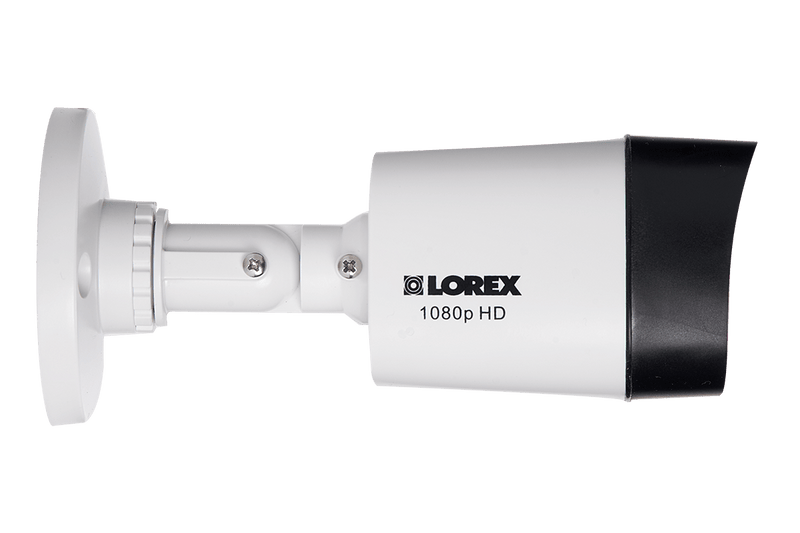

LBV2521

1080p HD Bullet Security Camera Features:

  • True HD 1080p Image Sensor1
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness2
  • Close up recognition in the dark with SmartIR
  • Anti-glare feature ensures clear images under strong lighting conditions
  • ClearNight imaging for superior low light performance, improving recording efficiency
  • Split glass design minimizes IR reflection
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
  • Extreme temperature performance (-22° ~ 140°F / -30° ~ 60°C)
  • 90° field of view
  • Vandal resistant design with cable pass-through bracket
  • Lightweight and durable polycarbonate housing
  • Versatile ceiling or wall mounting options
  • Residential and business friendly compact design

Each LBV2521 Includes:

1 × Bullet Camera
1 × Mounting kit
1 × 60ft BNC extension cable
1 × Power adapter
Quick Start Guides

1. Compatible with Lorex MPX Series DVRs only.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption level of object.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
