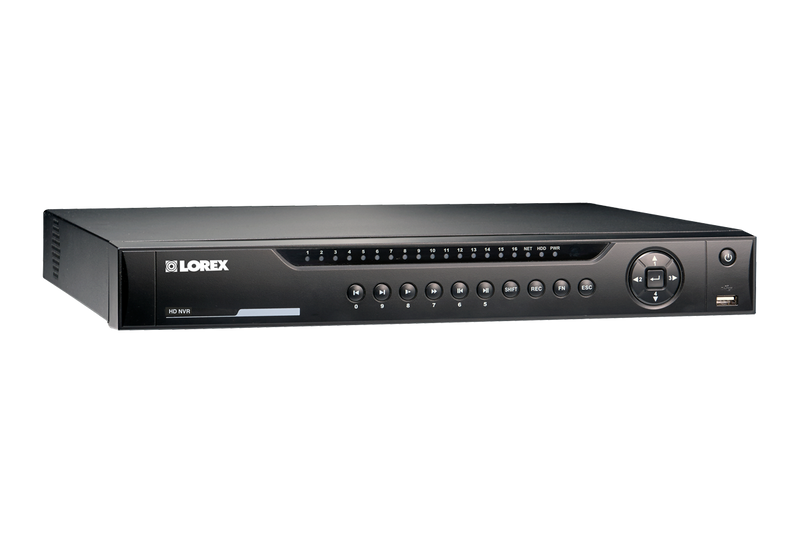

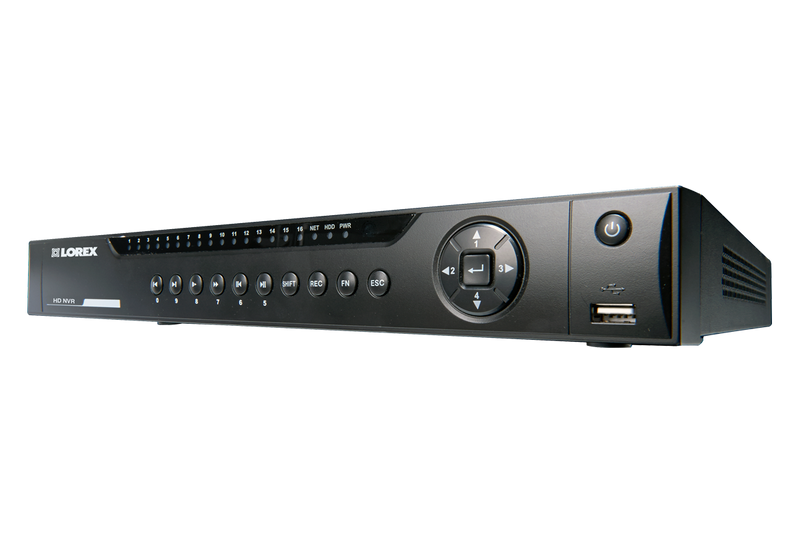

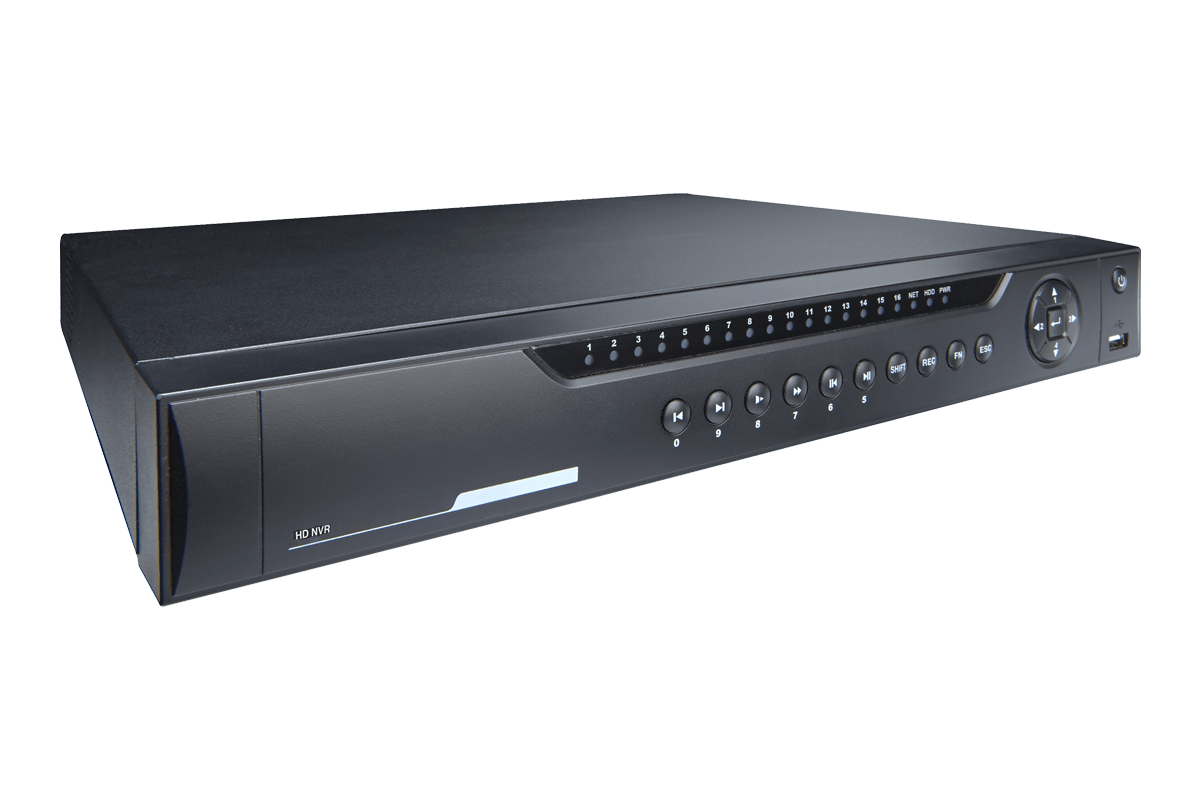

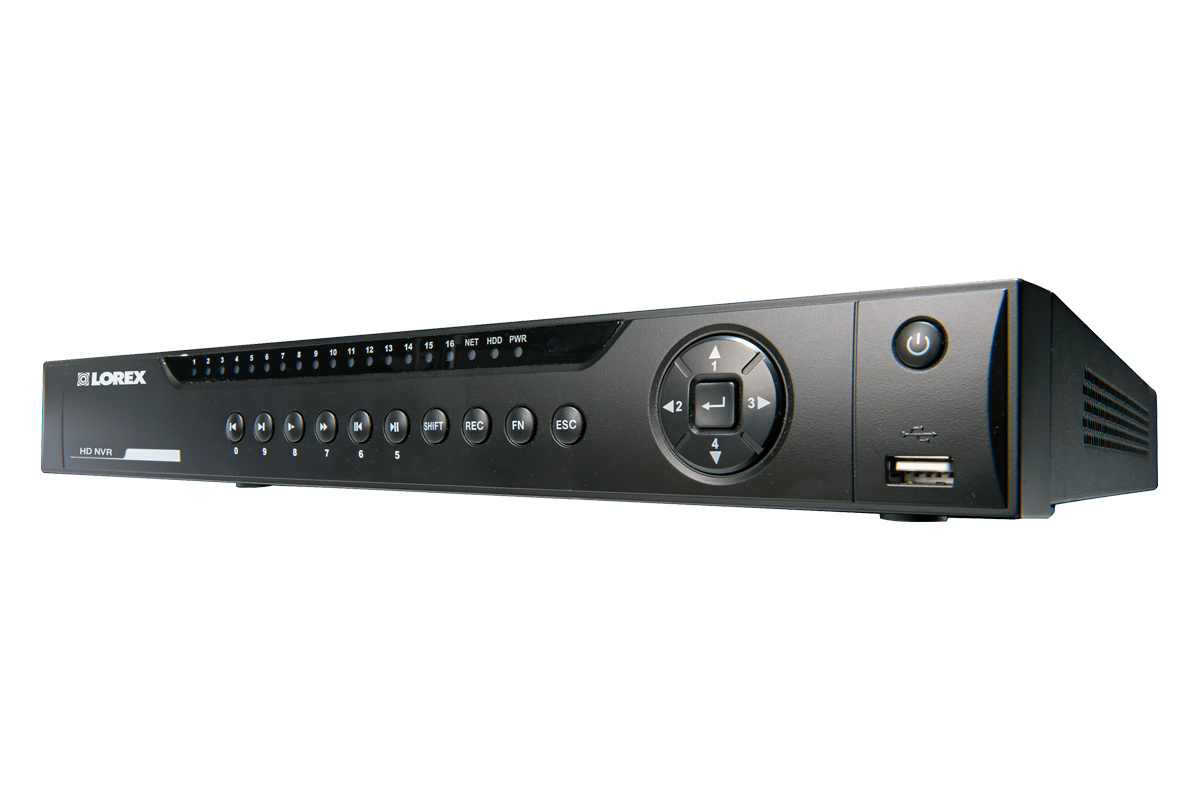

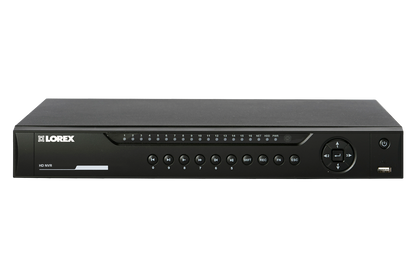

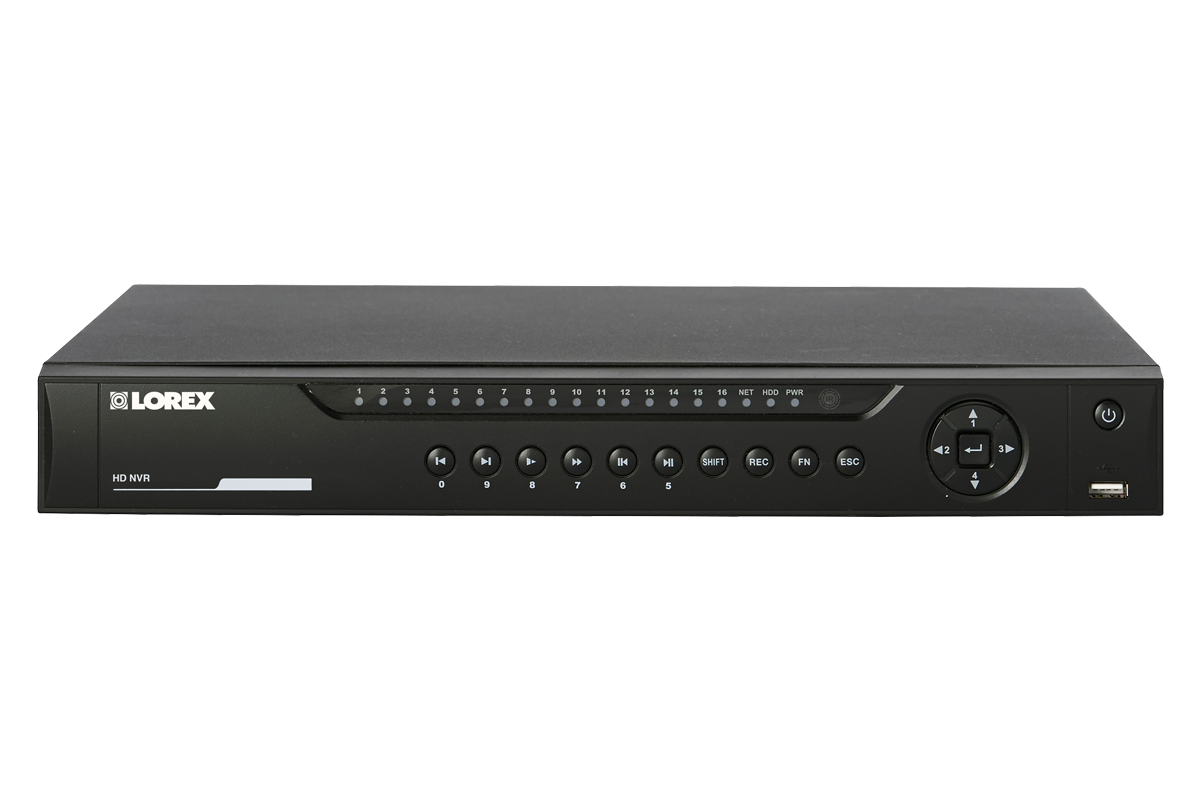

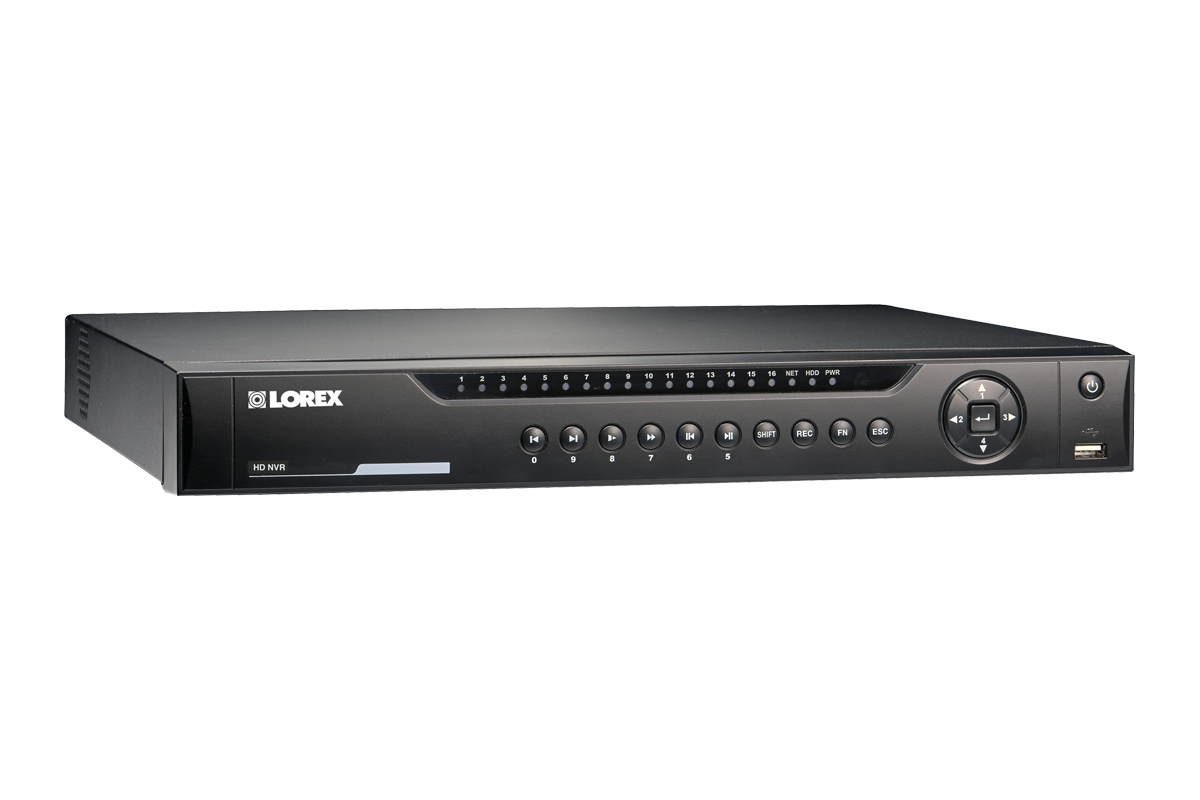

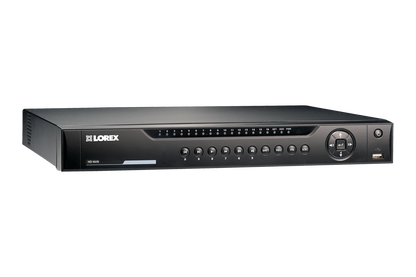

4K Security NVR with Active Deterrence Compatibility and 4TB Hard Drive

LNR600X-Series

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

LNR616X4T-W

Keep watch over what matters most in greater detail than ever. With 4K resolution recording, a 4TB security grade hard drive, and easy remote connectivity, this NVR is perfect for those looking to start a new IP security camera system or for those who want to upgrade their current IP system. This NVR also supports Lorex Active Deterrence security cameras, which can stop potential events from happening thanks to their bright LED light and remote triggered siren. Setup is quick and easy as well. Only one cable installation per camera is required thanks to the NVR's intergrated Power-over-Ethernet ports.

LNR600X Series

SPECIFICATIONS

8/16/32

CHANNELS

NVR supports up to 8/16/32 cameras

4K

RESOLUTION

Ultra high definition resolution

2-8TB

HARD DRIVE

Expandable up to 16TB

4K Network Video Recorder

Experience the 4K difference

Don't miss a thing with this powerful 4K capable NVR. 4K resolution (3840 × 2160) compared to 1080p resolution (1920 × 1080) will provide you with a new level of detail and clarity. This higher pixel count also adds an increased ability to digitally zoom in on distant objects without significant image quality reduction. This means that 4K resolution will offer you the best chance to capture useful evidence such as distinct facial features if an incident occurs.

4K Active Deterrence IP camera

Active Deterrence Security cameras

This NVR is compatible with select Lorex Active Deterrence security cameras. These cameras include a super bright LED that can be customized to always be on, manually activated or triggered by motion, as well as a remote-triggered siren that is designed to stop trespassers right in their tracks.

Lorex Cloud

Remote viewing with Lorex Cloud

Get set up in an instant and stay connected with the free Lorex Cloud app. Using Lorex Cloud, you can quickly and easily view your security system remotely from your smartphone. You can also program the app to send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.

NVR security camera Recording modes

Continuous, scheduled, and motion recording options

This NVR can record footage continuously, during scheduled times, or when movement is detected. These recording modes can be customized with each camera as well. A 5 second pre-recording function is also built-in for motion recordings. This means that you will never miss those first few vital moments of movement.

HEVC logo icon


HEVC / H.265 Video Compression

This NVR is able to receive HEVC (High Efficiency Video Encoding) or H.265 video compression files. This type of encoding can save up to 40% more space when compared to H.264 Advanced Video Coding. Please note that IP security cameras with HEVC video compression are required to take advantage of this feature.


HEVC encoding
4TB Hard Drive

Rugged security-grade hard drive preinstalled

A 4TB security grade hard drive comes preinstalled within this NVR. This hard drive is designed for security systems, as it can work continuously without ever taking a break. You can also expand your total storage up to 16TB (2×8TB HDD).

What's Included?

LNR600X

4K-Capable HD Network Video Recorder Features:

  • Real-time recording up to 8MP on all channels - 4× the detail of 1080p @ up to 25/30fps1
  • Support for select Lorex 4K Ultra HD Active Deterrence Network Security cameras4

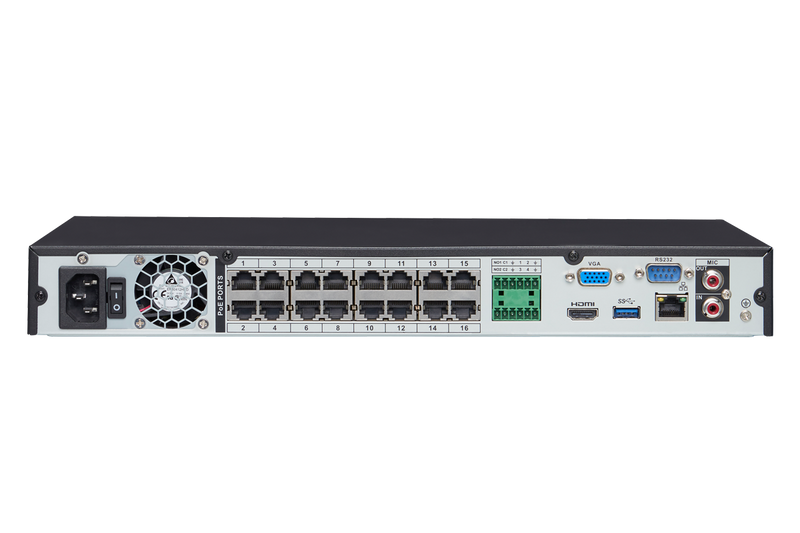

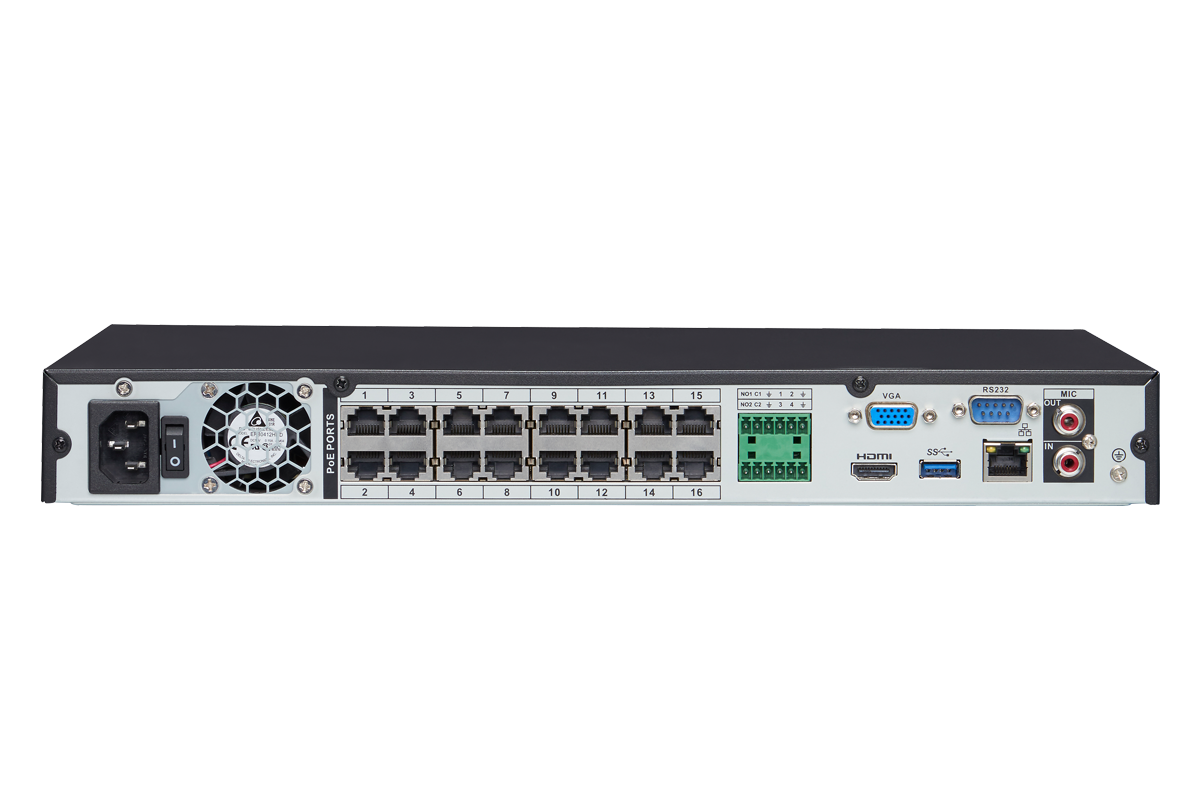

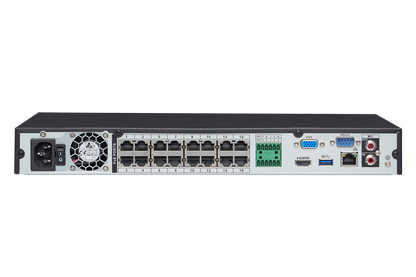

  • 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • Lorex Cloud™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™)2
  • PC and Mac compatible – Lorex Cloud™ video management software gives you complete control over your security system from anywhere2
  • 24/7 security-grade pre-installed hard drive3
  • Expandable high capacity storage up to 16TB (max 2×8TB HDD)
  • Automatically detects compatible IP cameras in the network4
  • 4K video output – view multiple HD channels in full resolution on a 4K TV/Monitor
  • H.265 / H.264 video compression offers reduced file size and network strain for remote viewing3
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive5
  • Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback

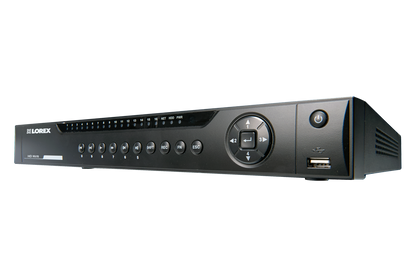

  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date6
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD & 4K TVs/Monitors

Each LNR600X Includes:

1 × NVR
1 × AC power cable
1 × Remote control
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 8MP IP cameras are required to take advantage of 4K recording.
2. Requires a high speed internet connection and a router (not included). A minimum upload speed of 3.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/support
3. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
4. Compatible with select Lorex PoE HD IP cameras. For a list of compatible cameras, please visit www.lorex.com/compatibility
5. Mirror recording requires a second hard drive (not included) to be installed in the NVR. Mirrored hard drive must be as large or larger than the primary hard drive to backup all recordings. Backup begins from when the mirrored hard drive is installed and configured.
6. Both firmware and software must be updated to latest version to ensure remote connectivity. Firmware updates are pushed to the NVR automatically over the Internet (available at www.lorex.com). Always update to the latest software after upgrading the NVR firmware.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
