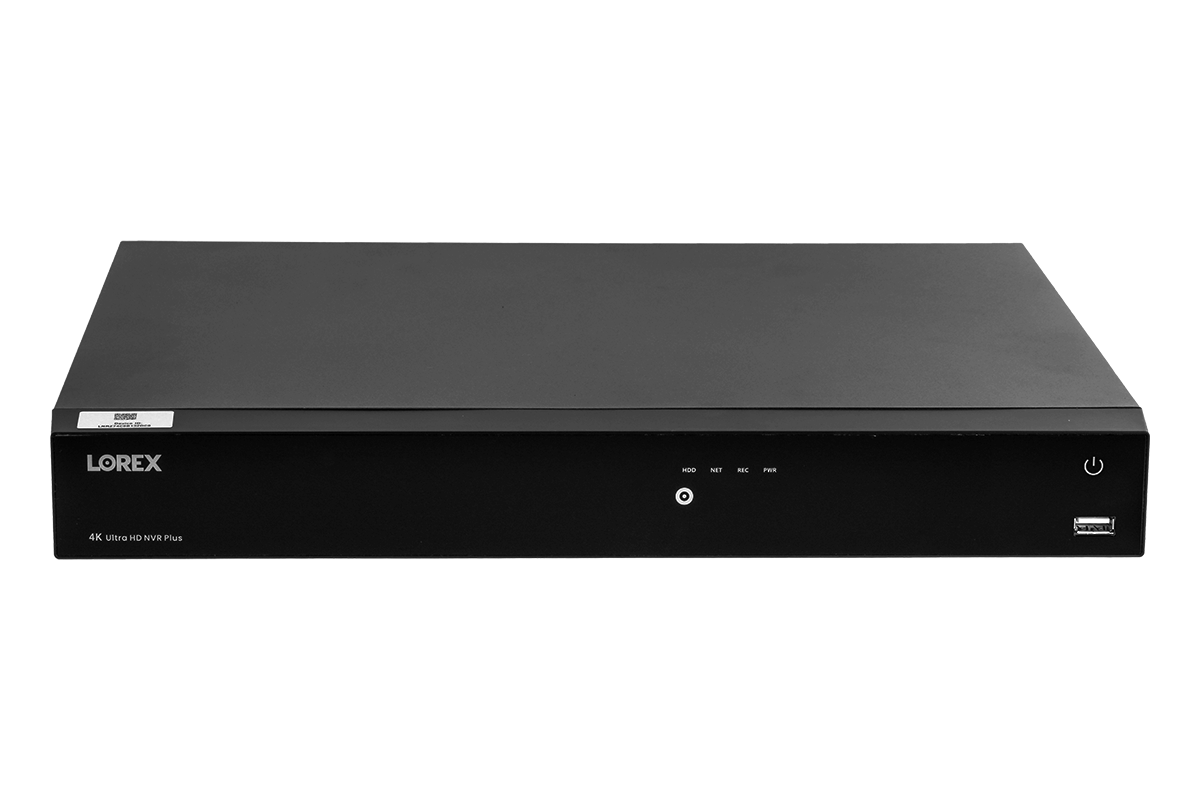

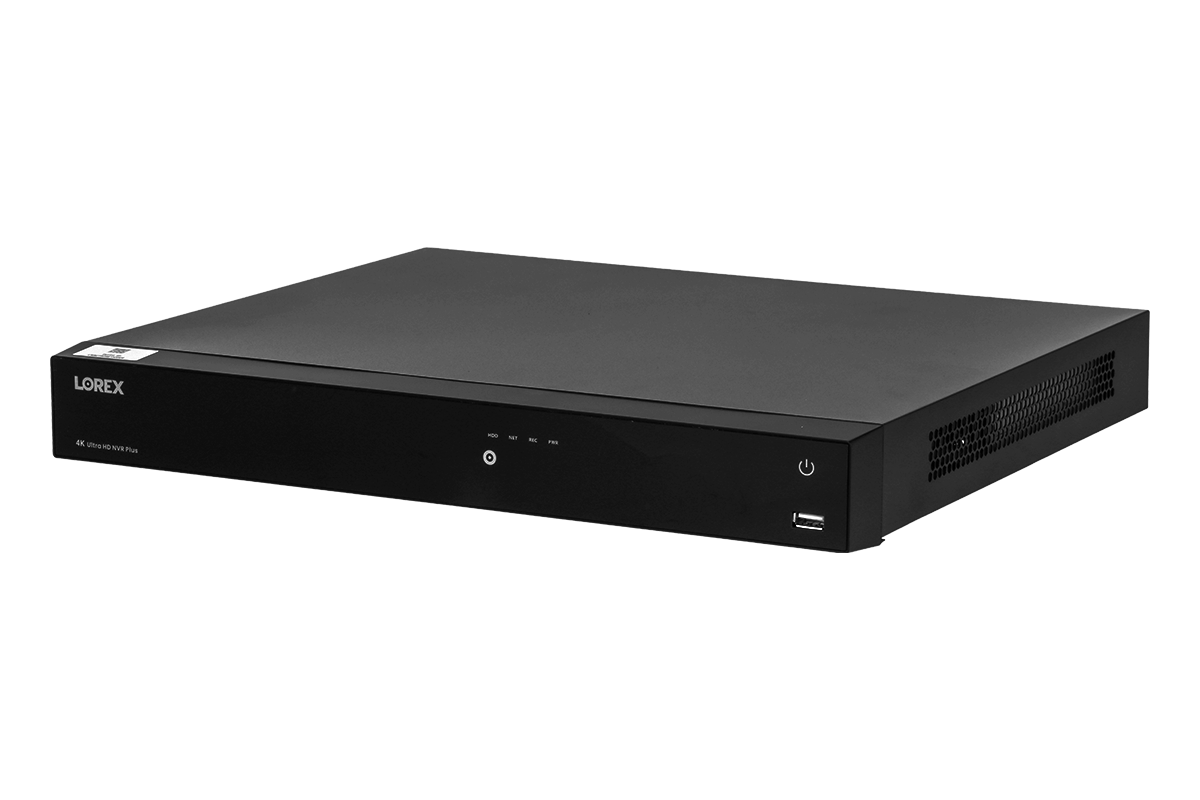

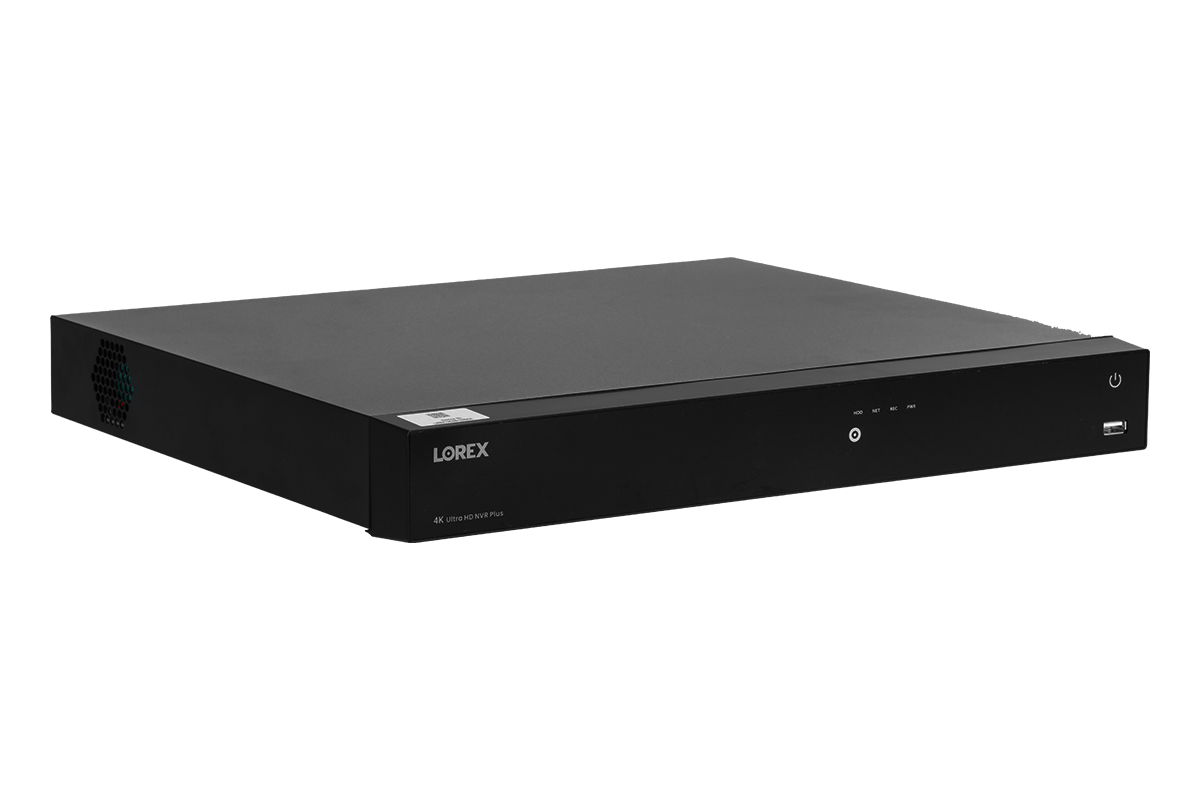

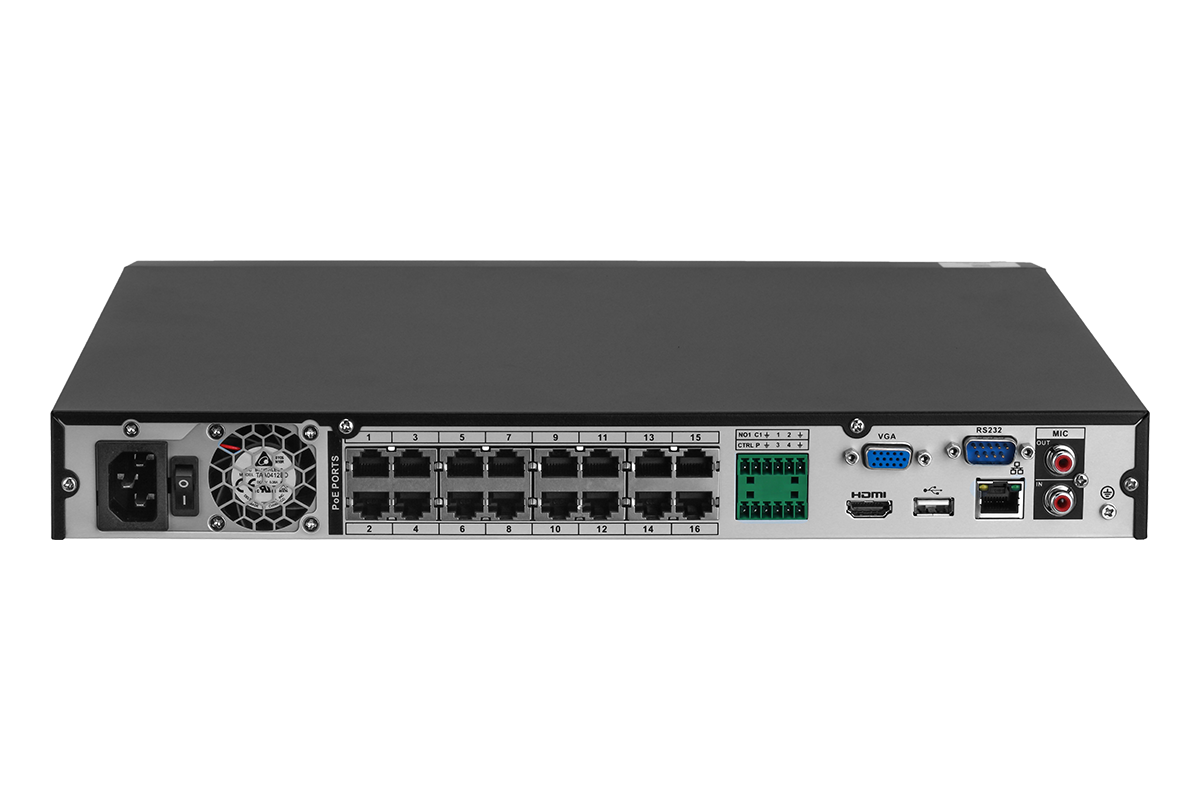

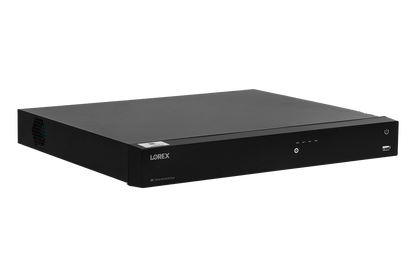

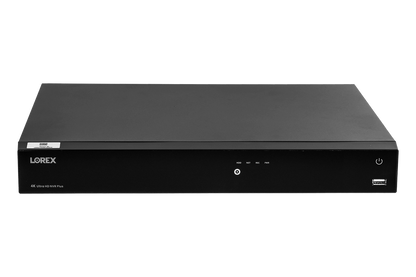

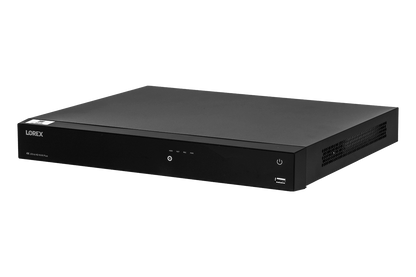

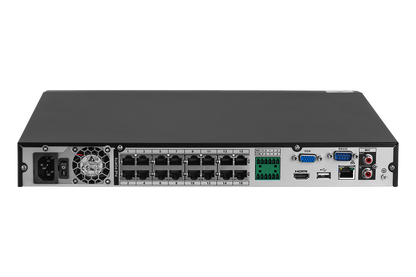

4K 16-Channel Fusion Network Video Recorder with Smart Motion Detection and 3TB Hard Drive - Open Box

N863A63B-ROpen Box
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

As the center of your security system, this 16-channel 4K Fusion Network Video Recorder (NVR) will help you secure your property and your data. With 4K resolution recording, a security-grade hard drive, Smart Home compatibility, and support for Smart Motion Detection Plus and Safeguard features - this NVR's performance is unmatched. It is also unlike anything else on the market. As part of the Fusion Collection, it can accommodate up to two Wi-Fi cameras to open channels, giving you the opportunity to expand your security coverage in new and exciting ways.



N863A63B

SPECIFICATIONS

16

CHANNELS

HD NVR supports up to 16 cameras

4K

RESOLUTION

Ultra high definition resolution

3TB

HARD DRIVE

Expandable up to 2 × 8TB




Expand your system with the Fusion Collection

The Lorex Fusion Collection is a set of Network Video Recorders (NVRs) and Wi-Fi devices that are united by our Lorex Home App. Working together, the NVR can essentially "fuse" together Wired and Wi-Fi systems!


Network Video Recorders


Wi-Fi Devices


Lorex Home App

For more information, please visit our Fusion Collection Guide.



Remote viewing from your mobile with Lorex™

This NVR is designed for use with our innovative Lorex™ app. Using this app, you can quickly view your security system remotely and control camera features from your smartphone. The app will also send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.

Works With


works with Apple iPhone
Apple iPhone
works with Apple iPad
Apple iPad
works with Android phones
Android Phone
works with android tablets
Android Tablet
works with AppleTV
Apple TV


iphone icon
Apple iPhone
ipad icon
Apple iPad
android phone icon
Android Phone

android tablet icon
Android Tablet
appleTV
Apple TV



Lorex Sensor Kit and Lorex Home App



Add A Sensor Kit!

The Lorex Sensor Hub also uses the Lorex Home App, allowing you to seamlessly integrate Add-On Sensors into your home security.

Motion Sensor

Video-Free

Real-time sensor alerts

Instant Alerts

link sensors with wifi cameras

Sensor Linking*





*Link individual sensors to another Wi-Fi camera connected to the Lorex Home App. N842, N843, N844, N862, N863, D861, D862, D871 Series recorders also support sensor linking to a wired camera through the Lorex Home App. Lorex Sensor Hub Compatibility




Smart home compatibility

Get faster access to your security system by connecting it to your other Smart Home devices. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. Or download the Lorex app on your Apple TV* to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.


*Requires Gen 4 or newer Apple TV with support for App Store



Experience the 4K difference

With 4K resolution, nothing is left to the imagination. The higher number of pixels (3840 × 2160 as opposed to 1920 × 1080) gives your video footage superior detail and definition, and clearly outlines the distinct features of objects that appear on camera while maintaining realistic color representation. Having more than 8 million pixels also prevents the distortion or blurring of the image when using the digital zoom.

Smart Motion Detection Plus

This NVR supports cameras that feature smart person, vehicle, and face detection. Thanks to this innovative feature, a motion event and notification will only be created whenever a person or vehicle is detected. This effectively reduces the number of unwanted false alerts.



*Camera models that include Smart Person and Vehicle Detection are required to utilize this feature.

Protect the things that matter with Safeguard

Lorex's Safeguard™ technology is perfect if you have very specific objects or areas that you need to to monitor. The feature allows you to set-up to three "Missing" areas and one "Left Behind" area. The Missing feature allows you to select important objects of value that you would want to be notified if they are removed from the area. Conversely, the Left Behind feature allows you to select an area to be notified if something is left behind on that area, such as a package.

Panic button

Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras to deter potential intruders.

Area search

Find what you are looking for quickly with Lorex's Area Search. Select an area of interest and automatically playback any video footage showing scene changes in that area. Ideal for doorways, drive ways, etc.

HEVC / H.265 video compression

This NVR is able to receive HEVC (High Efficiency Video Encoding) or H.265 video compression files. This type of encoding can save up to 40% more space when compared to H.264 Advanced Video Coding.

Reliable security grade hard drive with no hidden storage fees

Included in the NVR is a built-in security-grade hard drive that has been designed to meet the demands of 24/7 surveillance recording. With the possibility of increasing storage space up to 8TB, there is more than enough room to safely store all motion events that only you can access.

Two storage bays

This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 8TB, giving you the potential for a total of 16TB's of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, the footage is automatically backed up if the recording hard drive fails.

Product Compatibility

What's Included?

N863B front dimensions N863B side
  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras1
  • View live footage in up to 15fps and digitally zoom in on distant objects for better clarity2
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection3
  • Get push notifications when motion from a person or vehicle is detected4
  • A choice of four different siren sounds are available including a Police siren or a house alarm sound5
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value. Auto-voice messages can be activated when an event takes place.
  • Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)6
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
  • 2 bay hard drive with up to 2 × 8TB of storage space with no hidden monthly fees
  • Local built-in security-grade hard drive
  • Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
  • For improved security simply use the Lorex Home app to set a notification for when someone enters your business without a proper face mask
  • The voice prompt is another benefit that can be used to alert and remind non-mask wearers: "Please wear your face mask"
  • Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more7
  • Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
  • Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD

Each N863A63B Includes:

1 × NVR
1 × AC power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick Setup Guide
  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
  4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visitwww.lorex.com/smarthome
  7. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  8. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  9. NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility
