3 Megapixel HD Security Camera with Long Range Night Vision

3 Megapixel HD Security Camera with Long Range Night Vision

SKU: LNB3163BW

No Monthly Fees Own it. No subscriptions required.
LNB3163 3MP security camera

Take your home or business security to new heights with a camera that goes beyond high definition. Our LNB3163B HD IP Security Camera is equipped with a powerful 3mp image sensor that records fifty percent more detail than full 1080p HD. This surveillance camera is perfect for both indoor and outdoor monitoring. It is fully weatherproof and comes with long-range IR LEDs that provide clear nighttime viewing (even in total darkness).

LNB3163B

SPECIFICATIONS

HD IP camera

Indoor / outdoor IP security camera

3MP

RESOLUTION

High definition 3mp resolution

130FT

NIGHT VISION

Maximum night vision range

75

What's Included?

LNB3163BW

3MP HD IP Security Camera Features:
  • High definition 3MP image sensor delivers 50% more detail than 1080p1
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness2
  • Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • 75° field of view (horizontal)
  • Ceiling / wall mountable
  • Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
  • 60ft (18m) UL-compliant cable suitable for surface and in-wall installation
  • Extend the camera’s video and power with a single Ethernet cable up to 300ft (91m) from the recorder
  • Single-screw bracket adjustment for faster installation
  • Cold climate capability (-22°F / -30°C)
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
Image Sensor 1/3" 3MP
Video Format NTSC / PAL
Effective Pixels H: 2304 × V: 1536
Resolution 3MP (2048×1536) @ 25fps
Scan System Progressive
S/N Ratio ≥56dB (AGC OFF)
Iris EIS
AES Shutter Speed 1/3 (1/4) ~ 1/100,000s
Min. Illumination 0.7 lux without IR, 0.4 lux with IR
Video Output IP
Lens / Lens Type 2.8mm F2.0 / Fixed
Field of View (Horizontal) 75°
Termination RJ45 Ethernet / 12V DC Power Barrel (optional)
IR LED Type 850nm
Night Vision Range 130ft (40m) / 90ft (27m)
Color Night Vision™ Yes
Power Requirement PoE (Power over Ethernet) Class 3 / 12V DC
Power Consumption Max. 285mA / 3.4W
Operating Temp. Range -22° ~ 140°F / -30° ~ 60°C
Operating Humidity Range <95% RH
Environmental Rating IP66 (Indoor / Outdoor)
Weight 0.9lbs / 0.4kg

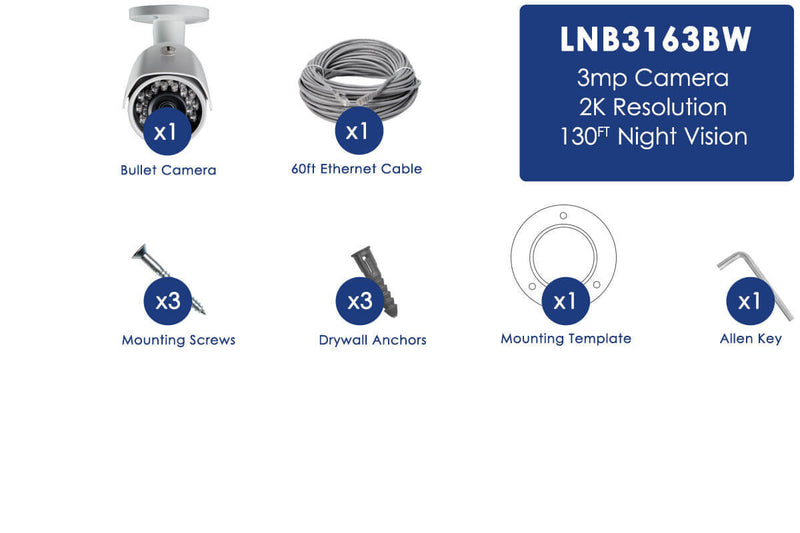

Each LNB3163BW Includes:

1 × IP Bullet Camera
1 × Mounting Kit
1 × 60ft Cat5e Cable

1. Compatible with all Lorex HD NVRs except for LNR100 / LNR200 / LNR300 Series. For the most up-to-date list of compatible recorders, visit www.lorextechnology.com/support
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
