1. Compatible with all Lorex HD NVRs except for LNR100 / LNR200 / LNR300 Series. For the most up-to-date list of compatible recorders, visit www.lorextechnology.com/support
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
Features

Elevate your home or business security to the next level with a surveillance camera that goes beyond high definition. The LNE3162 HD IP dome security camera is equipped with a powerful 3mp image sensor that records fifty percent more detail than full 1080p HD. This security camera is perfect for monitoring both indoors and out. It is fully weatherproof and will provide you with around-the-clock security thanks to long-range infrared (IR) LEDs.
LNE3162
SPECIFICATIONS
HD IP camera
Indoor / outdoor IP security camera
3MP
RESOLUTION
High definition 3mp resolution
115FT
NIGHT VISION
Maximum night vision
75
Video
What's Included?

- High definition 3MP image sensor delivers 50% more detail than 1080p1
- Infrared cut filter ensures accurate color representation
- Night vision range up to 115ft (35m) in ambient lighting & 75ft (23m) in total darkness2
- Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
- ClearNight imaging for improved low light performance and improved recording efficiency
- 75° field of view (horizontal)
- Ceiling / wall mountable
- Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
- 60ft (18m) UL-compliant cable suitable for surface and in-wall installation
- Extend the camera’s video and power with a single Ethernet cable up to 300ft (91m) from the recorder
- Cold climate capability (-22°F / -30°C)
- Weatherproof for outdoor & indoor installation (IP66 Rated)3
Image Sensor | 1/3" 3MP |
Video Format | NTSC / PAL |
Effective Pixels | H: 2304 × V: 1536 |
Resolution | 3MP (2048×1536) @ 25fps |
Scan System | Progressive |
S/N Ratio | ≥56dB (AGC OFF) |
AES Shutter Speed | 1/3 (1/4) ~ 1/100,000s |
Min. Illumination | 0.7 lux without IR, 0.4 lux with IR |
Video Output | IP |
Lens / Lens Type | 2.8mm F2.0 / Fixed |
Field of View (Horizontal) | 75° |
Termination | RJ45 Ethernet / 12V DC Power Barrel (optional) |
IR LED Type | 850nm |
Night Vision Range | 115ft (35m) / 75ft (23m) |
Power Requirement | PoE (Power over Ethernet) Class 3 / 12V DC |
Power Consumption | Max. 230mA / 2.8W |
Operating Temp. Range | -22° ~ 140°F / -30° ~ 60°C |
Operating Humidity Range | <95% RH |
Environmental Rating | IP66 (Indoor / Outdoor) |
Weight | 0.8lbs / 0.4kg |

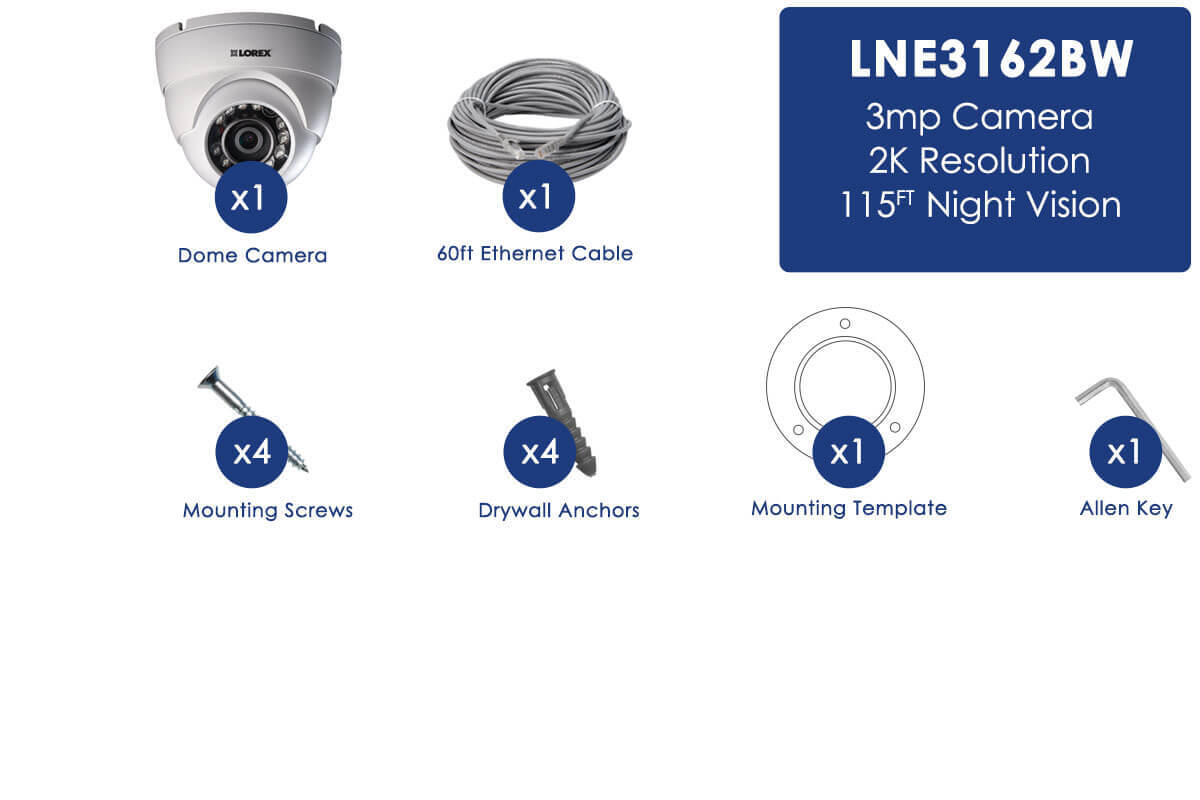

Each LNE3162BW Includes:
