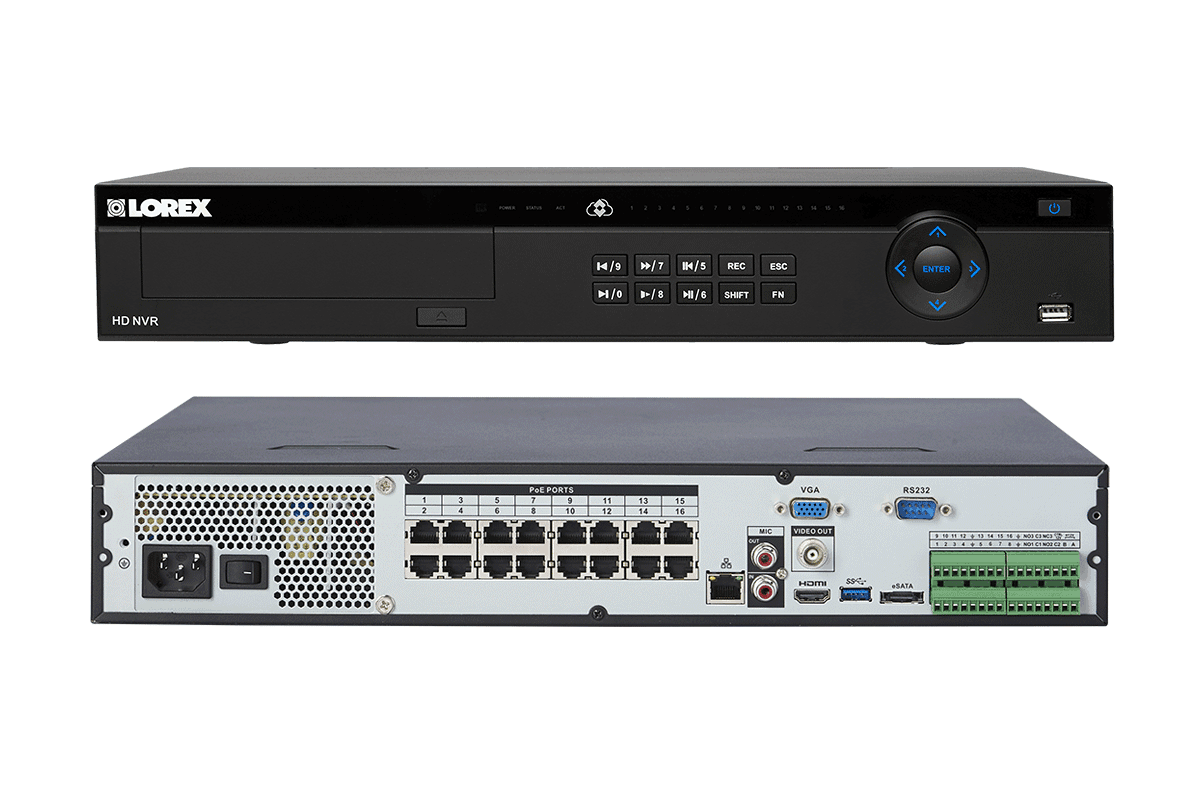

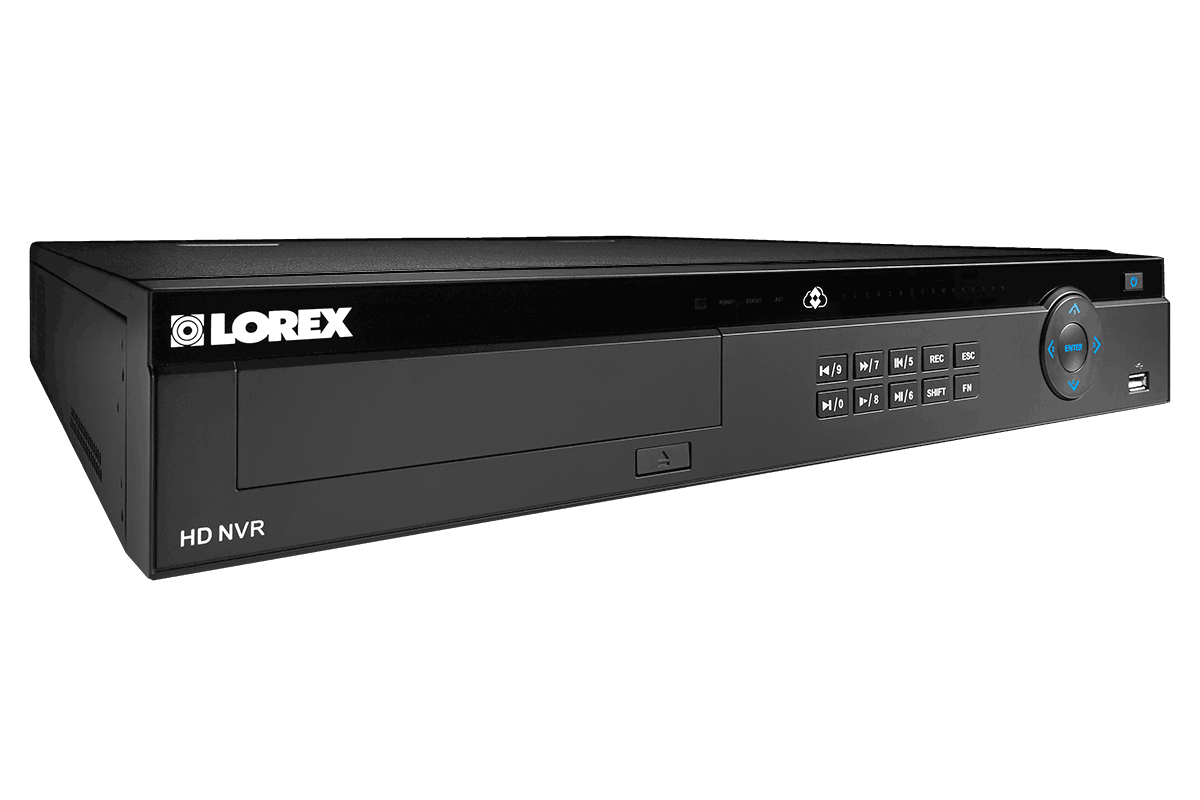

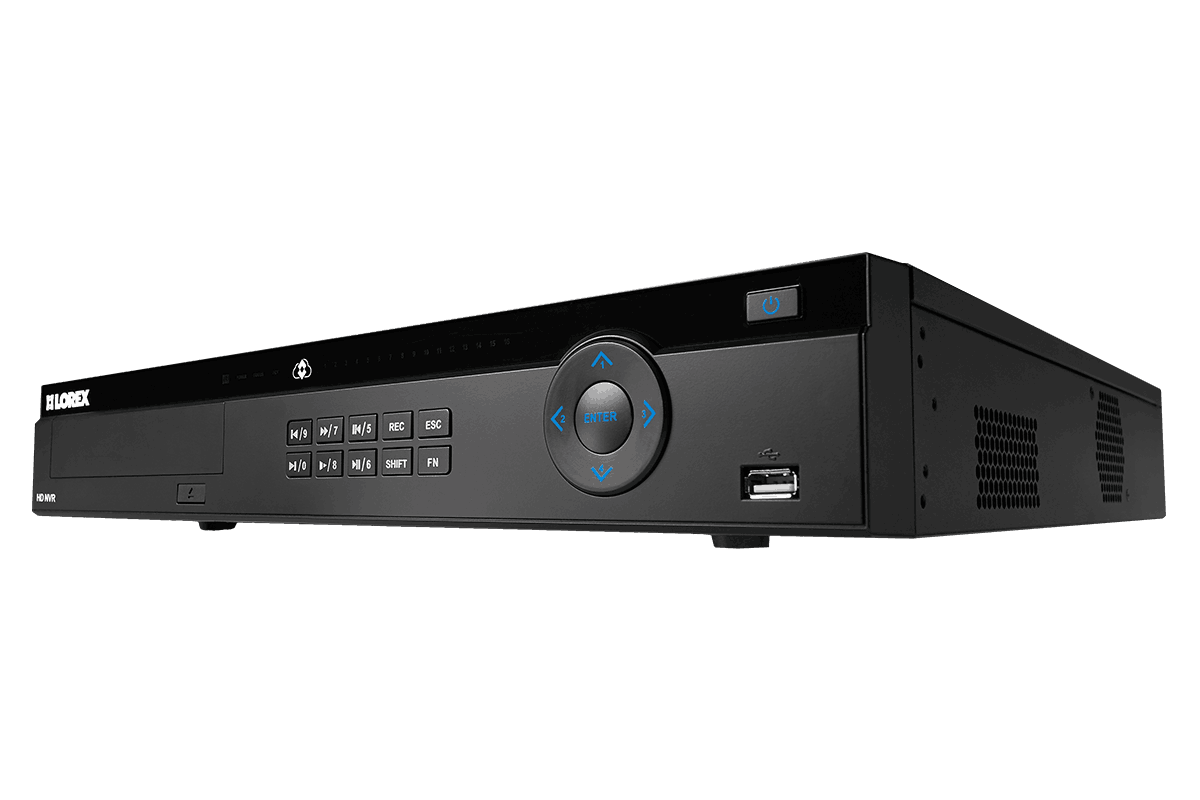

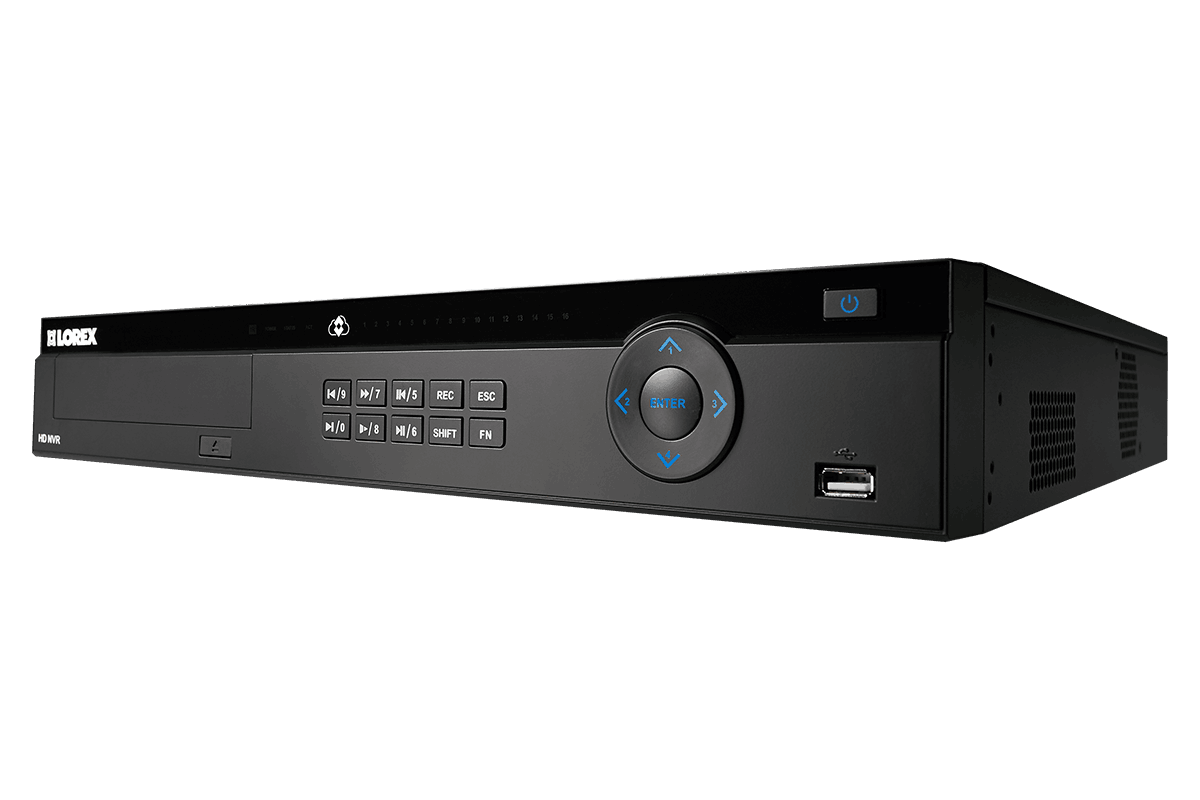

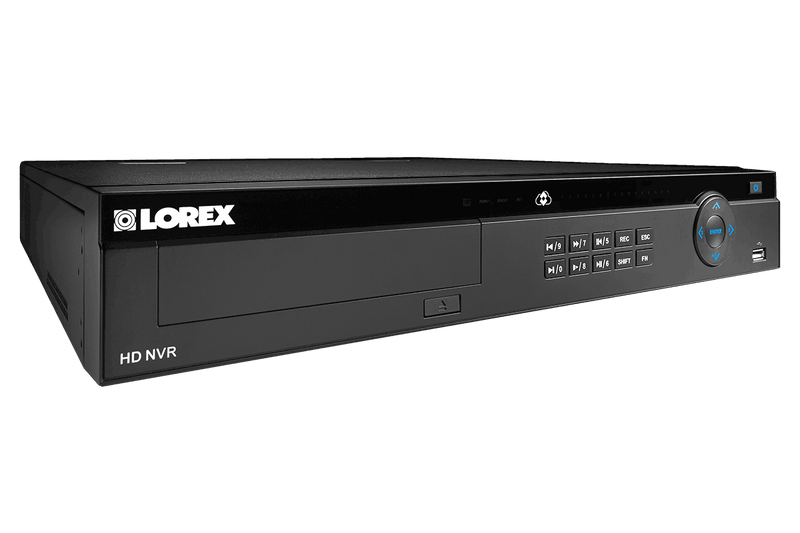

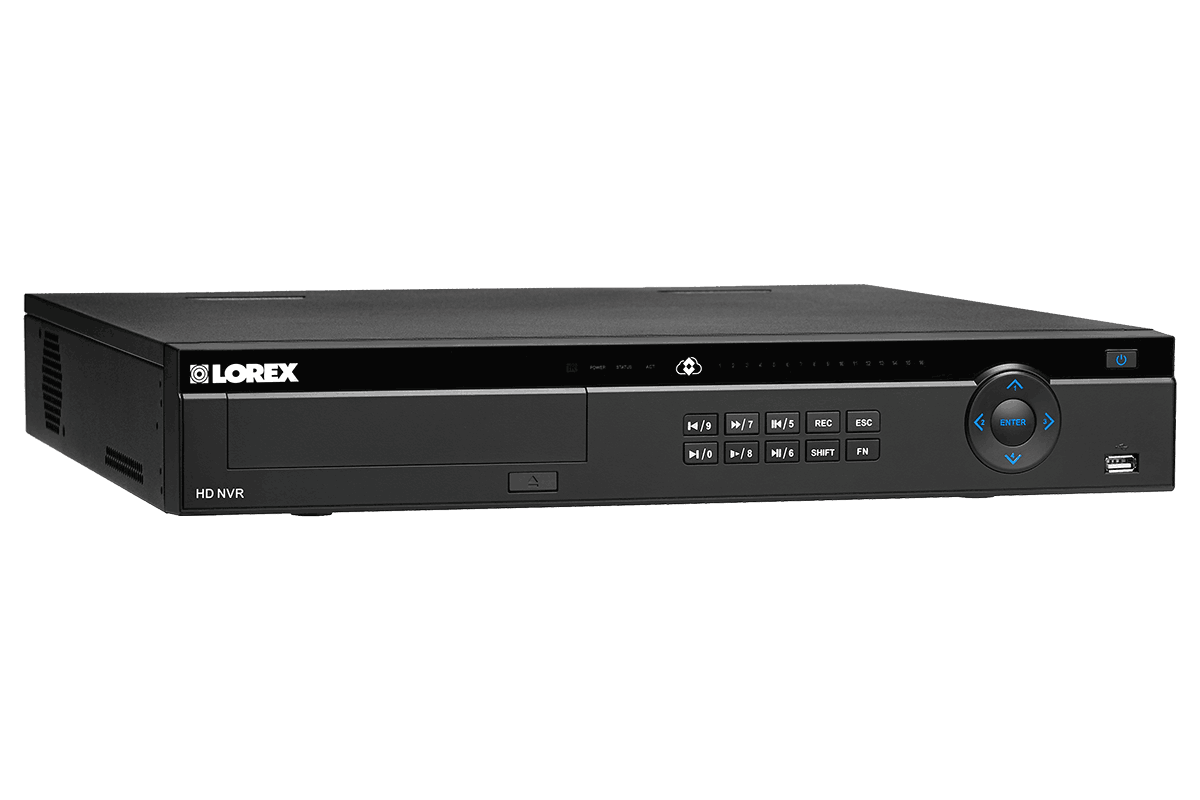

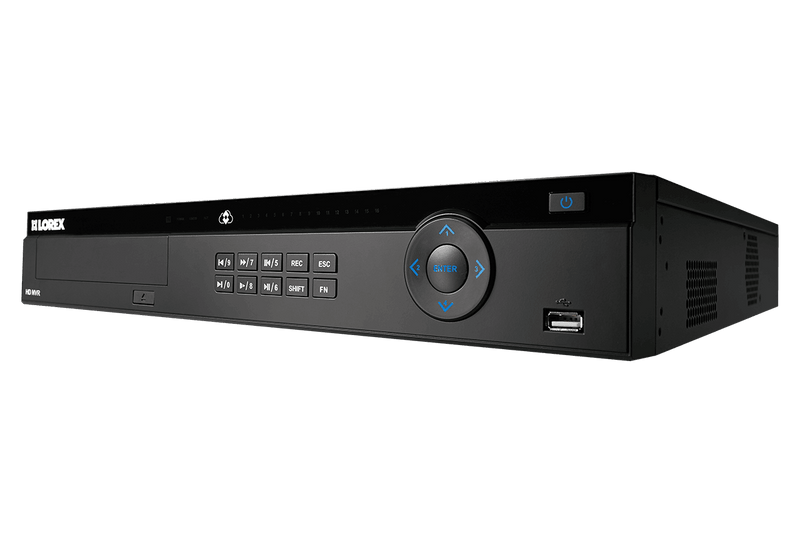

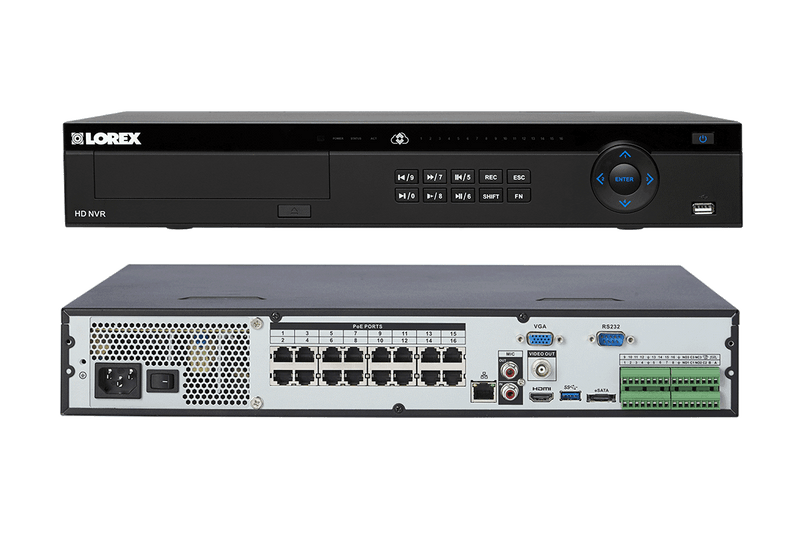

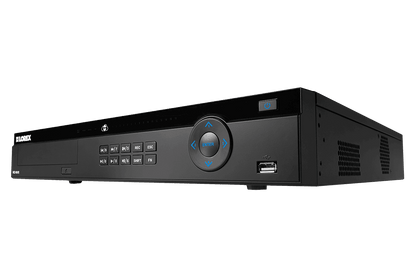

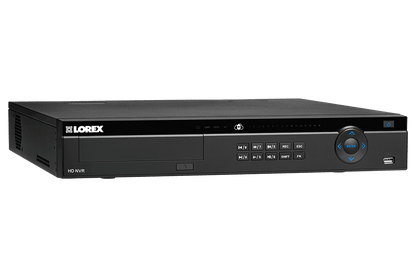

2K Extreme HD Security System NVR - 32 Channel

NR8326

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

NV8326

Experience the next generation of security systems with the NR8326 network video recorder (NVR). Record in stunning 2K resolution on all 32 channels. Leave nothing to question with top-quality image resolution and smooth on-screen movement. With a simple and flexible installation using Cat5E Ethernet cabling, your 32 channel security system will be up and running in no time.

NR8326

SPECIFICATIONS

32

CHANNELS

NVR supports up to 32 cameras

2K

RESOLUTION

Double the resolution of HD 1080p

6TB

HARD DRIVE

Maximum Capacity 4 x 6TB hard drives

2K security monitoring


2K resolution recording

The NR800 Series NVR supports extreme 2K resolution recording on every channel. This capability will deliver a new level of detail and clarity when combined with a 2K resolution security camera. The higher resolution also adds an increased ability to zoom in on distant objects without drastically reducing image quality. The NR800 NVR can also support a wide range of our compatible 1080p digital IP security cameras. This allows you to combine 2K and 1080p security cameras within the same system.

Which Cameras Work with the NR800 NVR?

Our NR800 Series network video recorder (NVR) is compatible with many of Lorex HD and 2K security cameras. Click the button below for the complete list:

Remain constantly connected to your security system from your mobile with FLIR Cloud app

FLIR Cloud™ keeps you connected to your property

The NR8326 NVR is designed for use with FLIR Cloud™ - our innovative hassle-free cloud connection service. Simply download the free app, scan the QR code on the NVR and you will be able to securely see what your cameras see (or watch recorded playback). You can even set your NVR to send motion-activated push notifications and email alerts with screenshot attachments to keep you connected to your property at all times. With iOS®, Android™ and PC options your security system will always be at your fingertips – no matter where you are in the world.

Works With

 src=
 src=
IP cameras with plug-and-play installation via PoE (Power over Ethernet technology)

PoE cabling for easy installation

For a truly plug-and-play experience, the NR8326 NVR utilizes power-over-ethernet (PoE) technology. Using PoE technology, a single cable run between your NVR and each IP camera provides both power and video transmission. This allows you to position your cameras where you need them most without the need to have a power outlet nearby. Expand your coverage with camera ethernet cable up to 300ft / 91m from the NVR (click here to purchase extension cables).

32-channel NVR - add 32 cameras to one security system

How do I use all 32 channels on my NVR?

The NR8326 NVR supports up to 32 security cameras. Out of the box you can directly connect 16 cameras to the back of the NVR, and accommodate sixteen more by adding a PoE switch. Lorex offers 4, 8 and 16 channel PoE switch solutions. Learn more about PoE switches.

high capacity security certified HDD for high workloads

High-capacity security grade hard drive

Addressing the rising need for higher camera counts and higher resolutions, Lorex uses security grade hard drives that are engineered to handle high resolution video streaming and recording simultaneously. Store weeks (if not months) of recorded footage on the hefty 6TB surveillance HDD included within the NR8326 NVR. Maximize the amount of recording space available by customizing options such as recording resolution, scheduled timespans and triggered motion recordings.



Visit our Hard Drive Calculator to estimate your desired specifications.

Image resolution comparison

2K 4mp Comparison Chart
  2K HDIP HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording 4mp (2272

Video

What's Included?

NR8326

32 channel, digital 2K security NVR:

  • 2K recording - double the resolution of HD 1080p
  • Real-time recording at 30fps per channel
  • 16 built-in PoE (Power over Ethernet) ports providing video and power on a single Ethernet cable
  • Automatically detects compatible IP cameras in the network1
  • 24/7 security-grade pre-installed hard drive2
  • H.264 video compression2
  • Expandable high capacity storage
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive3
  • Pentaplex operation - view, record, playback, backup & remotely control the system simultaneously
  • Simultaneous playback and live view on the same screen4
  • Selectable area digital zoom in live view and playback
  • Dynamic click-and-drag camera channel assignment
  • Flip and mirror camera view settings
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant USB backup of live video from selected camera
  • Dual video outputs (HDMI & VGA) to connect multiple monitors
  • HDMI output (HDMI cable included) for simple connection to HD TVs
  • Keep up to date with automatic firmware upgrades5
  • 3-step remote view with Lorex Cloud™6
  • PC and Mac compatible7
  • Free iOS and Android compatible apps with live viewing, playback, video recording, and snap shot7
  • Dedicated iPad app with multi-channel live viewing and playback7
  • Push notifications of motion events
  • Instant email alerts with snap shot attachment
  • Dual streaming to conserve bandwidth
  • Continuous, scheduled and motion recording

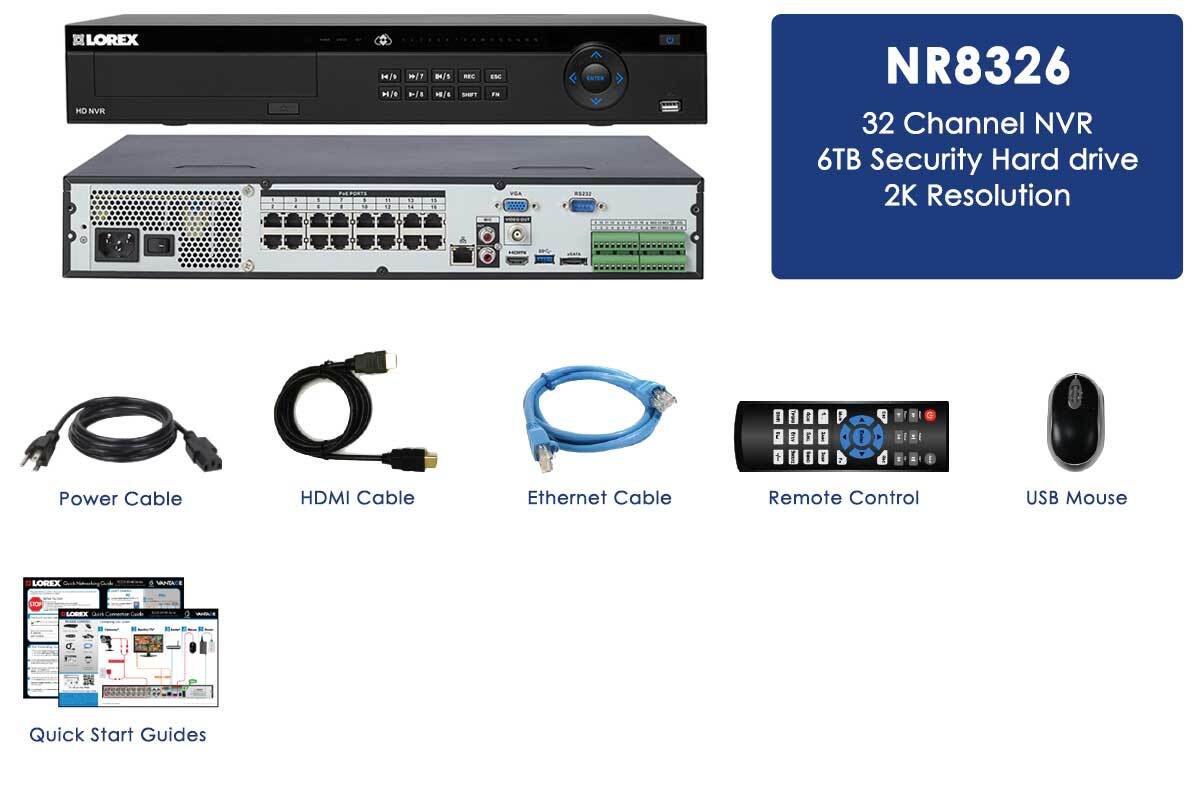

Each NR8326 Includes:

1 × NVR
1 × AC power cable
1 × Remote control
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. Compatible with Lorex 1080p 2MP / 3MP / 4MP PoE HD IP cameras only. For a list of compatible cameras, please visit www.lorextechnology.com/support.
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. Mirror recording requires a second hard drive (not included) to be installed in the NVR. Mirrored hard drive must be as large or larger than the primary hard drive to backup allrecordings. Backup begins from when the mirrored hard drive is installed and configured.
4. Instant playback feature available on one camera at a time during live view (when in quad or multiple live camera viewing mode).
5. Both firmware and software must be updated to latest version to ensure remote connectivity. Firmware updates are pushed to the NVR automatically over the Internet (available atwww.lorextechnology.com). Always update to the latest software after upgrading the NVR firmware.
6. Requires a high speed internet connection and a router (not included). A minimum upload speed of 2Mbps is required for the best video performance. Up to 2 devices may connect tothe system at the same time.
7. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
