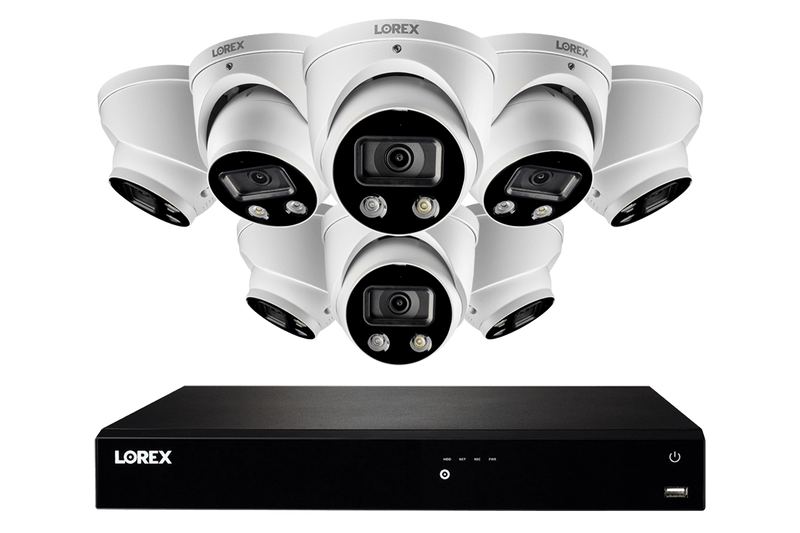

16-Channel 4K Fusion NVR System with 8 Smart Deterrence Dome IP Security Cameras with Smart Motion Detection Plus

4KSDAI168D-2
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

4KSDAI168D-2

This security camera system will provide you with high quality 4K recordings and the smartest features to protect your property. It includes a sixteen-channel NVR and eight Smart Deterrence Dome IP security cameras. The NVR includes a large 3TB hard drive for private local recording with no monthly fees and is easily connected to our Lorex App for easy remote viewing and motion notifications. It is also part of the Lorex Fusion™ collection, which means that you can add up to two wireless devices to open channels, as well as accessory alarm sensors. So if you are looking to protect your home, this powerful security camera system will have you covered.

4KSDAI168D-2

SPECIFICATIONS

16

CHANNELS

4K NVR can support up to 16 cameras

8

CAMERAS

8 × Smart Deterrence dome cameras

150FT

NIGHT VISION

Maximum night vision range

3TB

HARD DRIVE

Maximum capacity 2 × 8TB hard drive




Expand your system with the Fusion Collection

The Lorex Fusion Collection is a set of Network Video Recorders (NVRs) and Wi-Fi devices that are united by our Lorex Home App. Working together, the NVR can essentially "fuse" together Wired and Wi-Fi systems!


Network Video Recorders


Wi-Fi Devices


Lorex Home App

For more information, please visit our Fusion Collection Guide.


4K resolution smart security camera


Experience the 4K difference

Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video and realistic color representation

Smart active deterrence security camera 4K IP

Take an active stance against uninvited guests

Your cameras come with plenty of features that will help ward off uninvited guests. First, there is a motion-activated warning light that can be customized to only be triggered when a person or vehicle is detected. Second, there is a remote-triggered siren that you can control from your Lorex app. When the camera sensors detect motion, the system will send a notification directly to your phone, allowing you to remotely access the camera and set off a loud warning alert.

Smart Motion Detection Plus

Limit motion detection notifications with Smart Motion Detection Plus. This feature offers the option of either Face Detection or Person and Vehicle Detection.

>                    </div>                    <div class=

Face Detection

Perfect for front doors and entranceways, Face Detection will only notify you of motion events when a face has been detected. This prevents motion notifications from people or vehicles simply passing by and not coming towards the camera4. You can also easily preview all the different faces that the camera has captured for quick reference. You can also review and filter only face detection events in Smart Search.

>                    </div>                    <div class=

Person and Vehicle Detection

Smart Person and Vehicle Detection helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification whenever a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals. Recorded motion alerts can easily be reviewed by using the Smart Search function.

4K IP security camera with two-way talk audio microphone speaker

Listen-in Audio and Two-Way Talk

A built-in speaker and microphone allows for crystal-clear audio functionality. Listen-in audio recording will add a whole new dimension to your overall security monitoring, as it can provide additional details (like a voice) should an incident occur. This camera also has a speaker that allows you to communicate with others through the camera using the Lorex app. *


*Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.

4K IP security camera with two-way talk audio microphone speaker

See in color through the night

Both cameras feature our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects. In regular nighttime conditions that are too dark for CNV to render full-color images, your cameras will use their infrared LEDs to record crisp black and white video footage up to 150ft (46m) away and up to 98ft (30m) in complete darkness.

weatherproof 4K IP active deterrence smart security camera for year-round protection

Built for the outdoors

While this camera is suitable for both indoor and outdoor use, it has been especially designed to withstand the harsh impacts of nature. It has an IP67 rating, meaning it can tolerate extreme temperatures ranging from -22°F to 140°F (-30°C to 60°C). It also has a durable, all-metal housing for added protection.

E892DD

E892DD

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

easy PoE IP camera installation

PoE plug-and-play installation

This 4K security camera system will be up and running in no time thanks to Power-over-Ethernet (PoE) technology. All that is required to connect each of your security cameras to your NVR is a single Cat5e ethernet cable run. This cable provides both power and video transmission up to 300 feet / 91m.

Lorex remote viewing

Remote viewing from your mobile with Lorex™

This feature-rich system is designed for use with our innovative, hassle-free Lorex™ app. Using Lorex, you can quickly and easily view your security system remotely from your smartphone or tablet and control active deterrence features. You can also program the app to send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.

Works With


works with Apple iPhone
Apple iPhone
works with Apple iPad
Apple iPad
works with Android phones
Android Phone
works with android tablets
Android Tablet
works with AppleTV
Apple TV


iphone icon
Apple iPhone
ipad icon
Apple iPad
android phone icon
Android Phone

android tablet icon
Android Tablet
appleTV
Apple TV



Lorex Sensor Kit and Lorex Home App



Add A Sensor Kit!

The Lorex Sensor Hub also uses the Lorex Home App, allowing you to seamlessly integrate Add-On Sensors into your home security.

Motion Sensor

Video-Free

Real-time sensor alerts

Instant Alerts

link sensors with wifi cameras

Sensor Linking*





*Link individual sensors to another Wi-Fi camera connected to the Lorex Home App. N842, N843, N844, N862, N863, D861, D862, D871 Series recorders also support sensor linking to a wired camera through the Lorex Home App. Lorex Sensor Hub Compatibility


smart home security camera system google home


Smart home compatibility

Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. You can also download the Lorex app on your Apple TV* to view live video in single or multiple feeds, or playback recorded footage. For more information about current smart home integrations, visit our Smart Home Guide.


*Requires Gen 4 or newer Apple TV with support for App Store



apple TV lorex


View your system through Apple TV

Watch your Lorex system in new ways. Don't have an option of hooking up your Lorex recorder directly to your TV? No problem. Simply make sure your Lorex recorder is on the same network as your Apple TV* (Gen 4 or newer) and watch your Lorex recorder on your TV through the Lorex Apple TV App.



4K IP security camera with two-way talk audio microphone speaker

Protect the things that matter with Safeguard

Lorex's Safeguard™ technology is perfect if you have very specific objects or areas that you need to to monitor. The feature allows you to set-up to three "Missing" areas and one "Left Behind" area. The Missing feature allows you to select important objects of value that you would want to be notified if they are removed from the area. Conversely, the Left Behind feature allows you to select an area to be notified if something is added.

Security camera system panic button

Panic button

This NVR brings your security camera system to the next level with an easy-to-use panic button located on the front of the recorder. By pressing and holding this button you can activate all lights and sirens on your compatible Smart Deterrence cameras at one time to deter potential intruders.

4K IP security camera with HEVC H.265 encoding

H.265 / HEVC encoding

This security camera is equipped with High-Efficiency Video Encoding (HEVC) or H.265 video compression. This encoding technology efficiently compresses file sizes. In fact, it can compress file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality. HEVC encoding will also save you plenty of bandwidth while watching live or recorded video remotely.

security certified NVR hard drive

Reliable security grade hard drive with no hidden storage fees

Included in the NVR is a built-in 3TB security-grade hard drive that has been designed to meet the demands of 24/7 surveillance, while also providing ample storage space for all recorded video footage.

zoom lens security camera

Two storage bays

This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 8TB, giving you the potential for a total of 16TB's of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, your footage is automatically backed up.

What's Included?

N862A63B

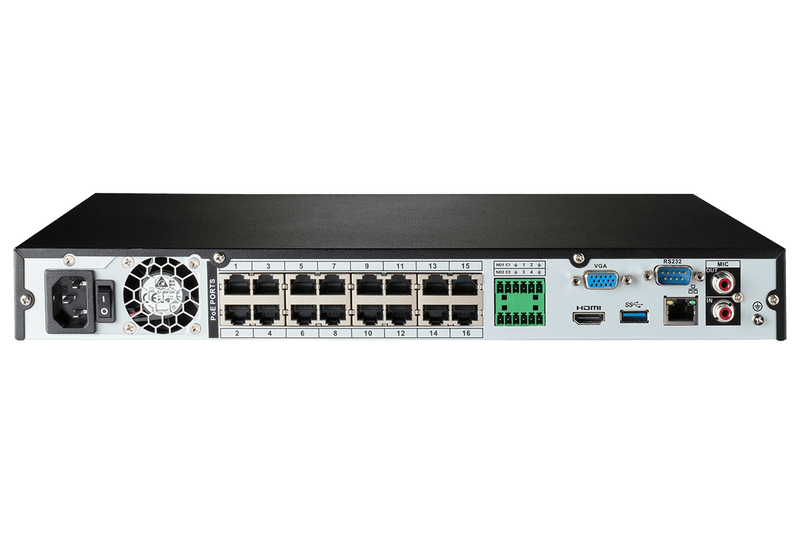

4K Ultra HD Network Video Recorder Features:

D241 demensions
  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras1
  • View live footage in up to 15fps and digitally zoom in on distant objects for better clarity2
  • Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more3
  • Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
  • Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD
  • Reduce unnecessary alerts and false alarms with Smart motion detection5
  • Get push notifications when motion from a person or vehicle is detected7
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • 2 bay hard drive with up to 2 x 8TB of storage space with no hidden monthly fees
  • Local built-in security-grade hard drive
  • Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
  • Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)4
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)

Each N862A63B Includes:

1 × NVR
1 × AC power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
5. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
6. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
7. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
8. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
9. NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage requirements in order to not exceed the NVRs power output availability of the recorder vwhen adding cameras. Please see compatibility chart.

E892DD

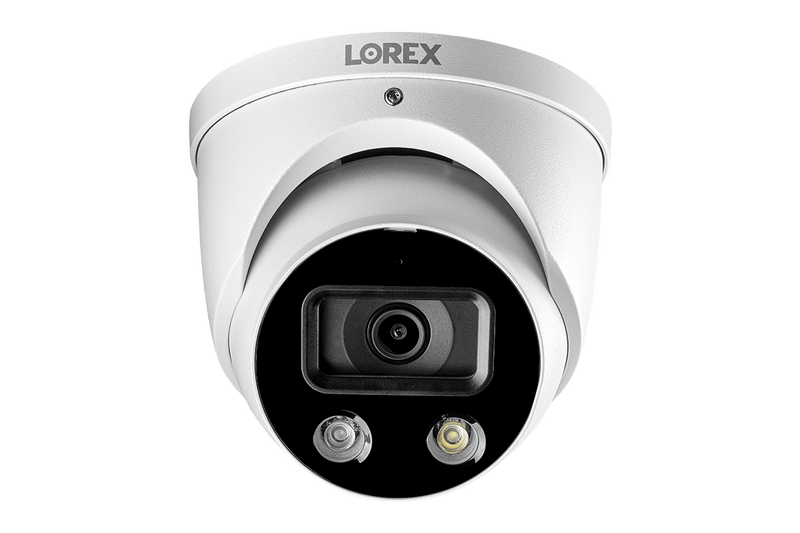

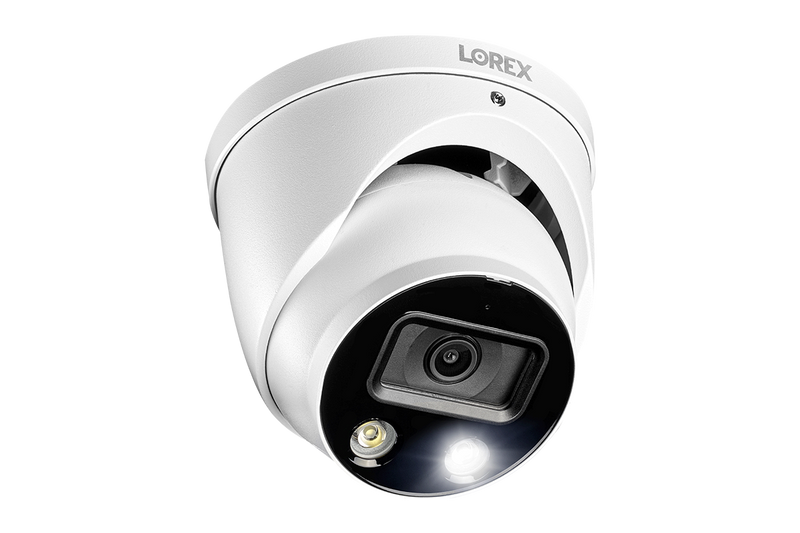

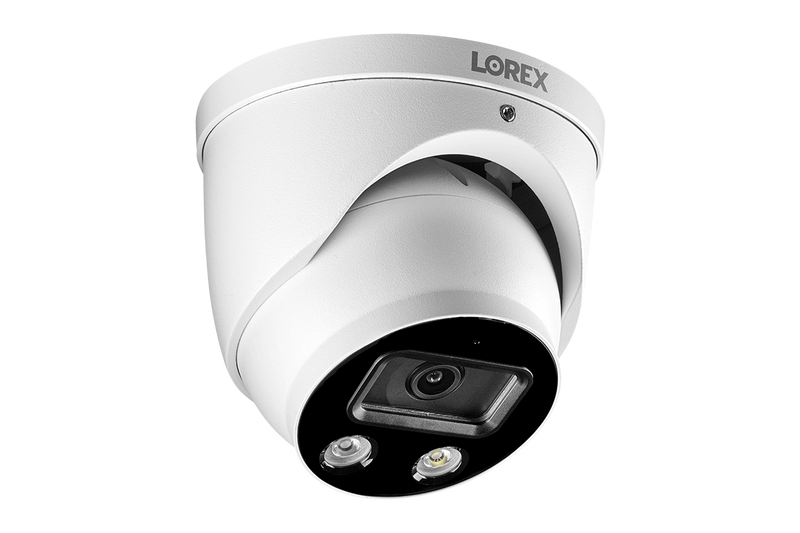

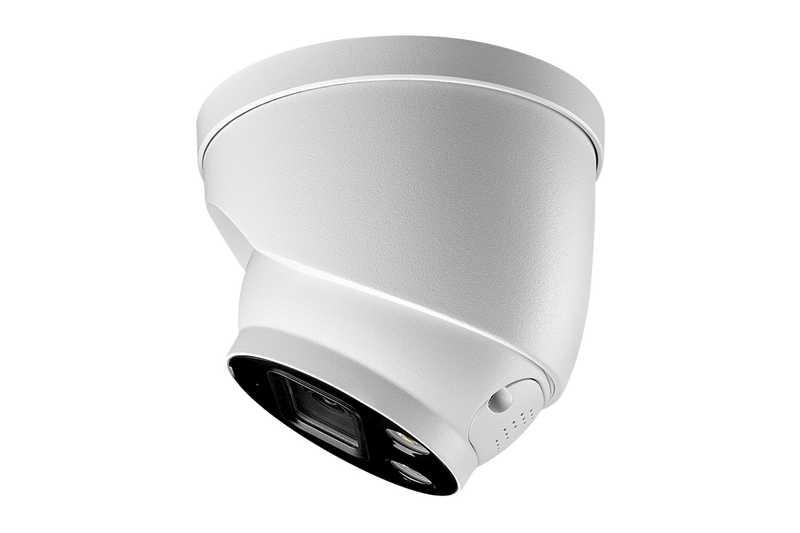

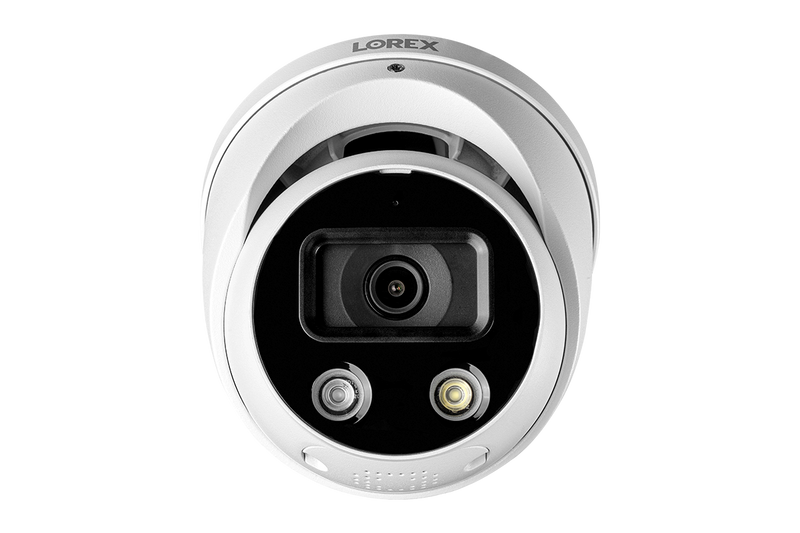

4K Ultra HD Smart Deterrence IP Dome Camera:

E892DD 4K active deterrence weatherproof security camera
  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  • See more with a wide-angle 108
