Free Standard Shipping on orders over $99

Nocturnal Series

Lorex Elite Series NVR with N4 (Nocturnal Series) IP Dome Cameras - 4K 32-Channel 8TB Wired System

NP4K8MV-3232WD-N4Lorex for business badge
Number of cameras:
Color:
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features



NOCTURNAL 4
SERIES SECURITY CAMERA

Looking for top-quality DIY surveillance for your business? Then look no further than this 32-channel Nocturnal 4 Security System. With smooth Real-Time 4K recording, next level Color Night Vision, Smart Motion Detection, Listen-In Audio and IP67 rated weatherproof metal exteriors, our latest Nocturnal 4 Dome security cameras have everything it takes and more to protect your business around the clock.

LNE9393 and LNE9383 Bullet Nocturnal Cameras



See Clearly,
Day and Night




Ultra HD Resolution

Color Night Vision

Real-time 30 FPS

Motorized Varifocal Lens



Improve Service, Efficiency, and Profitability

People Counting

Advance people counting analytics provides valuable information about the number of people inside your premises at any point in time.

Heat Mapping

Heat Maps illustrate customer movement to better understand where the heaviest and lightest traffic areas are.



Audio Recording

A built in microphone will add another layer of security coverage. Listen-in audio can add valuable information (such as voices) or analysis to the scene*.


*Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.



Built to Last

Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service.




Built for the
Outdoors

Nocturnal security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.



The IP67 durable camera exterior ensures protection against harsh weather conditions
These cameras are engineered to withstand extremely cold climates and will continue to operate in temperatures as low as –40 °C / –40 °F.
These cameras are also built to tolerate blistering hot temperatures and will continue to operate in temperatures as high as 60 °C / 140 °F.


Always Know What's Happening

Keep an eye on trespassers and vehicles with advance AI features like Smart Motion Detection, which detects motion from person/vehicle



Person/Vehicle Detection




Secure access anytime, anywhere

Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device or the Lorex Cloud client for your computer. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of the Lorex Cloud.





Try our new Lorex Pro app

Enjoy an updated user experience with enhanced features and functionalities to maximize your security system control.




Local Storage - No Monthly Fees

  • Included in the NVR is an 8TB security-grade hard drive designed for advanced processing and the workload of 24/7 recording

  • 2 hard drive bays with up to 2 × 16TB of storage space

  • Storage mirroring for continuous back-up of data from one hard drive to another




360° Product View



Nocturnal Comparison Chart

  Nocturnal 4 Nocturnal 3
Camera Model

LNB9383 / LNB9393

Bullet

LNE9383 / LNE9393

Dome

LNB9242 / LNB9252

Fixed Bullet

LNE9242 / LNE9252

Fixed Dome

LNB9282 / LNB9292

MVF Bullet

LNE9282 / LNE9292

MVF Dome

Resolution Real-Time 4K (30fps) Real-Time 4K (30fps) Real-Time 4K (30fps) Real-Time 4K (30fps)
Color Night Vision Yes Yes Yes Yes
Night Vision Range 60m (197ft) 50m (164ft) 30m (98ft) 30m (98ft)
Field of View (H) 110.4°–45° 110.4°–45° 107° 113°–31°
Lens Type Motorized Varifocal Motorized Varifocal Fixed Motorized Varifocal
Audio No Yes (Listen-in Audio) Yes (Listen-in Audio) Bullet: No
Dome: Yes (Listen-in Audio)
Smart Motion Detection Person/Vehicle Person/Vehicle Person/Vehicle Person/Vehicle
Person Counting Yes Yes No No
Heat Mapping Yes Yes No No
Power over Ethernet Type ePoe: 600m (2000ft) ePoe: 600m (2000ft) PoE: 100m (328ft) PoE: 100m (328ft)
Operating Temperature -40ºF ~ 140ºF / -40ºC ~ 60ºC -40ºF ~ 140ºF / -40ºC ~ 60ºC -40ºF ~ 140ºF / -40ºC ~ 60ºC -40ºF ~ 140ºF / -40ºC ~ 60ºC
Ingress Protection IP67 IP67 IP67 IP67
Vandal Resistance IK10 N/A N/A N/A

What's Included?

ACC front

Package Contents:

1 × PoE Switch

1 × Power Cord

2 × Rack Mount Bracket

8 × Mounting Screws

1 × SFP Dust Cap

4 × Rubber Feet

Quick Start Guide


  • Centralized power distribution - Easy all-in-one PoE switch
  • 1 Gigabit rated RJ45/SFP port for fast device/network connection
  • High speed transmission of IP surveillance data
  • 220W total PoE power budget (up to 30.8W per port)
  • Convenient Real-time PoE usage LED indicators

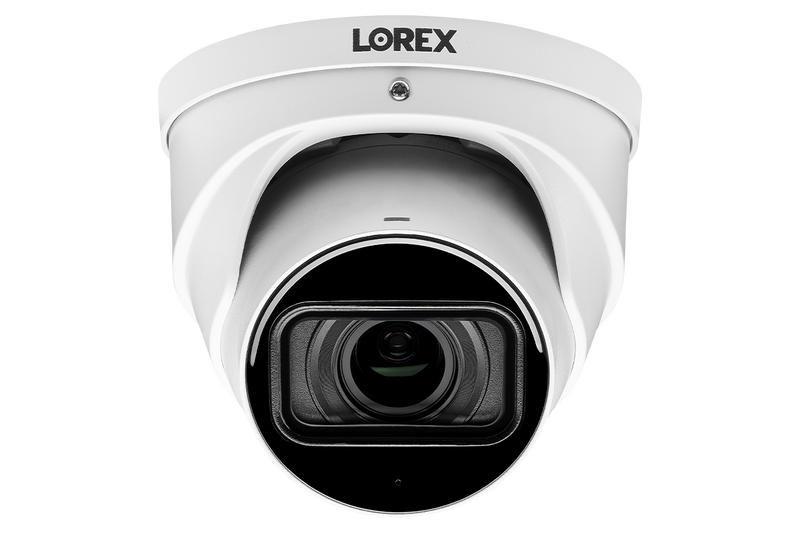

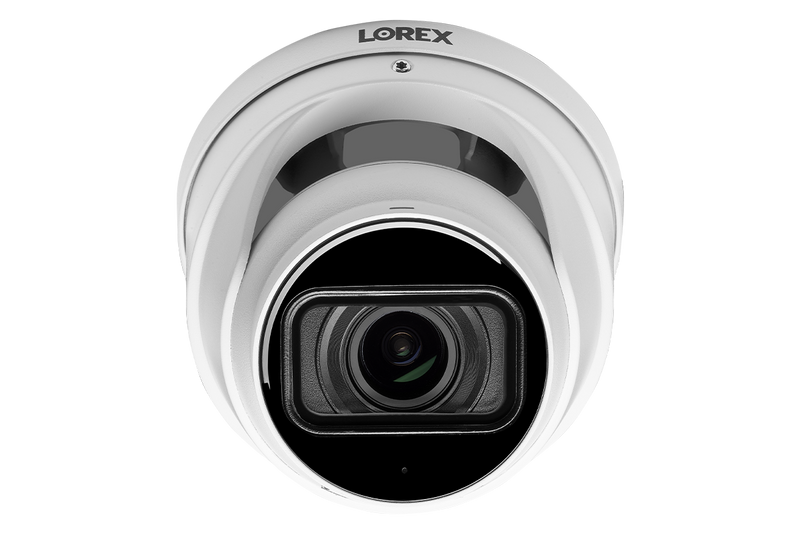

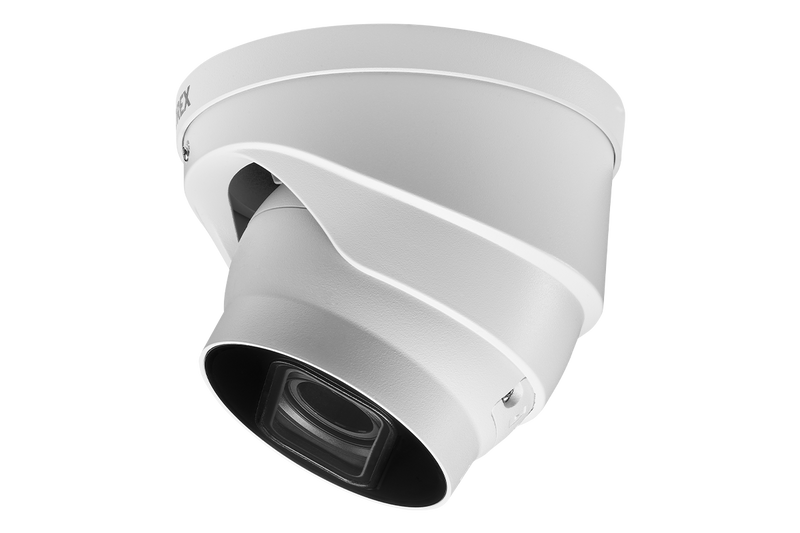

LNE9383 / LNE9393 Overview

Dimensions (LxWxH): 108.3 mm × Φ122 mm (4.3" × Φ4.8")
Weight: 1.5lbs / 685g

  1. Rear Cable Notch
  2. Camera Base
  3. Adjustment Screw
  4. Camera Lens
  5. Infrared Lights
  6. Camera Dome Cover
  7. Ball Camera
  8. MicroSD Card Slot
  9. Reset Button


Package Contents:

4K Motorized Varifocal IP Camera

Mounting Kit*

Allen Key*


*Per camera in multi-camera packs.
  1. 4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
  2. Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility
  3. In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit lorextechnology.com/compatibility
  4. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  5. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  6. Not intended for submersion in water. Installation in a sheltered area recommended.



All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

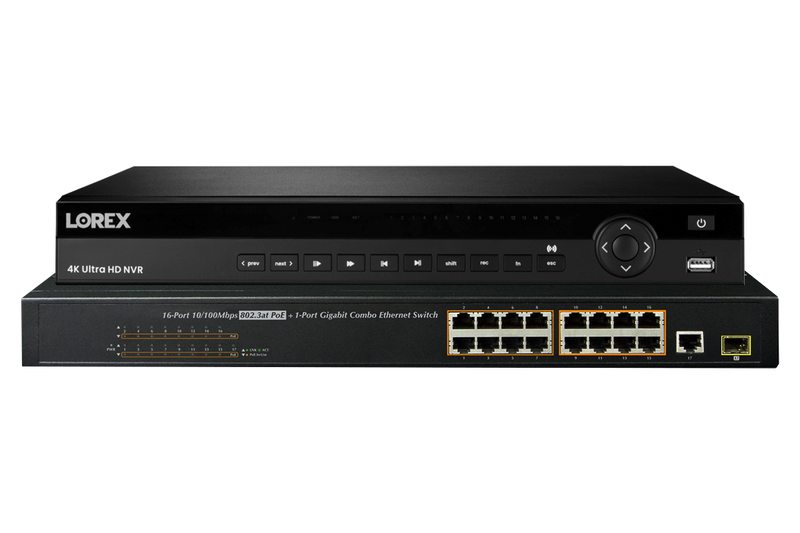

N884 Front Overview
  1. Power, Hard Drive & Network Statuses
  2. Channel Statuses
  3. Navigation Controls
  4. Power Button
  5. Playback Controls
  6. Switch Keyboards (shift)
  7. Start/Stop Recording (rec)
  8. Special Functions (fn)
  9. Back/Cancel (esc)
  10. Info Button
  11. USB Port
N884 Back Overview
  1. Power Connection
  2. Power Switch
  3. Camera Connection (PoE)
  4. RS485 Alarm
  5. Monitor Connection (VGA)
  6. RS232
  7. Audio In/Out
  8. Monitor Connection (HDMI)
  9. USB Port
  10. Network Connection (LAN)


Package Contents:

This 32-channel NVR has 16 ports. The other 16 channels can be utilized by adding a PoE switch (sold separately).

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

2 × 6-Pin Cable Adapter

Product Support

ACCLPS263B - 16-Channel PoE+ Switch

LNE9383 & LNE9393 Series - Nocturnal 4 4K MVF IP Dome Cameras

N884 Series - Lorex 4K Pro Series Network Video Recorder
