Home Security System with 4-Channel DVR, 4 Ultra-Wide 160
Home Security System with 4-Channel DVR, 4 Ultra-Wide 160
Home Security System with 4-Channel DVR, 4 Ultra-Wide 160
Home Security System with 4-Channel DVR, 4 Ultra-Wide 160
Home Security System with 4-Channel DVR, 4 Ultra-Wide 160
Home Security System with 4-Channel DVR, 4 Ultra-Wide 160
zoom Roll over image to zoom in Click on image to zoom

Home Security System with 4-Channel DVR, 4 Ultra-Wide 160

MPX44MUW
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

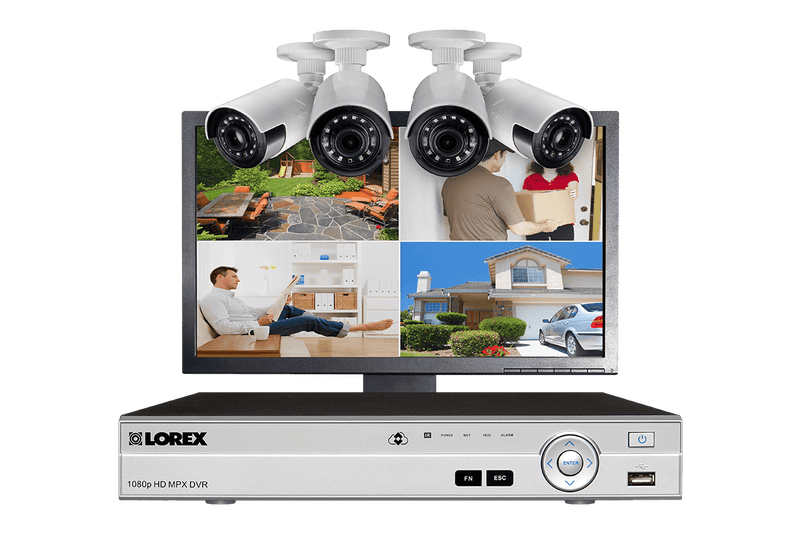

MPX44MUW home security system

Be confident in Lorex to safeguard the things that matter most by owning a reliable and cost-effective professional surveillance solution ideal for your home. The MPX44MUW web exclusive home security system features our 4-channel DV700 HD digital video recorder (DVR). It also comes with four 1080p bullet wide-angle weatherproof security cameras, with night vision capability. This well-rounded home security system is made complete with a widescreen 19-inch LED monitor.

MPX44MUW

SPECIFICATIONS

4

CHANNELS

1080P DVR can support up to 4 cameras

4

CAMERAS

4 HD wide angle security cameras

90FT

NIGHT VISION

Maximum night vision

1TB

HARD DRIVE

Maximum capacity 1 x 4TB hard drive

Lorex Cloud App

Lorex Cloud™ Enabled
Video - super wide angle security camera four-pack

Superior wide angle security cameras

Your LBV2561UW security cameras are the perfect choice for large area or doorway monitoring. These cameras provide superior coverage thanks to their massive 160° diagonal / 120° horizontal field of view. Whether you need to monitor a large room, the street in front of your house, or a wide backyard, a single wide angle security camera can often take the place of multiple standard viewing cameras.

wide angle security camera
HD Home security monitoring in 1080p resolution


HD home security monitoring in 1080p

High Definition security monitoring leaves nothing in question and can be the difference in identifying important details such as facial characteristics. Receive extensive video coverage from each of the LBV2561U HD security cameras thanks to their wide 160° angle lenses. 30 frames-per-second recording produces smooth on-screen movement (in 720p mode) so your HD home security system doesn’t skip a beat.

Extend security coverage up to 800ft for long distance security monitoring

Flexible Analog HD tecnhology

A single RG59 siamese BNC cable provides both video and power transmission, making for an easy and clutter-free set-up. Analog HD cameras such as the LBV2561U HD bullet security camera can be placed up to 800 feet away from the DVR - making them ideal for securing large properties (see documentation for complete details). The 4-channel DVR is also backwards-compatible. This unique feature allows you to use your old BNC cameras or choose from our wide range of analog BNC security cameras to expand your coverage.

Lorex Cloud App for remote viewing

Remotely connect your security system to a mobile device with Lorex Cloud™ App

The innovative and free Lorex Cloud™ app securely connects your security system to your smartphone or tablet. View live feeds (or recorded footage) of all your security cameras from wherever you are in the world. Features such as push notifications and instant email alerts for motion-triggered events will keep you connected to your property at all times.

Works With

professional night vision HD security system

24/7 security monitoring with reliable night vision

Trust in Lorex’s superior night vision technology to keep your property safe through the night. Cutting edge infrared (IR) LEDs within the LBV2561U security camera can see up to 90ft (27m) in ambient lighting and 60ft (18m) in total darkness. They also feature ClearNight imaging - a technology that offers superior low light operation and improves recording efficiency.

LBV2561U Night Vision Range
Energy efficient 19 inch LED monitor

19-inch energy efficient LED monitor

Lorex’s web exclusive MPX44MUW security system comes with an energy efficient 19-inch LED monitor so you can create a handy hub to view the live feeds (or recorded footage) of your security system. Easily set-up your security station by connecting the DV700 Series DVR to the monitor with the included VGA cable.

all year IP66 weatherproof rated security cameras

All-season weatherproof security system

The LBV2561U HD security cameras come with versatile ceiling or wall mounting options that allow you to install them wherever you need them most -indoors or outdoors. IP66 rated, they are able to withstand the most unforgiving outdoor climates. Lightweight (yet durable) polycarbonate housing makes the LBV2561U a reliable option for all-season security that never stops working.

LBV2561UW

LBV2561U

Heat Rating

122°F | 50°C

Heat Rating

Cold Rating

-4°F | -20°C

Cold Rating

Water Rating

IP66

Water Rating
Security HDD for HD security monitoring

Professional grade security certified hard drive

The 1TB security grade hard drive that comes with the MPX44MUW’s DVR is manufactured to cope with the high workload demands of security monitoring. It can even continue recording while you’re reviewing footage. Trust top quality performance - the hard drive can store weeks (or even months) of reliable security footage. Save recording space by adapting features such as scheduled and motion triggered recordings to fit your surveillance needs.

1080 MPX Comparison Chart
  HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording Full 1080p HD (1920x1080) 720p HD (1280x720) Analog 1080p HD (1920x1080) 720p HD (1280x720)
Platform 1080p HD NVR systems 720p HD NVR systems 1080p HD DVR systems 720p HD DVR systems
Video Digital IP / RJ45 connection Digital IP / RJ45 connection Analog BNC / RG59 connection Analog BNC / RG59 connection
Power PoE (Power over Ethernet) PoE (Power over Ethernet) Standard DC power Standard DC power
Installation Connect cameras to NVR or to router/LAN Connect cameras to NVR or to router/LAN Cameras require wired connection to DVR Cameras require wired connection to DVR

Video

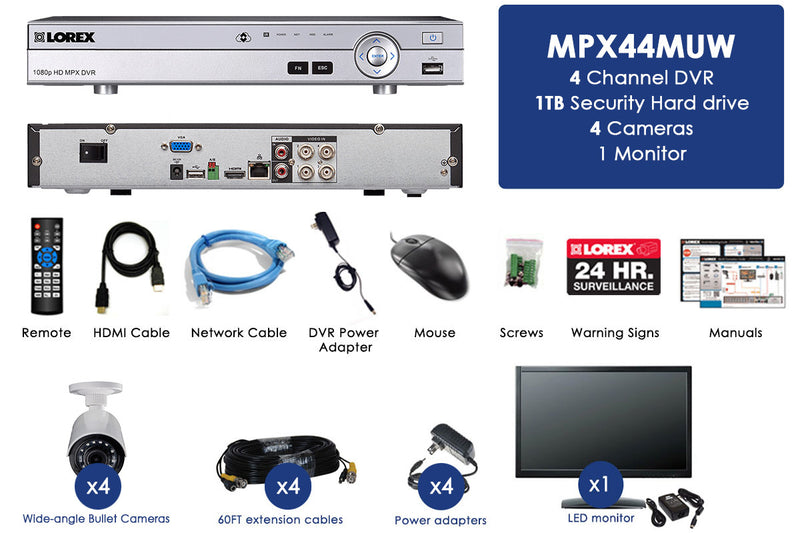

What's Included?

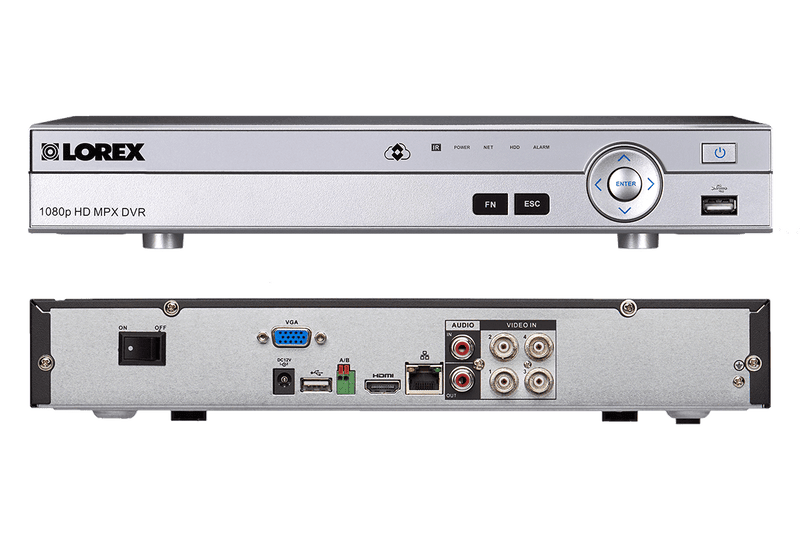

DV7041

Digital Video Recorder:
  • True high definition 1080p recording on all cameras1
  • 24/7 security-grade hard drive
  • Continuous, scheduled and motion recording
  • PTZ cameras supported, remote control through App1
  • H.264 video compression2
  • HDMI cable included for simple connection to HD TVs3
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade
  • 3-Step remote view with Lorex Cloud4
  • PC and Mac compatible 5
  • Instant mobile viewing on smartphones and tablets5
  • Advanced apps with live viewing, playback, video recording, and snap shot
  • Mobile push notifications of motion events and email alerts
  • Dual streaming to conserve bandwidth

Each DV7041 Includes:

1 × DVR
1 × HDMI Cable
1 × Remote Control
1 × Power adapter
1 × Mouse
1 × Ethernet Cable
Quick Start Guides

1. Compatible with Lorex 1080p and 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. HDMI output (1920x1080) HD for high definition multi-channel live viewing only. 1080p recording resolution is limited to a maximum of 1920x1080 per channel. Image quality and resolution is dependent on the type of camera connected to the DVR.
4. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 2 devices may connect to the system at the same time.
5. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

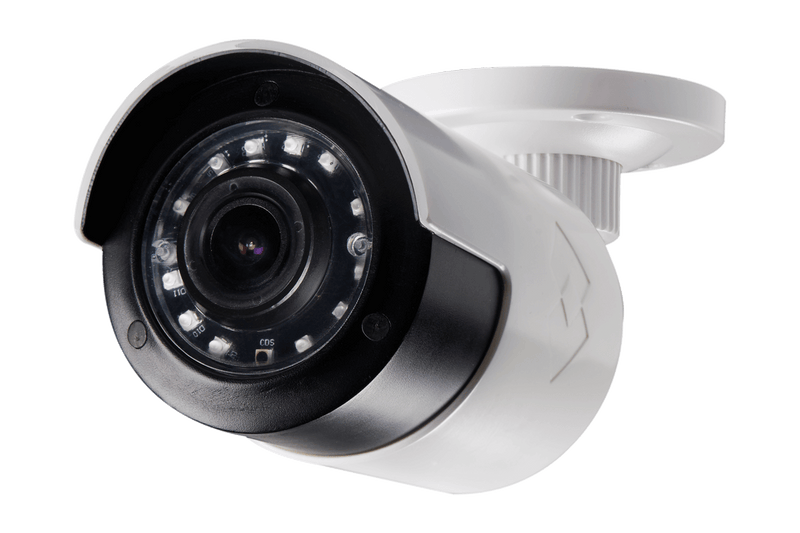

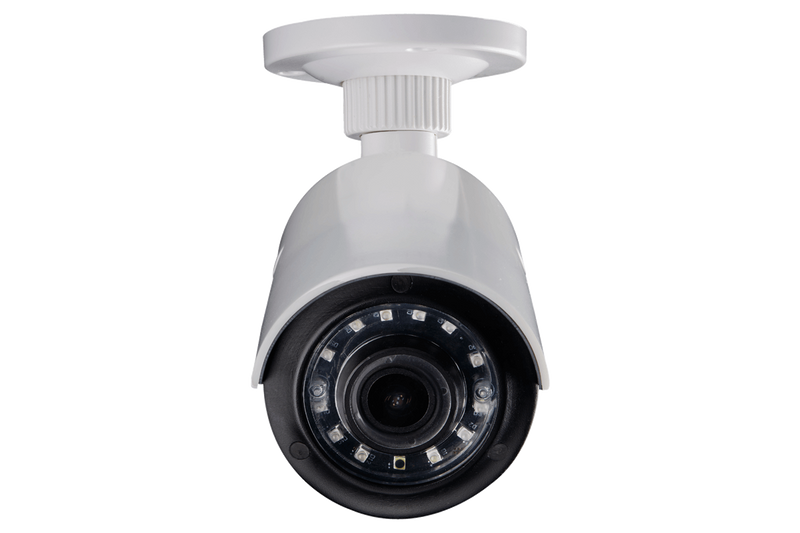

LBV2561U

1080p HD super wide-angle security camera:
  • High definition 1080p image sensor1
  • Ultra-Wide field of view captures the entire scene for superior coverage
  • Night vision range up to 90ft (27m) in ambient lighting and 60ft (18m) in total darkness2
  • Close up recognition in the dark with SmartIR
  • Infrared cut filter ensures accurate color representation
  • Anti-glare feature ensures clear images under strong lighting conditions
  • Split glass design minimizes IR reflection
  • Versatile ceiling or wall mounting options
  • Vandal resistant design with cable pass-through bracket and durable Polycarbonate construction
  • UL compliant cable suitable for surface and in-wall installation
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3

Each LBV2561U Includes:

1 × Night Vision Camera
1 × Mounting Kit
1 × 60ft Extension Cable
1 × Power Adapter*

1. 1080p HD cameras are compatible with Lorex 1080p HD DVRs only. For a list of compatible recorders please visit lorextechnology.com/support.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

*A Multi-Camera Power Adapter that provides power to multiple cameras or individual power adapters may be provided, depending on product configuration.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.

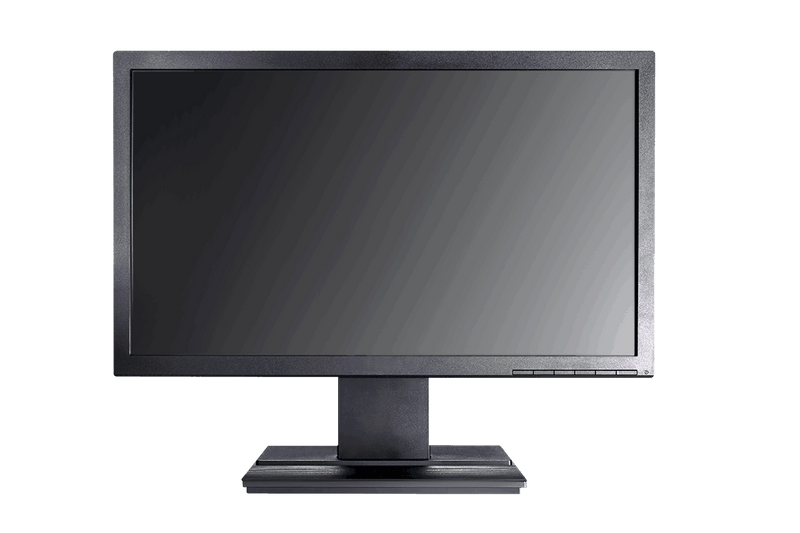

L19LE12B

Surveillance Monitor:
  • Display: 19.5" viewable image with 16:9 aspect ratio
  • Resolution: 1600 (H)x 900 (V)
  • Color resolution: approx. 16.7 million
  • Response time: 5ms
  • Contrast Ratio: 100,000,000:1 Max. (ACM)
  • Viewing Angle: 170°(H)/160°(V)
  • Power Source: Universal 100~240VAC,50/60HZ
  • Power Consumption: 13.5 W
  • Unit Dimensions: 18.2" (W) x 14.3" (H) x 7.5" (D) / 462.3mm (W) x 363.2mm (H) x 190.5mm (D)
  • Weight (NET): 6.4lbs / 2.9kg

Each L19LE12B Includes:

1 × 19.5" monitor with stand
1 × AC adaptor
1 × 15 pin VGA cable
1 × Instruction manual

Specifications are subject to change without notice.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
