2K IP Camera Security System with 16-Channel NVR, 140ft night vision, 3x Zoom lens

HDIP1666VW
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

HDIP1666DW

Experience the next generation of IP camera systems with this web exclusive bundle from Lorex. The HDIP1666VW features our 4K, 16-channel NR900 network video recorder (NVR). Accompanying this NVR is six 2K resolution IP bullet and six 2K IP dome security cameras. Space for four additional IP cameras is there for when your monitoring needs evolve.

HDIP1666VW

SPECIFICATIONS

16

CHANNELS

4K NVR can support up to 16 cameras

12

CAMERAS

12 × 2K IP cameras

140FT

NIGHT VISION

Maximum night vision

3TB

HARD DRIVE

Maximum Capacity 2 × 8TB hard drives

3mp security camera 2K reoslution security camera


3-megapixel image sensor

LND3374SB security camera is perfect for protecting your home or business thanks to an advanced 3 megapixel image sensor that produces stunning 2K resolution video. This level of detail helps ensure you capture critical details in your security footage.

2K (4 megapixel) network security monitoring

Why choose 2K security cameras?

Your 2K security cameras will provide you with a better chance to capture the details you need. It is important to note that a 2K security camera does not require a 2K capable television or monitor. The additional pixels will simply be there for you if an incident should occur. This is especially useful if you need to zoom into the distance as the details won't deteriorate as fast as they would if recording at a lower resolution.

30 frames per second security recording

30 FPS @ 1080p

Your security cameras are capable of recording at a real-time 30 frames per second (FPS) recording rate in 1080p HD. This high frame rate will not only provide you with exceptionally smooth on-screen movement, it can help you capture that precise moment that you require for evidence. This is because there are simply more frames available to choose from.

zoom lens security camera

3× optical zoom security camera

The LND3374SB security camera includes a versatile 3x optical zoom lens. This handy feature lets you remotely adjust the field of view (FOV) of the camera using your Lorex NVR or smart device. Choose anywhere from a 33° narrow-angle (to focus on a small area) to a wider 93° angle (for maximum coverage).

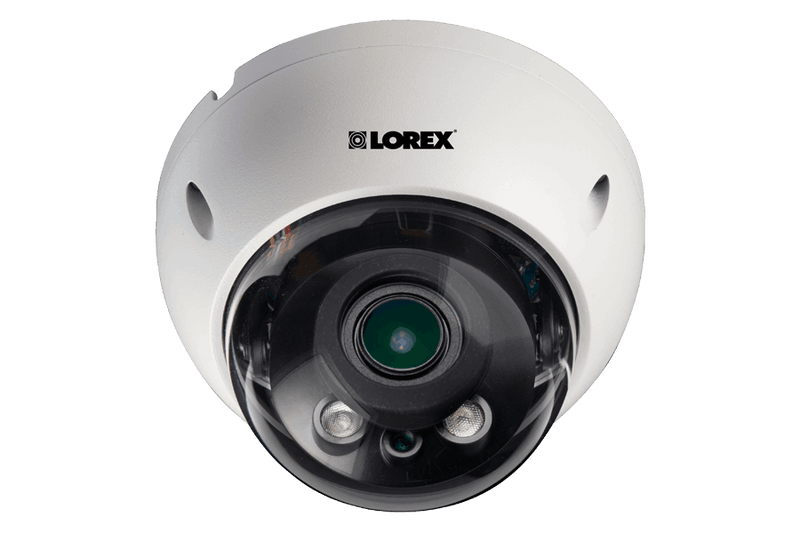

IK10 vandal-proof security camera

Vandal-resistant enclosure

LND3374SB is especially useful if a "within reach" installation cannot be avoided. It has been rated as 'IK10', meaning the camera can withstand violent impacts should someone try to damage it.

DNR security camera

DNR clarity

Every security camera included here uses a DNR (Digital Noise Reduction) feature that reduces the amount of noise / grain from low-light scenes. It will also reduce any noise caused by motion. By eliminating this graininess, your camera will provide you with a cleaner, more accurate image with better clarity, sharpness, and improved motion detection. It will reduce video file sizes as well, giving you greater disc space for storage.

Plug-and-play simplicity with Power over Ethernet technology

Plug-and-play installation with PoE technology

Lorex is proud to offer do-it-yourself IP camera systems. The HDIP1666VW web exclusive bundle is no exception. A simple plug-and-play setup will have your security system up and running in minutes. This is accomplished with power-over-ethernet (PoE) technology. Each IP camera needs only a single cable run to connect to your NVR camera. This cable provides both power and video transmission. Extend your coverage up to 300ft / 91m with this all-in-one cable (click here to purchase extension cables). A digital IP system such as this can incorporate a PoE switch, which allows you to extend and minimize the amount of cabling required for larger properties.

Lorex Cloud App

Remote mobile viewing with Lorex Cloud app

Always have your security system at your fingertips with the Lorex Cloud app for your mobile device. See what your cameras see or watch recorded playback all from the palm of your hand. This app will also keep track of all motion activity with easy-to-read timelines and send you push notifications for motion-triggered events.

Works With

System compatibility
System compatibility
excellent 2k night vision IP security cameras from Lorex

24-hour monitoring with outstanding night vision

Rely on the LND3374SB security camera to watch over your property through the night. This camera will provide clear images up to 140 feet (43 meters) away in regular nighttime conditions and up to 90 feet (27 meters) away in total darkness.

Night Vision Range

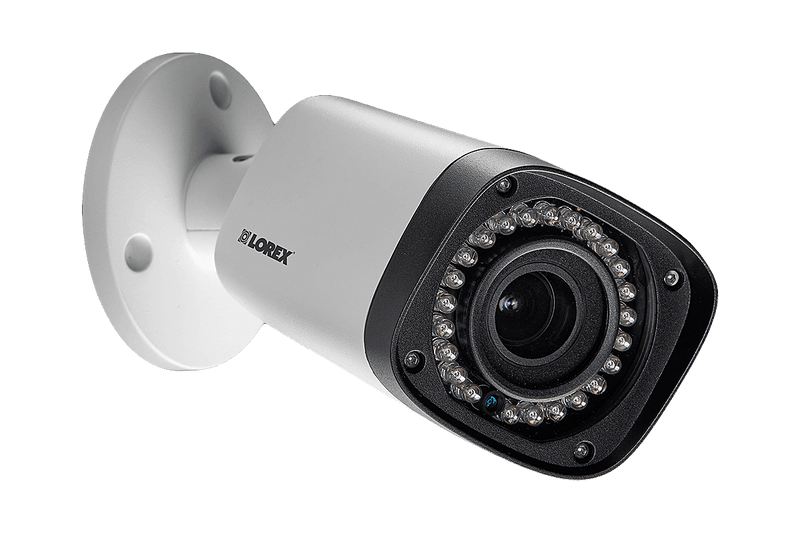

LNB3373B night vision security camera
3mp weatherproof outdoor IP camera

Engineered for the outdoors

The LNB3373SB security camera can withstand virtually any kind of weather. This includes both freezing and scorching hot temperatures.

sub-zero freezing security camera

Extreme cold resistance

LNB3373SB security camera can endure extremely cold temperatures as low as -22°F / -30°C. Some tests even saw it continuing to record in much lower temperatures (-40°F / -40°C) as well.

sub-zero

These Lorex security cameras have been rigorously tested in the most frigid conditions to ensure that they will continue to function even in extreme cold. Tested in temperatures as low as -22°F / -30°C, they are guaranteed to keep you secure, no matter what they endure.

LNB3373B

LNB3373SB

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

LND3374SB

LND3374SB

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

Metal Housing

Full Metal Camera Housing

Built from a solid unibody metal housing, the LND3374 allows for durability while still maintaining a lightweight design. The corrosion-resistant aluminum body makes this camera perfect for both indoor and outdoor use, protecting it from even the harshest of weather; rain, snow, or hail. Engineered from the same material that is used in construction of airplanes and cars, this Lorex camera is strong enough to withstand large impacts unlike conventional plastic security cameras.

Security grade hard drive for high workloads

Save footage to the heavy-duty 24/7 security certified hard drive

The HDIP1666VW security system features a 3TB security certified hard drive engineered to manage the constant demands of surveillance monitoring. Rely on this professional grade HDD to safely store weeks (or even months) of security footage.

NVR multiple recording modes - continuous recording scheduled recording motion recording

Recording options

Program your NVR to record security footage continuously, during scheduled times, or when movement is detected. If you wish to record only on motion, you never need to worry about missing those first vital. Motion recordings include a pre-recording function that will go back to record the five seconds before activity is detected. Most importantly, each camera can be customized with its own settings.

Automatic NVR security updates

Over the internet updates

Your NVR will receive automatic software updates as long as it is connected to the internet. These updates are free-of-charge and will always make sure that your system is up-to-date and protected from any new vulnerabilities.

Image resolution comparison

2K 4mp Comparison Chart
  2K HDIP HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording 4mp (2688

Video

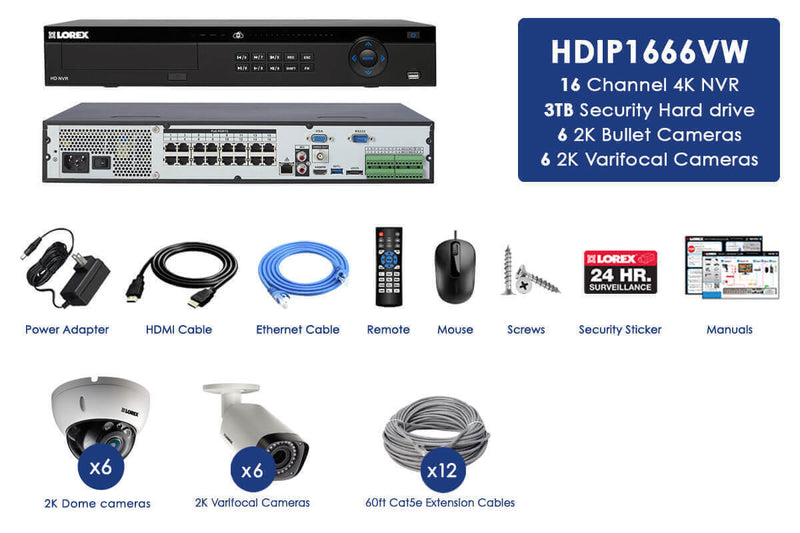

What's Included?

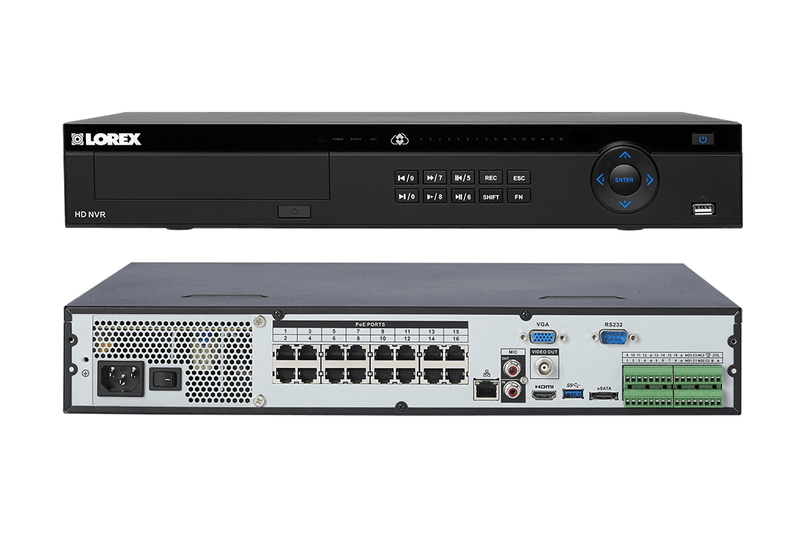

NR9163

16 channel, 4K ultra HD network video recorder:

  • Real-time recording up to 8MP on all channels - 4× the detail of 1080p
  • Supports industry-leading 4K recording 1
  • 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • RapidRecap® - see the day in a minute with hours of activity compiled into a short video summary
  • Lorex Secure™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™) 2
  • PC and Mac compatible - Lorex Cloud™ video management software gives you complete control over your security systemfrom anywhere 2
  • 24/7 security-grade pre-installed hard drive 3
  • Expandable high capacity storage up to 16TB (2×8TB HDD)
  • Automatically detects compatible IP cameras in the network 4
  • 4K video output - view multiple HD channels at once in full resolution on a 4K TV
  • H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing 3
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time asrecording to the primary hard drive 5
  • Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date 6
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD amp; 4K TVs
Operating System Linux (embedded)
Pentaplex Simultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels 8/16/32 Channels
Video IN 8ch: 8 PoE, 16/32ch: 16 PoE
Video OUT No
VGA OUT Yes
HDMI Yes
Audio IN 1 Line IN (RCA) for service only
Audio OUT 1 Line OUT (RCA) for service only
USB Port 1 at the back, 1 at the front
Alarm IN 4 Alarm IN
Alarm OUT 2 Alarm OUT
Video Output Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
PTZ control Lorex IP PTZ cameras only
Display 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36
Live Display Speed 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL
OSD ON/OFF
System Navigation USB Mouse, IR Remote Control, Front Panel Buttons
Motion Area Setting Fixed Grid (22×18)
Sensitivity Levels 100
Firmware Upgrade Automatic over the Internet & via USB device and network
User Authority By user group
Time Synchronization Automatic time sync by NTP server
Video Compression H.264 / H.265
Audio Compression G.711
Resolution Up to 4K (3840×2160), 1080p (1920×1080)
Record Rate 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP
Recording Resolution Setting Per camera for different resolutions
Recording Quality Control 6 Levels
Recording Schedule By hour, by day, by recording mode, by motion, by alarm, by channel
Pre Recording Max. 4 Secs
Post Recording Max. 5 Minutes
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes
Playback Channel 1CH/4CH@4K, 8CH@4MP, 16CH@2MP
Playback Speed Variable Max 16x
Playback Players Backup Player
Search By Time & Event
Log Search Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss
Audio Play Yes (audio camera required)
Storage Up to 2 HDDs (SATA)
Maximum Capacity Up to 2×8TB (16TB Max)
Backup Media USB Flash Drive & HDD
Backup File Format DAV or ASF File
Cloud Connection Lorex Secure™
Supported Operating Systems Windows™ / Mac OS X
Remote Software Client Software (PC & Mac)
Email Notification Text with snapshot
Instant Smart Phone & Tablet Android™, iPad®, iPhone®
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Network Interface 10/100/1000-Base-TX, RJ-45
Network Bit Rate 320Mbps total, 48~8192kbps per camera
Power Consumption Approx. 15W (no HDD included)
Supply Voltage 100VAC-240VAC, 50/60Hz
Total PoE Power Output 130W (Max 25W per Camera)
Unit Dimensions (W × D × H) 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm
Unit Weight 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH

Each NR9163 Includes:

1 × NVR
1 × Power cable
1 × Remote control
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 8MP IP cameras are required to take advantage of 4K recording.
2. Requires a high speed internet connection and a router (not included). A minimum upload speed of 3.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support
3. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
4. Compatible with Lorex PoE HD IP cameras only. For a list of compatible cameras, please visit www.lorextechnology.com/support
5. Mirror recording requires a second hard drive (not included) to be installed in the NVR. Mirrored hard drive must be as large or larger than the primary hard drive to backup all recordings. Backup begins from when the mirrored hard drive is installed and configured.
6. Both firmware and software must be updated to latest version to ensure remote connectivity. Firmware updates are pushed to the NVR automatically over the Internet (available at www.lorextechnology.com). Always update to the latest software after upgrading the NVR firmware.

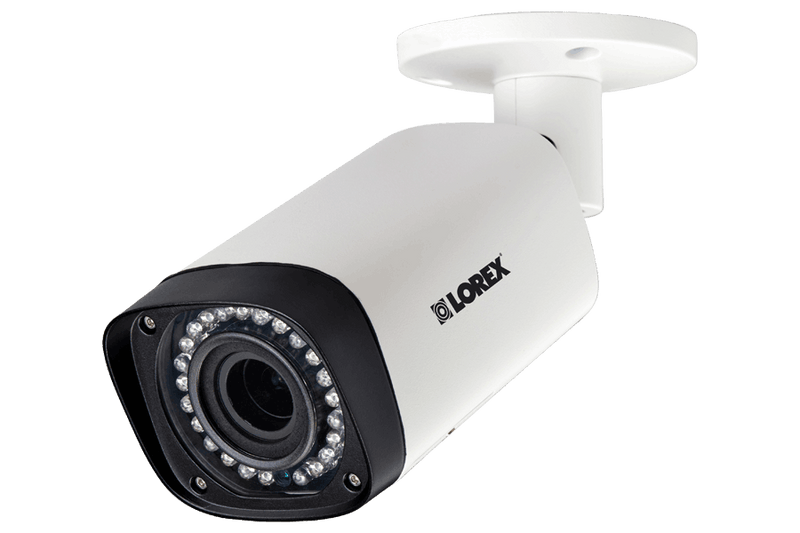

LNB3373SB

3 megapixel Indoor/Outdoor Security Camera with Motorized Lens

LNB3373SB
  • High definition 3MP image sensor delivers 50% more detail than 1080p HD1
  • 3
