16 Channel Fusion NVR Security System with Eight 2K (5MP) Color Night Vision IP Cameras

LN10802-168BW
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

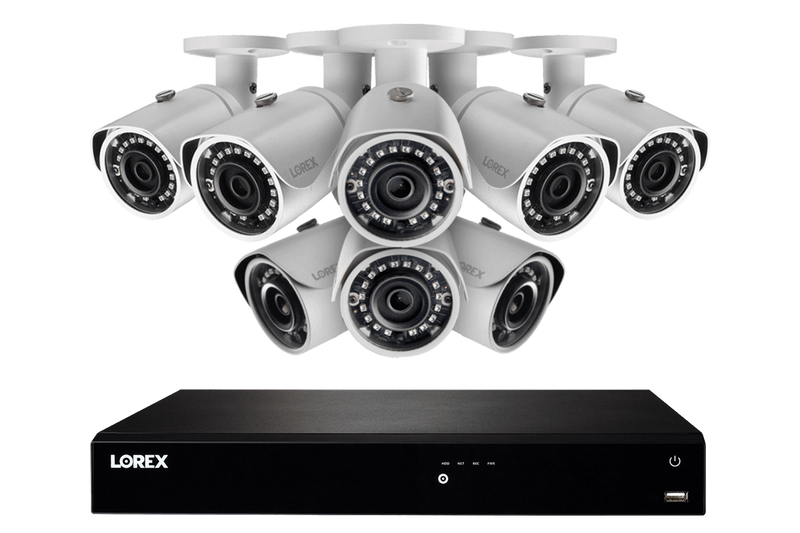

LN10802-168BW 2K IP Security Camera System

Secure your home or business with this 16-channel Fusion NVR security system. Included in this system is eight 2K (5MP) resolution bullet security cameras with exceptional color night vision capabilities. With twelve open channels and a 4K capable NVR, this system is easily expandable to suit any type of property. Also, as part of The Lorex Fusion Collection, this NVR can pair with wireless products on open channels and record them continously to its hard drive.

LN10802-168BW

SPECIFICATIONS

16

CHANNELS

4K NVR can support up to 16 cameras

8

CAMERAS

8 bullet 2K (5MP) IP cameras

135FT

NIGHT VISION

Maximum night vision with Color Night Vision

3TB

HARD DRIVE

Maximum Capacity 2 x 8TB hard drives




Expand your system with the Fusion Collection

The Lorex Fusion Collection is a set of Network Video Recorders (NVRs) and Wi-Fi devices that are united by our Lorex Home App. Working together, the NVR can essentially "fuse" together Wired and Wi-Fi systems!


Network Video Recorders


Wi-Fi Devices


Lorex Home App

For more information, please visit our Fusion Collection Guide.


5MP High Definition IP Camera


2K (5MP) resolution recording

The camera's 5MP image sensor adds a heightened level of detail and clarity to your security footage when compared to 2MP (1080p Full HD) security cameras.

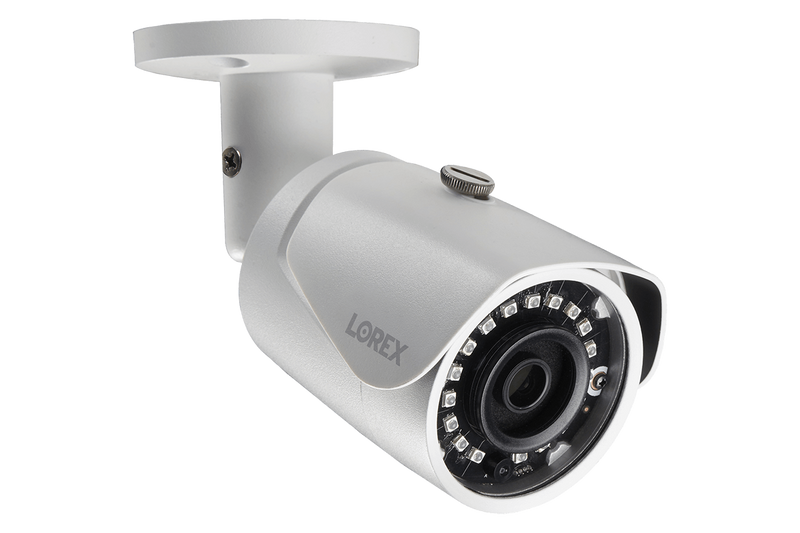

color night vision (CNV) bullet IP camera

See color in the dark

Experience enhanced clarity and capture important details even at night thanks to Lorex's exclusive Color Night Vision™ (CNV). CNV works best with the help of plenty of ambient lighting. In the event of minimal ambient light, the cameras will revert to IR (infrared) night vision. These cameras have an IR range of 130ft (40m) in low-light settings and 90ft (27m) in complete darkness.

Weatherproof & cold climate capable

Weatherproof & cold climate capable

Although this camera is suitable for both indoor and outdoor installation, its IP67 weatherproof rating and aluminum casing means it can withstand pretty much anything, such as heavy snowfalls, rain or wind. It has also been tested in temperatures as low as -4

What's Included?

N862A63B

4K Ultra HD Network Video Recorder Features:

N862 dimensions
  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras1
  • View live footage in up to 15fps and digitally zoom in on distant objects for better clarity2
  • Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more3
  • Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
  • Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD
  • Reduce unnecessary alerts and false alarms with Smart motion detection5
  • Get push notifications when motion from a person or vehicle is detected7
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • 2 bay hard drive with up to 2 x 8TB of storage space with no hidden monthly fees
  • Local built-in security-grade hard drive
  • Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
  • Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)4
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)

Each N862A63B Includes:

1 × NVR
1 × AC power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
5. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
6. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
7. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
8. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
9. NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage requirements in order to not exceed the NVRs power output availability of the recorder vwhen adding cameras. Please see compatibility chart.

E581CB-E

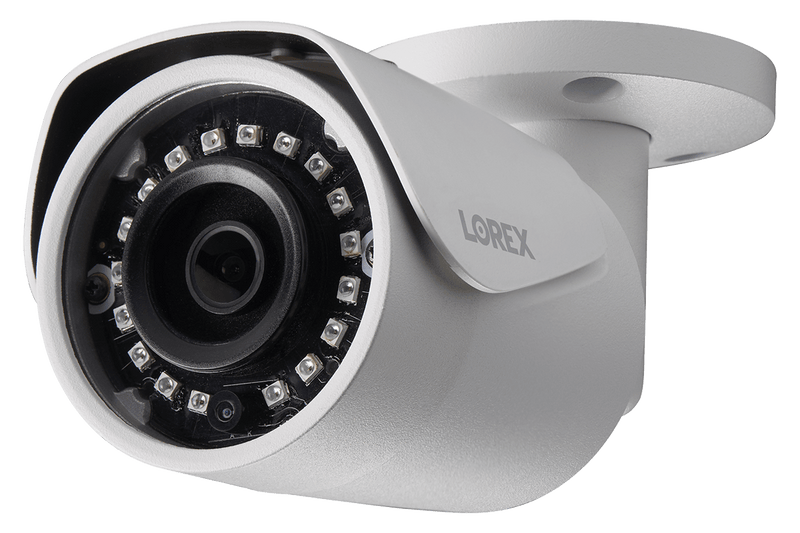

5MP High Definition IP Camera

  • View video with more than twice the resolution of 1080p, ensuring clear and detailed footage, every time
  • 96° Field of View (horizontal)
  • Cameras automatically adjust to changing light conditions to ensure consistent video quality
  • No need to worry about dark areas or glare from sunlight effecting your video clarity, when HDR is turned on
  • Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ 1 (ambient lighting required)
  • Up to 135ft (41m) IR night vision in low light and 90ft (28m) it total darkness2
  • Weatherproof Rated (IP67)
  • All-metal housing is built to withstand harsh weather conditions
  • Operates in temperatures as low as -4°F (-20°C) and high as 122°F (50°C)

Each E581CB-E Includes:

1
